Product #: 3143855004RA51
UPC #: 810027779182

AGM Rattler TS25-256

Authorized Dealer
Price:
$1,199.00 $1,318.00Save 9%
Specs Highlights:
Reticle
5 types, 3 colors, on/off
Eye relief
45 mm
Weight
568 g ( 1.16 lb)
Magnification
3.5x

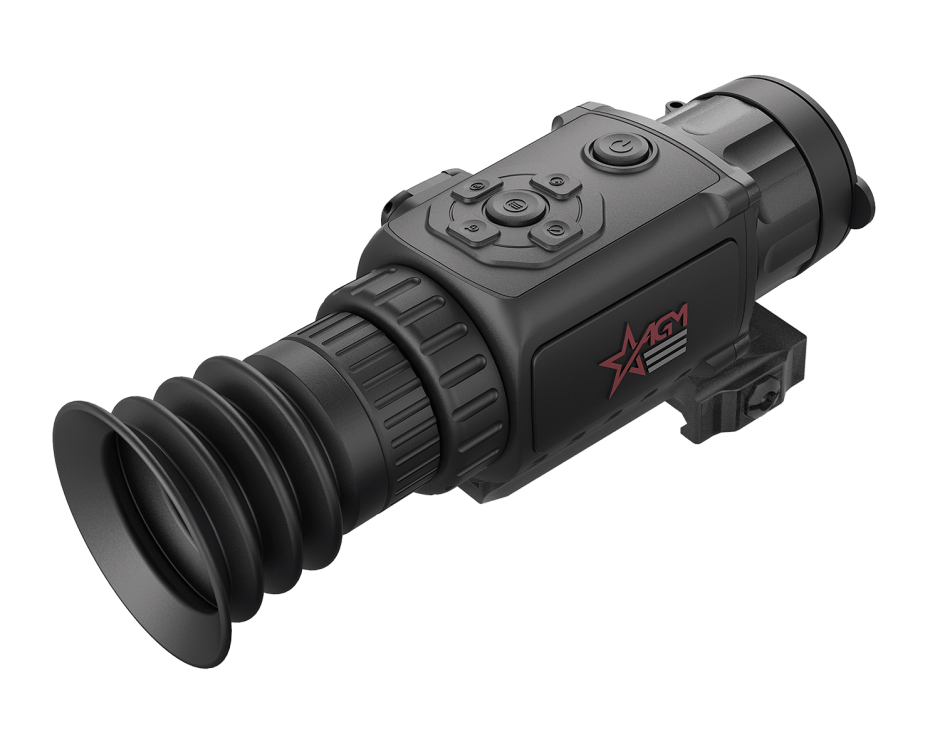

The Rattler thermal scope series are compact designs developed for 24 hours operation under any
weather and environmental conditions. A wide selection of different lenses and thermal detector
resolutions allow the customer to select the ideal instrument for tasks at different distances.
The Rattler series scopes use a high-sensitivity thermal detector and 1024×768 OLED monitor, which
provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow,
wood, camouflage, etc.

Powered with two CR123 batteries the AGM Rattler TS provides up to 4.5 hours of continuous
operation. An external 5V power bank (battery pack) can be easily connected via a USB-C connector for
a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming
and video/images recording via mobile application.

Features

  • 256×192 thermal resolution, 12μm, high sensitivity detector (NETD <35mK)
  • Image processing technology: Adaptive AGC, DDE, 3D DNR
  • 1024×768 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • 3-Year warranty

      Battery life (operating at 20°С) Up to 4.5 hr
      Palettes Black Hot, White Hot, Red Hot, Fusion
      Reticle 5 types, 3 colors, on/off
      Drop Test Height 1.5m (4.9 feet)
      Boresight Adjustment Digital Controlled
      Boresight Increment 0.17 mil / 0.58 MOA
      Distance Measurement Yes (Stadiametric Rangefinder)
      Scene Mode Jungle, Recognition
      Picture In Picture Mode (PIP) Yes
      Hotspot Yes
      Video Recording Yes
      Defective Pixels Correction (DPC) Yes
      Uniformity Correction Auto, Manual, External Correction
      Digital Magnification 3.5x - 28x
      Detector type 12μm, Uncooled, 25 Hz
      Standby Mode Yes
      Resolution 256 × 192
      Detection Range (6' object) 1250m/yd
      Snapshot Yes
      Lens system 25 mm; F/1.0
      Field of view (H × X) 7.0° × 5.3°
      Digital zoom 1×, 2×, 4×, 8×
      Eye relief 45 mm
      Display 0.39-inch, OLED, 1024×768, 50 Hz
      Storage Built-in EMMC (16 GB)
      Battery Type Two CR123 (3V) Lithium
      CVBS Output Yes (via USB)
      External power supply 5 VDC/2 A, USB Type-C interface
      Operating Temperature Range -20°C to +55°C (-4°F to +131°F)
      Degree of Protection IP67
      Weight 568 g ( 1.16 lb)
      Overall Dimensions 187 × 63 × 80 mm (7.4 × 2.5 × 3.1 in)
      Package Includes Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
      Magnification 3.5x
