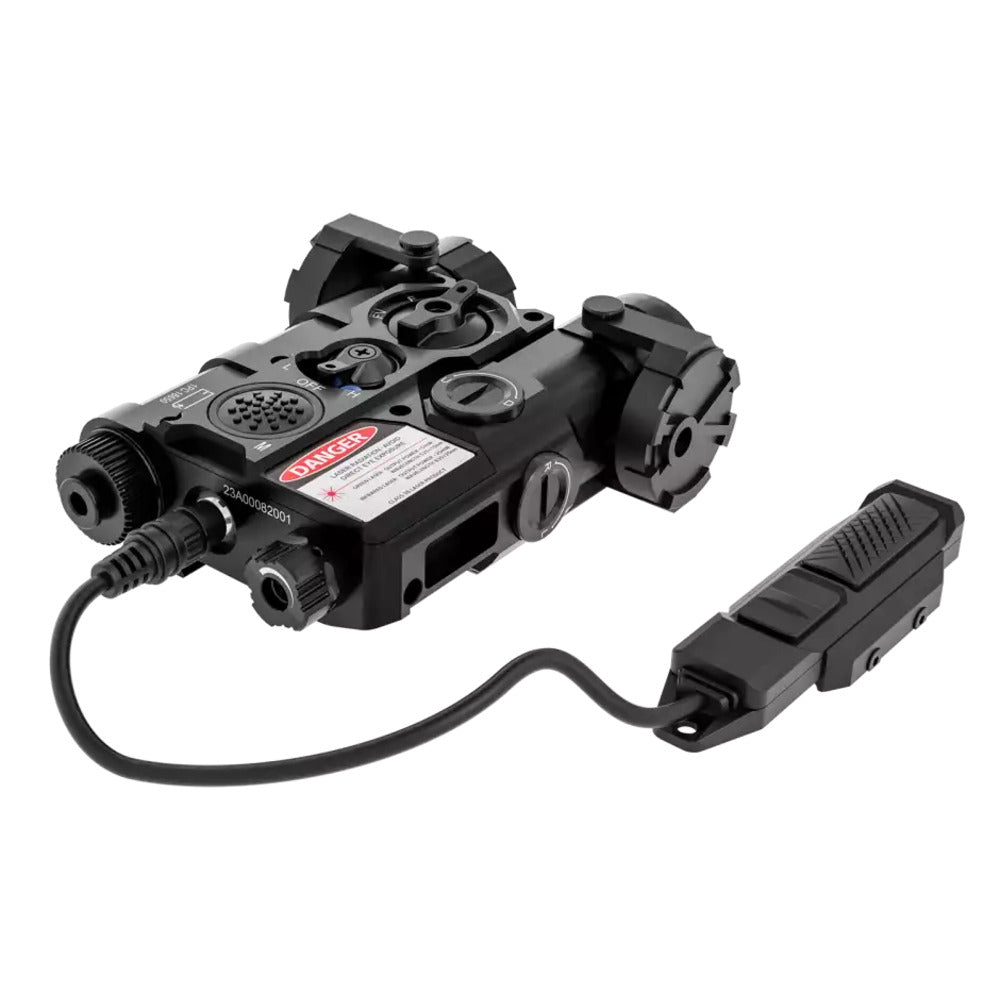

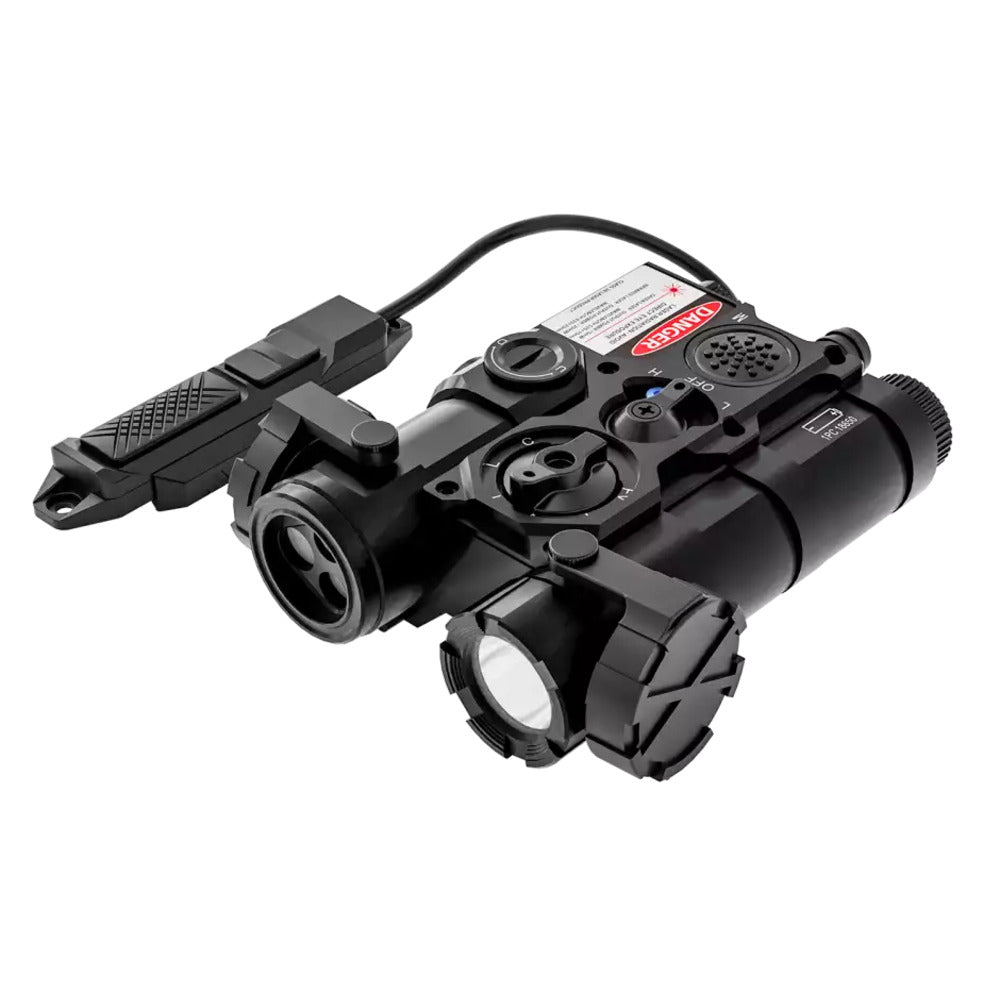

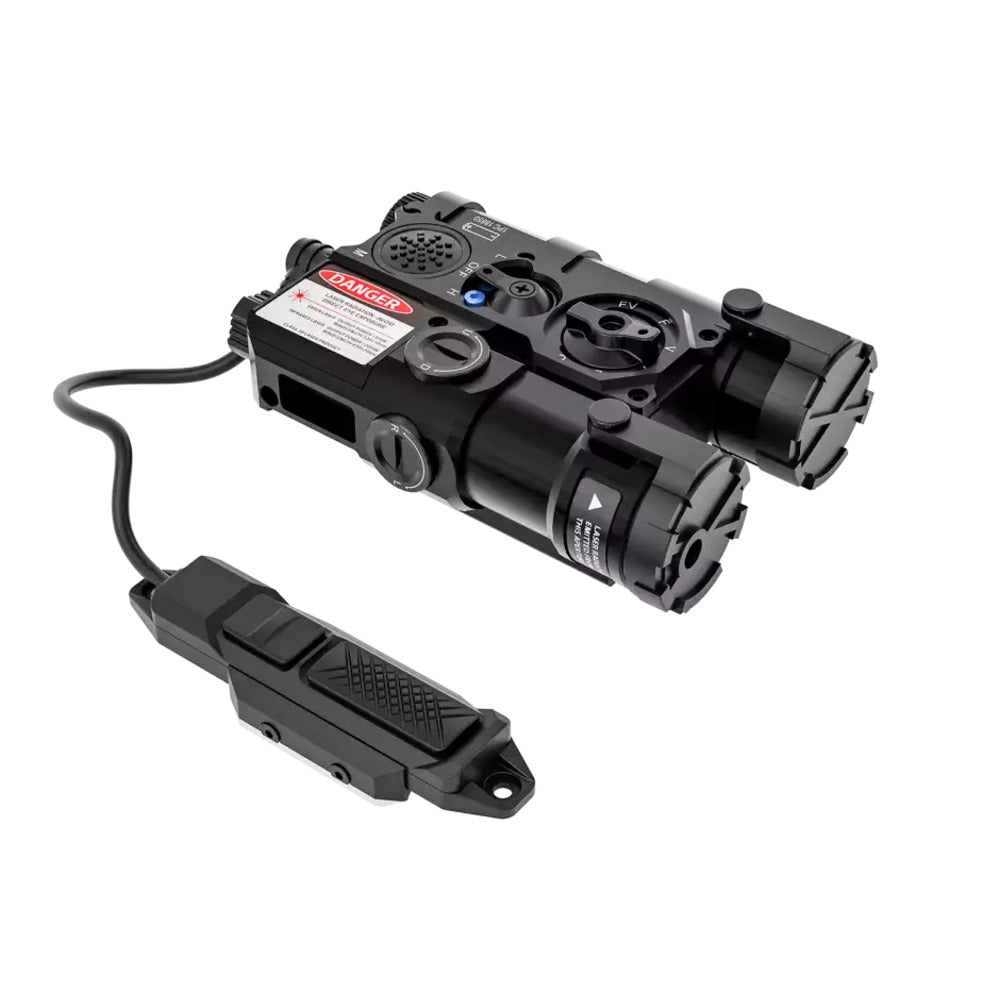

Description
The WLAD Weapon Laser Aiming Device is a CLASS 3B laser consisting of a green visible aiming laser, a near-infrared (near-IR)
aiming laser, IR illuminator and 500 lm LED illuminator.
The function of the WLAD is to provide an operator with highly collimated aiming lasers for precision aiming and targeting visible
in low light conditions and in conjunction with night vision devices for night time applications. The focusable near-IR Illuminator
floods the area of interest with near-infrared light only visible when used with night vision devices.
Warning: California's Proposition 65
Features
- Rapid active target acquisition
- True night vision compatible mode
- High/Low output power and six function modes
- User selectable constant wave or pulsed modes of aiming lasers
- 500 Lumen LED flashlight
- Tactical remote switch
- Co-boresighted aiming lasers
- Low base design
- IPX8 waterproof
- 2-Year Warranty
Package Includes
- Aiming/Illumination Module
- Remote Switch
- Operation Manual
- Soft Carrying Case
- Clean Brush
- Clean Cloth
- 1x 18650 battery
- Battery charger
Specs
Specs Highlights:
Weight
298 g ( 10.5 oz)
Dimensions
113 × 77 × 42 mm (4.3 × 3.0 × 1.5 in)
| Divergence | IR LASER - 0.5+0.3 mrad GREEN LASER - 0.5+0.3 mrad, IR ILLUMINATOR- 1-100 mrad |
| Class | IR LASER, GREEN LASER, IR ILLUMINATOR - 3B |
| Output power | IR LASER - 2±1 mW (Low) 20±5 mW (High), GREEN LASER <4 mW (Low) 10±2 mW (High), IR ILLUMINATOR 2±1 mW (Low) 20±5 mW (High) |
| Operating distance | IR LASER - > 400 m (Low) >2,000 m (High), GREEN LASER - > 50 m (in direct sunlight), GREEN LASER - > 400 m (Low) >2,000 m (High) |
| Wavelength | IR LASER - 830±15 nm GREEN LASER - 520±10 nm, IR ILLUMINATOR - 830±15 nm |
| Weight | 298 g ( 10.5 oz) |
| Dimensions | 113 × 77 × 42 mm (4.3 × 3.0 × 1.5 in) |
| Color (housing) | Black (WLADL-3B) / Tan (WLAD-3T) |
| Battery Type | One 18650 Li-Ion rechargeable battery (3.7V) |
| Protection Level | IP68 |
| Shockproof | 1,200 G |
