AGM NVG-40 NW1

Product #: 14NV4122454011
Manufacturer #: 810027779366

Price:
Sale price$4,795.00 Regular price$5,034.00Save 5%
Stock:
Sold out
Night Vision: NVG-40 NW1
Magnification
1x
Eye Relief
25 mm
Weight
645 g (1.42 lbs)

Similar items

Overview
Specs

Overview


DESCRIPTION AND FEATURES

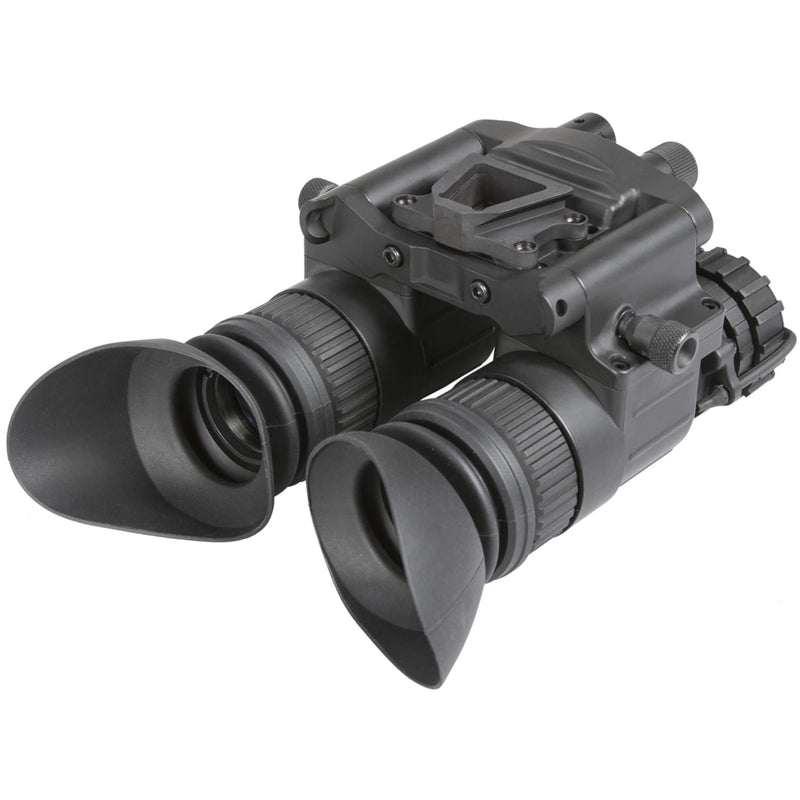

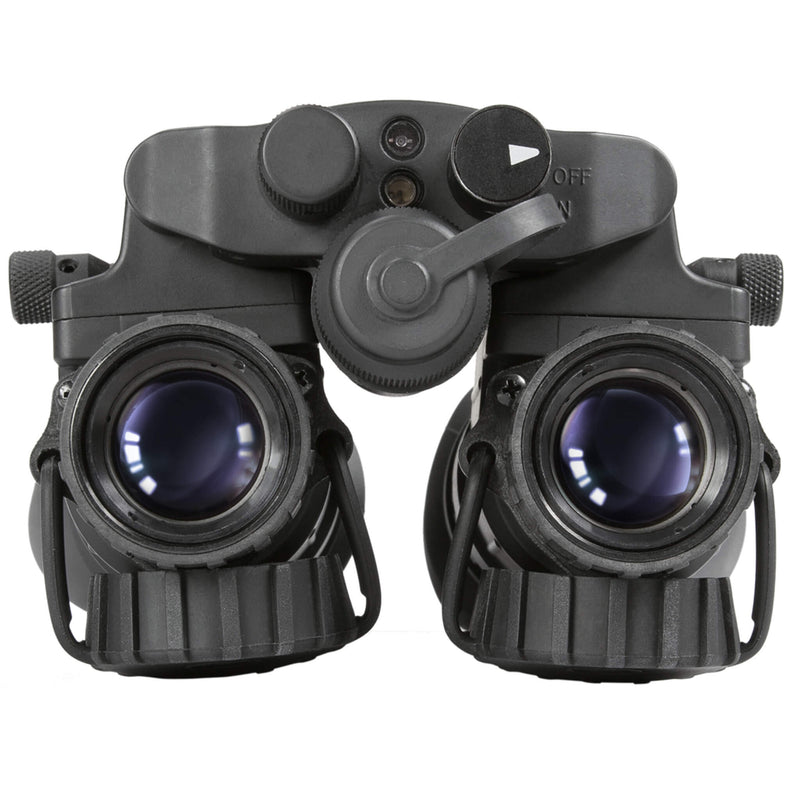

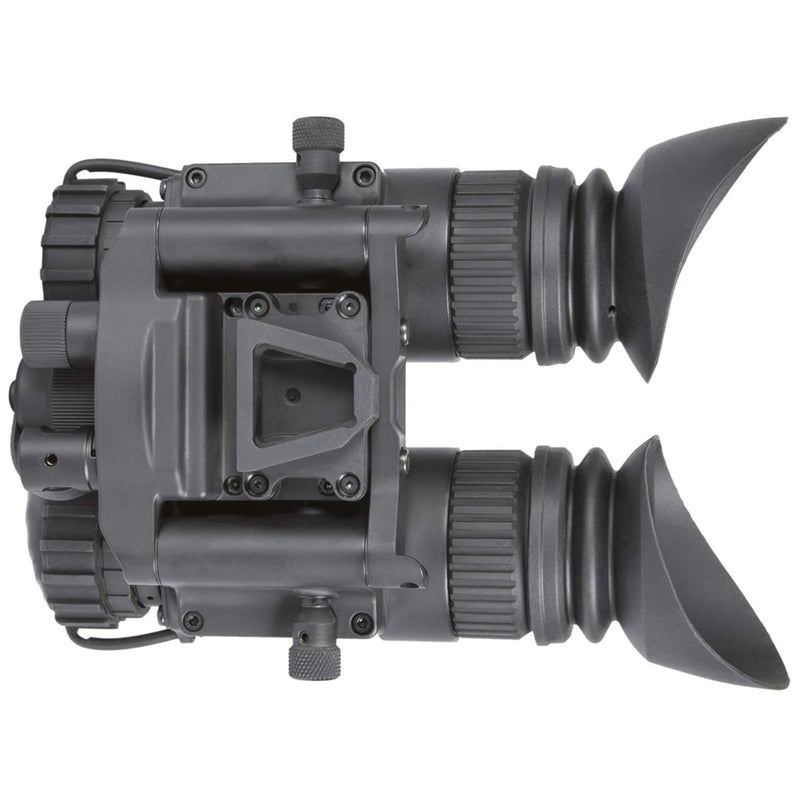

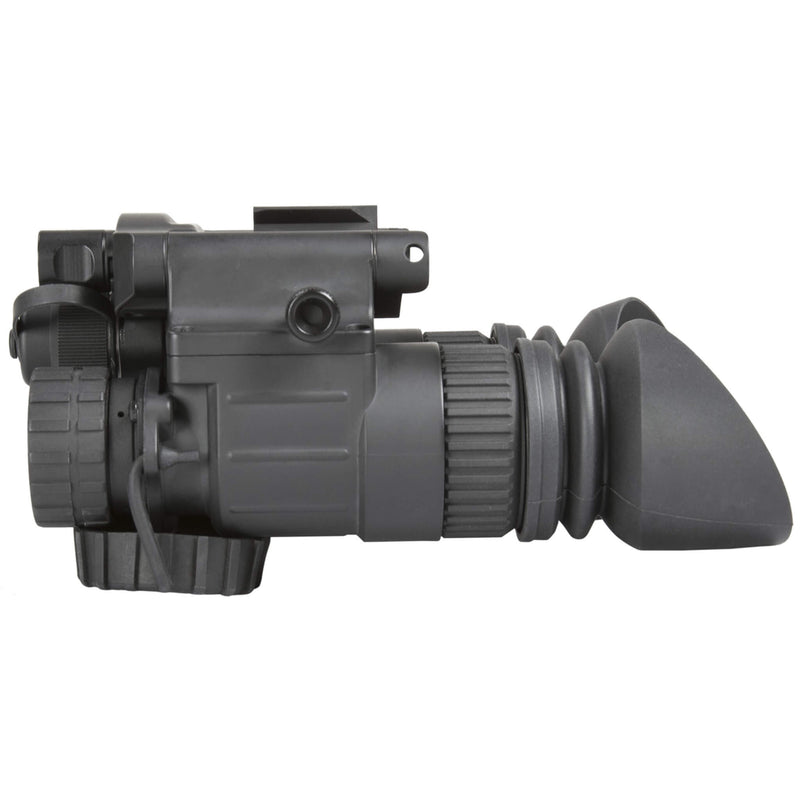

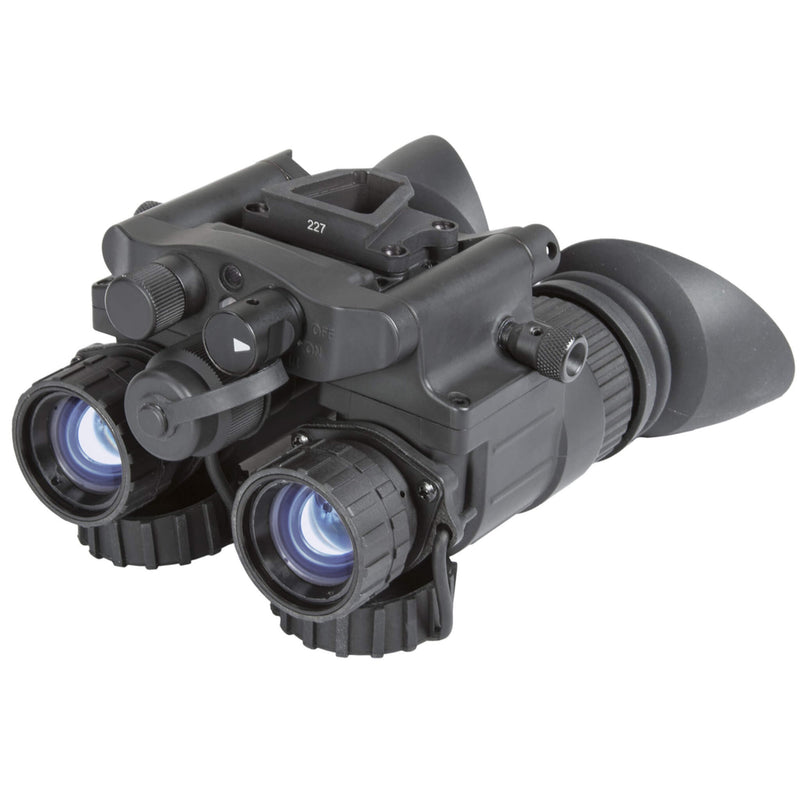

The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

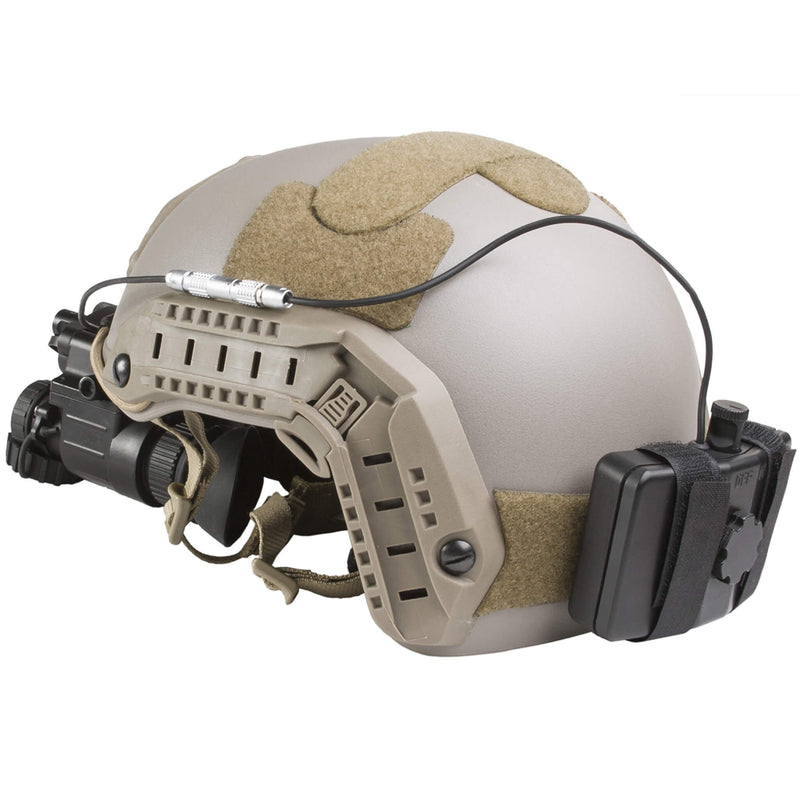

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount


Warning: California's Proposition 65


  • Redundant dual-tube design
  • True stereoscopic vision
  • Lightweight & compact
  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • Limited 3-year warranty

Package Includes:

  • Night Vision Goggles,
  • Soft Carrying Case,
  • Lens Cloth, Battery Adapter,
  • User Manual
    Battery Life (Operating):
    Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

    Field of view cleanness by zone:
    Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.

      Specs


      Image Intensifier Tube Gen 2+ "White Phosphor Level 1"
      Resolution 51-64 lp/mm
      Magnification 1x
      Lens System 27 mm, F/1.3
      FOV 40°
      Focus Range 0.25 m to Infinity
      Eye Relief 25 mm
      Diopter Adjustment -6 to +2 dpt
      Led Indicators Low Battery IR On Excessive Light Conditions
      Infrared Illuminato Yes
      Manual Gain Control Yes
      Bright Light Cut-Off Yes
      Automatic Shut-Off System Yes
      Battery Type One CR123A (3V) or AA (1.5 V)
      Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
      Storage Temperature Range -50°C to +70°C (-58°F to +158°F)
      Weight 645 g (1.42 lbs)
      Overall Dimensions 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
