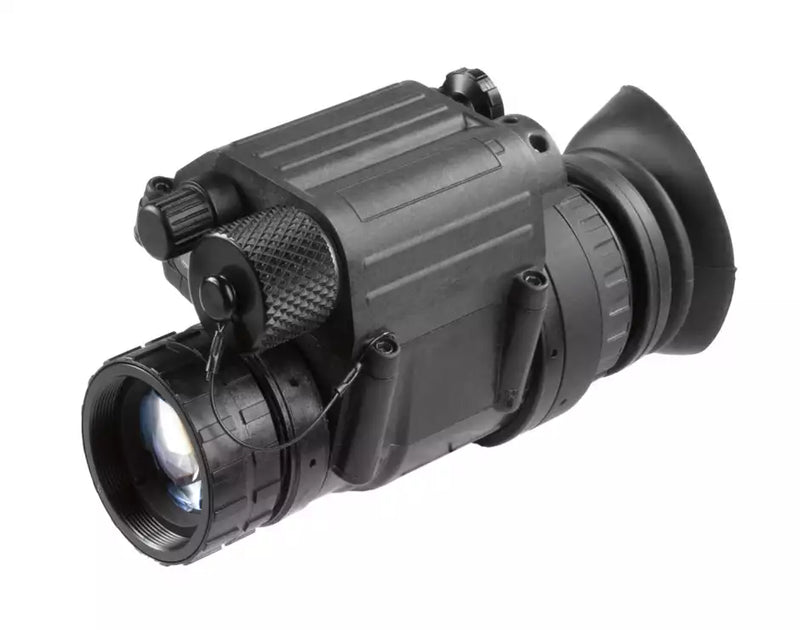

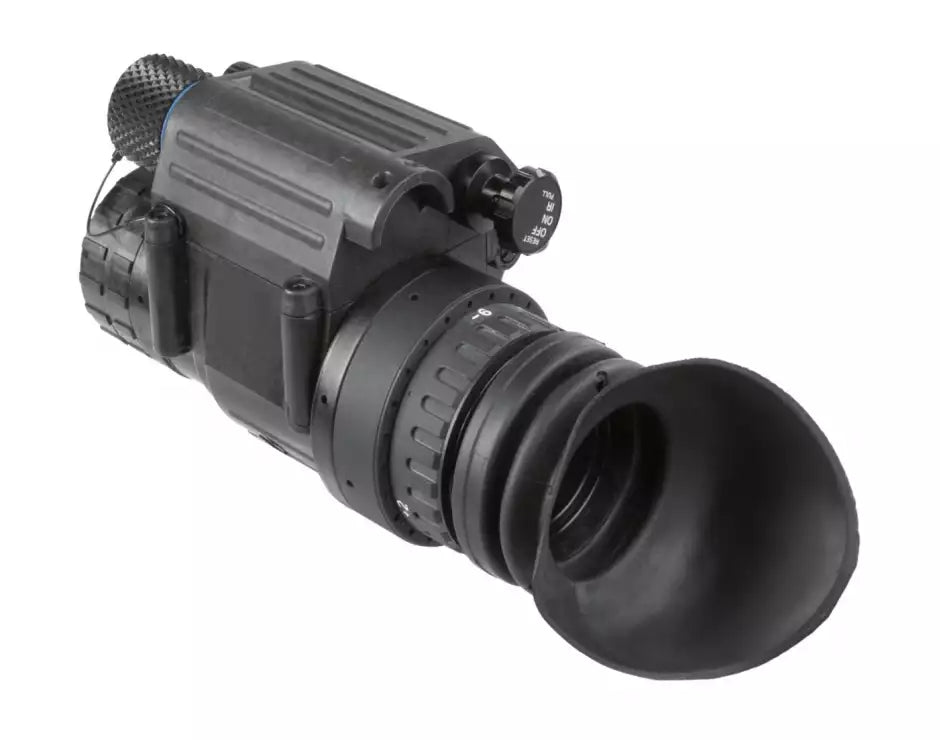

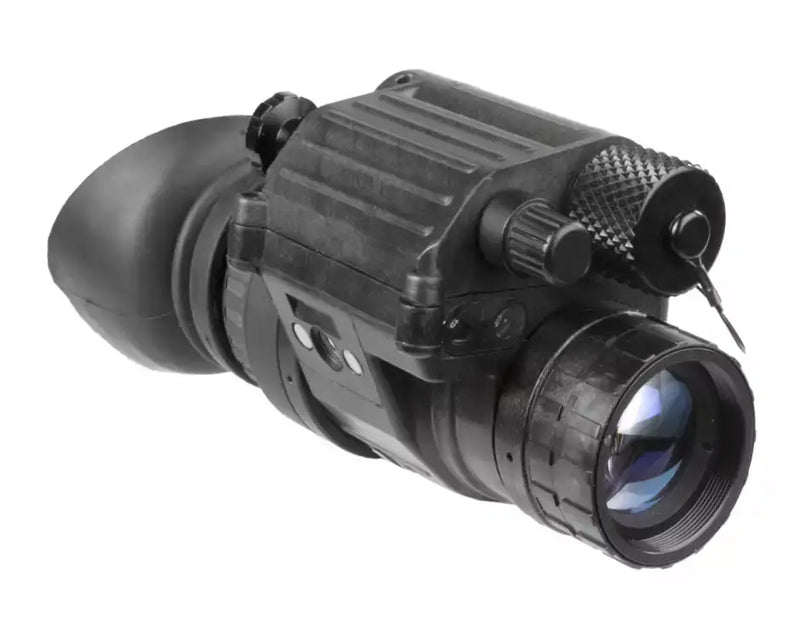

AGM Global Vision 11P14123484111 PVS-14 3AW1 Night Vision Hand Held/Mountable Scope Black 1x26mm, Gen 3 Level 1, White Phosphorus Overview

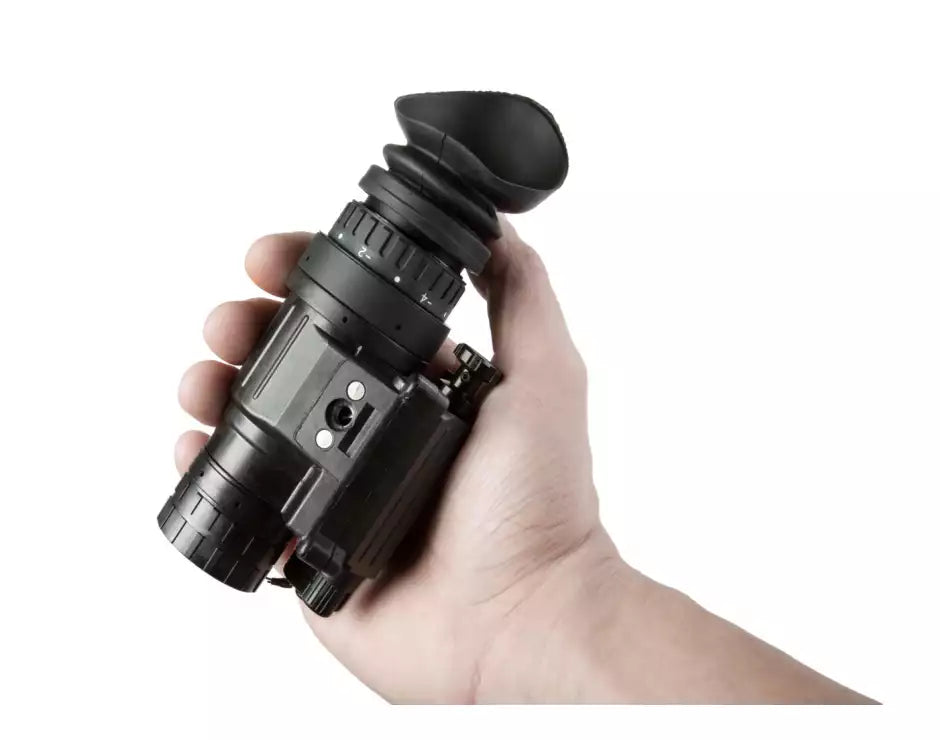

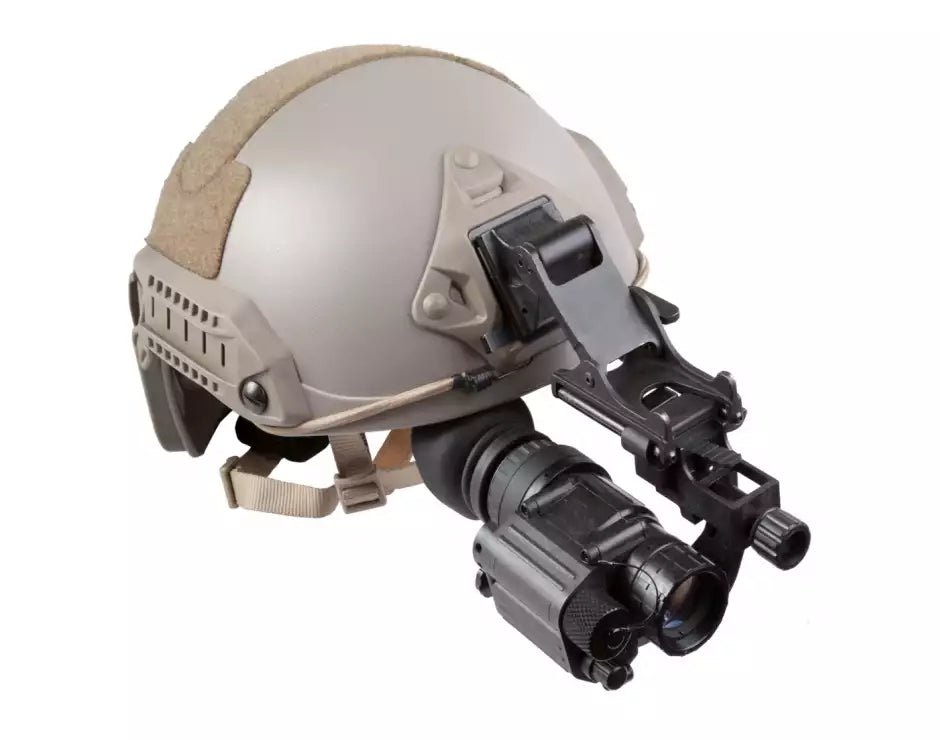

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function. The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14 includes an array of optional accessories to support virtually any operation.
Package Includes
- Packing Box
- System Soft Carrying Case
- Helmet/ Head Mount Adapter

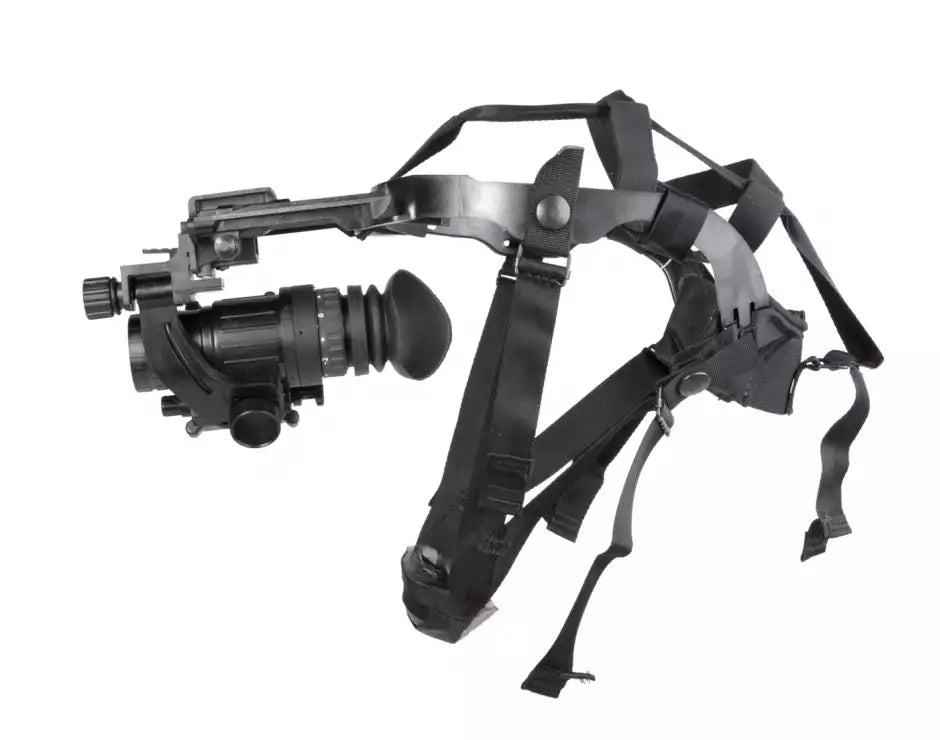

- Head Mount Assembly
- Neck Lanyard
- Operators Manual
- Batteries
- Demist Shields

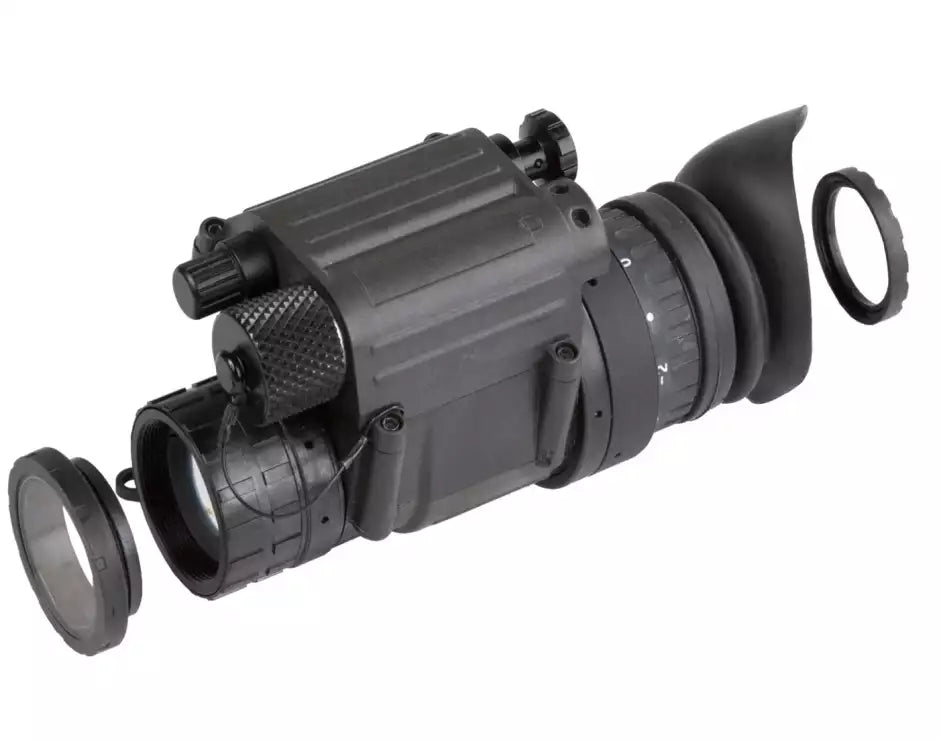

- Sacrificial Window
- Lens Tissue
Features
- Compact, rugged design
- Waterproof

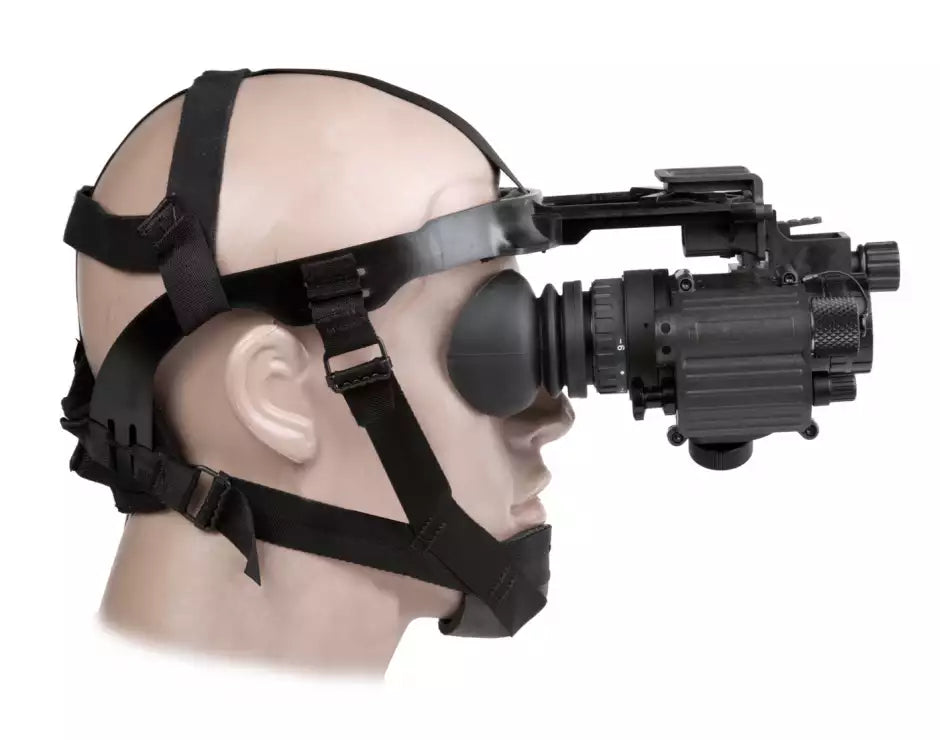

- Head or helmet-mountable for hands-free usage
- Manual gain control
- Ergonomic, simple, easy-to-operate controls
- Built-in Infrared illuminator and flood lens
- Limited Three-year warranty
Specs
| Image Intensifier Tube | Gen 3 Auto-Gated "White Phosphor Level 1" |
| Resolution | 64-72 lp/mm |
| Field of view cleanness by zone | Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1. |

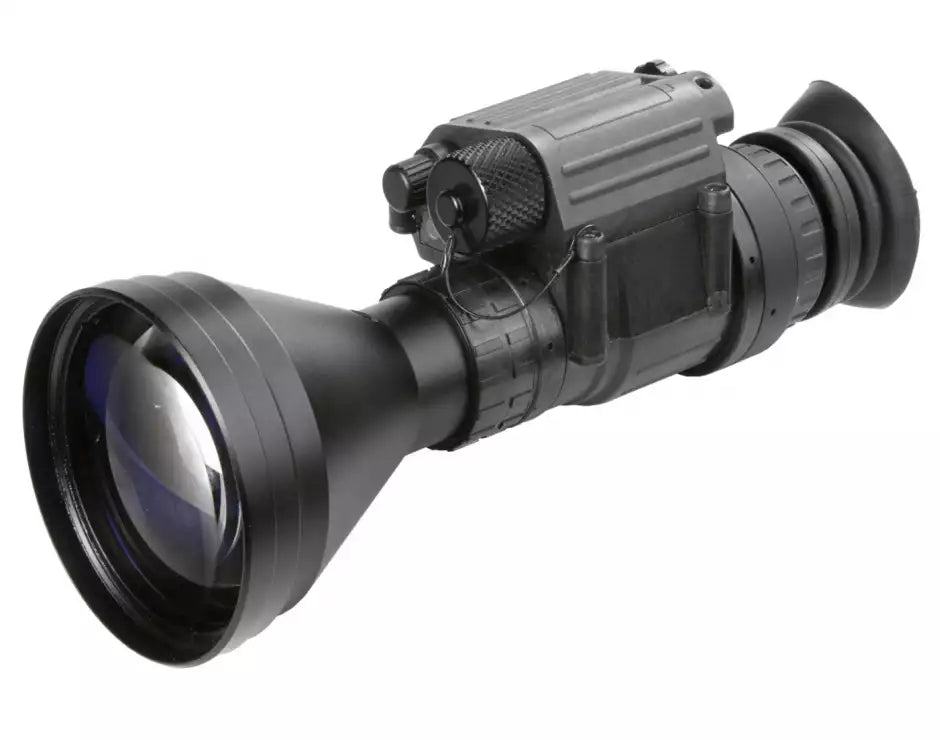

| Magnification | 1x (3x and 5x optional) |
| Lens System | 26 mm; F/1.2 |
| FOV | 40° |
| Focus Range | 0.25 m to infinity |
| Diopter Adjustment | -6 to +4 dpt |
| Led Indicators | Low battery; IR On; Excessive light conditions |
| Infrared Illuminator | Yes |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | One AA Alkaline |
| Battery Life (Operating) | Up to 50 hours at 20°C |
| Operating Temperature Range | -51° C to +49° C (-60° F to 120° F) |
| Storage Temperature Range | -51° C to +85° C (-60° F to 185° F) |
| Weight | 0.32 kg (12.4 oz) |
| Overall Dimensions | 114 x 63x 69 mm (4,5 x 2,5 x 2,7 in) |
