Product #: 314205560206R561
UPC #: 810027773739
MPN #: 314205560206R561

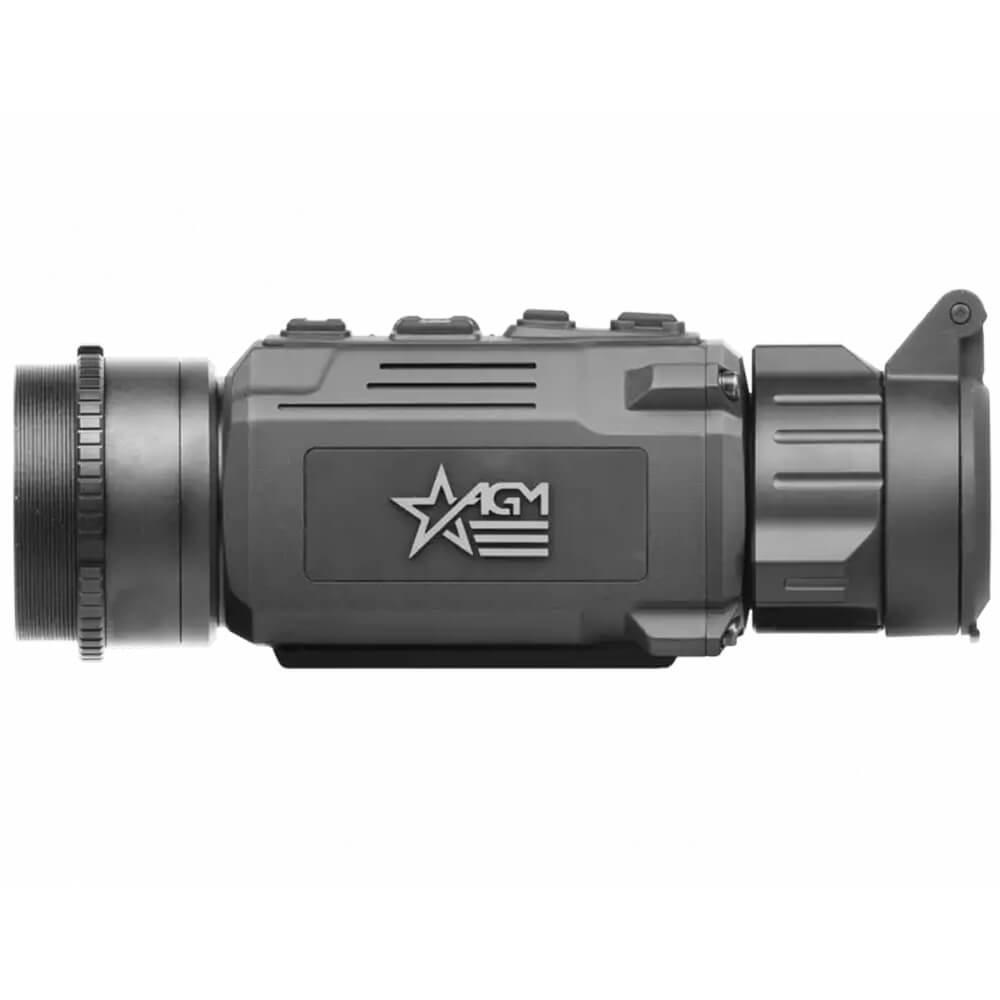

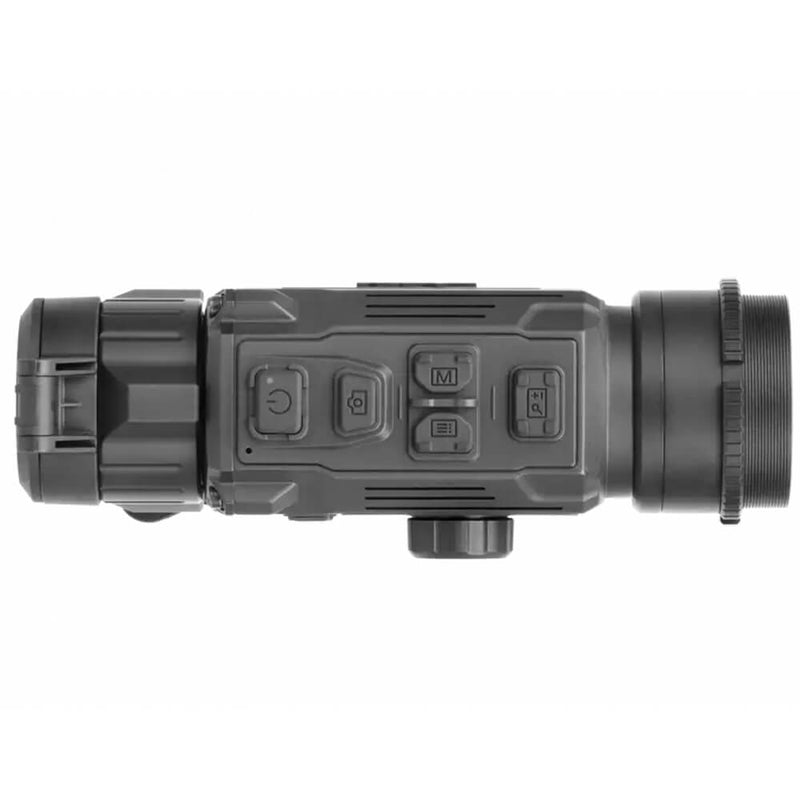

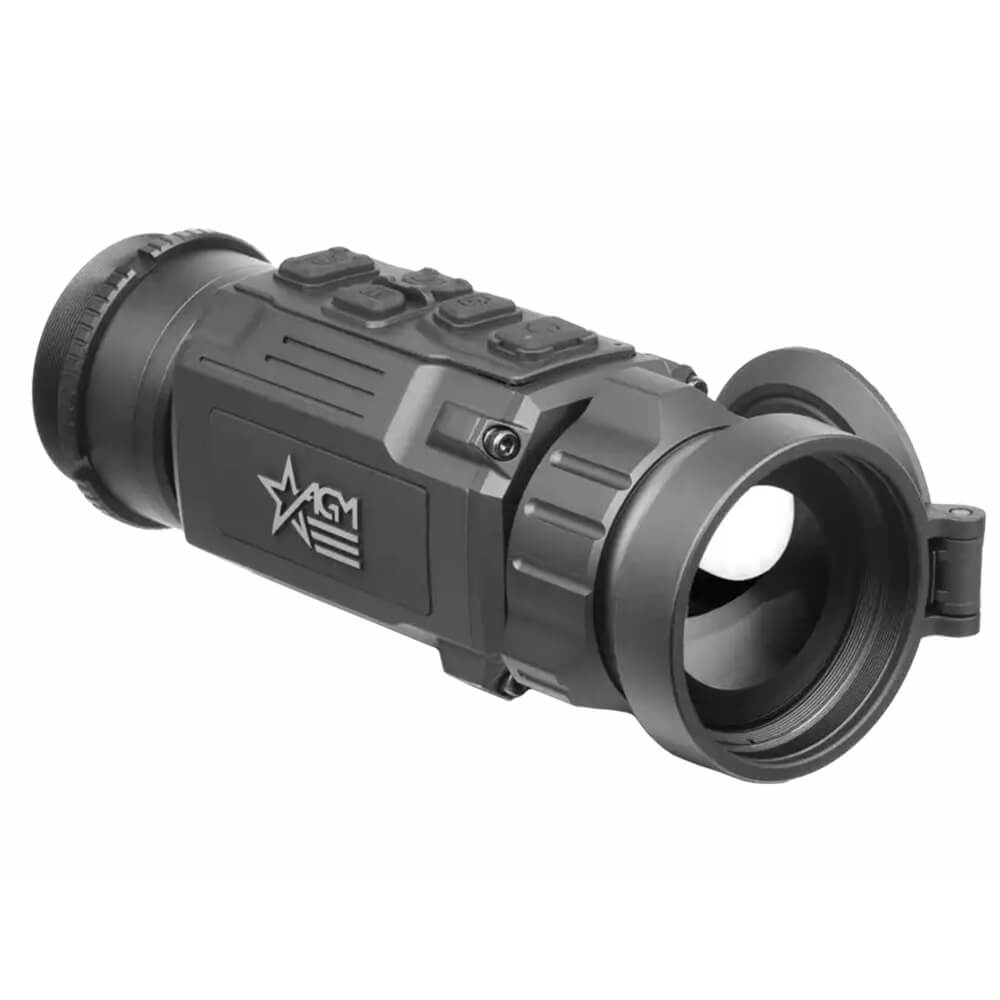

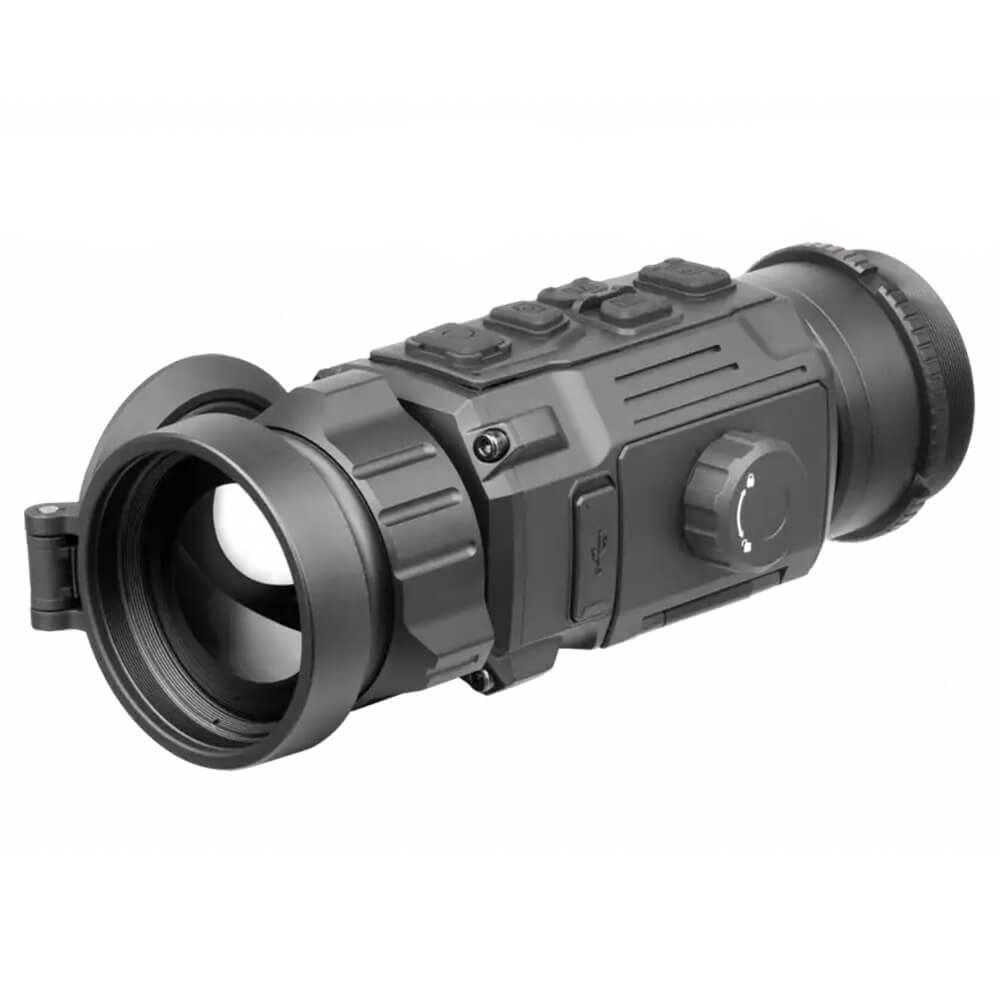

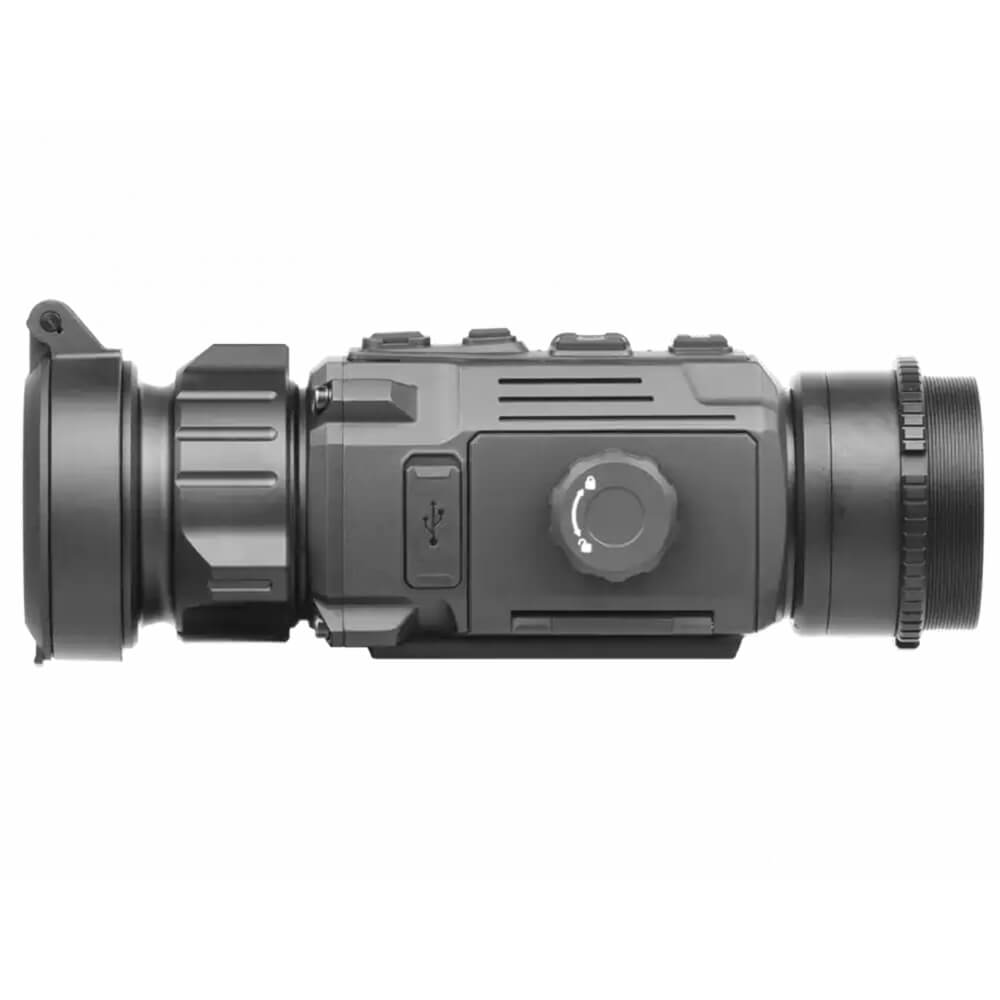

AGM Rattler-C V2 50-640 Thermal Imaging Clip-On 20mK, 12 Micron, 640x512 (50 Hz), 50mm lens

  • Quick conversion of daytime optics into thermal imaging scope
  • 12μm high-sensitivity thermal detector, NETD < 20mK
  • Fast 50Hz imaging
  • High resolution OLED display
  • Adjustable color palettes
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
Price:
Sale price$4,695.00 Regular price$5,164.00Save 9%

Description

The NEW AGM Rattler-C V2 series of thermal clip-ons boasts a industry-leading 12 micron, sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor with 384×288 or 640×512 resolutions, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The Rattler-C V2 clip-on The Rattler TC can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application

Features

  • Quick conversion of daytime optics into thermal imaging scope
  • 12μm high-sensitivity thermal detector, NETD < 20mK
  • Fast 50Hz imaging
  • High resolution OLED display
  • Adjustable color palettes
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 9 - 11 hours battery life (depending on model)
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty

Specs

Resolution640 × 512
Detector12μm VOx Uncooled Focal Plane Array
NETDLess than 20 mK (25°C, F# = 1.0)
Refresh Rate50 Hz
Lens System50 mm; F/1.0
Optical Magnification
Field of View8.8° × 7.0°
Focus Range10 m to infinity
Exit Pupil22 mm
Eye Relief10 mm
Detection Range (6’ object)2600 m/yd
Display0.39-inch, OLED, 1024×768
PalettesBlack hot, White hot, Red hot Fusion
Flat Field CorrectionAuto, Manual, External Correction
Scene ModeCold, Warm
Video/Audio RecordingYes
Image CaptureYes
Standby ModeYes
StorageBuilt-in EMMC (16 GB)
Defective Pixel CorrectionYes
WiFi HotspotYes
Hot TrackYes
Distance MeasurementYes (Stadiametric)
Shot Activated Recording (SAR)Yes
Battery TypeReplaceable and Rechargeable Li-ion Battery
Battery Life (Operating, 20°C)9 h (25°C, with hotspot off)
External Power Supply5 VDC, 2 A, USB Type-C
Operating Temperature Range-30°C to +55°C (-22°F to 131°F)
Protection LevelIP67
Max. Recoil1000 g/0.4 ms
Weight (w/o mount and battery)0.55 kg (1.2 lb)
Dimensions (w/o mount)196 × 73 × 68 mm (7.7 × 2.9 × 2.7 in)
Package IncludesThermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
Specs Highlights:
Field of View
8.8° × 7.0°
Exit Pupil
22 mm
Eye Relief
10 mm
