AGM RATTLER TC19-256

Product #: 3092856003TC91
UPC #: 810027779267
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
Roll over image to zoom in Click on image to zoom
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
AGM RATTLER TC19-256-Optics Force
Price:
$1,095.00 $1,204.00Save 9%

Earn [points_amount] when you buy this item.

In Stock

In Stock

In Stock

Free Shipping

In Stock

30 Day Return

Specs Highlights:
Magnification
1x

Description And features

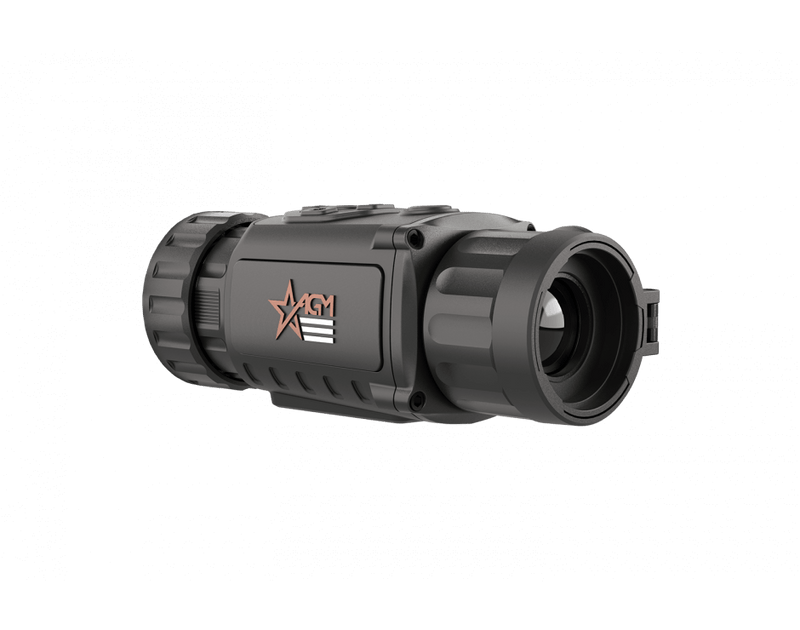

The Rattler TC is a compact thermal imaging clip-on system that allows quick transformation of the day
optics into thermal imaging device without any special tools or equipment.

Rattler TC has a high-sensitivity thermal detector and 1024×768 OLED monitor, which provides a clear
image under harsh environmental conditions like darkness, fog, smoke, dust, rain, snow, wood,
camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, overwatch, etc.

The Rattler TC can easily be attached in front of rifle scopes with magnification up to 8x for medium
range use.

Powered with two CR123 batteries the AGM Rattler TC gives up to 4.5 hours of continuous operation
time. The device is equipped with 16 GB storage for on-board video recording and image capturing.

Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile
application.

Warning: California's Proposition 65


  • Quick conversion of daytime optics into thermal imaging scope
  • 12μm high sensitivity detector (NETD <35mK)
  • 256×192 thermal resolution
  • 1024x768 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • 3-Year warranty
Magnification 1x
Palettes Black Hot, White Hot, Red Hot, Fusion
Shock and vibration 750 g/ms
Exit Pupil Diameter 22 mm
Distance Measurement Yes (Stadiometric Rangefinder)
Scene Mode Jungle, Recognition
Detector type 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband 8 μm to 14 μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate Sensor 25 Hz / OLED 50 Hz
Resolution 256 x 192
Detection Range (6' object) 950m/yd
Lens system 19 mm, F1.0
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Mounting Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/Weaver rail
Field of view (H × X) 9.2° x 6.9°
Monitor 1024x768, 0.39 inch, OLED
Record Video On-board video recording
Battery Type Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Operating Time Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)
Battery Capacity Display Yes
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Overall Dimensions 153 mm × 62 mm × 59 mm (6.0 × 2.4 × 2.3 in)
Protection Level IP67
Storage 16 GB EMMC
