AGM RATTLER TS35-640

Product #: 3143755005R361
Manufacturer #: 810027779199

Price:
Sale price$3,995.00 Regular price$4,194.00Save 5%
Stock:
Ships in 3 - 4 Days
Monocular: TS35-640
Reticle
5 types, 4 colors, on/off
Eye relief
45 mm
Weight
535 g (1.18 lb)

Similar items

Overview
Specs

Overview


DESCRIPTION AND FEATURES

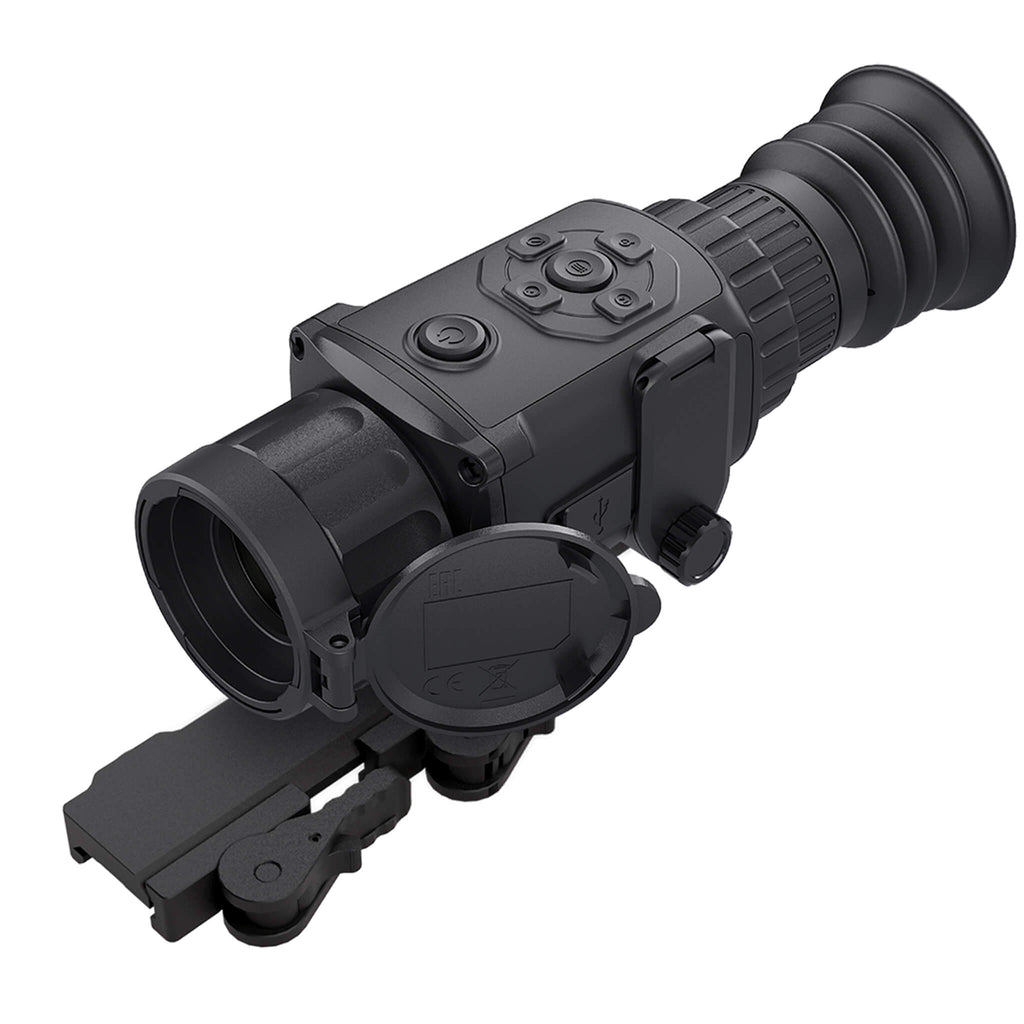

AGM Rattler TS35-640 is the compact thermal imaging scope developed for 24 hours operation under any weather and environmental conditions. This rifle scope with 35 mm Germanium lens is perfect unit for medium range shooting.
Thermal image riflescope has 640×512, 12μm thermal detector with 50 Hz refresh rate and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular.  The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS35-640 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

Warning: California's Proposition 65


  • 640×512 thermal resolution
  • 12 μm, 35 mK NETD high sensitivity detector
  • Fast 50Hz imaging
  • 1024×768 resolution, 0.39-inch OLED display
  • 2x optical magnification
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Various reticle types and colors
  • Stadiametric rangefinder
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Standby mode
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • Limited 3-year warranty

    Specs


    Palettes Black Hot, White Hot, Red Hot Fusion
    Reticle 5 types, 4 colors, on/off
    Drop Test Height 1.5m (4.9 feet)
    Boresight Adjustment Digital Controlled
    Distance Measurement Yes (Stadiametric Rangefinder)
    Scene Mode Jungle, Recognition
    Picture In Picture Mode (PIP) Yes (2× Zoom)
    Video Recording Yes
    Defective Pixels Correction (DPC) Yes
    Uniformity Correction Auto, Manual, External Correction
    Detector type 12μm, Uncooled, 50 Hz
    Standby Mode Yes
    Resolution 640 × 512
    Detection Range 1,750m/yd
    Lens system 35 mm; F/1.0
    Optical magnification 2x
    Field of view (H × X) 12.5° × 10.0°
    Digital zoom 1×, 2×, 4×, 8×
    Eye relief 45 mm
    Display 0.39-inch, OLED, 1024×768 50 Hz
    Storage Built-in EMMC (16 GB)
    Battery Type Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
    CVBS Output Yes (via USB)
    Battery Life (Operating) Up to 4.5 hr
    External power supply 5 VDC/2 A, USB Type-C interface
    Operating Temperature Range -20°C to +55°C (-4°F to +131°F)
    Degree of Protection IP67
    Weight 535 g (1.18 lb)
    Overall Dimensions 187× 63 × 80 mm (7.4 × 2.5 × 3.1 in)
    Package Includes Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
