Description

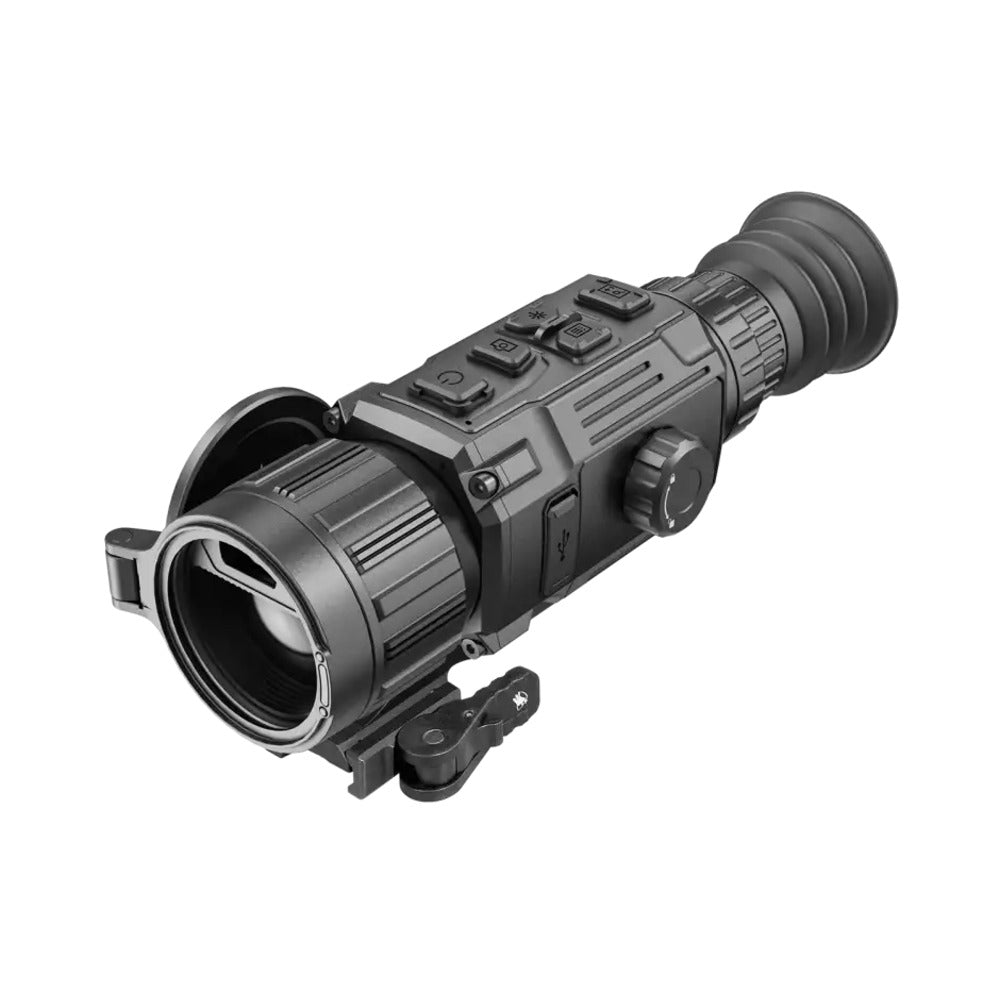

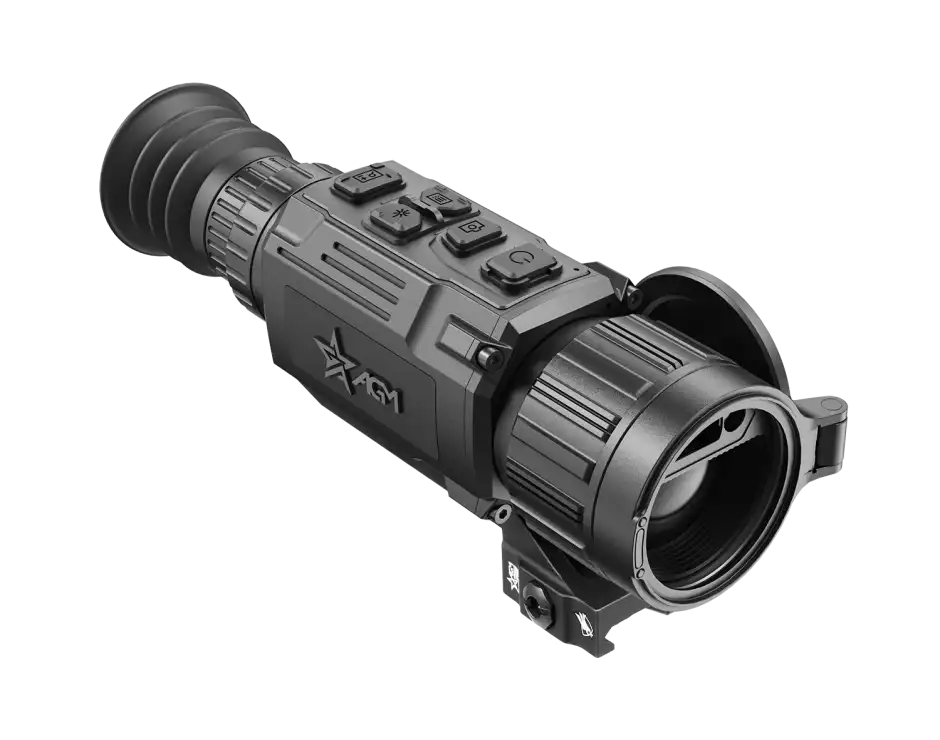

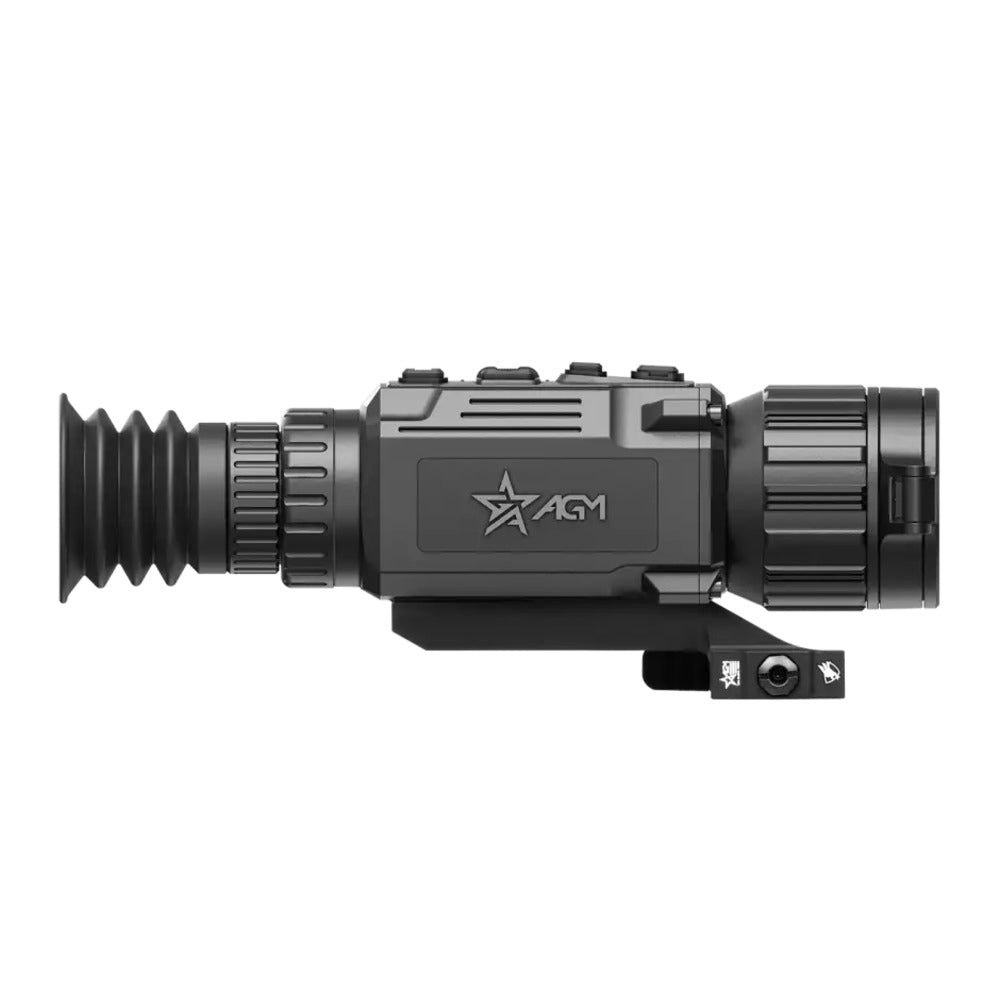

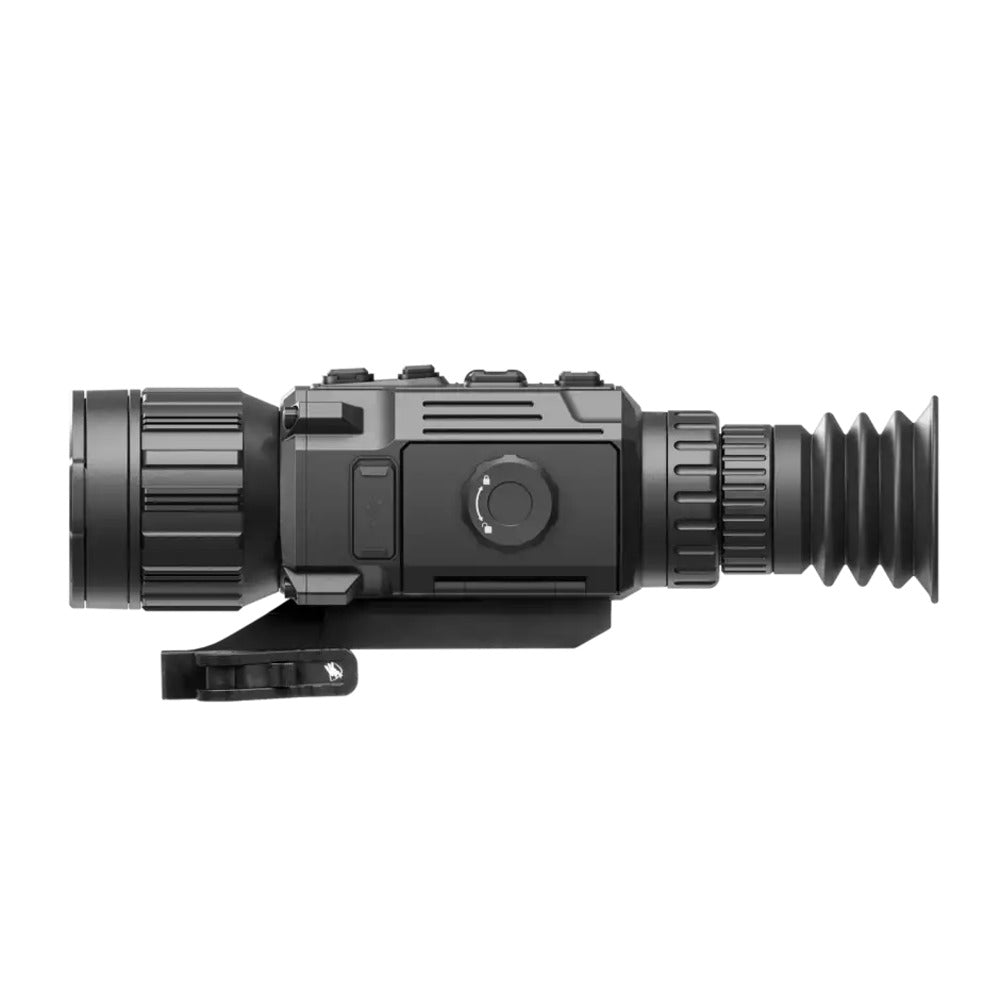

Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got upgraded with the introduction of the RattlerV2’s, the NEW RattlerV3 LRF testifies to the fact that evolution never stops. The RattlerV3 LRF 35-384 pairs a 35 mm Germanium lens with an industry-leading sub-15mK thermal sensor and a new 1920x1080 high resolution display, which combines to produce the best 384 resolution thermal image. These technical parameters work together to produce a detection range 1.5 miles. The RattlerV3 LRF also brings the once inconceivable new in-lens LRF technology to the compact Rattler series. A fully integrated 1,000m laser rangefinder is paired with a new on-board ballistic calculator. The RattlerV3 LRF 35-384 has a base magnification of 3.5X, making it an optimal option for predator hunters in wide-open terrain, which entices longer range engagements. Its also the first Rattler ever to come with a shutterless NUC and AGM’s powerful new Image Boost 2.0 imaging algorithm. Large sturdy buttons were designed to aid gloved fingers in cold winter
weather, while the removable rechargeable NE-4400 battery offers one of the most robust and easy to install battery systems on the market. The firmware package allows users an amazing level of customization: on-board pitch scale, 10 brightness and contrast settings, warm & cold viewing modes, multiple color palettes, picture in picture, ballistic calculation, on-board video recording with sound, WiFi hotspot, multiple zeroing profiles, shot activated video recording, defective pixel repair, hotspot locator and multiple laser range finding modes. Also included is an American-made ADM mounting system.
Warning: California's Proposition 65
Features
- Superior sub-15 milikelvin thermal sensitivity
- 384×288 resolution with 12-micron sensor
- Built-in 1,000m laser rangefinder in the lens
- Integrated ballistic calculator
- Large OLED display with 1920x1080 resolution
- Shutterless technology
- Various reticle types and colors
- 3.5x to 28x magnification
- On-board video/audio recording and image capture
- Built-in EMMC storage (64 GB)
- Shot-Activated Recording (SAR)
- Wi-Fi data transmission
- Standby mode
- Over 7 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
In The Box
- ADM 2120 Mount
- Two NE-4400 Rechargeable Batteries
- Battery Charger
- USB Cable
- Lens Cloth
- Owners Manual
- Carrying Case
Specs
| Shot-Activated Recording | Yes |
| Max. Recoil | 1000 g/0.4 ms |
| Frame Rate | 50 Hz |
| Ballistic calculator | Yes |
| Flat Field Correction (FFC) | Semi-Auto, Manual |
| Dimensions | 229 × 66 × 67 mm (9.0 × 2.6 × 2.6 in) |
| Weight (w/o batteries) | 0.68 kg (1.5 lb) |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome |
| Exit Pupil Diameter | 6 mm |
| Video Recording | Yes (1920 × 1080) |
| Magnification | 3.5x - 28x |
| Image sensor | 12μm VOx Uncooled Focal Plane Array |
| Resolution | 384×288 |
| Detection Range (6' object) | 2480 m (2710 yd) |
| Snapshot | Yes (1920 × 1080) |
| Lens system | 35 mm; F/1.0 |
| NETD | Less than 15 mK (@25°C, F# = 1.0) |
| Field of view (H × X) | 7.5° × 4.5° (13.2 × 7.9 @ 100 m) |
| Battery Life (Operating) | ≥7h (25 °C, with hotspot off) External Power Suppl |
| External power supply | 5V DC/2 A |
| Operating Temperature Range | -30°C to +55°C (-22°F to 131°F) |
| Protection Level | IP67 |
