AGM StingIR 640-Optics Force
AGM StingIR 640-Optics Force
Roll over image to zoom in Click on image to zoom
AGM StingIR 640-Optics Force
AGM StingIR 640-Optics Force
Product #: 3152751013ST21
UPC #:  810027779847
MPN #: 3152751013ST21

AGM StingIR 640

Authorized Dealer
Price:
$3,595.00 $4,614.00Save 22%
In Stock

In Stock

In Stock

Free Shipping

In Stock

30 Day Return

Specs Highlights:
Weight
220 g (7.8 oz)
Magnification
1x

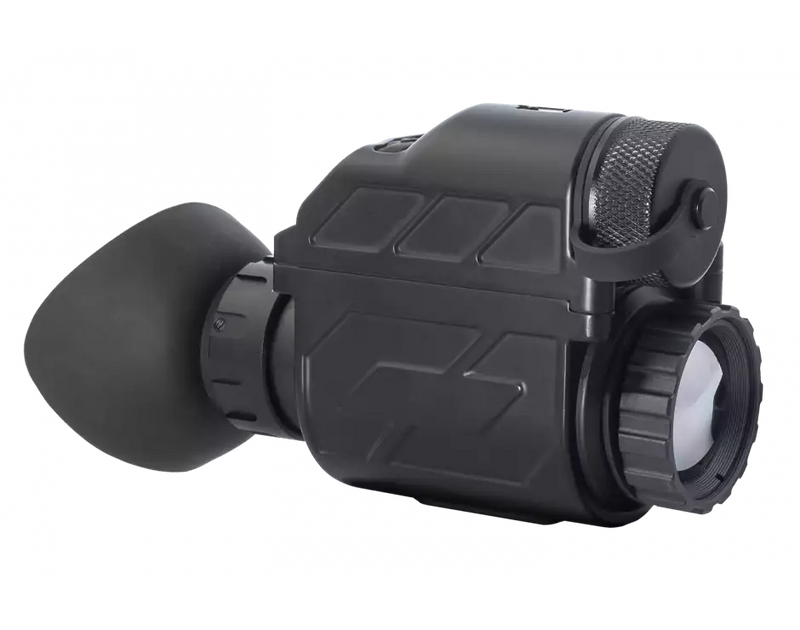

The StingIR™ miniature observational thermal monocular is equipped with a 640×480 12μm
high-sensitivity infrared detector and a high-resolution OLED display. The StingIR is a full-featured unit,
weighing less than 7 ounces/200 grams. The monocular can be helmet mounted for hands-free
operations, or used as a standalone handheld device. The SingIR can also be used as a stand-alone
thermal scope, or thermal clip-on, making it one of our most versatile offerings.
Other features include a digital compass, inclinometer, up to 8x digital zoom and the ability to be
powered by two types of replaceable CR123 or 18650 batteries. The high-sensitivity built-in thermal
detector provides you with a clear view in any lighting condition.
Digital Compass Yes
Palettes WhiteHot, BlackHot, OrangeHot, Rainbow
Exit Pupil Diameter 12 mm
Digital Magnification 1x - 8x
Detector type 12 μm Uncooled VOx Microbolometer
Refresh rate 50 Hz
Resolution 640×480
Detection Range (6' object) 1200 m
Field of view (H × X) 16.3° × 12.3° (H × V)
Digital zoom 1×, 2×, 4×, 6×, 8×
Diopter adjustment range -5 to +2 dpt
Monitor 1024×768 OLED
Video output PAL video output via USB port
Battery Type One CR123A(3V) or RCR123(3.7V) or 18650(4.2V)
Battery Operating Time CR123A - up to 2.5 hours / RCR123 - up to 1.5 hours / 18650 - up to 4.5 hours
External power supply 5 VDC/2 A, 1.5 W
Operating Temperature Range -20°C to 50°C (-4°F to 122°F)
Weight 220 g (7.8 oz)
Overall Dimensions 140 × 70 × 50 mm (5.5 × 2.7 × 2.0 in)
Magnification 1x
