Description
The LH4 is an illuminated lightweight hunting optic with fully capped turret assemblies. This optic meets the Arken standard for precision and durability to perform in the harshest environments around the world.
Specs
| Magnification | 6-24x |
| Objective Diameter | 50 mm |
| Eye Relief | 3.5 inches |
| Field of View | 18.55-4.65 ft @ 100 Yards |
| Tube Size | 30 mm |
| Turret Adjustment | 0.1 MAD / 0.25 MOA |
| Reticle Position | First Focal Plane |

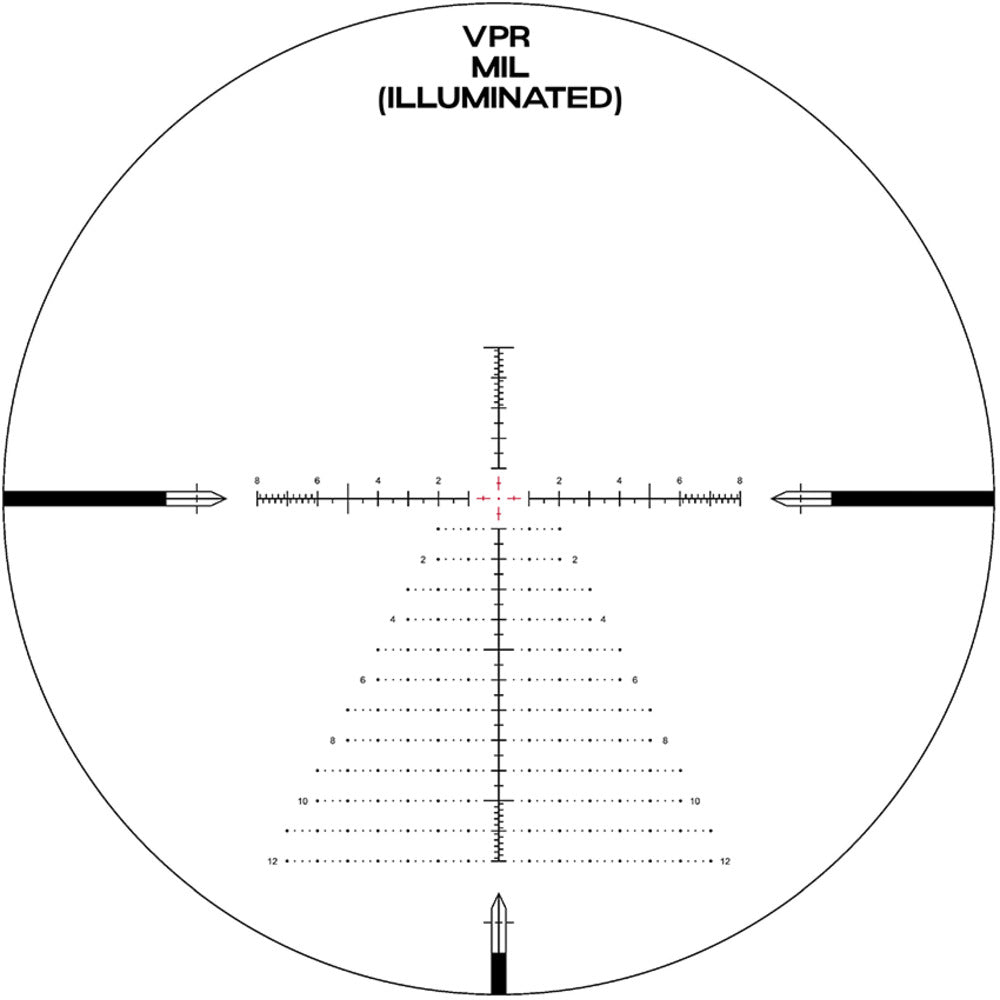

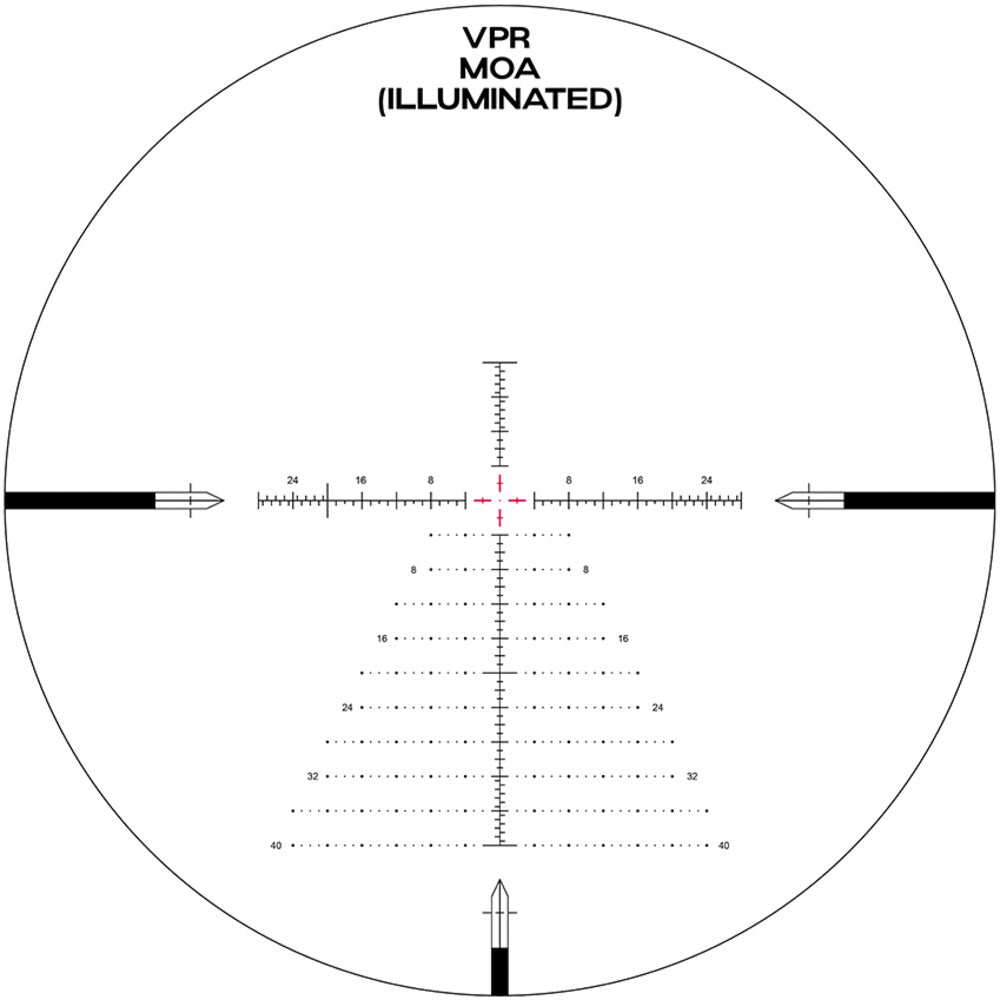

| Reticle Details | VHR/VPR |
| Zero Stop | No |
| Elevation Adj. Range | 18 MRAD / 60 MOA |
| Windage Adj. Range | 14 MRAD / 50 MOA |
| Elevation Adjustment Per Revolution | 6 MRAD / 15 MOA |
| Windage Adjustment Per Revolution | 6 MRAD / 15 MOA |
| Parallax | Side Parallax Adiustments: 10Yds-Infinity |
| Illuminated Reticle | Red |
| Turret Rotation | Counter Clockwise (CCW) |
| Length | 13.8 inches |
| Weight | 22.58 oz |
| Sunshade | Yes |
| Battery Included | CR2032 |
Specs Highlights:
Magnification
6-24x
Eye Relief
3.5 inches
Field of View
18.55-4.65 ft @ 100 Yards
Tube Size
30 mm
Length
13.8 inches
Weight
22.58 oz
| Magnification | 6-24x |
| Objective Diameter | 50 mm |
| Eye Relief | 3.5 inches |
| Field of View | 18.55-4.65 ft @ 100 Yards |
| Tube Size | 30 mm |
| Turret Adjustment | 0.1 MAD / 0.25 MOA |
| Reticle Position | First Focal Plane |
| Reticle Details | VHR/VPR |
| Zero Stop | No |
| Elevation Adj. Range | 18 MRAD / 60 MOA |
| Windage Adj. Range | 14 MRAD / 50 MOA |
| Elevation Adjustment Per Revolution | 6 MRAD / 15 MOA |
| Windage Adjustment Per Revolution | 6 MRAD / 15 MOA |
| Parallax:Side Parallax Adiustments | 10Yds-Infinity |
| Illuminated Reticle | Red |
| Turret Rotation | Counter Clockwise (CCW) |
| Length | 13.8 inches |
| Weight | 22.58 oz |
| Sunshade | Yes |
| Battery Included | CR2032 |
