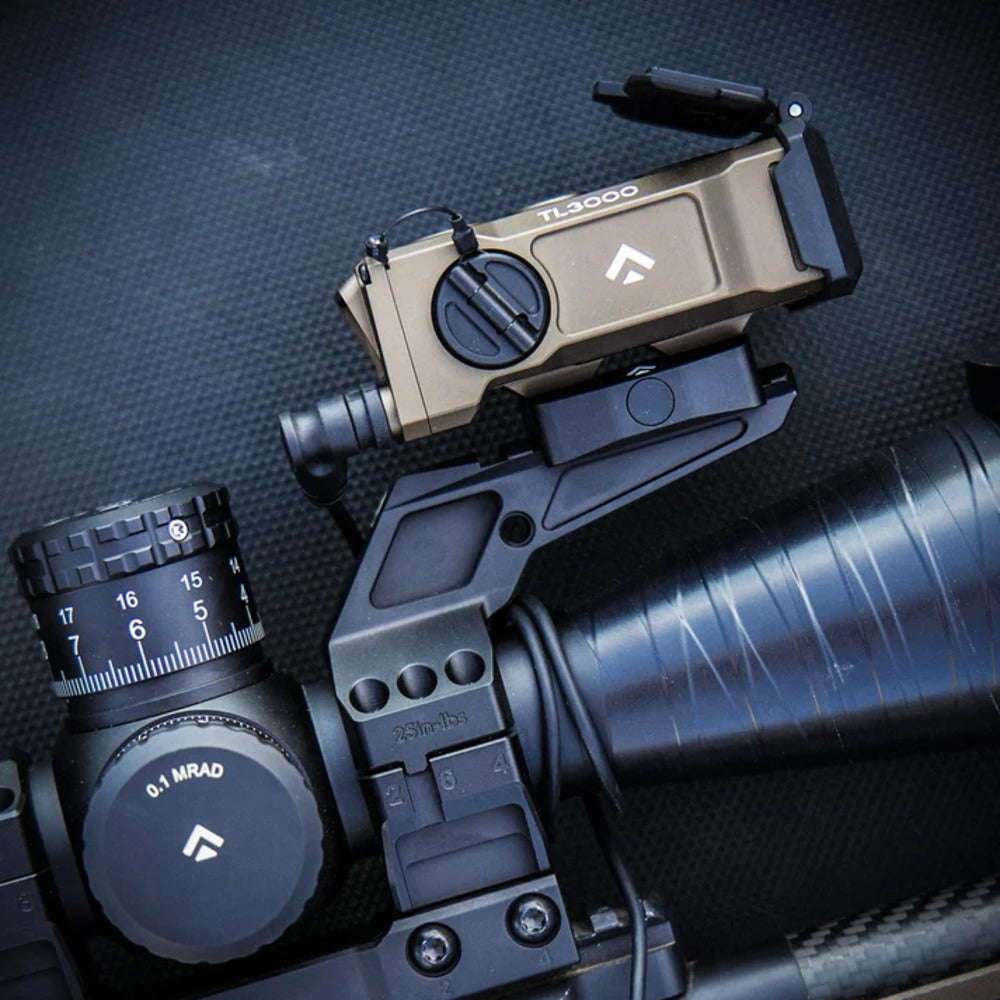

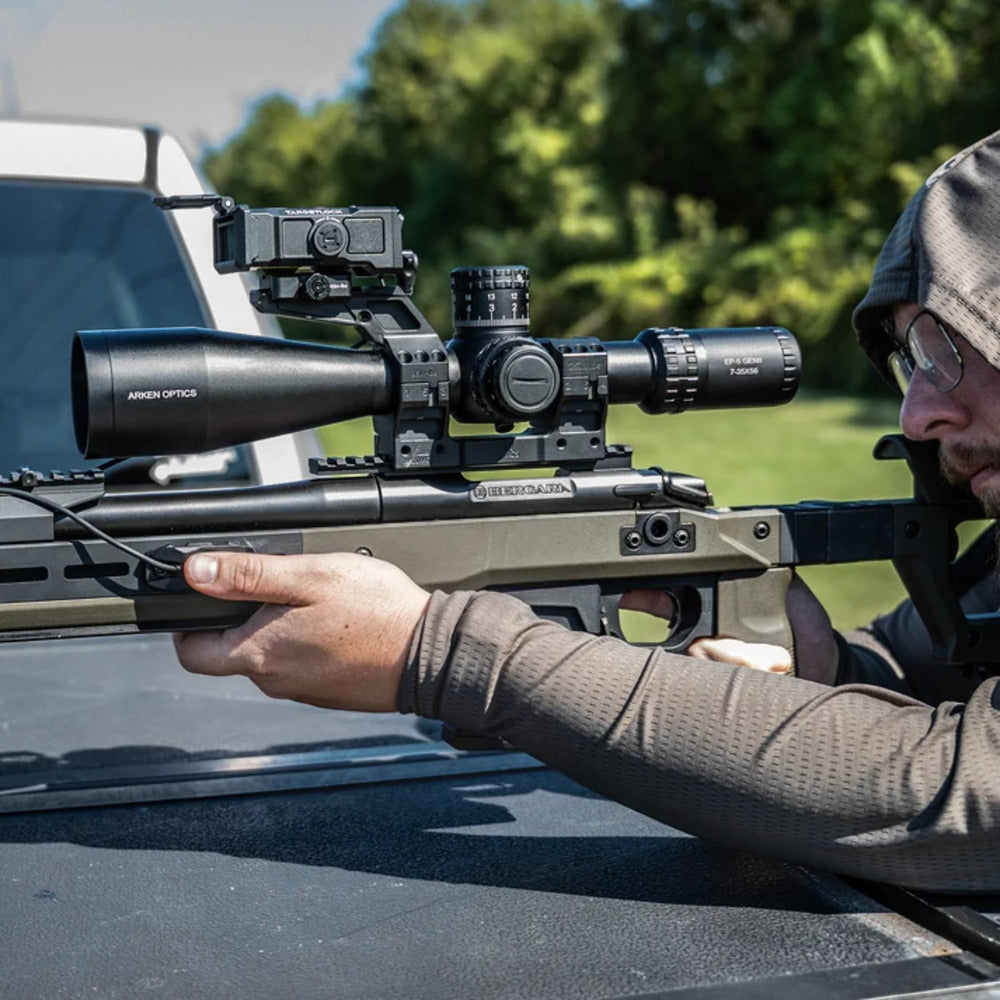

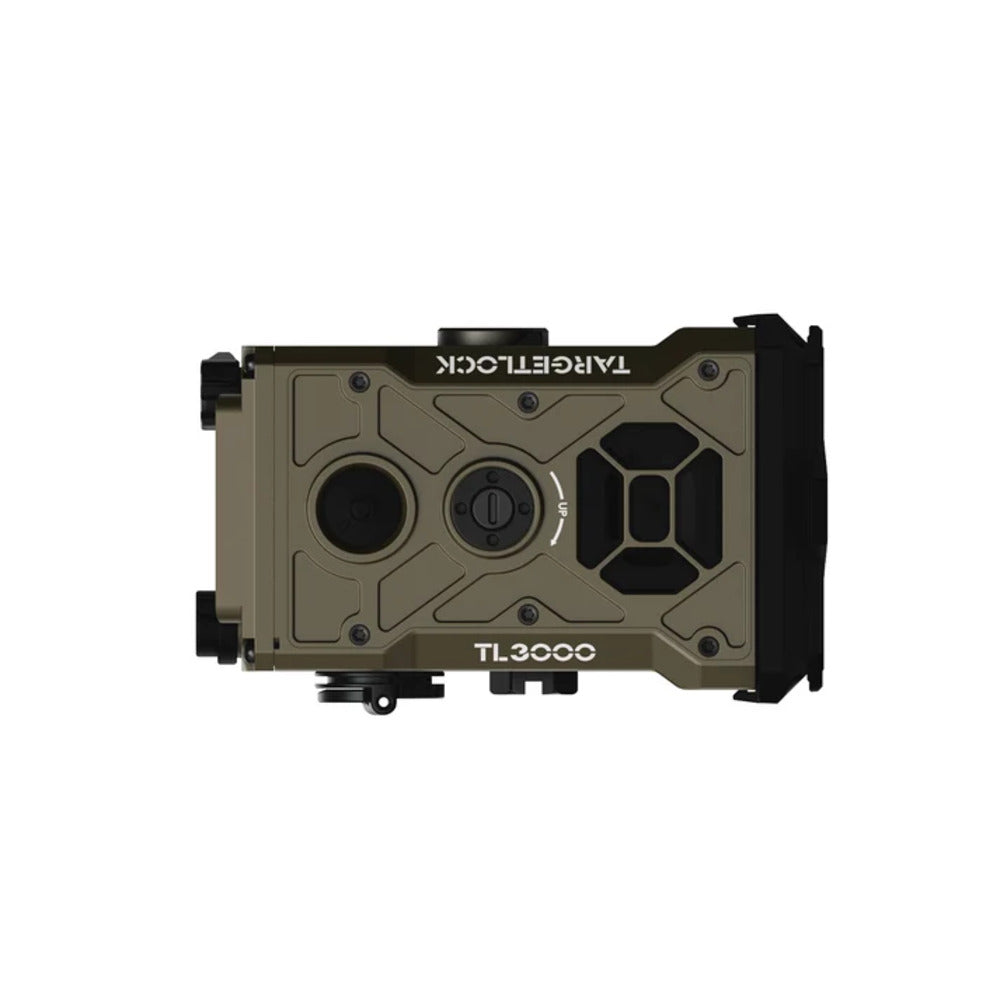

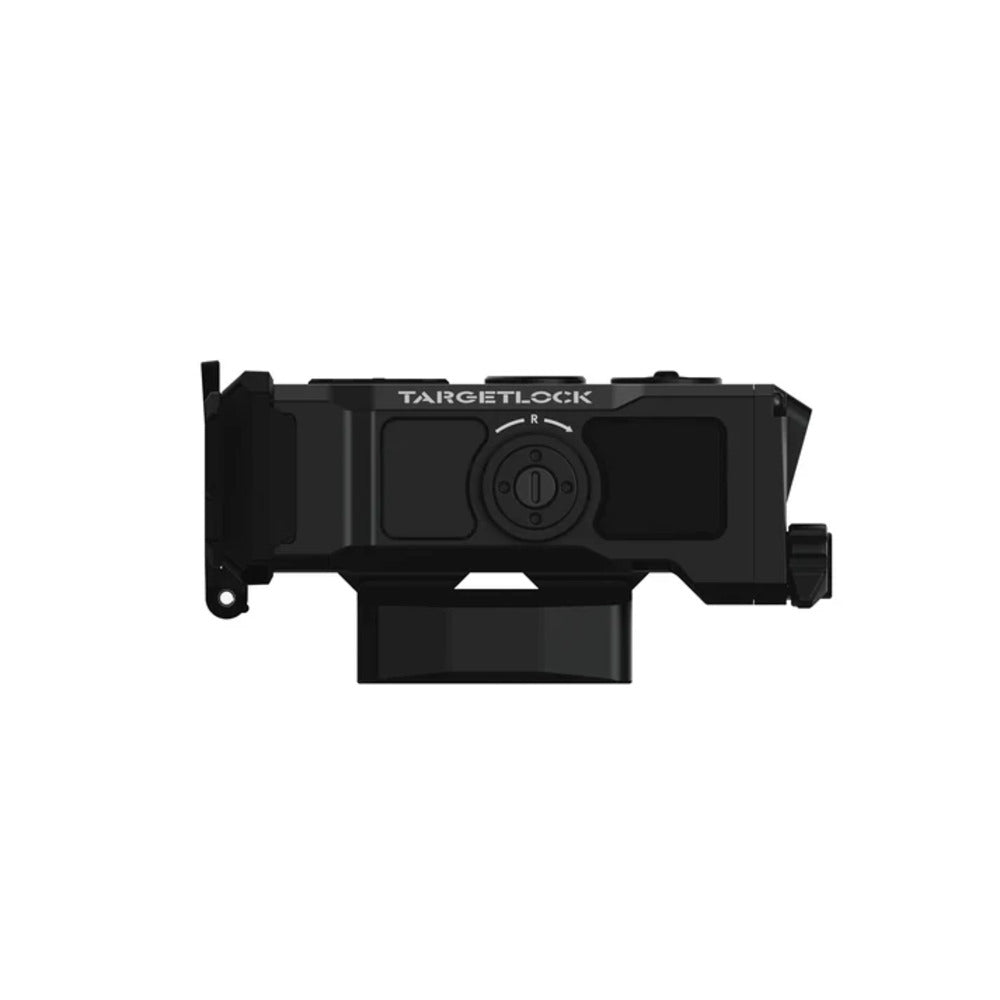

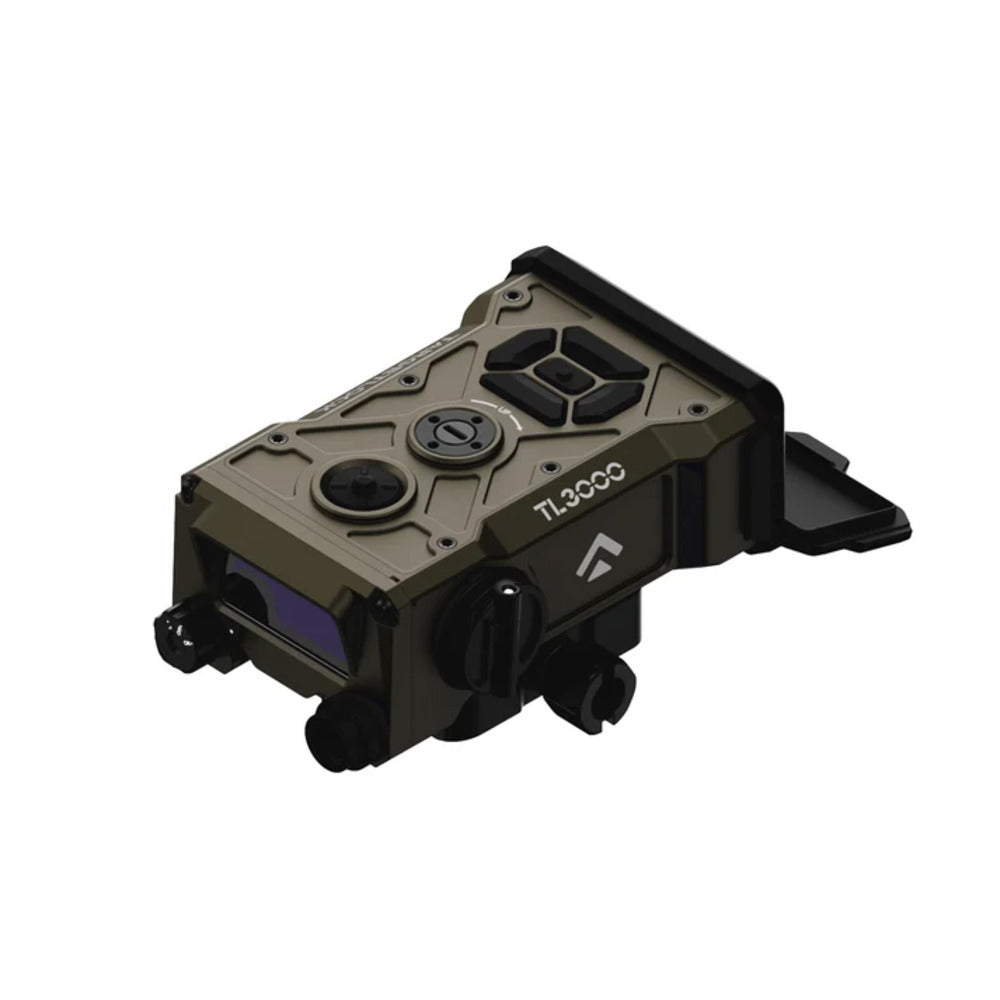

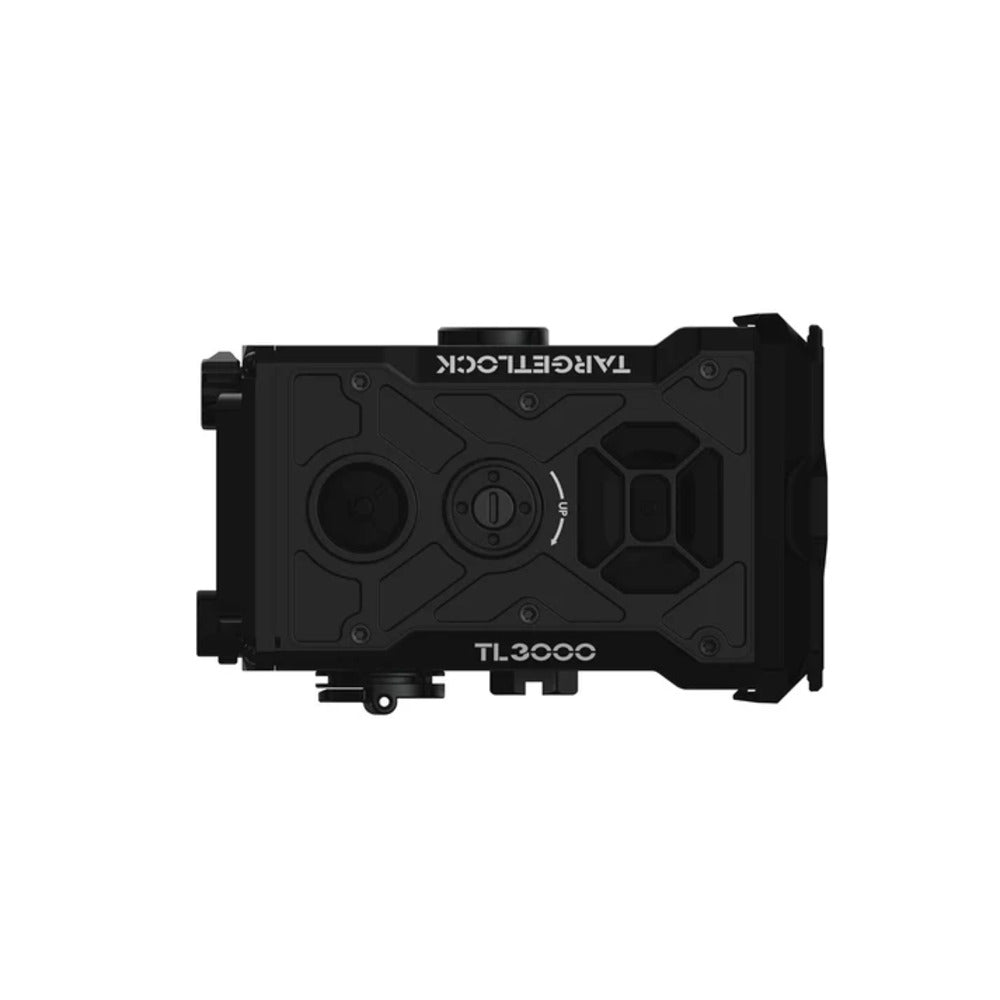

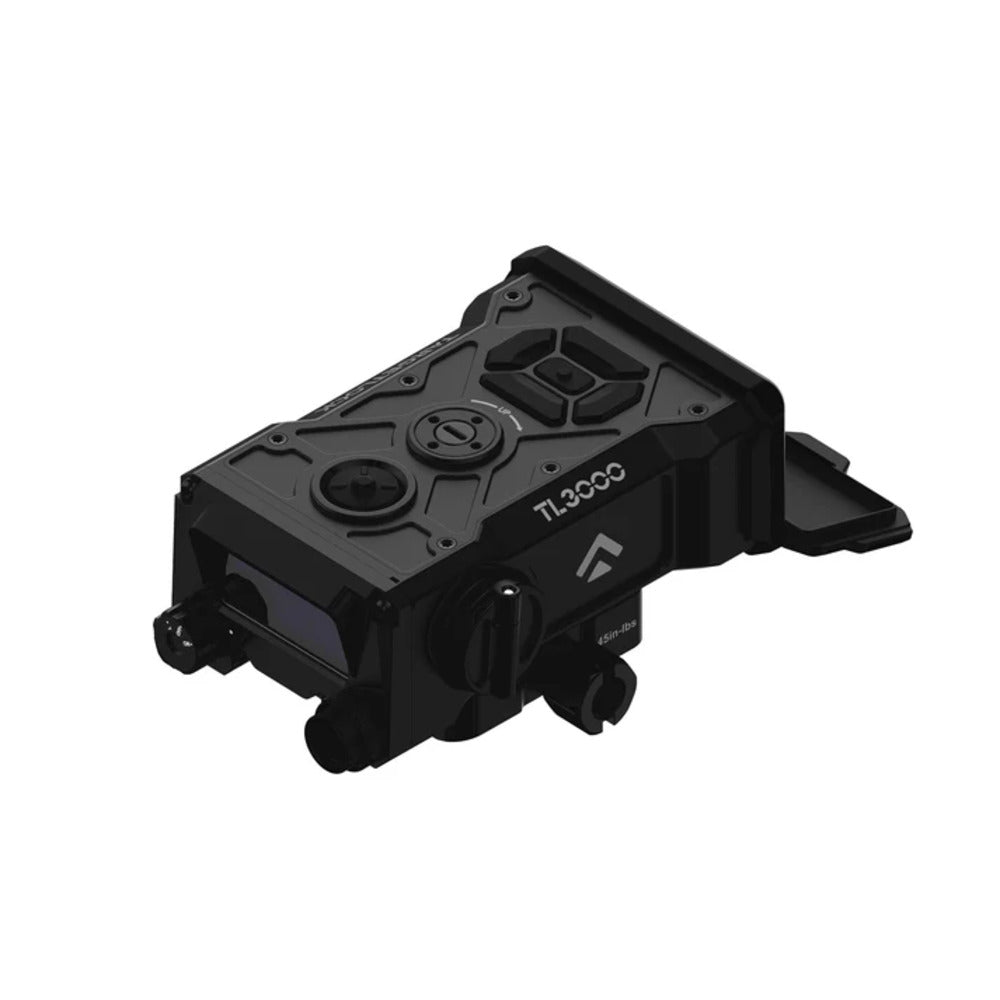

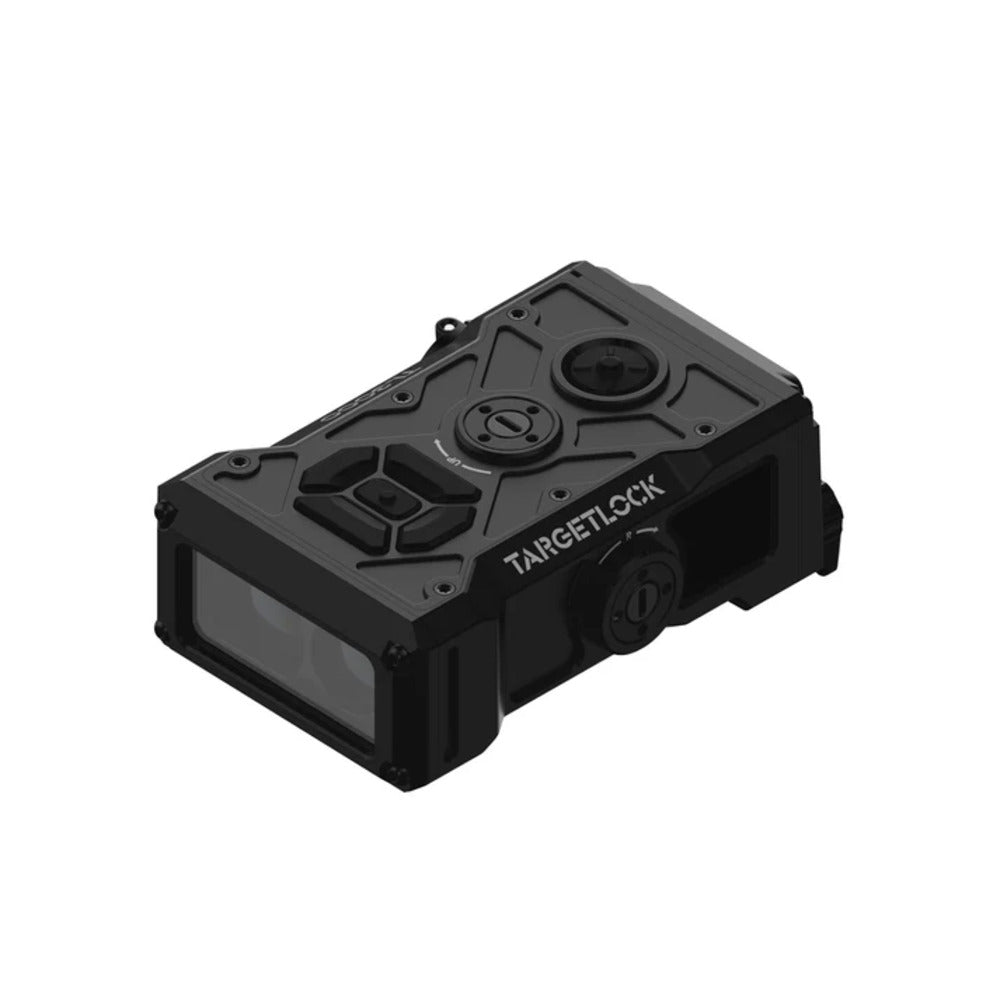

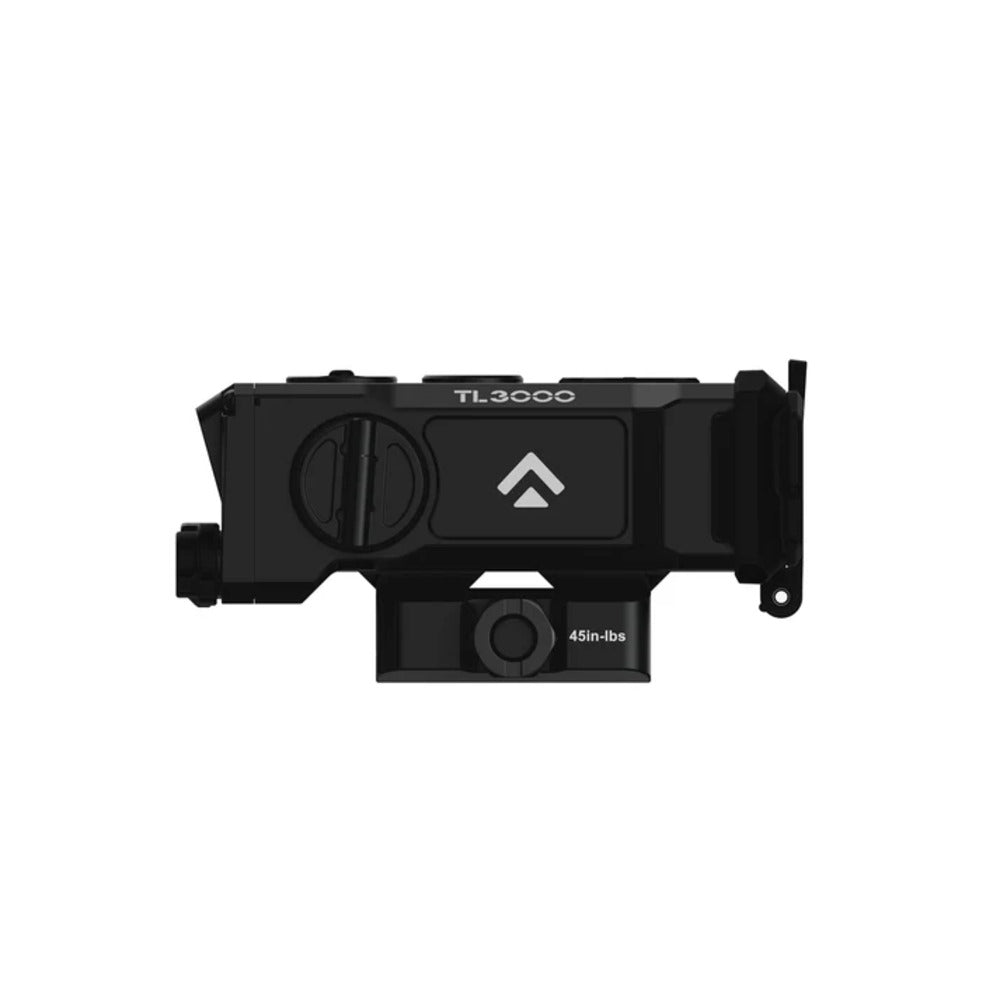

Built on ARKEN’s commitment to rugged precision, the TARGETLOCK TL3000 is a high-performance ballistic laser rangefinder designed for seamless rail integration. Housed in an ultra-compact chassis, it pairs a 3,000-yard ranging capability with an industry-leading ballistic engine and full Kestrel® connectivity to deliver rapid, precise firing solutions for competitive shooters, long-range hunters, and those new to precision shooting.
Description
Built on ARKEN’s commitment to rugged precision, the TARGETLOCK TL3000 is a high-performance ballistic laser rangefinder designed for seamless rail integration. Housed in an ultra-compact chassis, it pairs a 3,000-yard ranging capability with an industry-leading ballistic engine and full Kestrel® connectivity to deliver rapid, precise firing solutions for competitive shooters, long-range hunters, and those new to precision shooting.

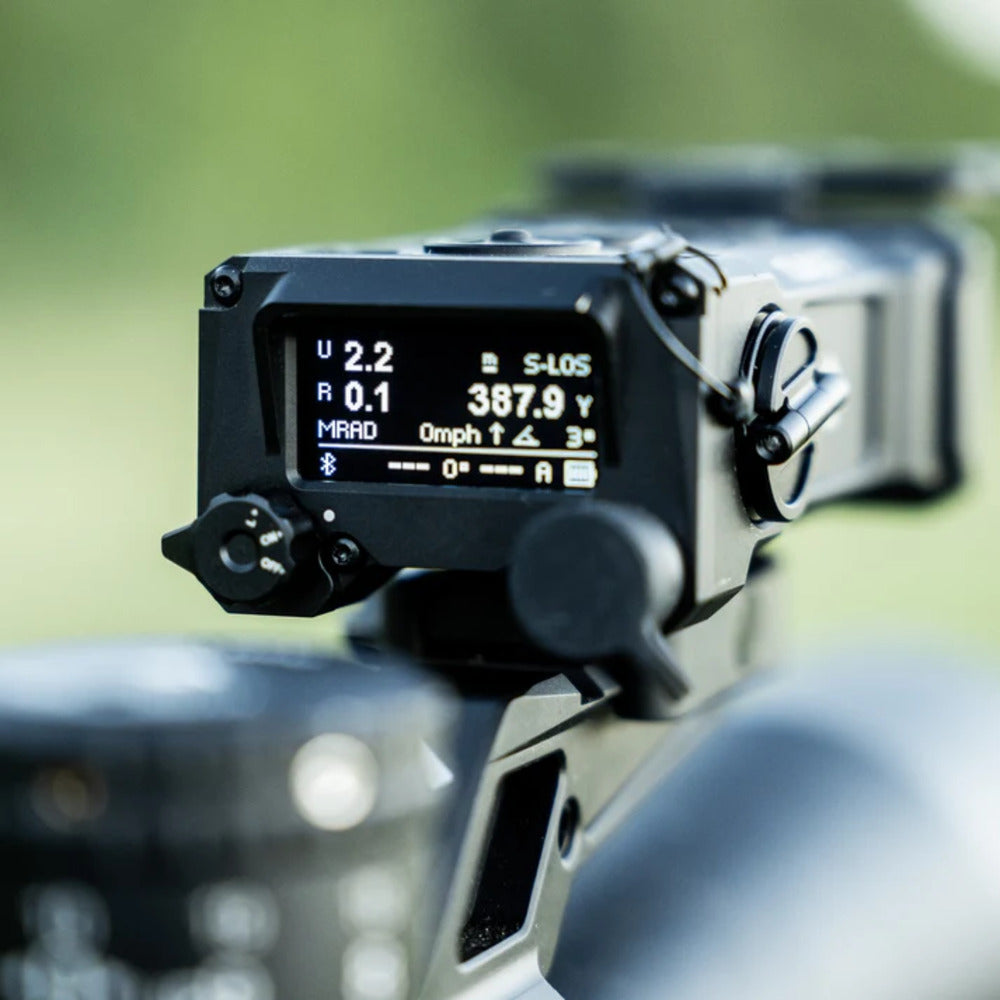

Powered by the DNT Ballistic Engine, the TL3000 delivers instant firing solutions by processing range data, custom profiles, and environmental inputs. Compatible with Kestrel® sensor, it automatically factors in changing field conditions to maintain accuracy from close range out to extreme distances. Without a sensor, you can manually adjust windage and atmospheric data to account for changing conditions and refine your firing solutions.
Features
- Compact
- Lightweight

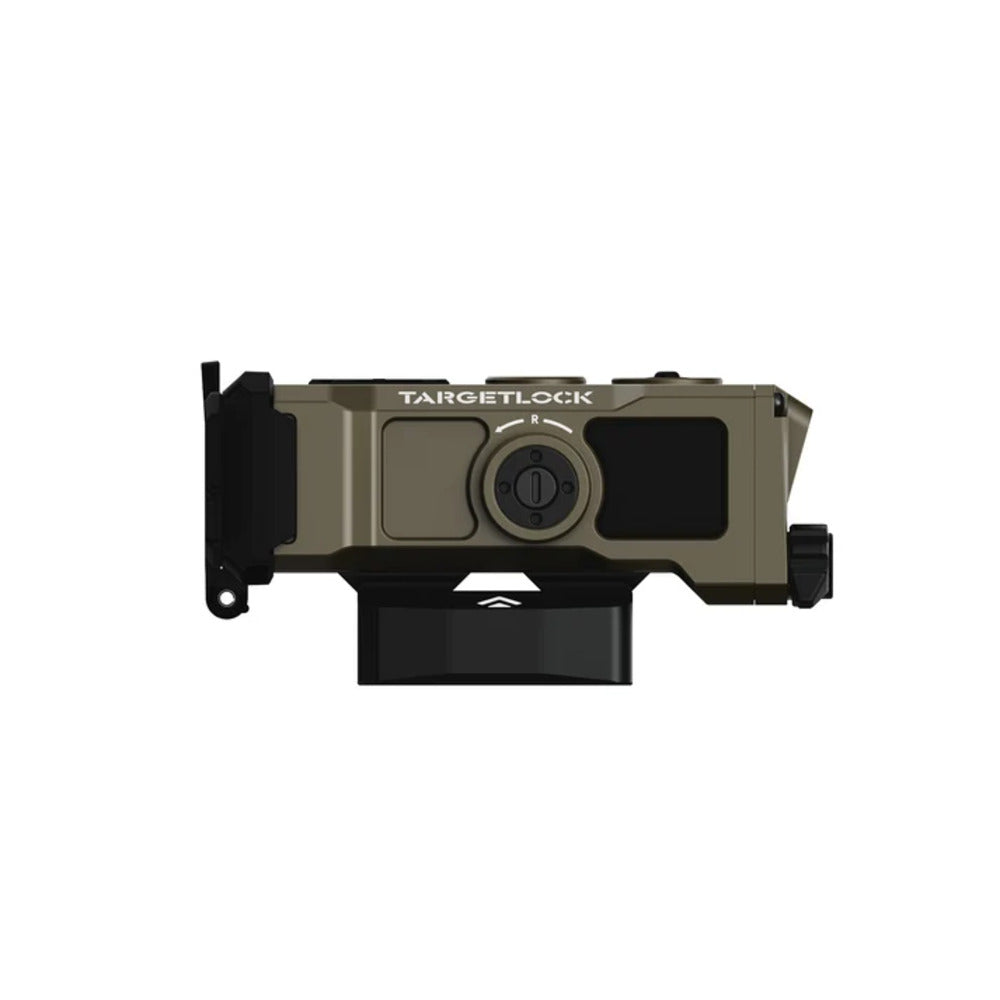

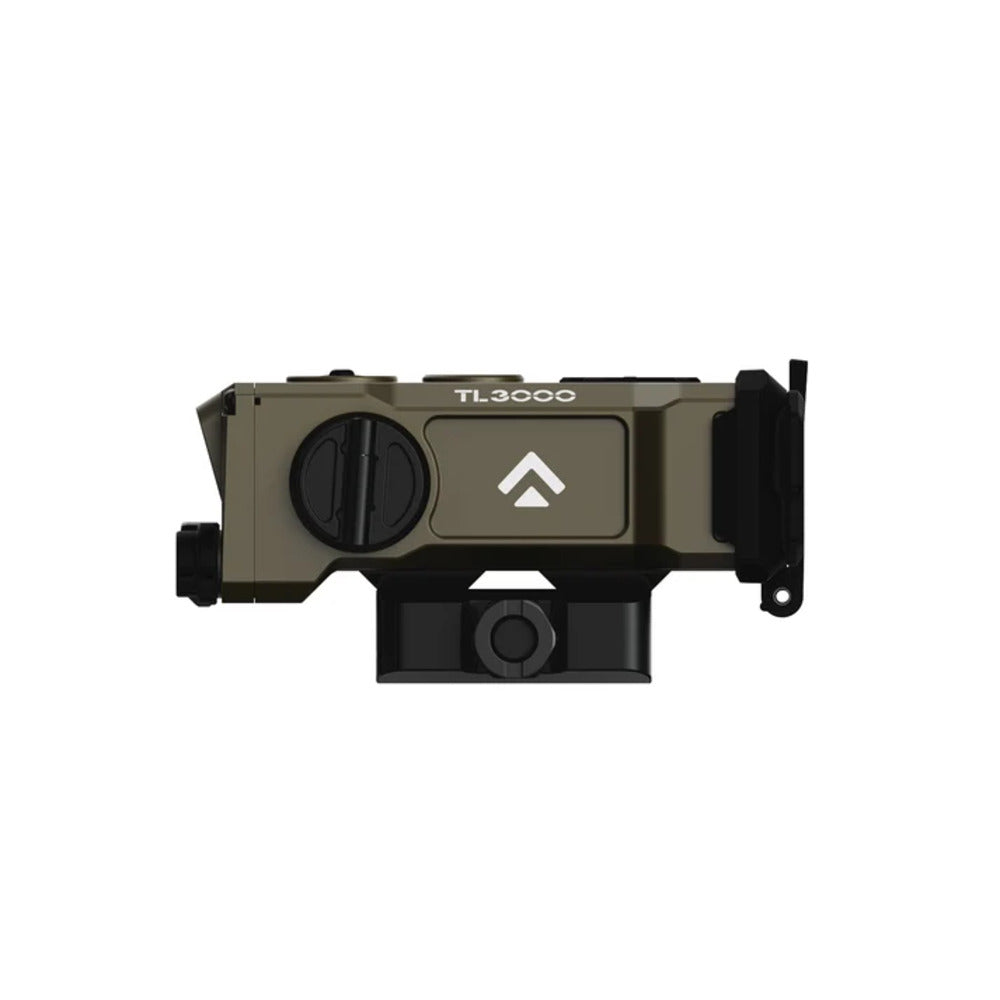

- The TL3000’s compact, low-profile design keeps it tight to the rail with minimal bulk. Measuring 3.6×2.3×1.4 in (92×59×35 mm) and weighing just 7.5 oz (213 g), it packs serious capability into a remarkably small footprint.

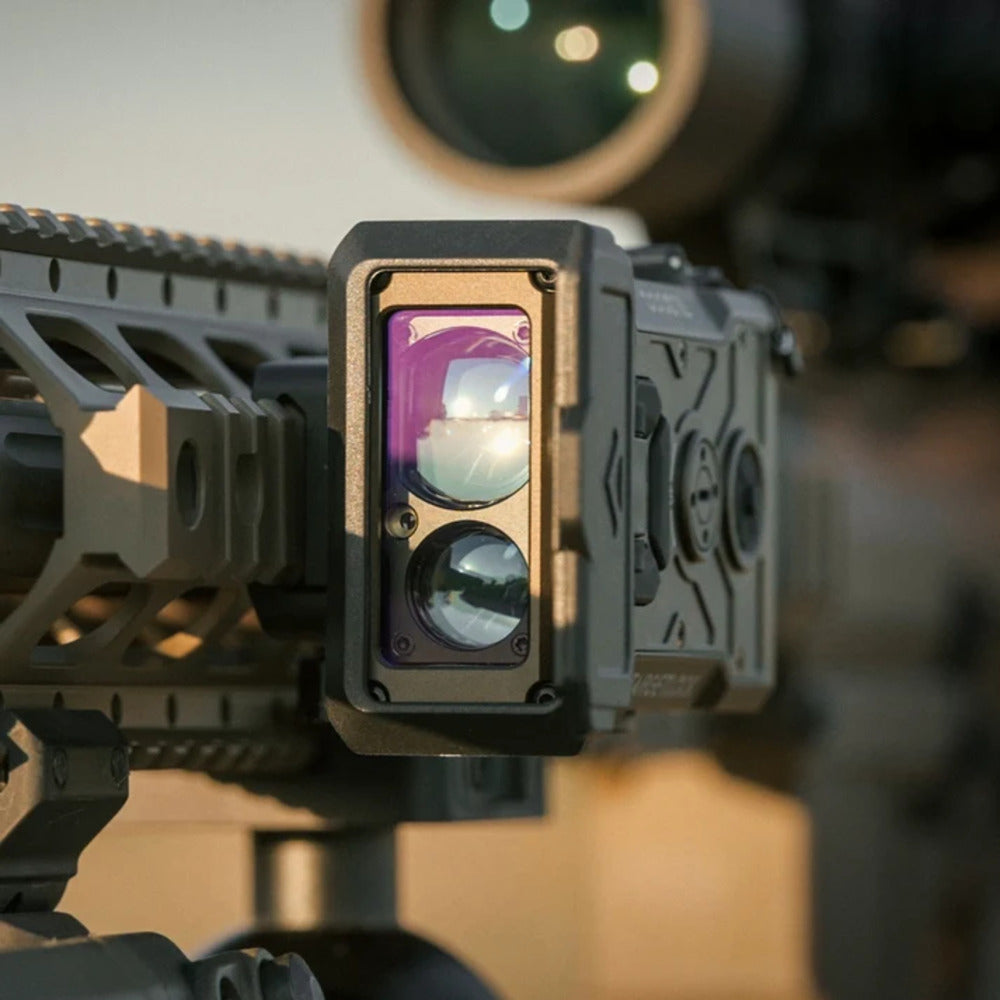

- Co-Aligned Visible Laser: See Exactly Where You Range
- Anti-Reflection Coating: Clear Viewing in Bright Sunlight
- 3 Year Warranty
- IP67 Waterproof & Dustproof
- .50 BMG Recoil Rated
- Included Wired Pressure Switch: Remote Activation Without Changing Your Grip

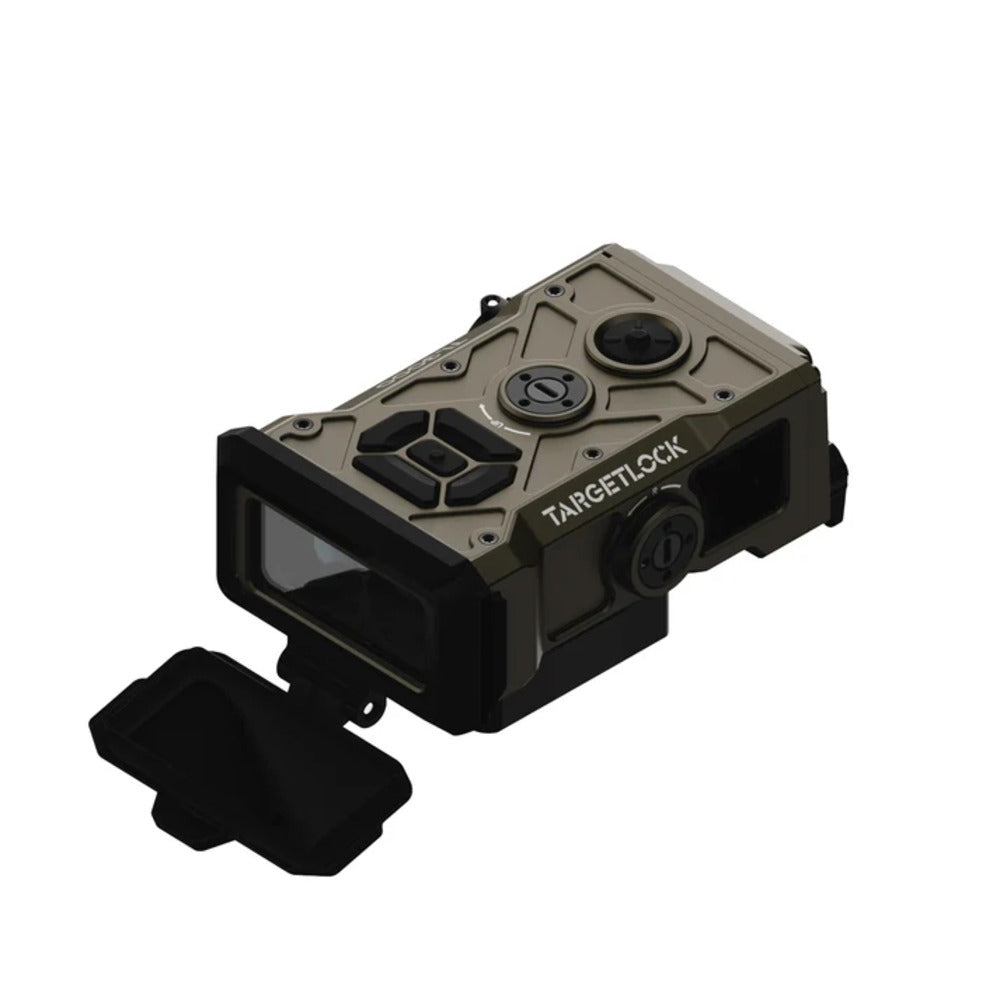

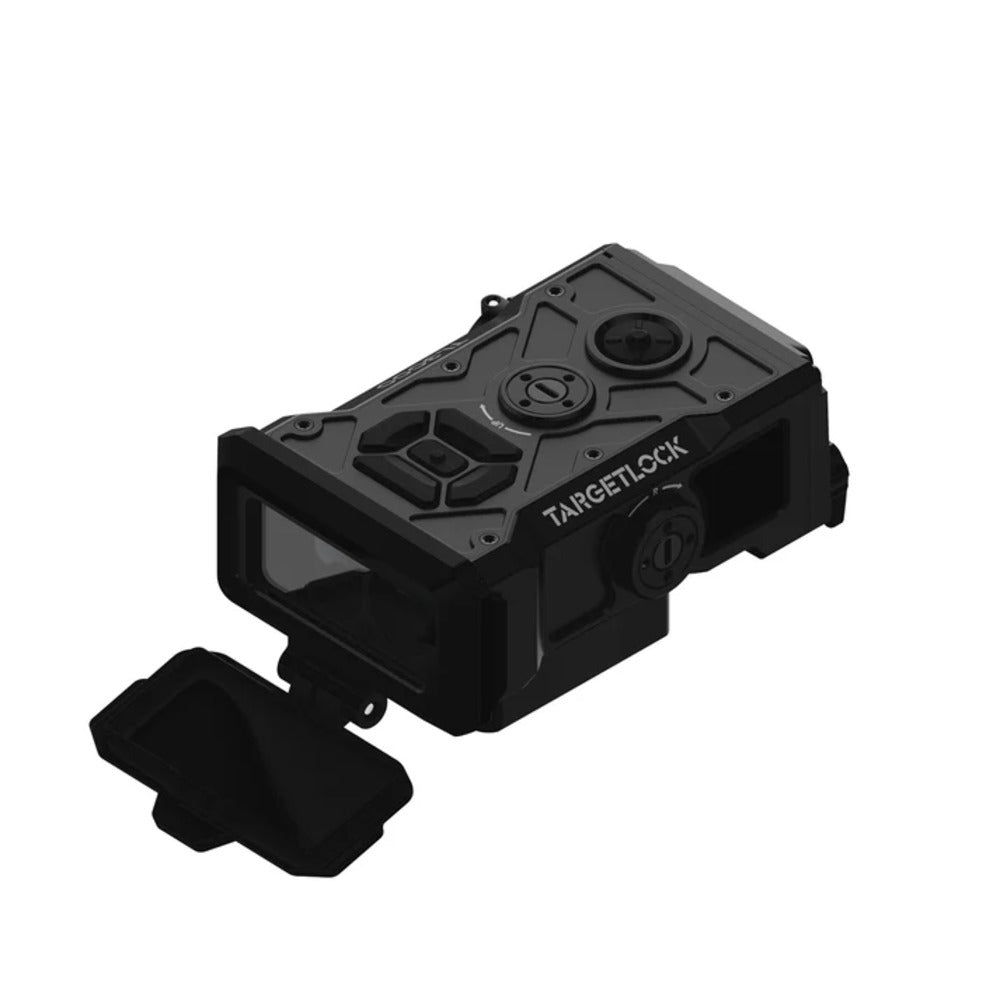

- Intuitive buttons are easy to identify and operate, even with gloves on or in low light.
In The Box
- TL3000 x1
- Alignment Target x1
- Charging Cable x1
- Lens Cleaning Cloth x1
- Mounting Accessories x1
- Quick Start Guide x1
- Rechargeable 16340 Battery x2
- Reflective Sticker x3
- User Manual x2
- Wired Pressure Switch Kit x1
- Multi-Tool x1
Specs
Specs Highlights:
| LRF Laser Wavelength | 905 nm |
| LRF Laser Class | Class 1 |
| Max Ranging Distance | 3,000 yd |
| Max Ranging Distance on Tree Trunk | 2,000 yd |
| Max Ranging Distance on Deer | 1,100 yd |
| Ranging Resolution | 0.1 yd |
| Ranging Accuracy | ±1 yd |
| Visible Laser Wavelength | 515 nm Green Laser |
| Visible Laser Class | Class 2 |
| Ballistic Engine | DNT Ballistic Engine |
| Profile Storage Capacity | 10 Independent Ballistic Profiles (Slots A–J) |
| Wireless Connectivity | Bluetooth (On by Default, Toggleable) |
| Wind Meter Compatibility | Kestrel |
| Included Battery Battery Life | 3,000 Single Pulse Measurements / 2.5 hours under RWDC |
| Dimensions (L×W×H) | 3.6 in × 2.3 in × 1.4 in / 92 mm × 59 mm × 35 mm |
| Net Weight | 7.5 oz / 213 g |
| Mount Dimensions (L×W×H) | 1.7 in × 1.8 in × 0.6 in / 42 mm × 45 mm × 15 mm |
| Mount Weight | 1.5 oz / 42 g |
| Mounting Interface | Picatinny |
| Ingress Protection Rating | IP67 |
| Recoil Rating | .50 BMG |
| Operating Temperature | -4°F to 122°F / -20°C to 50°C |
