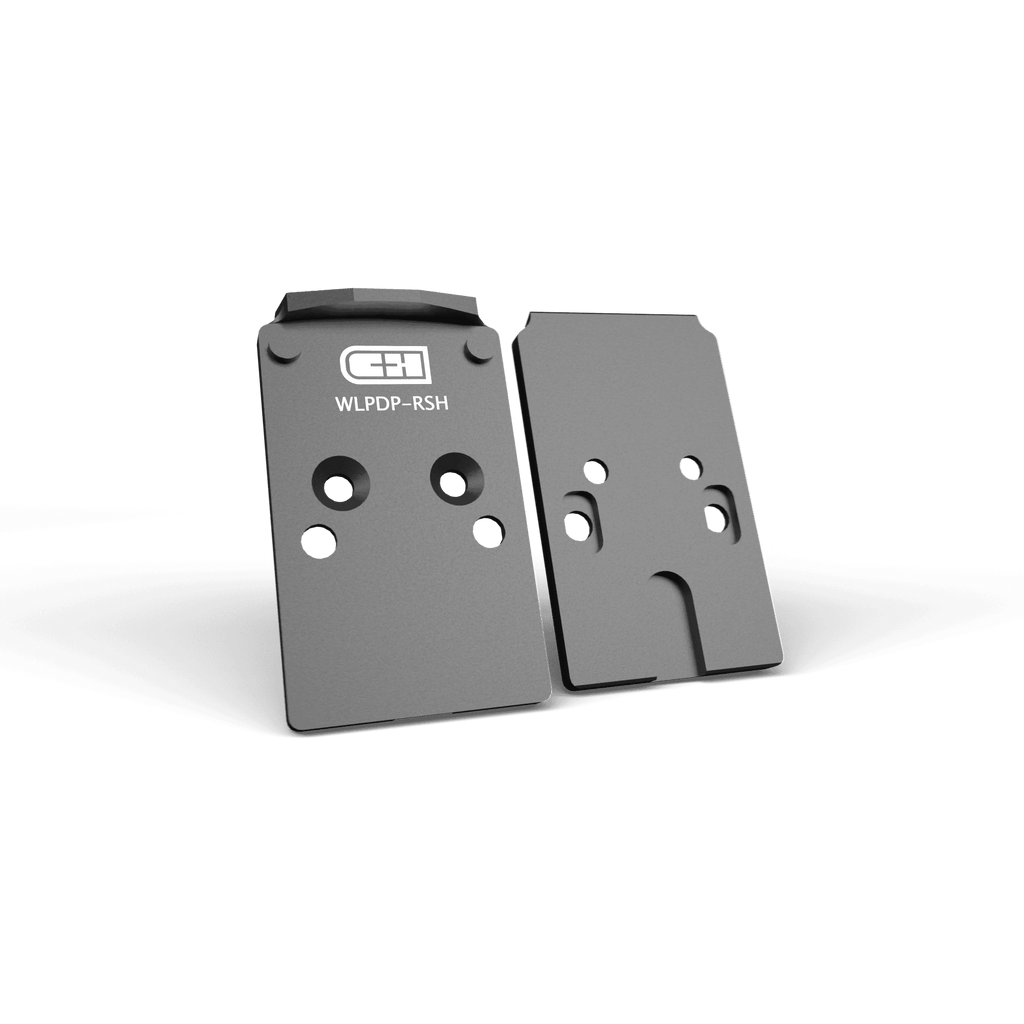

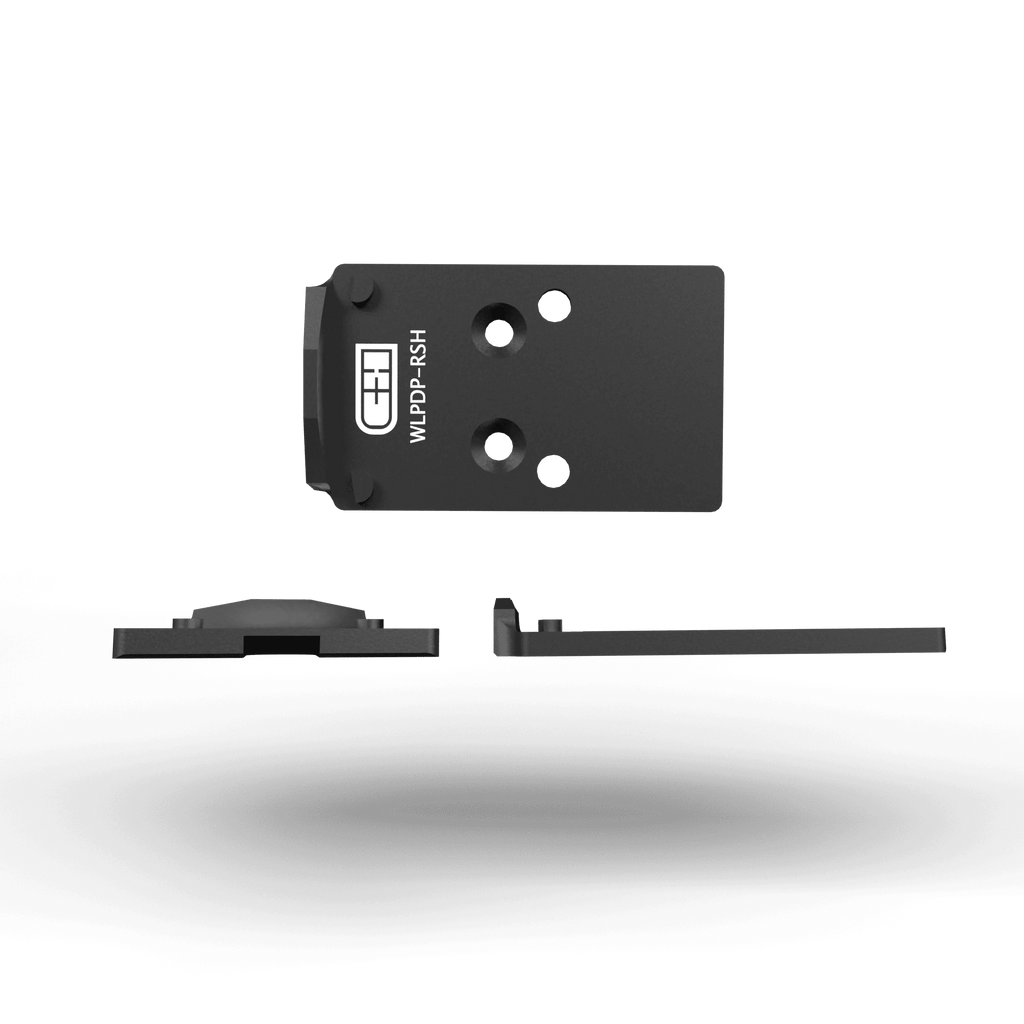

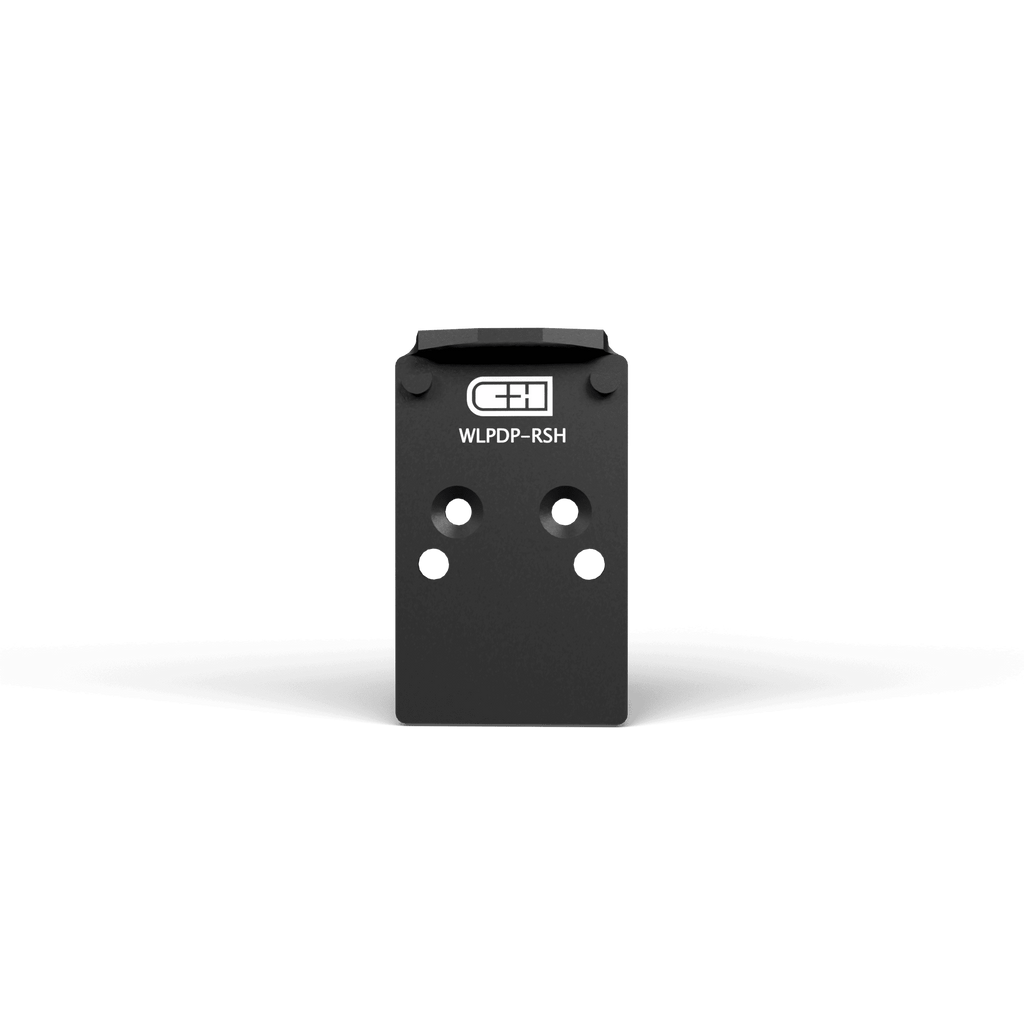

The C&H Precision plates are designed, manufactured, and shipped from our small family-owned business in Coastal Georgia. Each plate is precision machined to the tightest tolerances on HAAS CNC machines and each plate goes through multiple quality checks before shipping to our customers.
Most of our plates feature a patented stainless steel T-Nut which provides an industry-leading six to seven threads of engagement. Since all the mounting hardware is replaceable, if any mounting hardware is damaged it can be replaced without replacing the entire plate.
SPECIFICATION:
Material: Plates are made from 6061 aluminum. All mounting hardware is Stainless Steel
Finish: Plates are MIL-SPEC Type III Hard Anodized – Black
Replaceable 416 Stainless Steel T-Posts for the maximum thread engagement

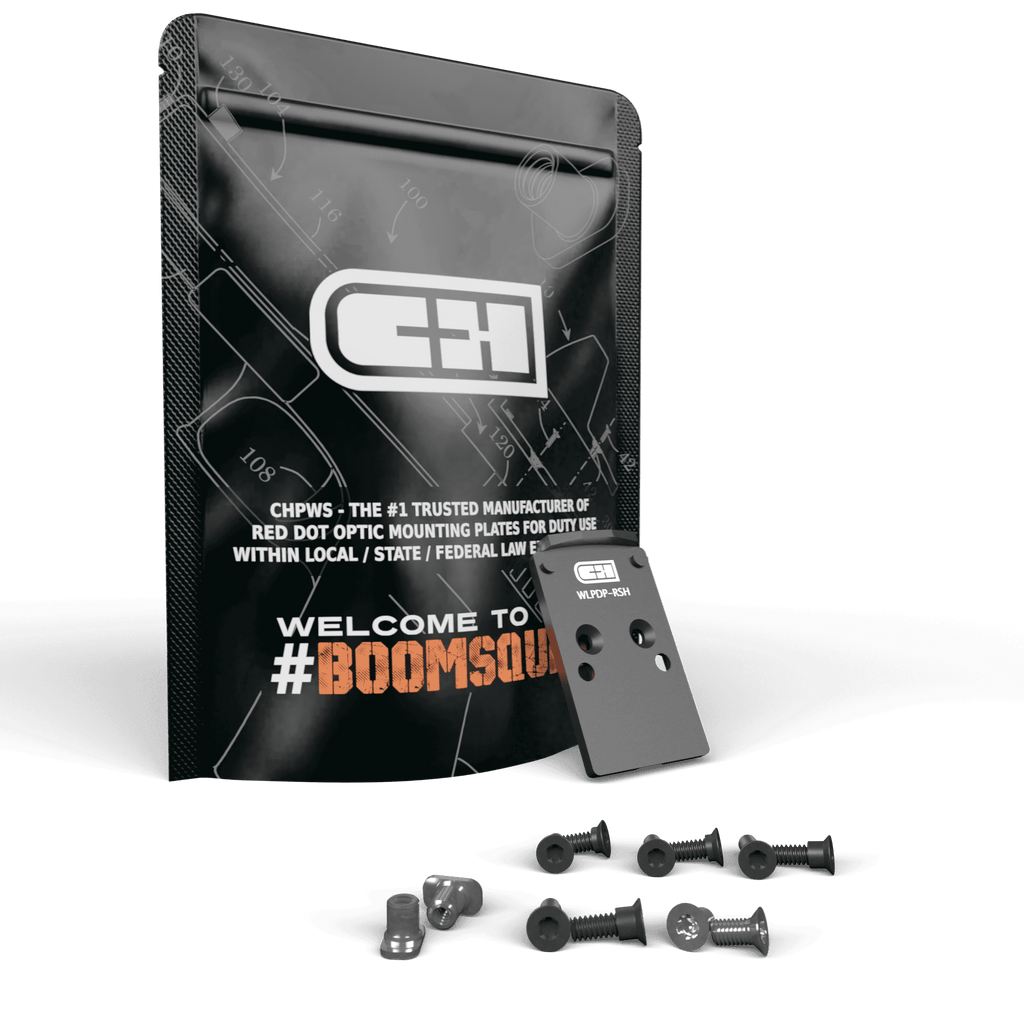

INCLUDED:
Qty 1 – Optic Plate
Qty 3 – M3 x 6 MM FH Plate Mounting Screws
Qty 3 – 4-40 x .250 FHB Optic Mounting Screws
Qty 3 – 4-40 x .280 FHB Holosun 507C / 508T Optic Mounting Screws
Qty 3 – 4-40 x .320 FHB Trijicon RMR Optic Mounting Screws
Qty 3 – 4-40 x .345 FHB Trijicon SRO / RMR HD Optic Mounting Screws
Qty 3 – 4-40 x .370 FHB CHPWS COMP / EDC XL / COMP MAX Optic Mounting Screws
Qty 3 – Patented 416 Stainless Steel T-Nuts

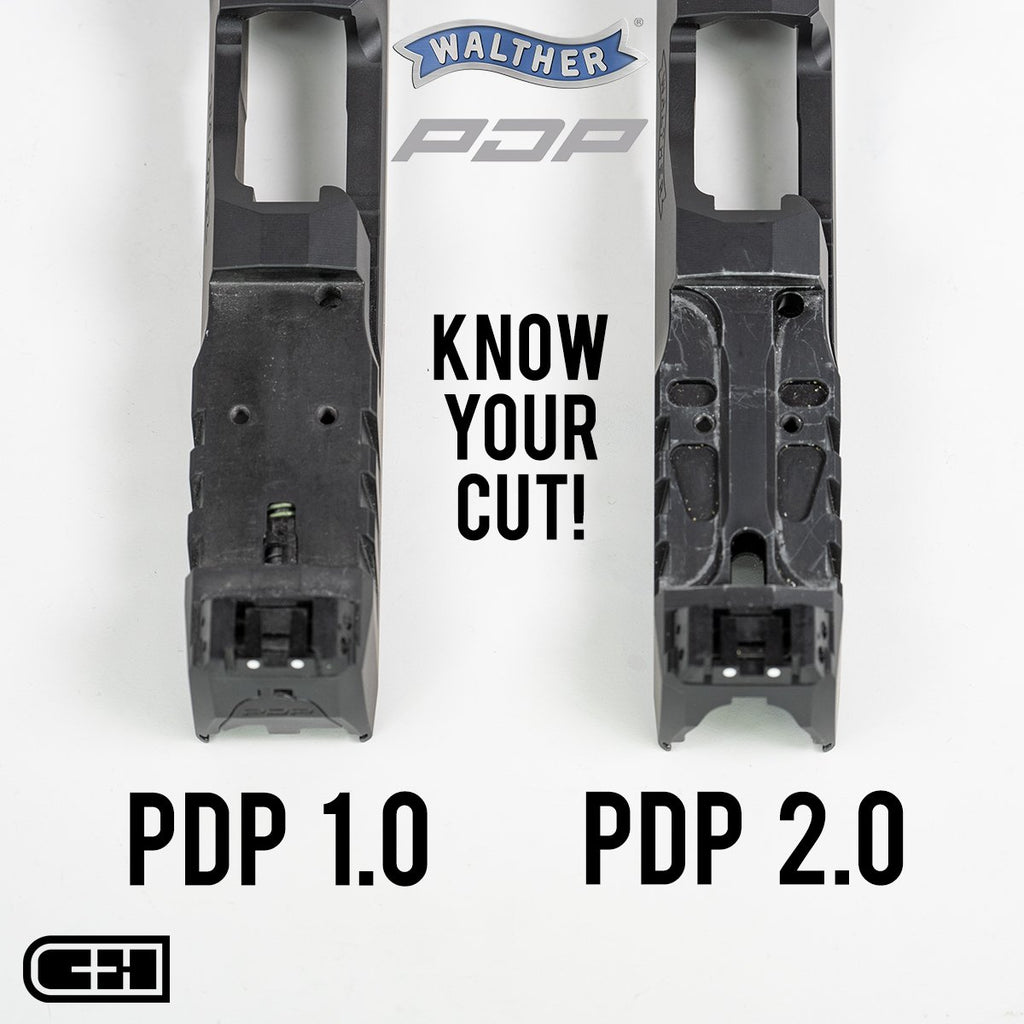

Compatible Firearms
Walther DEFENSE PDP 1.0
Compatible Optics
C&H COMP, C&H Comp Max, C&H EDC-XL, Holosun 407C, Holosun 507C, Holosun 507Comp, Holosun 508T, Osight X, Trijicon RMR, Trijicon RMR HD, Trijicon SRO
