Description

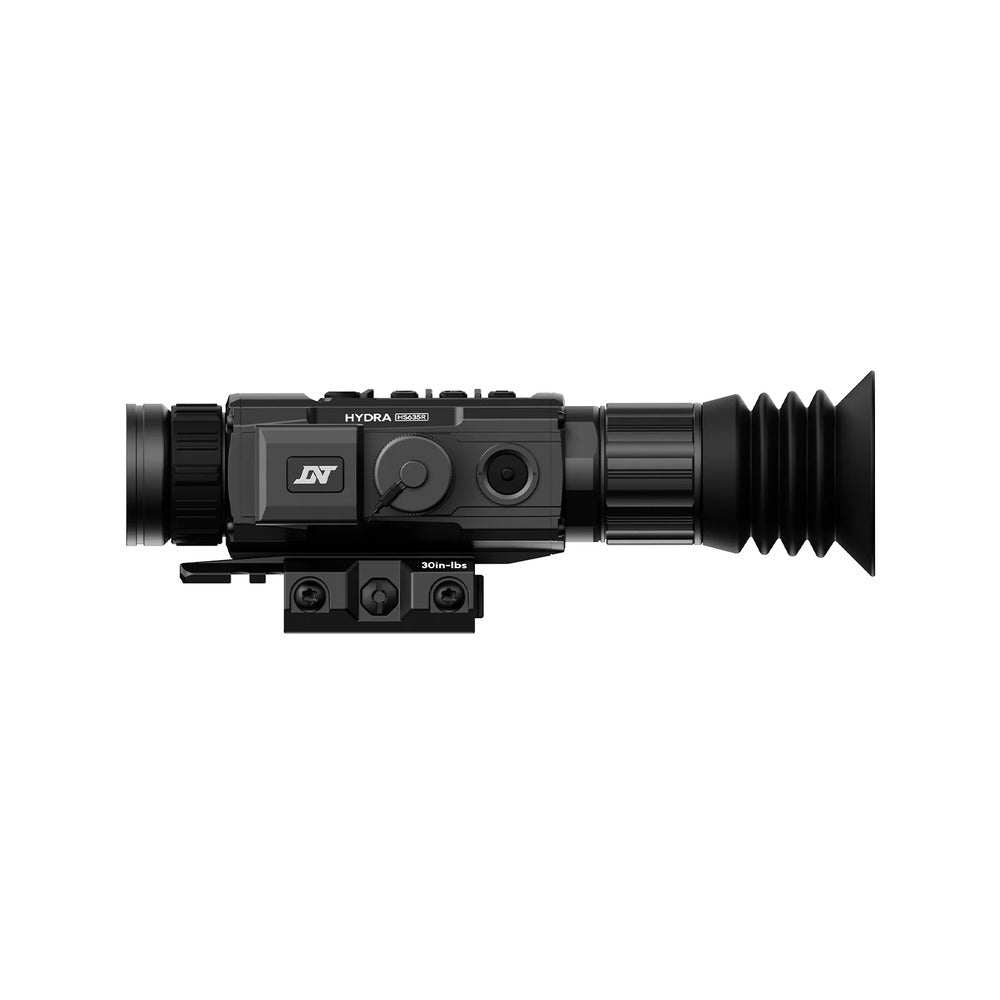

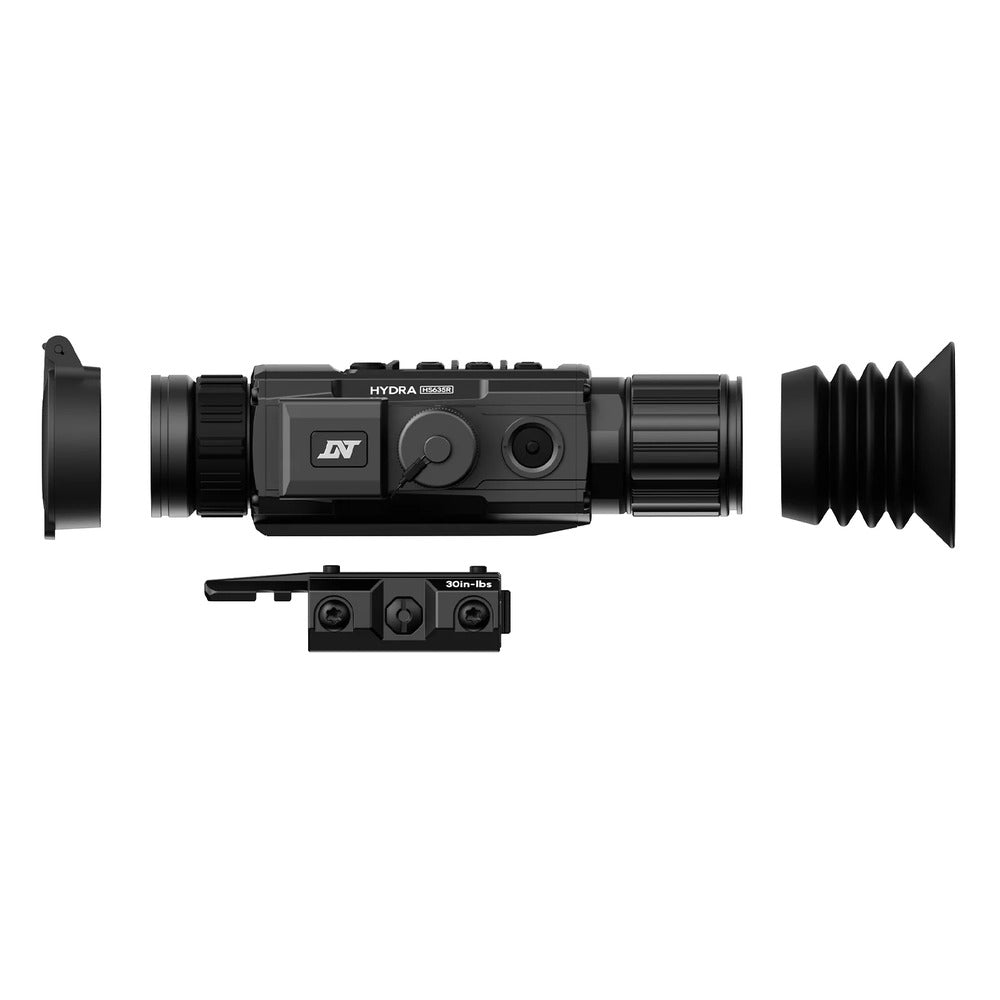

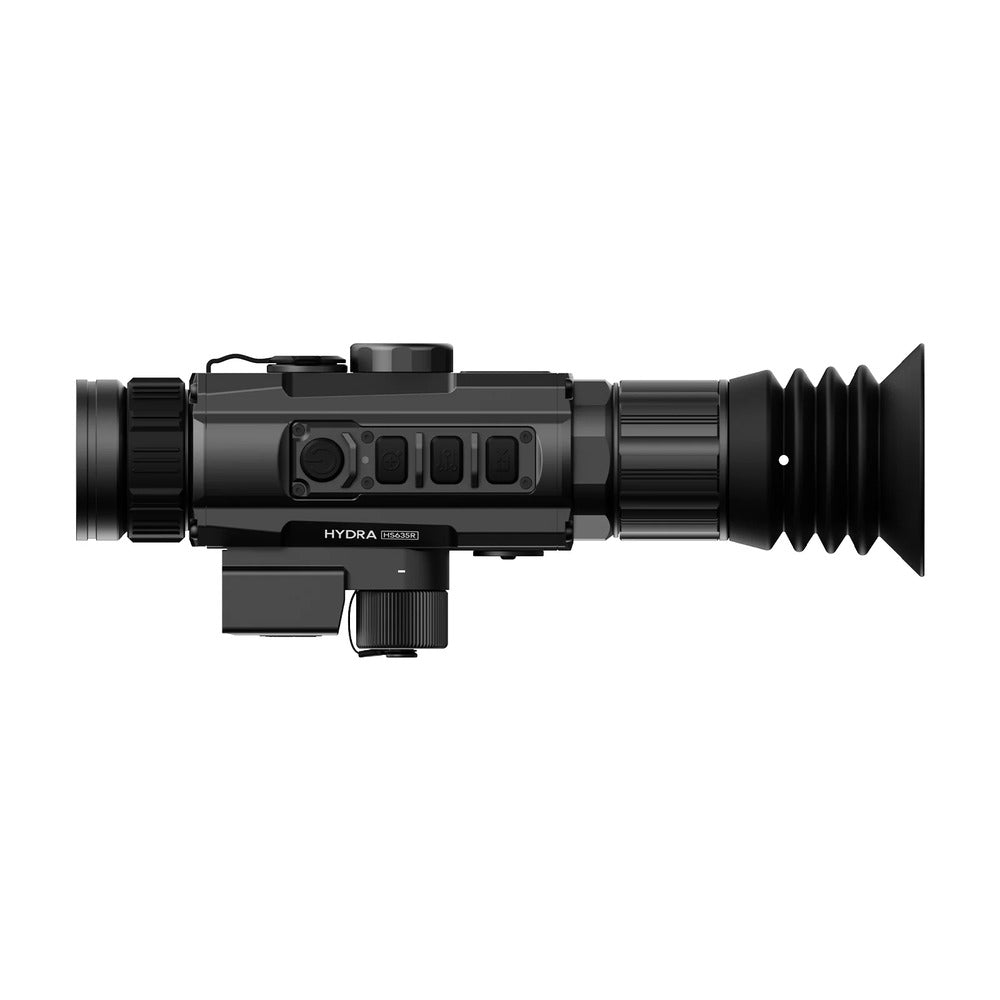

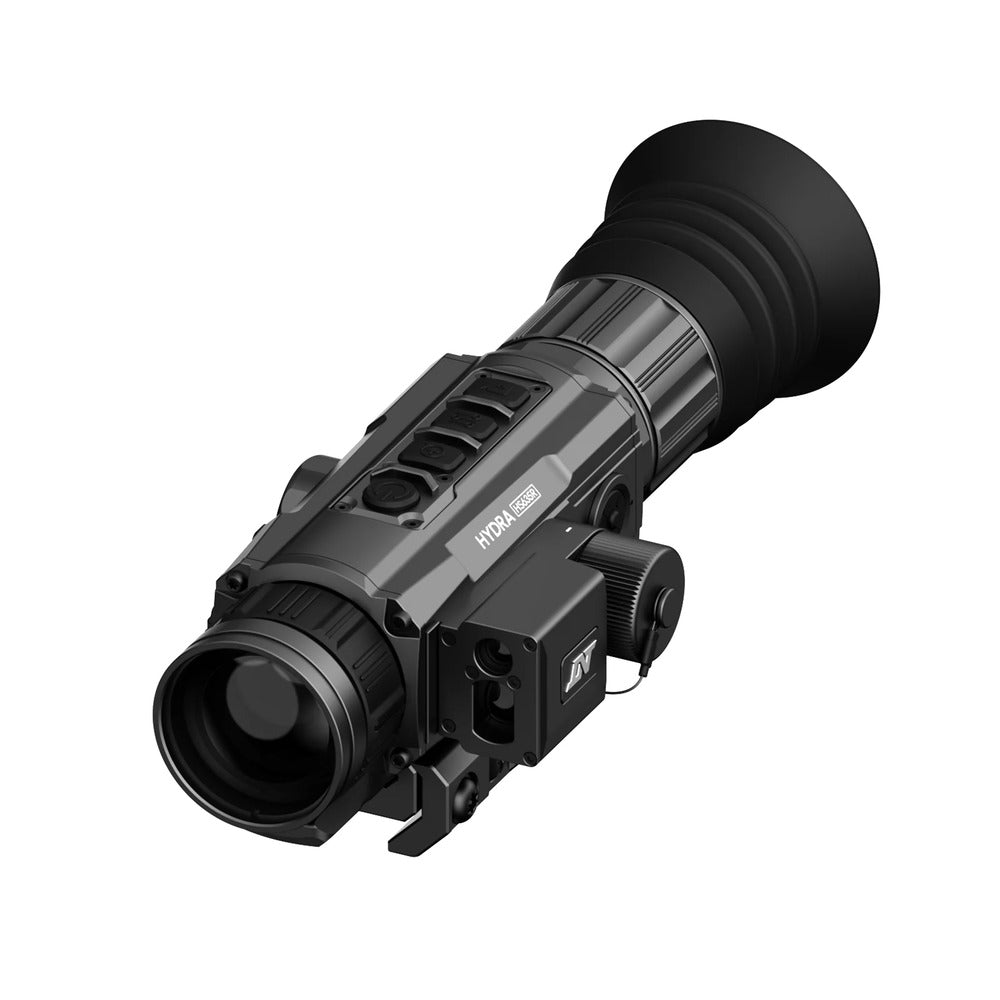

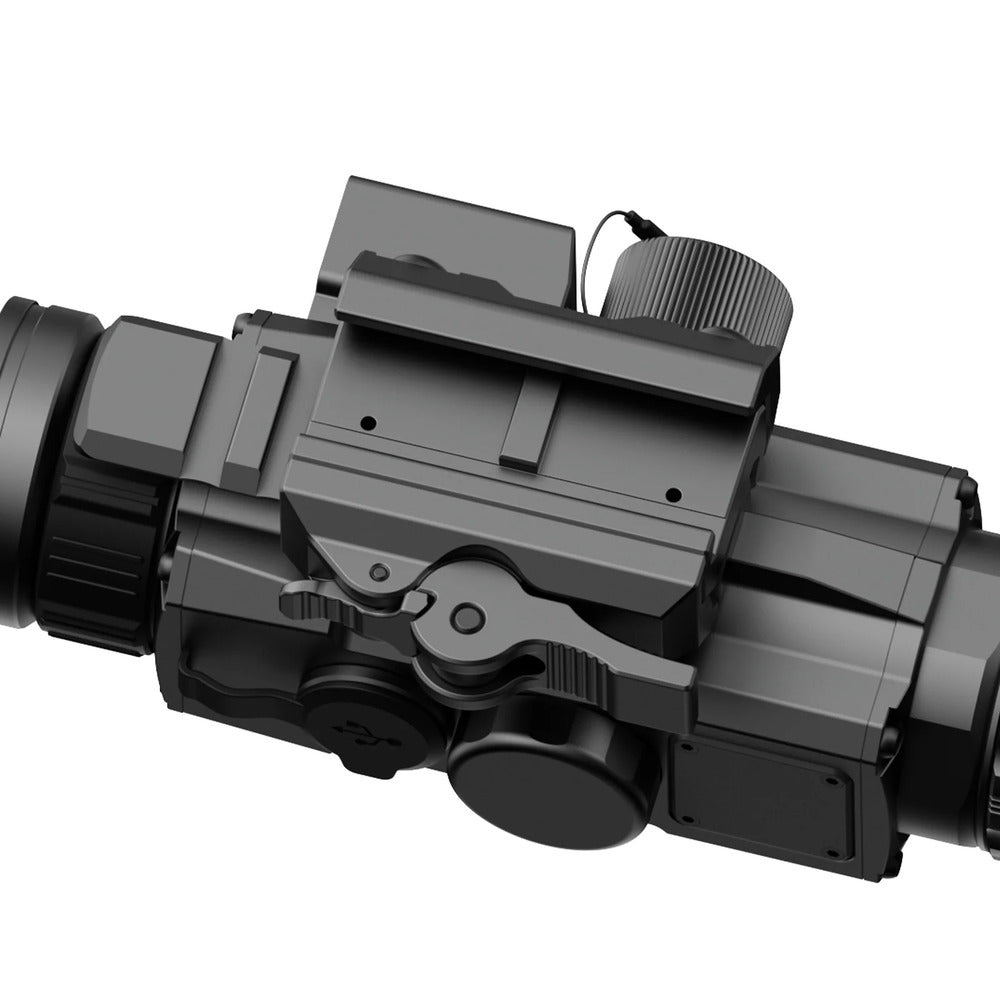

Combining Standalone Scope, Clip-On, Handheld Monocular, Laser Rangefinder, and DNT Ballistic Engine, the HS635R delivers exceptional performance with its advanced 640×512 thermal sensor, giving hunters greater detection range and clearer target identification. Equipped with the QDM150 quick detach mount, it allows effortless switching between handheld observation and rifle-mounted shooting. From open fields to distant tree lines, the HS635R helps hunters identify targets with confidence across demanding environments.
When the distance is uncertain and every shot counts, the HS635R gives you the data needed for precise holds. Its integrated laser rangefinder measures distances from 5 to 1,300 yards, while the DNT Ballistic Engine delivers instant, accurate drop compensation. Ballistic profiles can be configured directly on the device or through the DNT App, helping you stay prepared for different rifles and loads.
Whether scanning wide-open fields or observing distant targets, the HS635R delivers reliable detection and identification. Its high-sensitivity 640×512 sensor with 12 μm pixels, ≤18 mK NETD, and a 35 mm objective lens captures detailed thermal images with exceptional clarity. DNT’s Image Super Resolution (ISR) enhances image quality to a near 960-equivalent level at 6x digital zoom. With 1.5x base magnification and up to 6x digital zoom, it balances broad-area scanning with detailed target observation.
At just 15 oz (424 g), the HS635R is built for all-day carry. Two rechargeable batteries provide up to 8 hours of total runtime (4 h per battery), while its IP67-rated, shock-resistant housing withstands recoil up to .50 BMG. Built for demanding hunts from wooded terrain to open fields, it balances field of view and long-range capability for a wide variety of hunting environments.
In The Box
- HS635R ×1
- QDM150 ×1
- Eye Cup ×1
- Flip Up Cover ×1
- 18650 Flat Top Battery ×2
- Charger ×1
- USB Cable ×2
- User Manual ×1
- Quick Start ×1
- Lens Cleaning Cloth ×1
Specs
| Resolution | 640*512 pixels |
| Sensor Frame Rate | 50FPS |
| Image Sensor | Uncooled infrared sensor |
| Pixel Size | 12x12um |
| NETD | ≤18mk @25℃ |
| Objective Lens Focal Length | 35mm |
| Base Magnification | 1.5x |
| Digital Magnification | 1.5-6x |
| Field of View(HxV) | 21.9yd@100yd x 17.6yd@100yd |
| Type | Micro-OLED |
| Display Resolution | 1024x768 pixels |
| Frame Rate | 50Hz |
| Battery Type | 18650 Battery(Flat-top) |
| Operating Time | 4h |
| External Power Supply | 5V - Type C USB |
| Net Weight | 15.0 oz |
| Memory | Bulit-in memory,32GB |
| Dimensions | 7.9*2.7*2.0 Inches |
| Ingress Protection | IP67 |
| WIFI/APP | YES(DNT) |
| Operating Temperature | -4～122℉ |
| Ranging Distance | 5-1300yds |
| Recoil Rating | .50BMG |
