Description

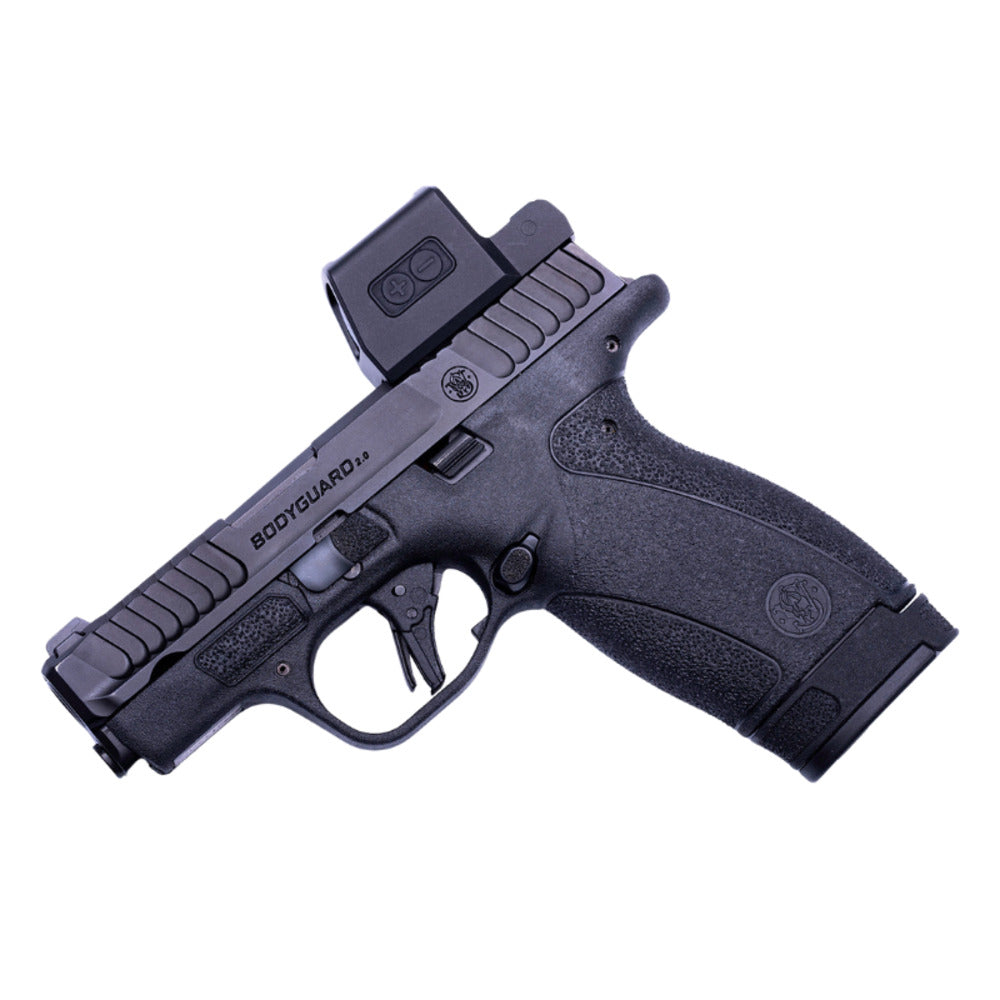

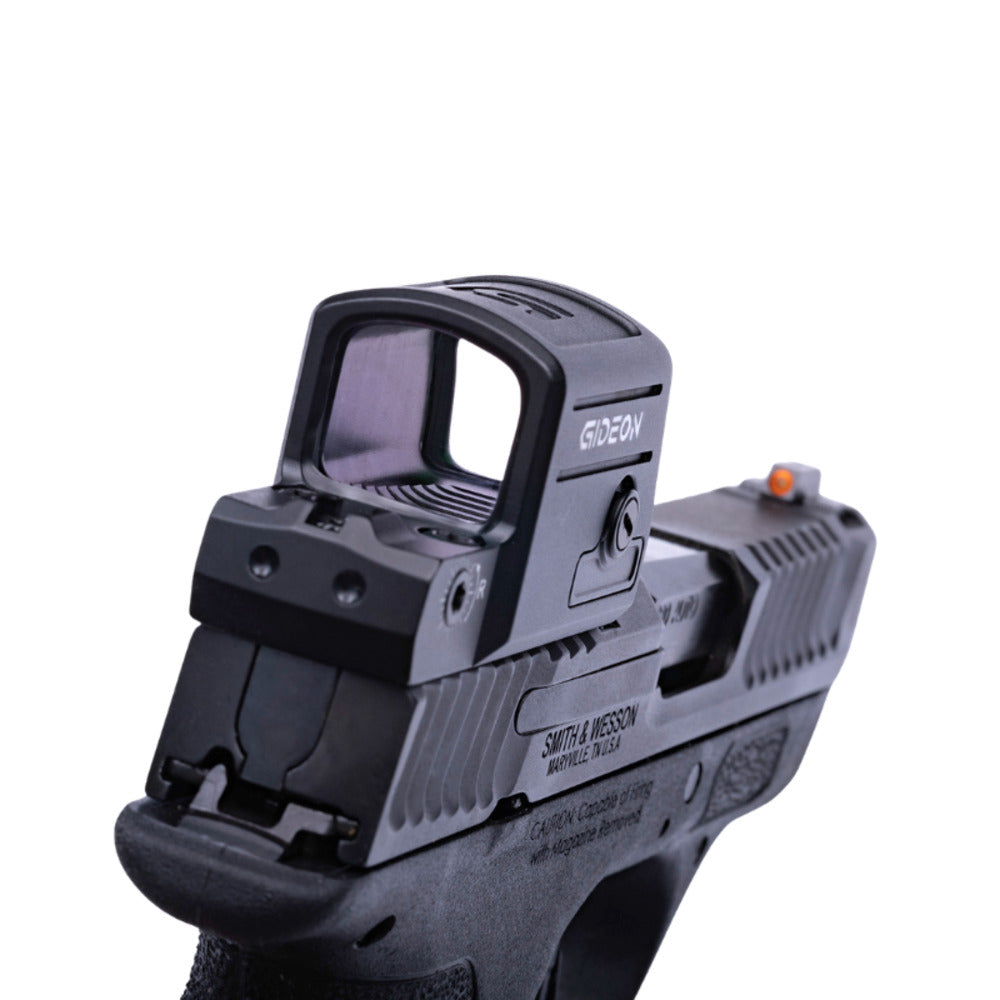

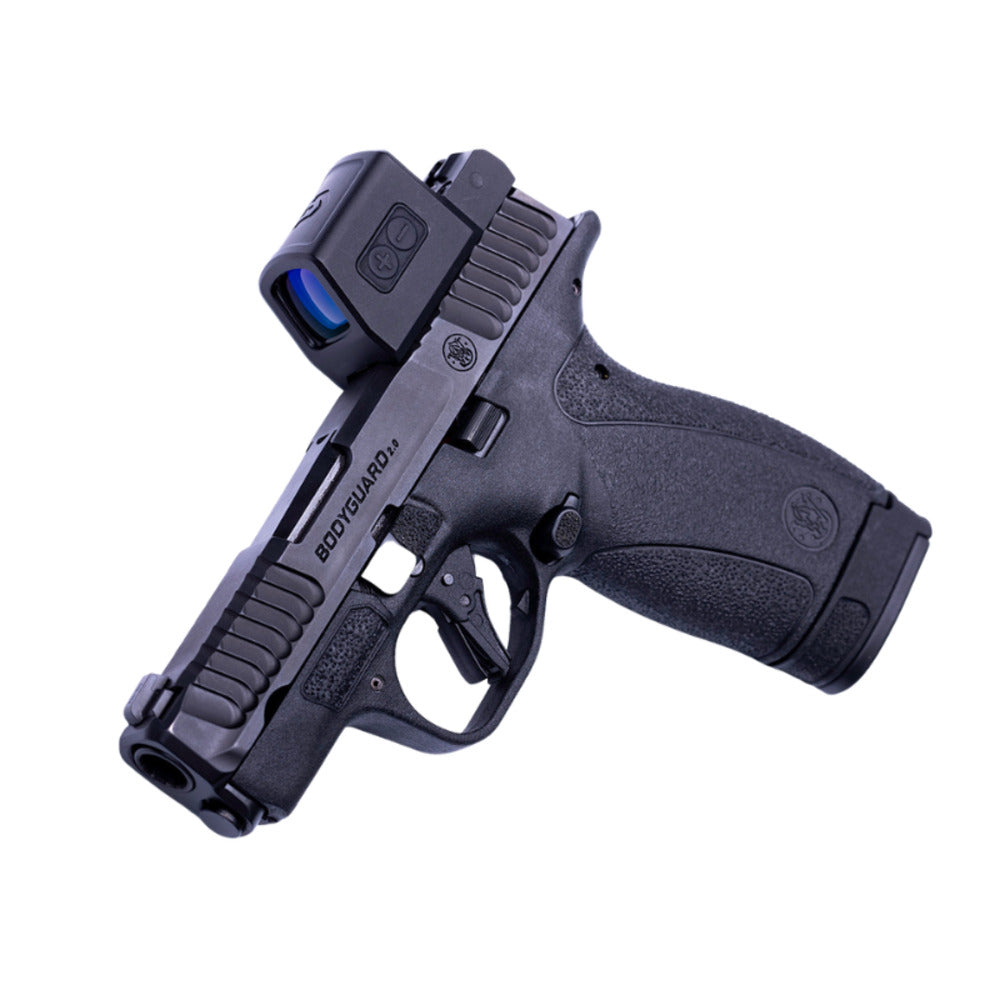

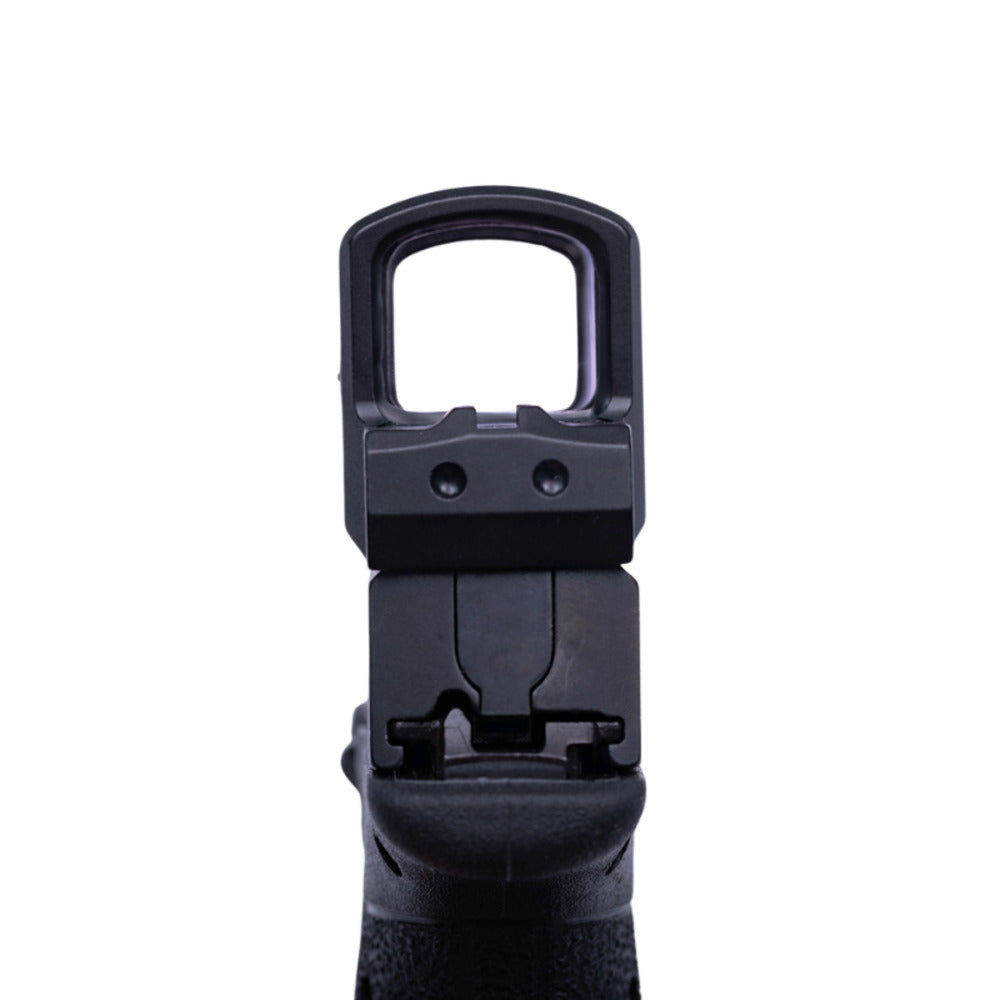

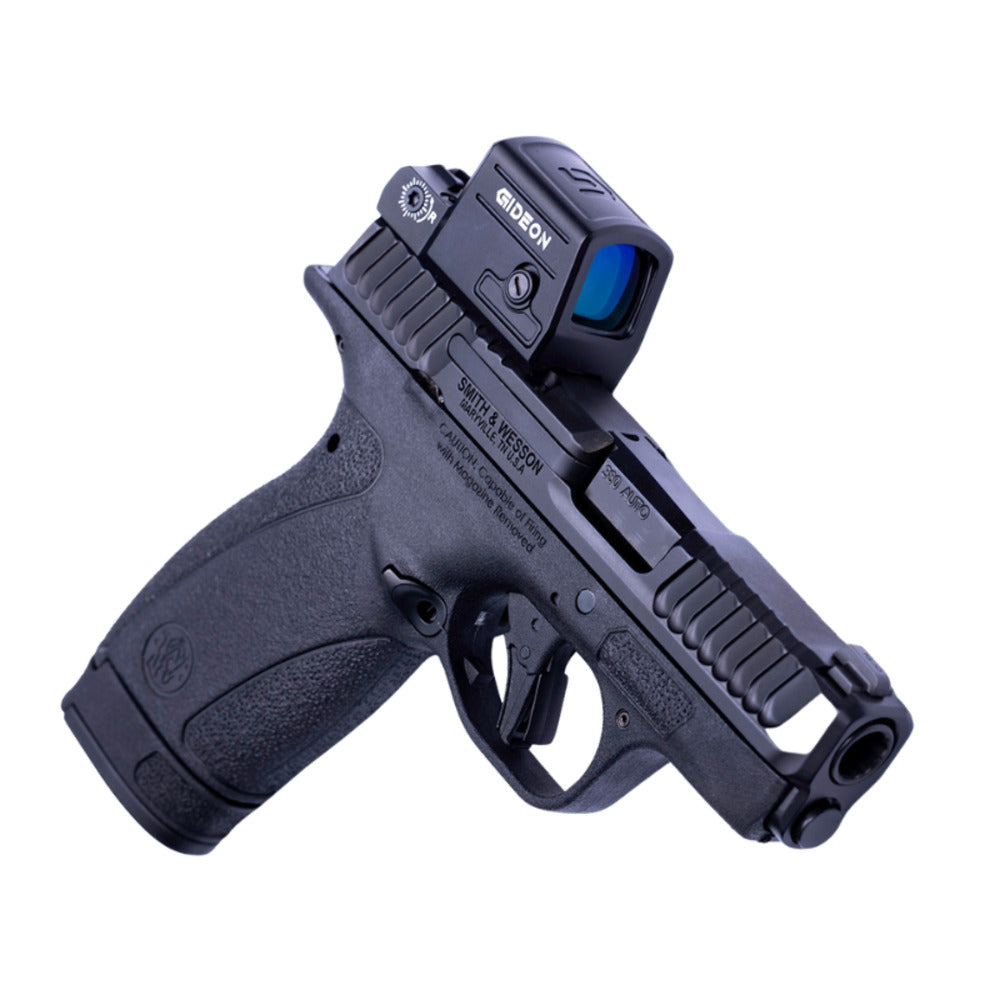

Pebble E is an enclosed emitter 3 MOA micro red dot designed specifically for one of the smallest deep‑carry pistols on the market: the Smith & Wesson M&P Bodyguard 2.0. Model‑specific dovetail inserts replace the factory rear sight and let Pebble E mount directly to the slide; no milling, no universal plates, so you keep a slim, snag‑free profile that still supports a true slide‑mounted dot.

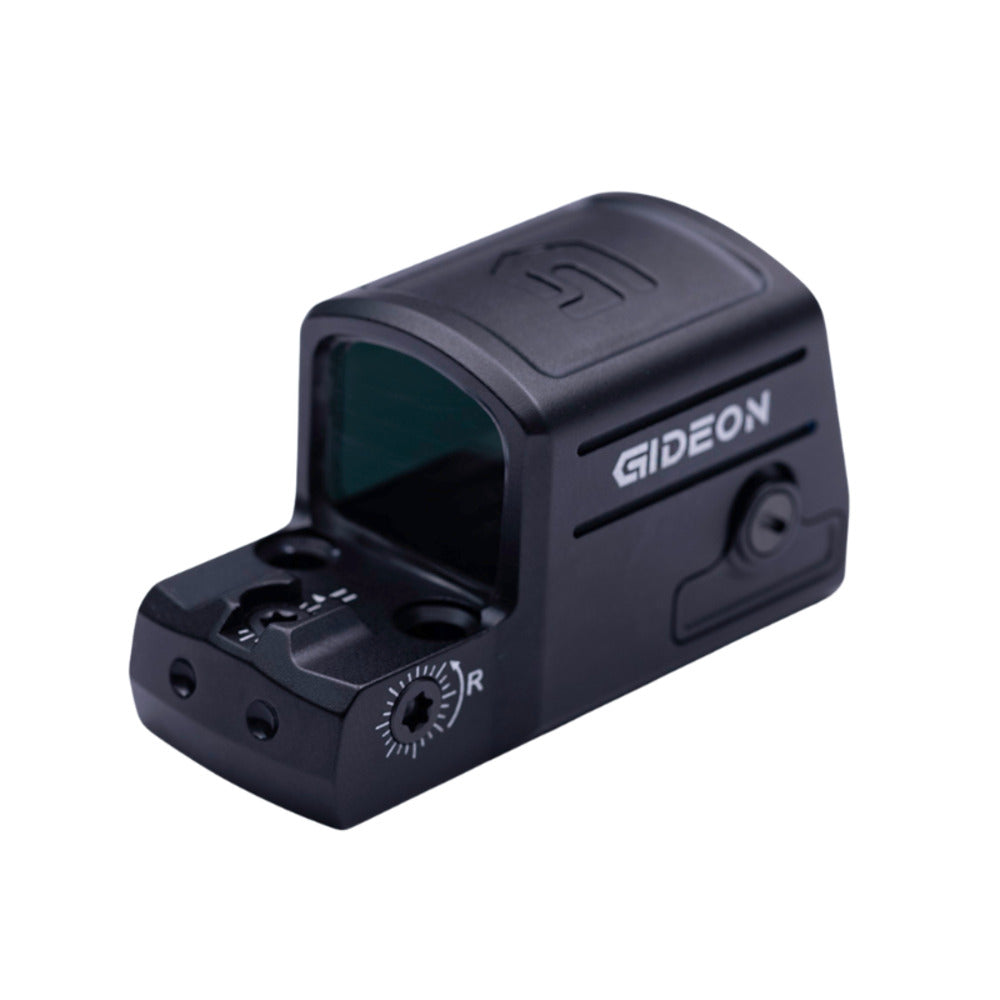

Inside the sealed housing you get a crisp 3 MOA dot in your choice of red or green, with 10 manual brightness levels (8 for daylight, 2 for use with night vision) and a motion‑activated shake‑awake function that powers the optic down after about 225 seconds and brings it back the moment the gun moves. A side‑loading CR1632 battery tray allows easy battery changes without removing the optic or disturbing your zero, while a brightness lockout mode helps prevent accidental button presses during pocket or holster carry. Parallax‑free at 33 yards, shockproof, waterproof, and backed by Gideon’s lifetime warranty, Pebble E is built to live on a real carry gun, not just a range toy.
Features
- Purpose-built for the M&P Bodyguard 2.0 using model-specific rear-sight dovetail mounts, no adapter plates or slide cuts required.
- Sealed housing protects the emitter and lens from sweat, rain, dust, and pocket lint, keeping the dot usable in the kinds of environments deep‑carry pistols actually see.

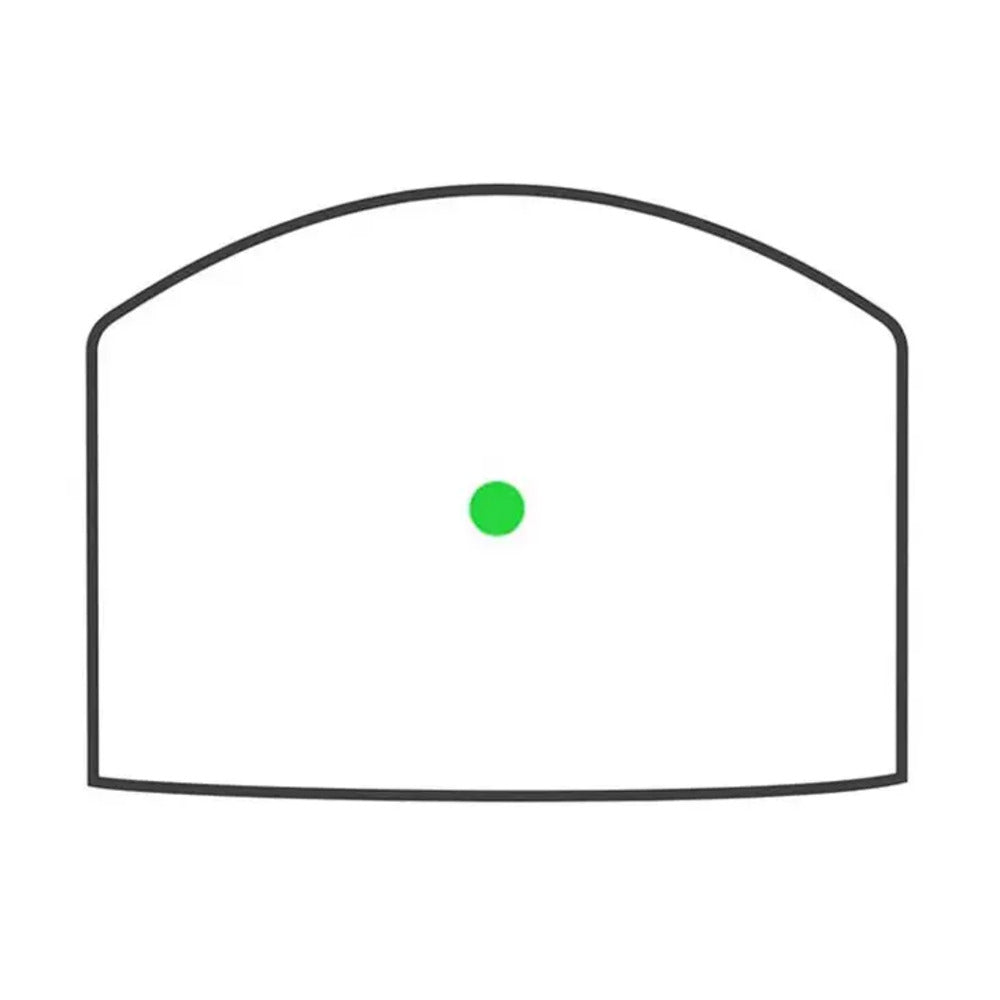

- Clean 3 MOA reticle for precise aiming at distance and fast pickup at typical CCW ranges, available with red or green emitters to match your preference.
- Eight daylight settings plus two extra‑low levels tuned for night‑vision use give you usable brightness from dark hallways to bright parking lots.
- Auto‑sleep after roughly 225 seconds of inactivity, instant wake on movement, and a long‑press manual power‑off when you want the optic completely dormant.

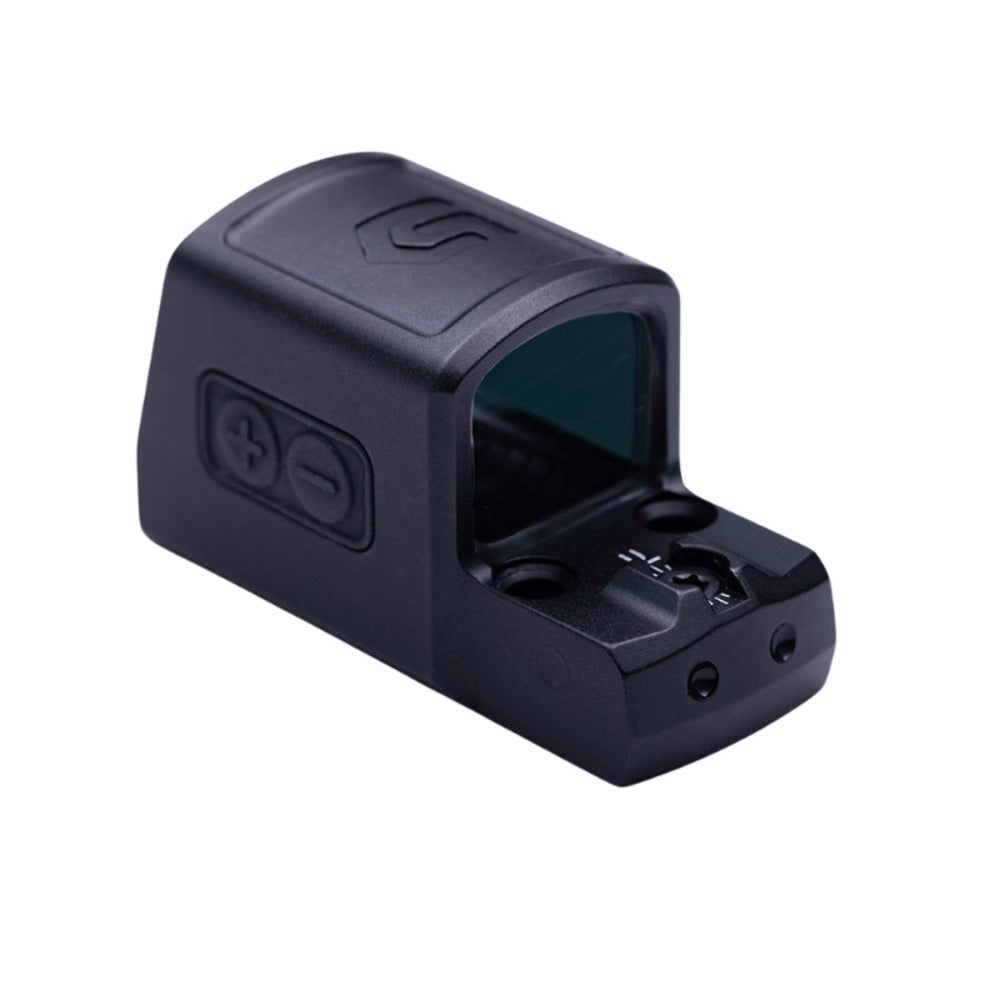

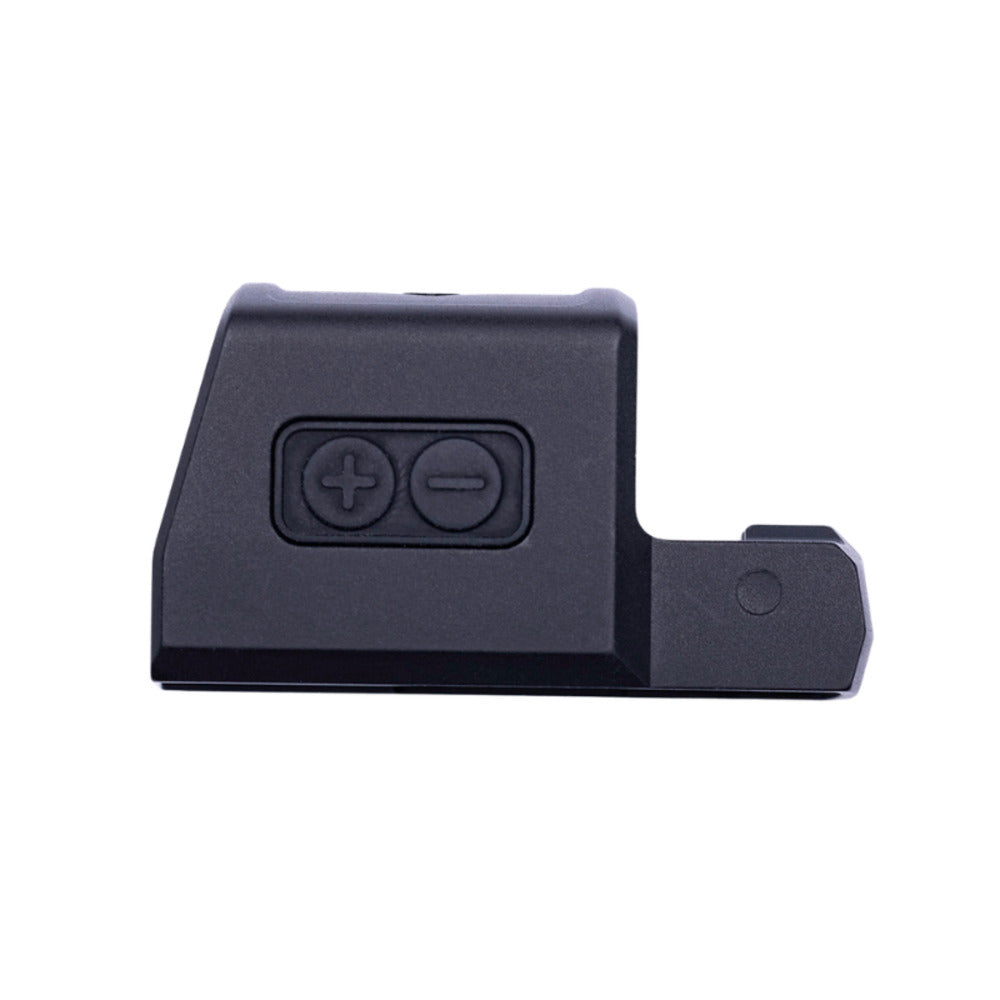

- Press and hold the “+” button to lock brightness and reduce accidental changes or power‑offs in pockets and holsters; hold again to unlock.

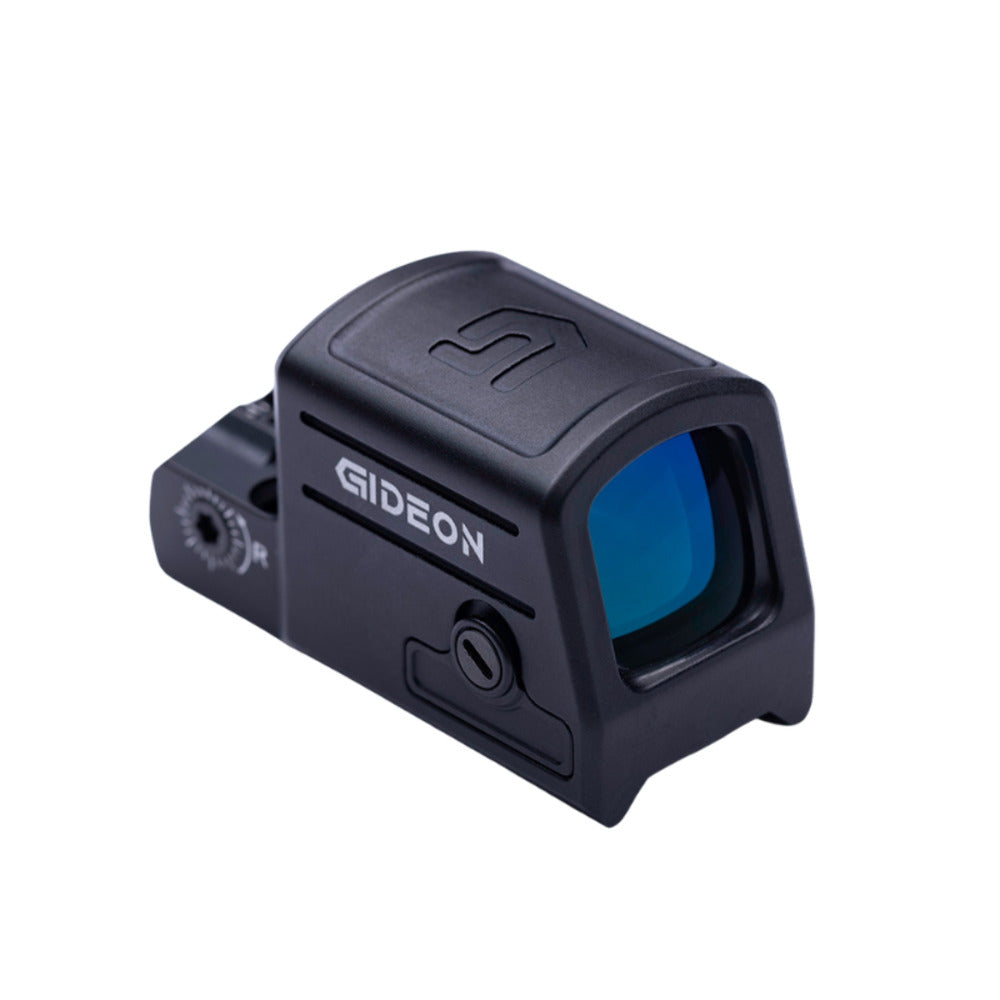

- Side tray allows battery swaps without removing or re‑zeroing the optic; uses a single CR1632 3V lithium cell.
- Elevation and windage dials offer 35 MOA of adjustment in each direction (70 MOA total), with smooth, click‑less travel and markings calibrated to point of impact.
- Optimized so parallax is minimized at 33 yards, with negligible effect at typical defensive distances.
- Approx. 48.1 mm (L) x 22.2 mm (W) x 27.3 mm (H), 7.5 mm deck height, and about 1.16 oz including battery, keeping micro pistols slim and carryable.
- Built to handle recoil, sweat, and weather, and covered by Gideon’s limited lifetime warranty against defects and accidental breakage under normal use.
- Shockproof & Waterproof
In The Box
- Pebble E Optic
- Gideon Tool
- Two mounting inserts (please review installation sheet in the package)
- Two mounting screws
- lens cleaning cloth
Specs
| Magnification | 1x |
| Lens Dimensions | 14.8mm tall x 15.2mm wide |
| Elevation/Windage adjustment range | 35 MOA (Total 70 MOA) |

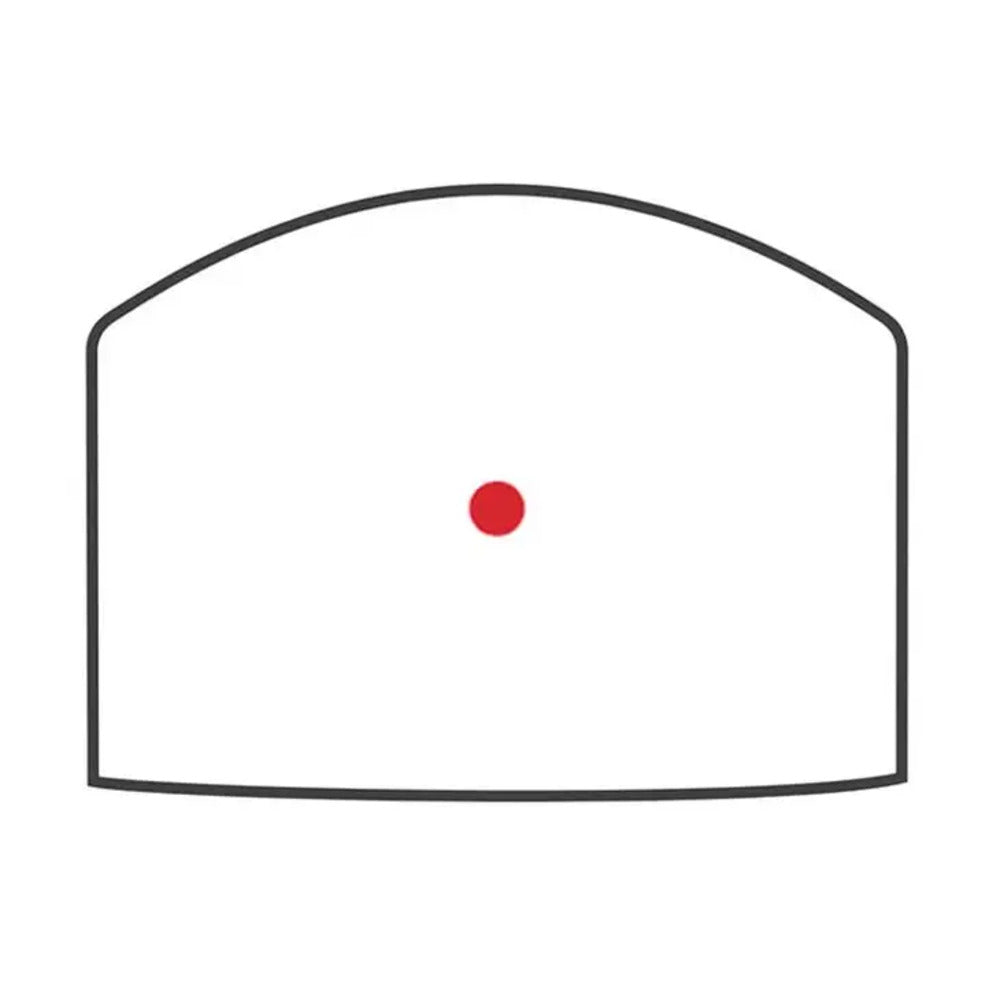

| Reticle | 3 MOA Dot |
| Color | Red Emitters |
| Parallax Free | 33 yards |
| Brightness Setting | 10 levels (8 Daytime, 2 NV Compatible) |
| Power Supply | 1x CR1632 3V Lithium battery |
| Auto Wake/Sleep | 225 Seconds after no movement |
| Dimensions (LxWxH) | 48.1mm x 22.2mm x 27.3mm |
| Deck Height | 7.5mm |
| Weight (with battery installed) | 1.16 oz |
