Description

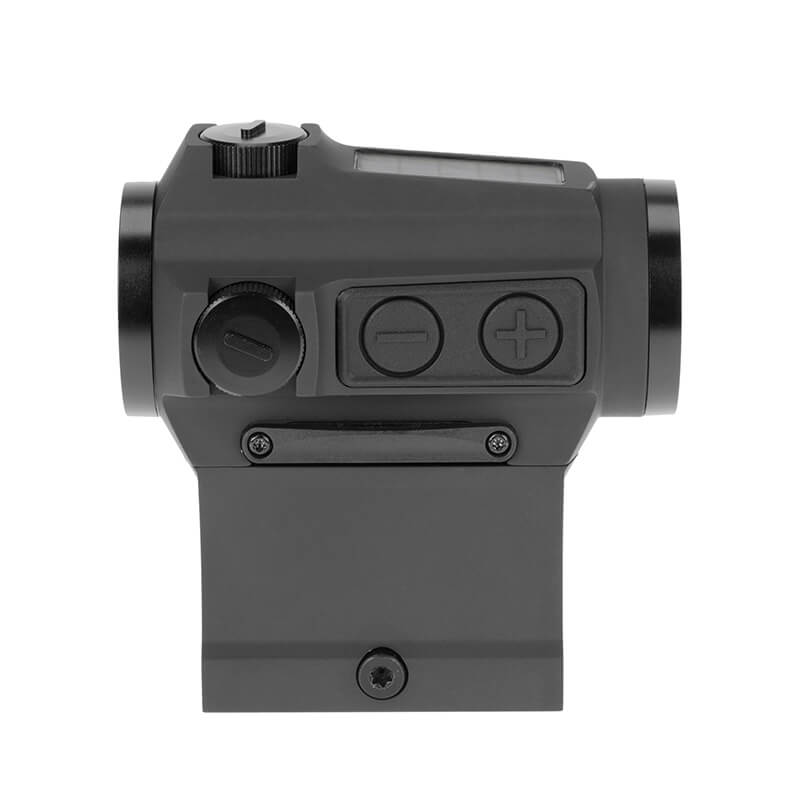

The HS503CU is a 20mm micro sight designed for rifle and carbine applications. HS503CU features Holosun’s Solar Failsafe technology and our Multi-Reticle System (MRS) which includes a 2MOA dot and a 65 MOA Circle. Holosun’s Red Super LED allows for up to 50k hour battery life with 10 daylight and 2 night vision compatible reticle intensity settings.
The HS503CU housing is made from 6061 aluminum and includes both a lower 1/3 co-witness mount (1.63”) and a low mount (.75”) for low-comb height rifle applications. Additional features include Shake Awake technology, rubber lens covers, and a side battery for the 2032 battery. HS503CU is a versatile sight for users of all levels.
Features
- Holosun’s Solar Failsafe Technology is an innovative feature pioneered by Holosun in red dot sights.
- Solar Failsafe allows the red dot sight to remain powered when your battery fails.
- Superled, the brightest environments down to no-light situations
- Multilayer Reflective Glass
- Titanium Housing
In The Box
- Lower 1/3 Cowitness Mount
- Low Profile Mount
- T10 L Key
- Rubber Cover
- User Manual
- CR2032 Battery
- Lens Cloth
Specs
| PHYSICAL SPECS | |
| Window Size | 20mm Diameter |
| Dimension (in) | 2.6×1.43×1.6 |
| MECHANICAL SPECS | |
| Weight (oz) | 3 |
| Housing Material | 6061 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| ENVIRONMENT SPECS | |
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | IP67 |
| Vibration | 1000G |
Specs Highlights:
Weight (oz)
3
| PHYSICAL SPECS | |
| Window Size | 20mm Diameter |
| Dimension (in) | 2.6×1.43×1.6 |
| MECHANICAL SPECS | |
| Weight (oz) | 3 |
| Housing Material | 6061 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
| ENVIRONMENT SPECS | |
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -30℃~60℃ |
| Submersion | IP67 |
| Vibration | 1000G |
