Description
The World’s First Multi-Function Thermal Pistol/Rifle Sight.
The INFITAC Fast Mini Series includes two compact thermal pistol sights—the FML19 and FMP13—featuring 384×288 and 256×192 resolution sensors, both operating at 60 Hz. Equipped with F1.2 (19 mm) and F1.0 (13 mm) lenses respectively, both models use a 1.4-inch 360×300 display.
Built for rugged use, the Fast Mini Series is IP67 waterproof, rated for up to 1200g recoil, and powered by a CR2 battery providing up to 5 hours of runtime, all in an ultra-compact and lightweight design.
Standard RMR footprint for your pistol mounting needs.
Complete your setup — optionally purchase FAST‑MINI accessories, including additional pistol footprints (RMSc, DPP, MOS) and rifle mounts (Picatinny rail, 30 mm ring, 45° offset, Aimpoint Acro).
INNOVATION & CAPABILITIES
- Thermal Tech
- InstaWake Tech
- Touch Screen (can also operate using buttons)
- Standard RMR footprint
- 60 Hz Overlay Refresh Rate
- Multi Reticle System: 6 MOA dot,6 MOA dot &65 MOA circle, 6 MOA dot & 130 MOA circle
- Auto Brightness

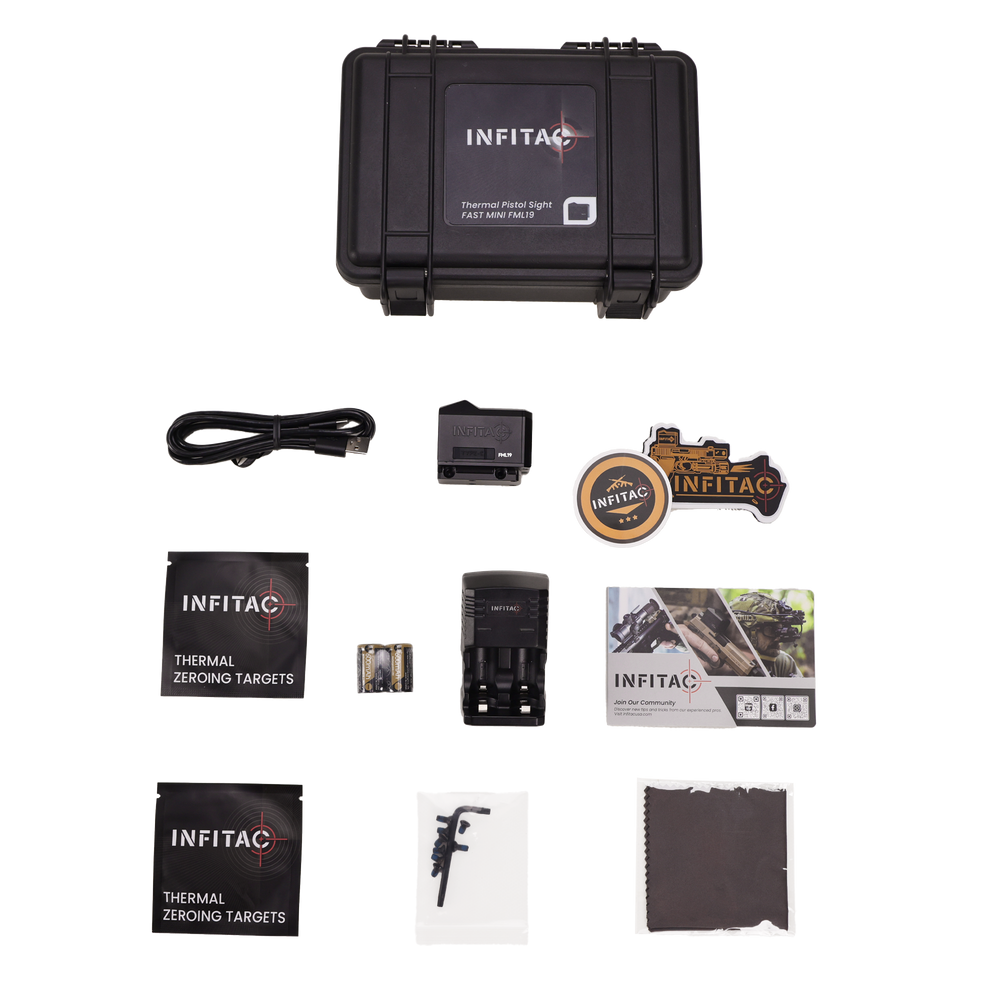

What's in the box
- FML19 thermal pistol sight
- RMR Pistol Adapter (compatible with most RMR pistol bases)
- 6-32 UNC ×1/4” Hexalobular Socket Countersunk Screws and Spanner Tool
- Heated Target for Zeroing ×2
- 3.7V Rechargeable CR2 Battery ×2
- CR2 Battery Charger
- USB Type-C Cable
- Lens Cloth
- INFITAC Brand Sticker
- INFITAC Hook and Loop Fastener
- User Manual
- Warranty Card
Note:
- The included mounting bracket is a standard RMR interface and is compatible
with most RMR pistol bases.
- The included two CR2 batteries are rechargeable batteries. You can recharge
them only with the battery charger in the box.
- Please use a 3.7V CR2 rechargeable battery to power the FML19.
Specs
| Resolution, pixels | 256x192@12μm |
| Objective Lens, mm | 13 F1.0 |
| NETD,mK | ≤25 |
| Battery | 1 x CR2 battery |
| Field of View (HxV) | 13.5°x10.1° |
| Detection Range | 740yd（680m) |
| Recognition Range | 110yd(100m) |
| Magnification | 0.5x |
| Digital Zoom | 1x, 2x |
| Focus Range, yds | 2yd~∞ |
| Display Type | 1.4 inch 360x300 |
| Window Size | 26mmx20mm |
| Color Palettes | White Hot, Black Hot, Red Hot, Rainbow |
| Frame Rate, Hz | 60Hz |
| IP Rating | IP67, 33ft. (10 m) depth |
| Max. Recoil | 1200 g/s² |
| Operating Temperature | -4°F ~+122°F（-20ºC~ +50ºC） |
| Weight | ≤4oz（113g） |
| Dimension | ≤2×1.5×1.7inch (50×38×44mm) |
