Product #: LP171776
UPC #: 030317012946

Leupold Riflescope Mark 5HD 5-25X56 M5C3 FFP TMR Illuminated Reticle

  • The Mark 5HD™ 5-25x56mm is built around a high-quality optical system that is designed for professionals and delivers exceptional clarity and resolution.
  • The side focus feature of this scope allows for quick and easy adjustments to be made while in the field or at the range, ensuring you can always stay on target.
  • The M5C3 ZEROLOCK® adjustments provide precise and repeatable tracking, so you can make adjustments with confidence knowing that your shot will be on target every time.
  • The Mark 5HD™ features a first focal plane reticle that allows you to easily adjust for distance and magnification, so you can make accurate shots at any range.
  • The ZERO LOCK DIAL feature ensures that your settings stay in place, even during heavy recoil, so you can rely on your scope to perform under any conditions.
  • With a zero stop feature, you can quickly return to your zero setting after making adjustments, saving you valuable time and ensuring you stay on target.
  • This scope is also waterproof, fogproof, and shockproof, making it a reliable choice for any outdoor activity.

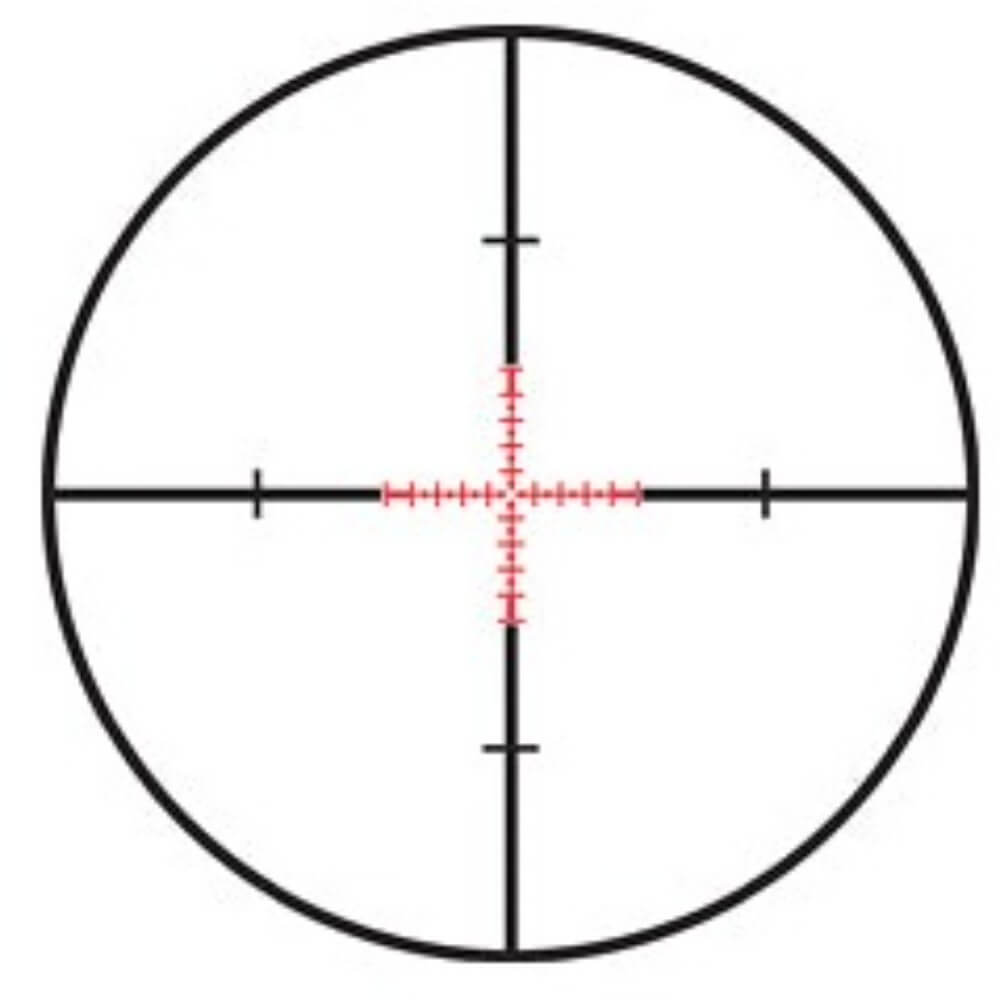

  • Expands on existing MIL Dot reticle design
  • Uses hash marks instead of dots for increased ranging and holdover precision
  • Provides aiming points for both wind and bullet drop compensation
  • 1 MIL is approximately 3.6 inches at 100 yards
  • Hash marks are spaced 0.5 MIL apart, transitioning to 0.2 MIL spacing on the outer edges
  • Not caliber specific
  • Front (first) focal plane
  • MIL based systems are the current military standard
Sale price$2,699.99
Specs Highlights:
Reticle Type
First Focal Plane Illuminated
FFP TMR (Mk) Illuminated
Weight (oz)
Tube Diameter
35 mm
Experience the difference with the Mark 5HD™ 5-25x56mm riflescopes that are lighter by up to 20 ounces than other riflescopes in the same class, giving you an edge in the field or at the range. Its adaptable 5-25x magnification allows you to dominate mid-range shots and also reach out to longer distances. The scope features three revolutions of elevation adjustment and various reticle options, ensuring optimal performance with the latest long-range rifles and ammunition.

The Mark 5HD's construction around Leupold's Professional-Grade Optical System provides unrivaled light transmission designed to excel in even the most challenging lighting conditions. Its glare reduction feature ensures a clear image in direct light, and its resolution and clarity will satisfy the demands of any professional shooter or guide. The Mark 5HD's ergonomic design, with tactile and audible click adjustments, larger numbers, and a high-speed throw lever, lets you put accurate fire downrange faster.

The Mark 5HD's combination of unique features, durability, and professional-grade optical performance guarantees that it can handle any challenge. It's waterproof, fog proof, and shockproof, ensuring reliability in any weather condition. All Leupold® riflescopes are designed, machined, and assembled in the USA and are guaranteed to perform for life, making the Mark 5HD a trustworthy and long-lasting investment for any shooter.
Badge Award Winning
Adjustable Parallax Side Focus
Elevation Adjustment Type M5C3
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Capped
Custom Dial Compatible Yes
Reticle Type First Focal Plane Illuminated
Reticle FFP TMR (Mk) Illuminated
Magnification Type Variable
Weight (oz) 30
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 120
Elevation Adjustment Range (MIL) 35
Elevation Adjustment Range (cm @ 100m) 349
Elevation Adjustment Per Revolution 10.5 MIL
Elevation Dial Travel Limit 30MIL
Windage Adjustment Value per Click 0.1Mil
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17
Windage Adjustment Range (cm @ 100m) 175
Windage Adjustment Per Revolution 10 MIL
Magnification Max 25
Magnification Min 5
Objective Lens Diameter (mm) 56
Linear FOV Low Mag (ft@100yds) 20.4
Linear FOV High Mag (ft@100yds) 4.2
Angular FOV Low Mag (Degrees) 3.9
Angular FOV Low Mag (Degrees) .8
Eye Relief Low Mag (in) 3.6
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
Tube Diameter 35 mm
Battery Type CR2032
Battery Life (hr), Low Intensity 1800
Battery Life (hr), High Intensity 96
Number of Illum Settings 7
