Description
If you choose the Mark 5HD™ 5-25x56mm riflescope, you will immediately notice its difference as it weighs up to 20 ounces less than similar riflescopes in its class. This weight difference provides an advantage in the field or at the range. With a versatile 5-25x magnification, this riflescope is perfect for dominating midrange shots, while also providing flexibility for long distances. You will experience top performance with the latest long-range rifles and ammunition as the scope features three elevation adjustment revolutions and multiple reticle options. The Mark 5HD is built around Leupold's Professional-Grade Optical System, which provides unmatched light transmission that outperforms even in the most challenging lighting conditions. Additionally, its industry-leading glare reduction provides a clear image even in harsh and direct light. The resolution and clarity are excellent and meet the demands of any professional shooter or guide. The Mark 5HD is ergonomically designed with tactile and audible click adjustments, larger numbers, and a high-speed throw lever, ensuring quick and accurate fire downrange. The riflescope's combination of features, durability, and professional-grade optical performance guarantees it can handle any challenge. The Mark 5HD is 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA, ensuring it will perform for life.
Specs
| Adjustable Parallax | Side Focus |
| Reticle Focal Plane | First Focal Plane |
| Elevation Adjustment Type | M1C3 |
| Locking Dial | Yes |
| Revolution Indicator | Yes |
| Rezero Type | Set Screw |
| Windage Adjustment Type | Capped |
| Reticle Type | First Focal Plane |

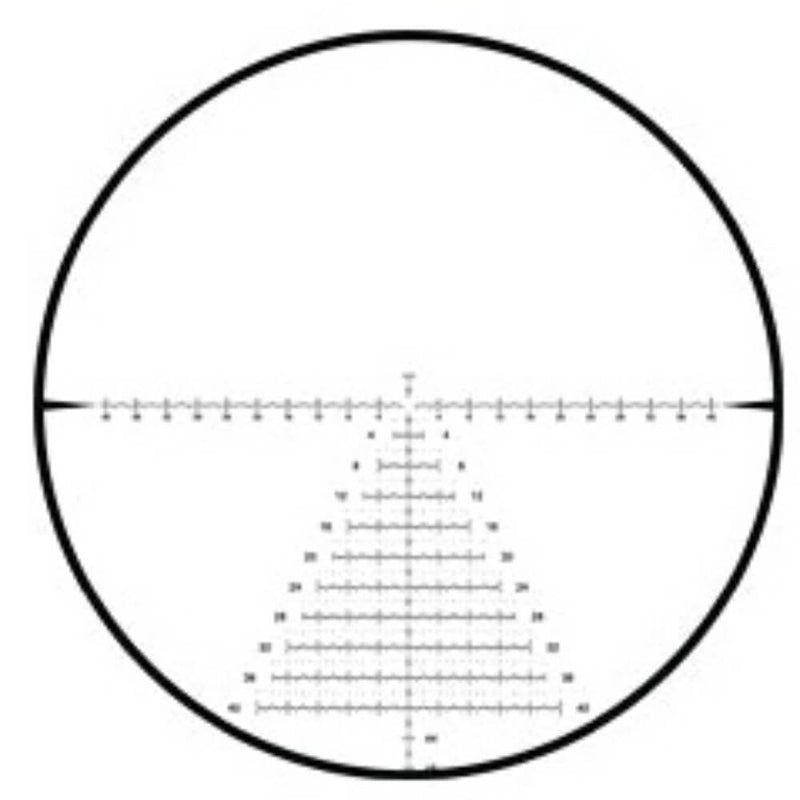

| Reticle | FFP PR2-MOA |
| Magnification Type | Variable |
| Weight (oz) | 30 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 120 |
| Elevation Adjustment Range (MIL) | 35 |
| Elevation Adjustment Range (cm @ 100m) | 349 |
| Elevation Adjustment Per Revolution | 25 MOA |
| Elevation Dial Travel Limit | 71.5MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 60 |
| Windage Adjustment Range (MIL) | 17 |
| Windage Adjustment Range (cm @ 100m) | 175 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 25 |
| Magnification Min | 5 |
| Objective Lens Diameter (mm) | 56 |
| Linear FOV Low Mag (ft@100yds) | 20.4 |
| Linear FOV High Mag (ft@100yds) | 4.2 |
| Angular FOV Low Mag (Degrees) | 3.9 |
| Angular FOV High Mag (Degrees) | .8 |
| Eye Relief Low Mag (in) | 3.6 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 50 |
