Product #: LP180623
UPC #: 030317028596

Leupold Riflescope VX-3HD 4.5-14X40 Side Focus CDS-ZL Wind-Plex

  • The scope has a 3:1 zoom ratio for versatility.
  • It features a custom dial system and a zero-lock dial.
  • High definition optics ensure excellent image quality.
  • The lightweight aluminum housing makes it easy to carry.
  • An elite optical system offers glare reduction and clarity in low light conditions.
  • The eyepiece is lockable to prevent accidental adjustments.
  • Scratch-resistant lenses ensure durability.
  • A removable throw lever adds convenience.
  • The scope is waterproof, fog proof, and shockproof for use in various conditions.

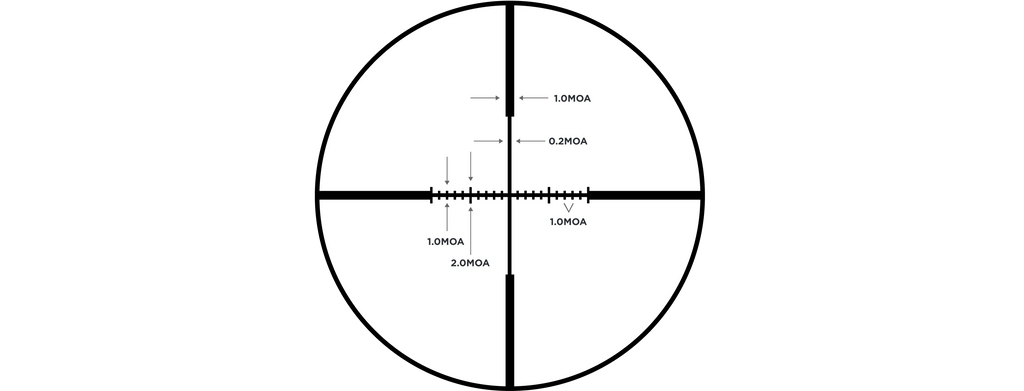

  • Expands on the Duplex® reticle
  • Aides in compensating for crosswinds
  • 1 MOA is approximately 1 inch at 100 yards
  • Hash marks are in 1 MOA increments
  • Marks extend to 10 MOA on each side
  • Can be used with any caliber round
  • Best utilized with our CDS® (Custom Dial System®)
  • Rear (second) focal plane
Sale price$749.99
Specs Highlights:
Reticle Type
Second Focal Plane
Weight (oz)


Similar items

The VX®-3HD 4.5-14x40mm scope provides top-tier performance and optical clarity in a durable, lightweight build. Its versatile magnification range is especially suited for hunting in timber and western mountains. The VX-3HD excels in low light conditions with Leupold’s Elite Optical System, providing exceptional light transmission from dawn-to-dusk, reducing glare in harsh lighting, and delivering the resolution and clarity required by serious hunters and shooters. It also features match-grade repeatability and user-friendly ergonomic controls, even when wearing gloves. The VX-3HD is the top choice for a lightweight, low-light hunting scope in its category. Additionally, it has a low-profile, one-revolution CDS® ZeroLock® dial that ensures precision adjustments by only moving the dial when intended. To unlock, press the button, dial, and then turn back to zero to lock in place. The VX-3HD is a top-performing scope that helps hunters achieve success, and like all Leupold riflescopes, it is made in the USA and backed by a lifetime guarantee.
Badge New
Side Focus Yes
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS-ZL
Locking Dial Yes
Rezero Type Set Screw
Windage Adjustment Type Finger Click
Custom Dial Compatible Yes
Reticle Type Second Focal Plane
Reticle Wind-Plex
Magnification Type Variable
Weight (oz) 15.6
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 95
Elevation Adjustment Range (MIL) 27.6
Elevation Adjustment Range (cm @ 100m) 276.3
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 21.8
Windage Adjustment Range (cm @ 100m) 218.2
Windage Adjustment Per Revolution 15 MOA
Magnification Max 14
Magnification Min 4.5
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 19.9
Linear FOV High Mag (ft@100yds) 7.4
Angular FOV Low Mag (Degrees) 3.8
Angular FOV High Mag (Degrees) 1.4
Eye Relief Low Mag (in) 4.4
Eye Relief High Mag (in) 3.6
Minimum Parallax-Free Distance (yd) 75
