Product #: LP171390
UPC #: 030317012212

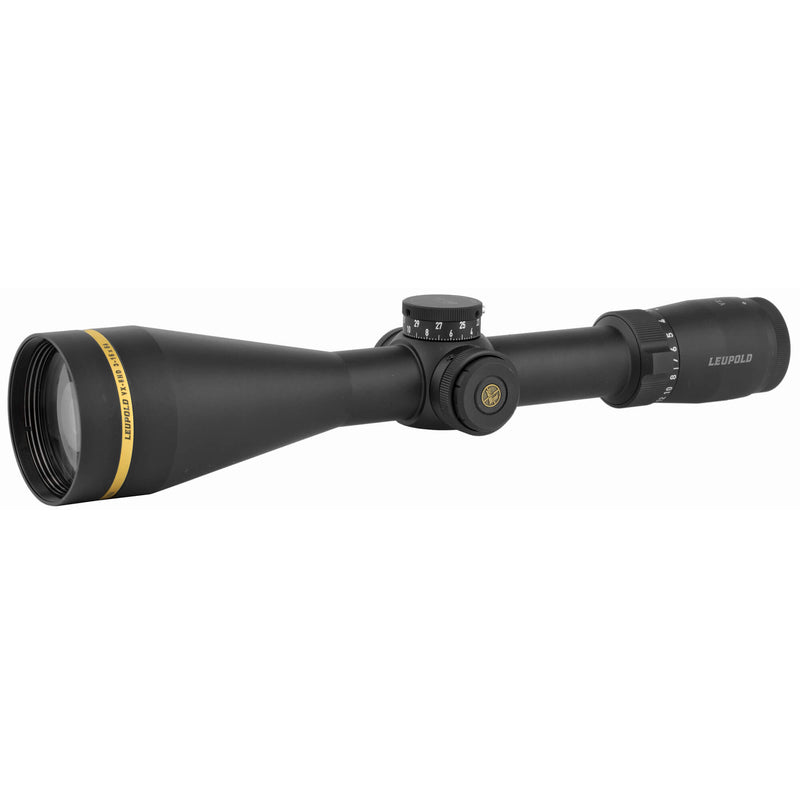

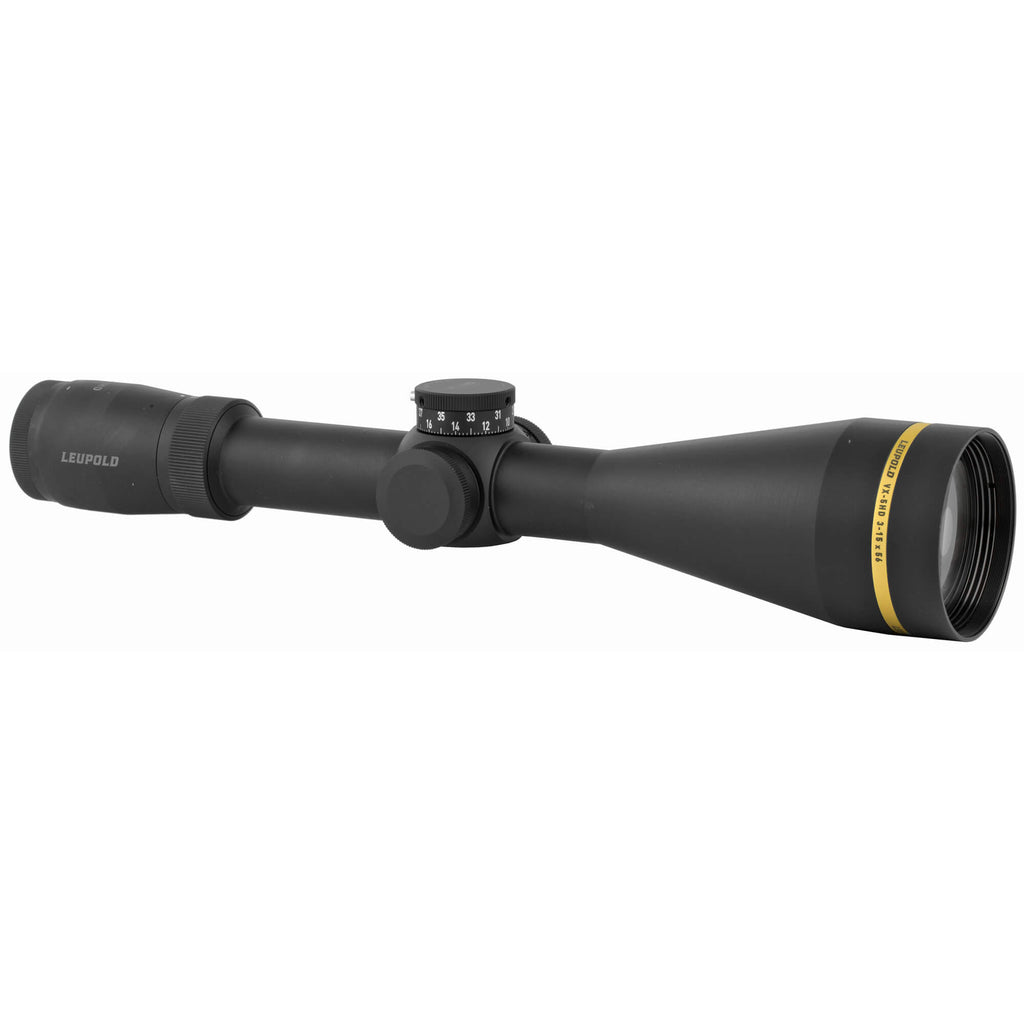

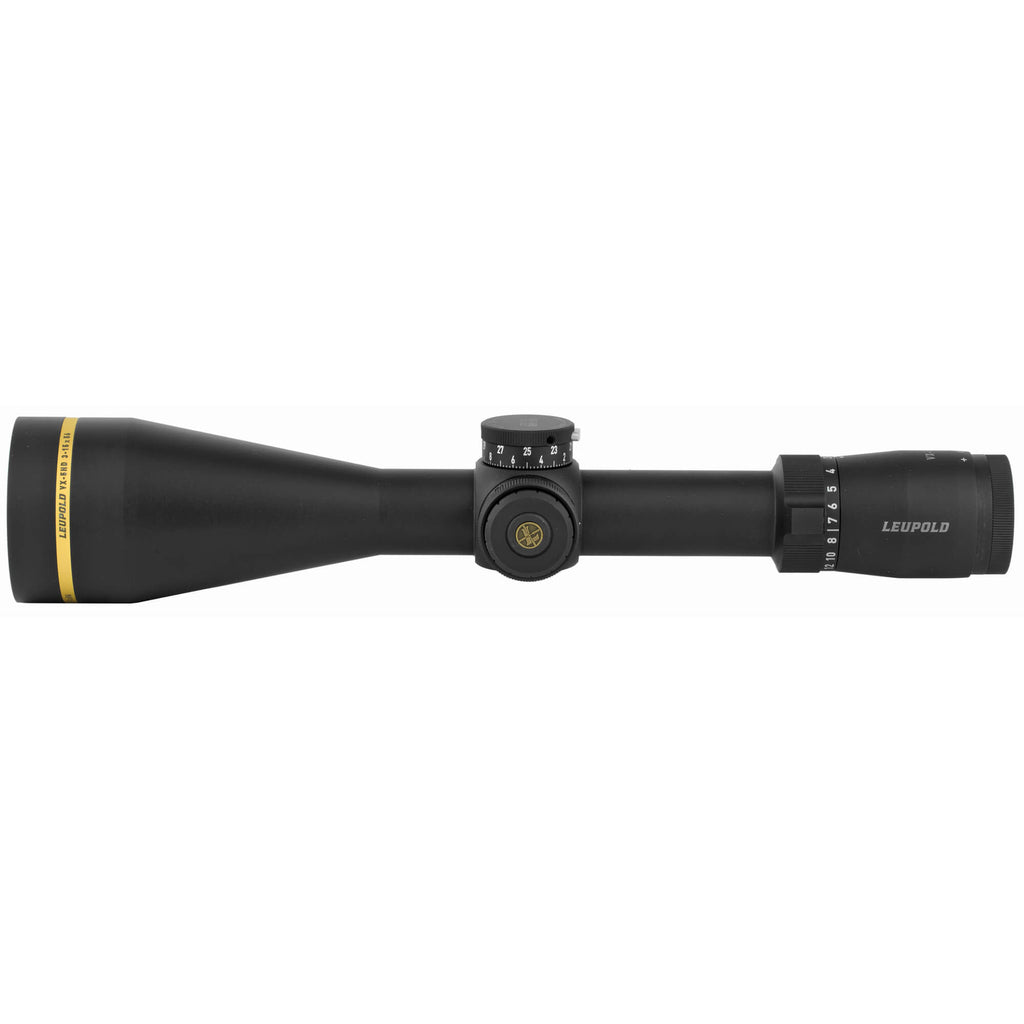

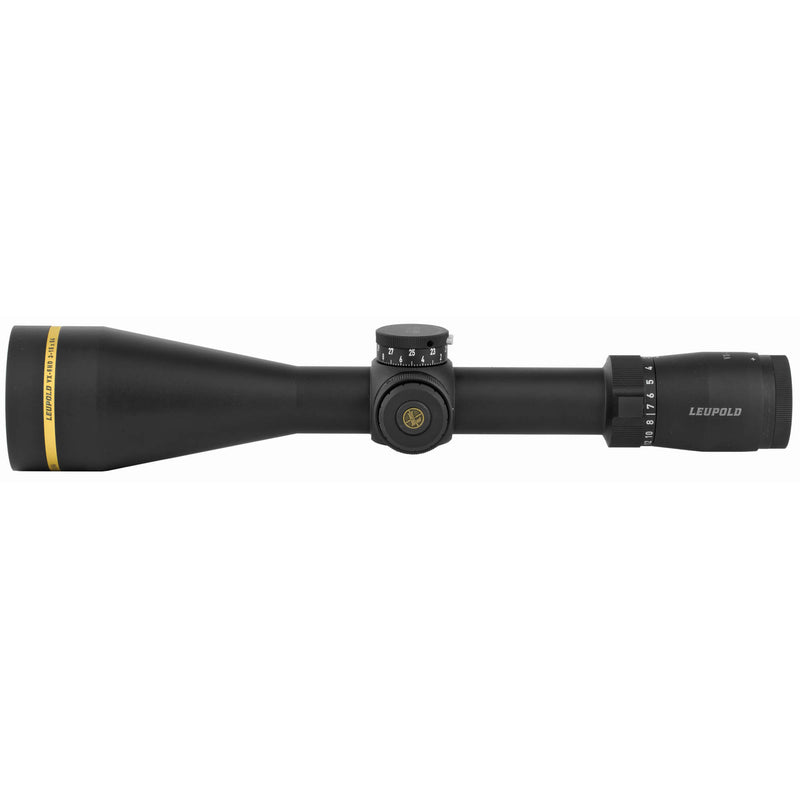

Leupold Riflescope VX-5HD 3-15X56MM CDS-ZL2 Side Focus Matte Firedot Duplex Reticle Rifle scope

  • The scope has a 5:1 zoom ratio for adjustable magnification.
  • It offers high-definition visuals for clear and sharp images.
  • Guard-Ion technology is used to protect the lens from scratches and abrasions.
  • The CDS-ZL2 elevation dial provides accurate and precise adjustments for improved shooting.
  • It has a side focus feature for easy focusing on the target.
  • The scope is illuminated to allow for visibility in low-light conditions.
  • Motion Sensor Technology (MST) helps conserve battery life when not in use.
  • It is waterproof, fogproof, and shockproof to protect against harsh weather and rough handling.

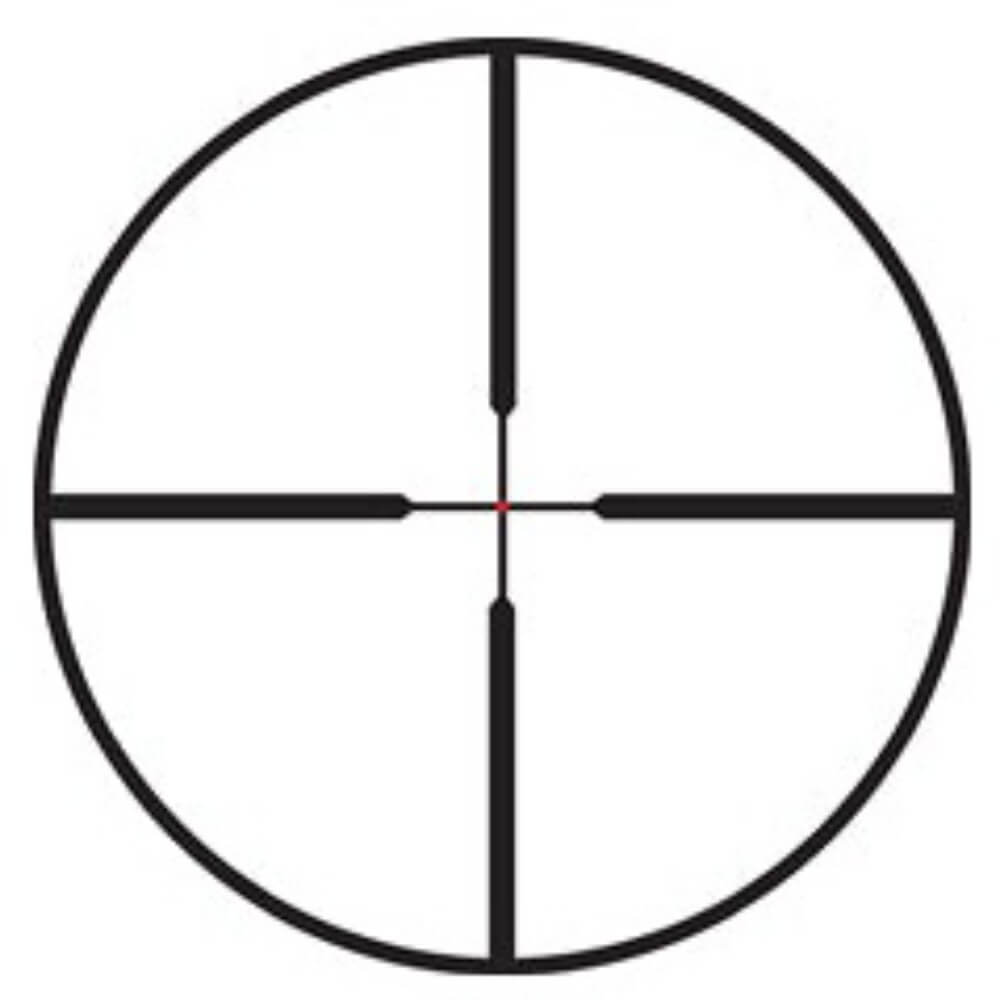

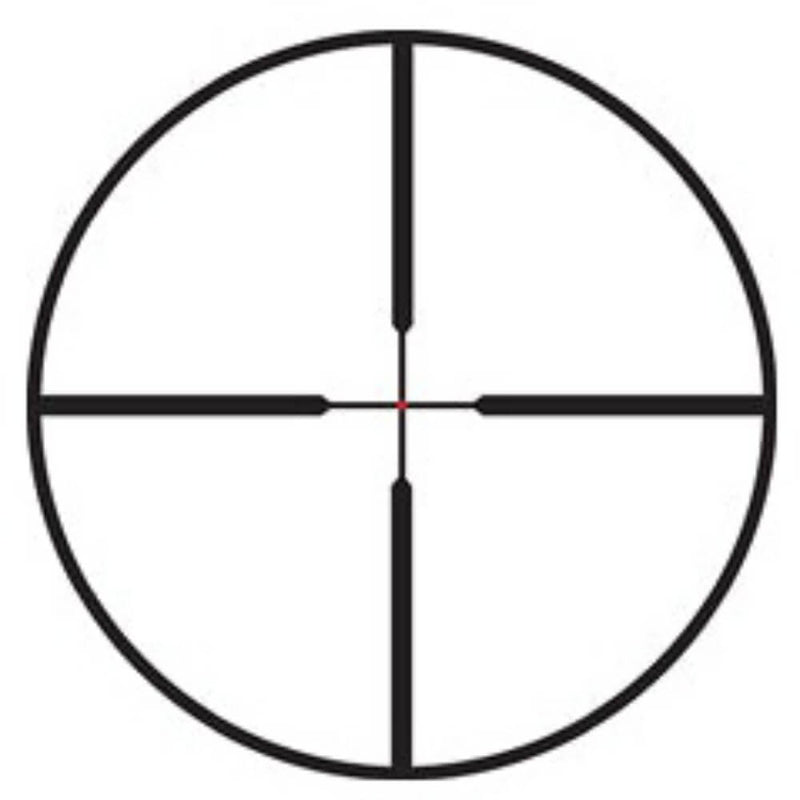

DETAILED RETICLE INFO

  • Brings new technology to a classic design
  • Fiber-optic powered red dot
  • Multiple brightness settings for changing conditions
  • FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
  • Broad range of shooting applications
  • Rear (second) focal plane
Price:
Sale price$1,599.99
Specs Highlights:
Reticle Type
Illuminated
Reticle
Illum. FireDot Duplex
Weight (oz)
22.2
The VX®-5HD 3-15x56mm riflescope is a highly flexible and adaptable option for hunters and shooters who demand the best performance in any environment. Its 56mm objective bell allows for maximum exit pupil light, providing a bright and clear image in low-light conditions. Equipped with Leupold’s proprietary Firedot® illumination technology, this scope offers an intuitive aiming point that is easy to see even in challenging lighting conditions. The VX-5HD boasts a wide magnification range, allowing users to easily adapt to any situation, and its Professional-Grade Optical System delivers unmatched light transmission and clarity. The scope is designed to perform in harsh lighting conditions, with industry-leading glare reduction, and the CDS® ZeroLock® 2 dial provides accuracy and additional elevation when it’s time to take the shot. At the same time, it is the lightest and most rugged 5:1 riflescope in its class, ensuring that it will never slow you down. Made in the USA, the VX-5HD is built to last and comes with a lifetime guarantee, like all Leupold® riflescopes.
Adjustable Parallax Side Focus
Reticle Focal Plane Second Focal Plane
Elevation Adjustment Type CDS-ZL2
Locking Dial Yes
Revolution Indicator Yes
Rezero Type Set Screw
Windage Adjustment Type Pop-Up Rezero
Custom Dial System (CDS) Yes
Custom Dial Compatible Yes
Reticle Type Illuminated
Reticle Illum. FireDot Duplex
Light Management System Professional-Grade Optical System
Magnification Type Variable
Battery Type CR2032
Switch Type Push Button
Daylight Bright Illumination Yes
Weight (oz) 22.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 75
Elevation Adjustment Range (MIL) 22
Elevation Adjustment Range (cm @ 100m) 218
Elevation Adjustment Per Revolution 20 MOA
Elevation Dial Travel Limit 38MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 75
Windage Adjustment Range (MIL) 22
Windage Adjustment Range (cm @ 100m) 218
Windage Adjustment Per Revolution 15 MOA
Magnification Max 15
Magnification Min 3
Objective Lens Diameter (mm) 56
Linear FOV Low Mag (ft@100yds) 38.3
Linear FOV High Mag (ft@100yds) 7.7
Angular FOV Low Mag (Degrees) 7.3
Angular FOV High Mag (Degrees) 1.5
Eye Relief Low Mag (in) 3.7
Eye Relief High Mag (in) 3.8
Minimum Parallax-Free Distance (yd) 50
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8
