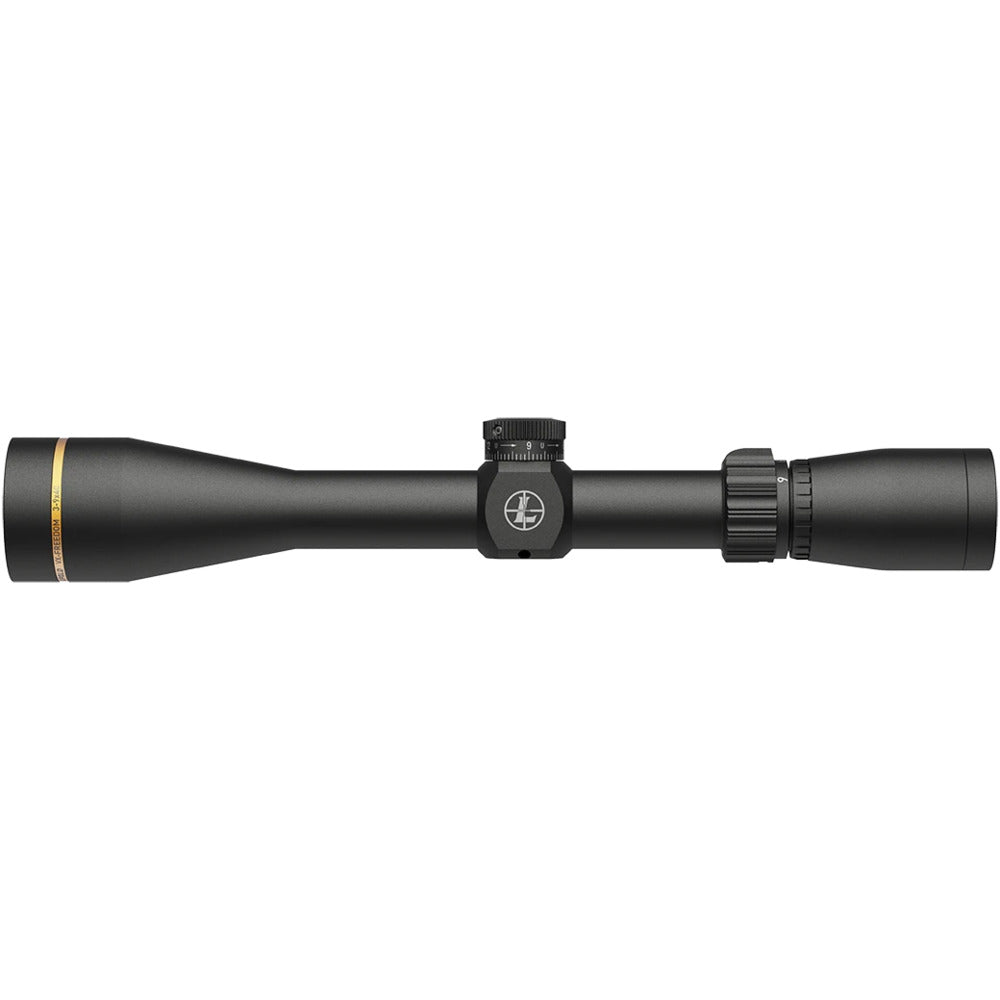

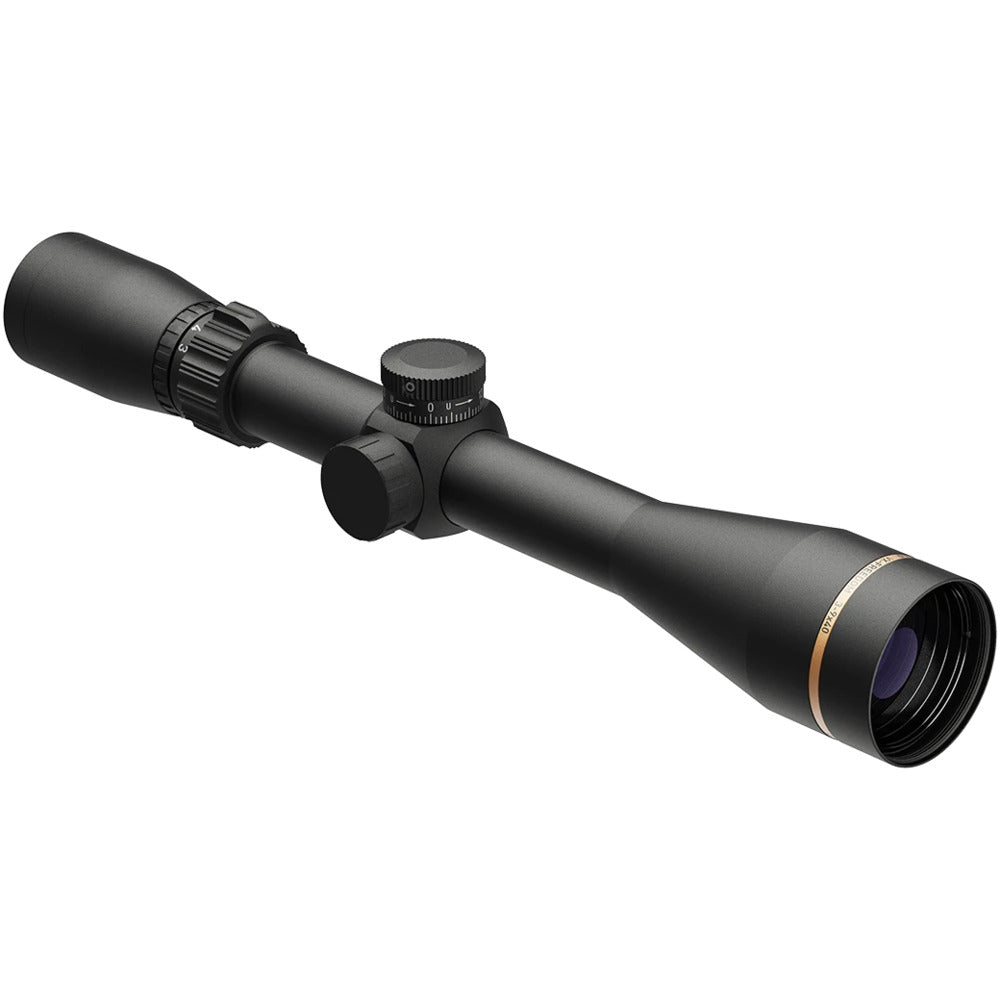

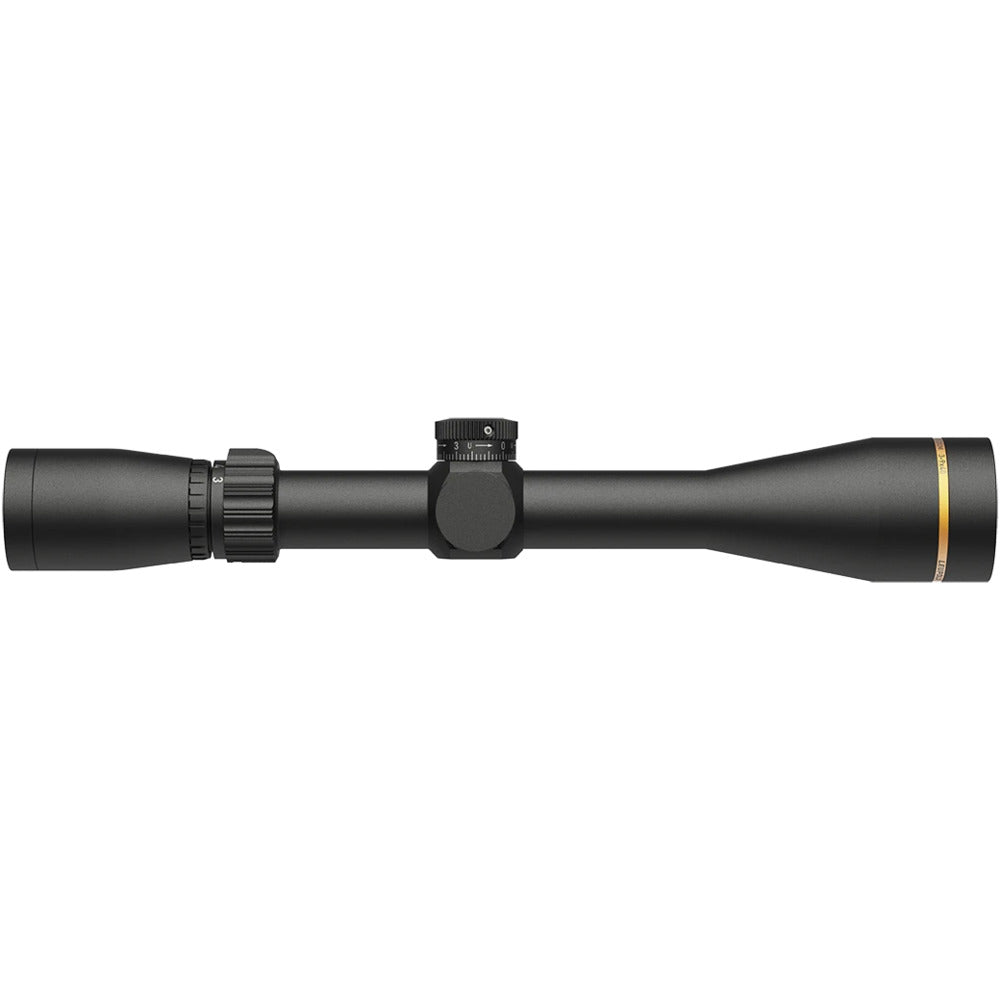

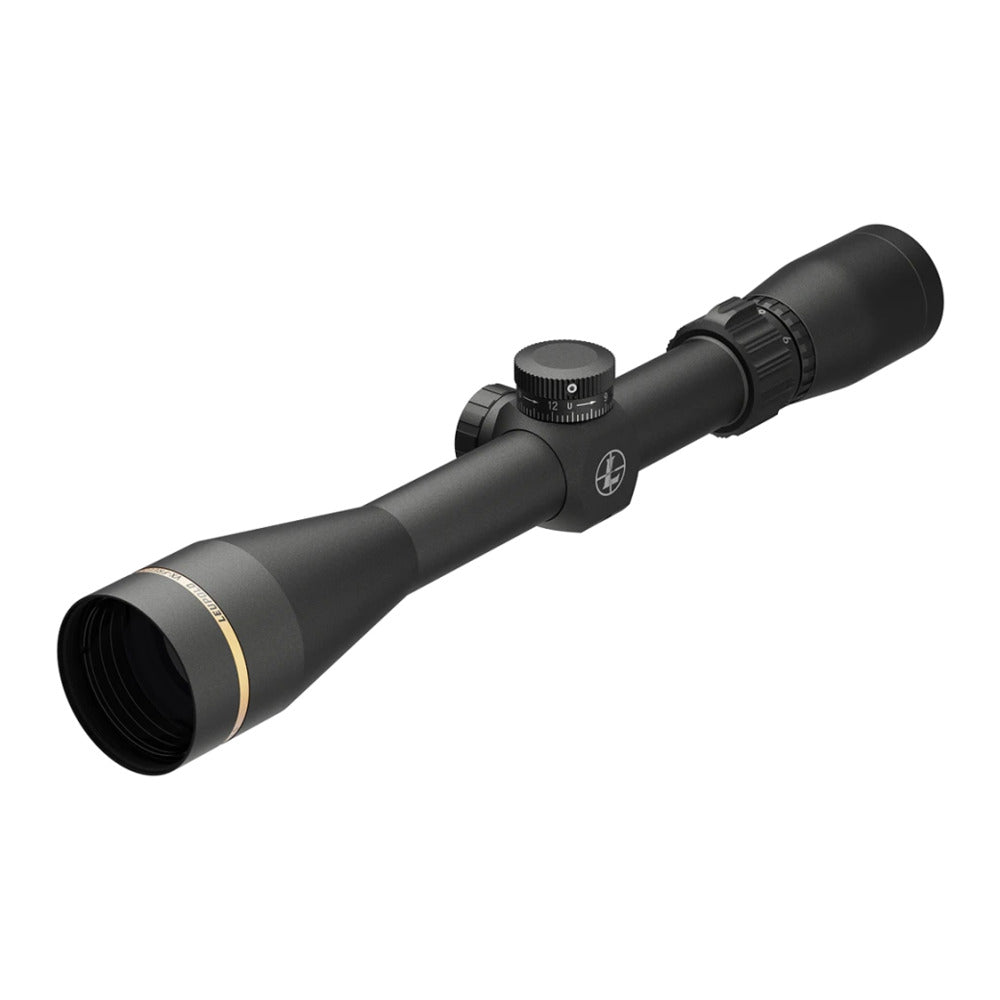

Leupold VX-Freedom 3-9x40 CDS Duplex

Product #: LP174182
UPC #: 030317018788
Leupold VX-Freedom 3-9x40 CDS Duplex
Leupold VX-Freedom 3-9x40 CDS Duplex
Leupold VX-Freedom 3-9x40 CDS Duplex
Leupold VX-Freedom 3-9x40 CDS Duplex
Roll over image to zoom in Click on image to zoom
Leupold VX-Freedom 3-9x40 CDS Duplex
Leupold VX-Freedom 3-9x40 CDS Duplex
Leupold VX-Freedom 3-9x40 CDS Duplex
Leupold VX-Freedom 3-9x40 CDS Duplex
Price:
$299.99
Stock:
In stock Free Shipping 30 Day Return
Product Overview
  • Offers a 3:1 zoom ratio, providing a flexible magnification range
  • Equipped with an advanced optical system to deliver clear and precise visuals

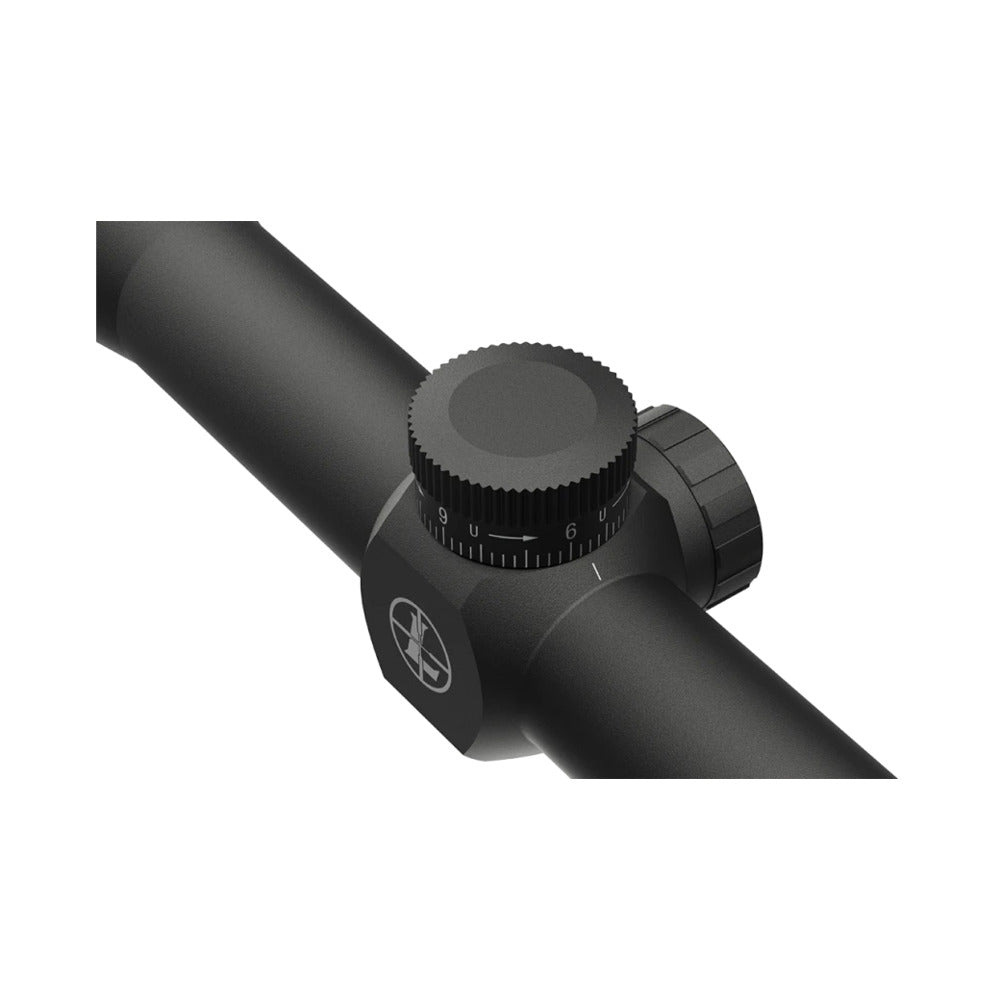

  • Features a custom dial system that eliminates the need for holdovers
  • Utilizes a second focal plane for accurate reticle sizing at any magnification
  • Includes a zero-stop feature for easy return-to-zero after making elevation adjustments
  • Comes with scratch-resistant lenses to ensure clarity and durability
  • 100% waterproof, fogproof, and shockproof to withstand various environmental conditions and impacts

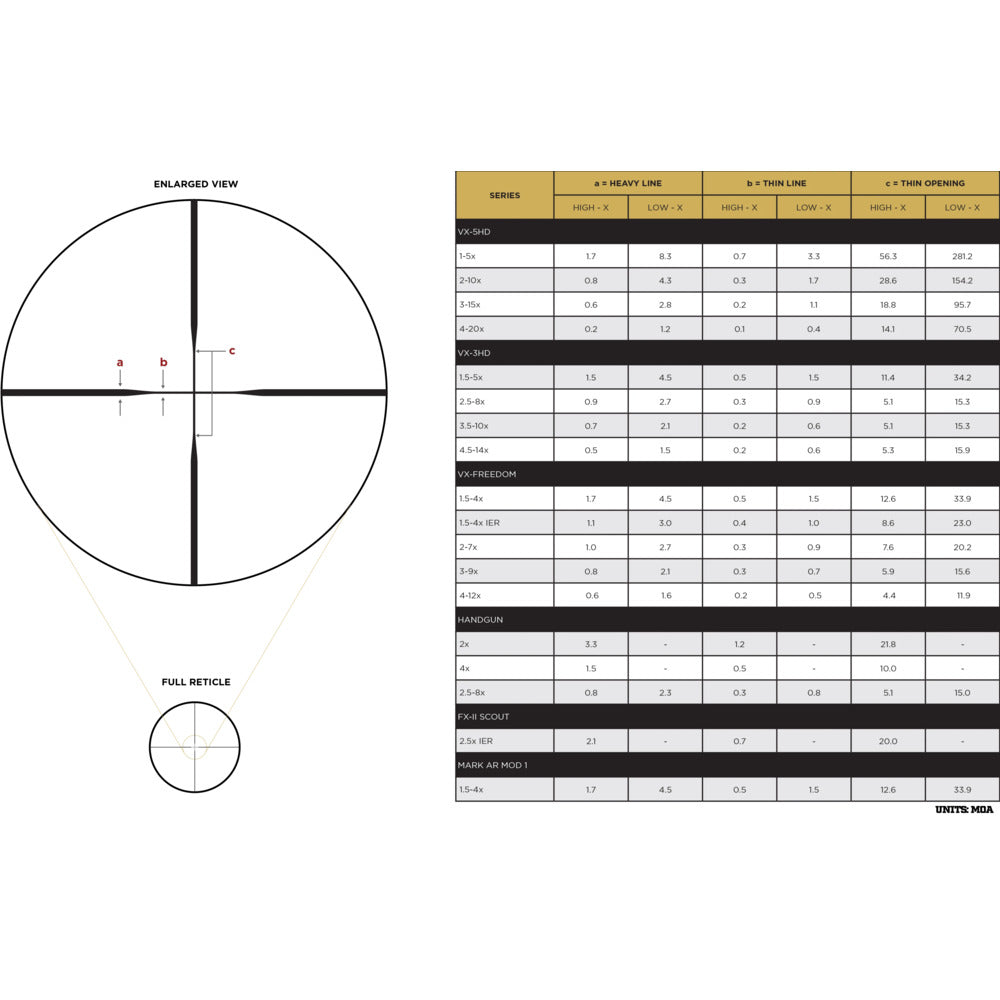

DETAILED RETICLE INFO

  • Invented in 1962 by Leupold®
  • Defined by heavy posts
  • Stands out against cover in low light
  • Quick target acquisition with thin lines at the center
  • Most popular reticle in the world
  • Rear (second) focal plane
Reticle Type
Second Focal Plane
Reticle
Duplex
Weight (oz)
12.2
The VX®-Freedom® 3-9x40mm rifle scope offers simplicity and accuracy in one easy-to-use package. With the Leupold® Custom Dial System® (CDS), taking long-range shots has never been easier. This system is effortless to install and use; all you need to do is provide your specific ballistics, and we will create a custom dial that eliminates the need for holdovers. Once you range your target, dial in the distance and aim dead on. The VX-Freedom is built around Leupold's Advanced Optical System, ensuring tried and true light transmission, the best glare reduction in harsh light conditions, and the resolution and clarity demanded by recreational sportsmen and sportswomen. The VX-Freedom is 100% waterproof and fogproof, and is guaranteed to deliver every time. Like all Leupold® riflescopes, it is designed, machined, and assembled in the USA, and guaranteed for life.
Elevation Adjustment Type CDS
Rezero Type Set Screw
Windage Adjustment Type Finger Click
Custom Dial Compatible Yes
Reticle Type Second Focal Plane
Reticle Duplex
Magnification Type Variable
Weight (oz) 12.2
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 60
Elevation Adjustment Range (MIL) 17
Elevation Adjustment Range (cm @ 100m) 175
Elevation Adjustment Per Revolution 15 MOA
Elevation Dial Travel Limit 14MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 60
Windage Adjustment Range (MIL) 17
Windage Adjustment Range (cm @ 100m) 175
Windage Adjustment Per Revolution 15 MOA
Magnification Max 9
Magnification Min 3
Objective Lens Diameter (mm) 40
Linear FOV Low Mag (ft@100yds) 33.1
Linear FOV High Mag (ft@100yds) 13.6
Angular FOV Low Mag (Degrees) 6.3
Angular FOV High Mag (Degrees) 2.6
Eye Relief Low Mag (in) 4.2
Eye Relief High Mag (in) 3.7
Fixed Parallax-Free Distance (yd) 150
