Description

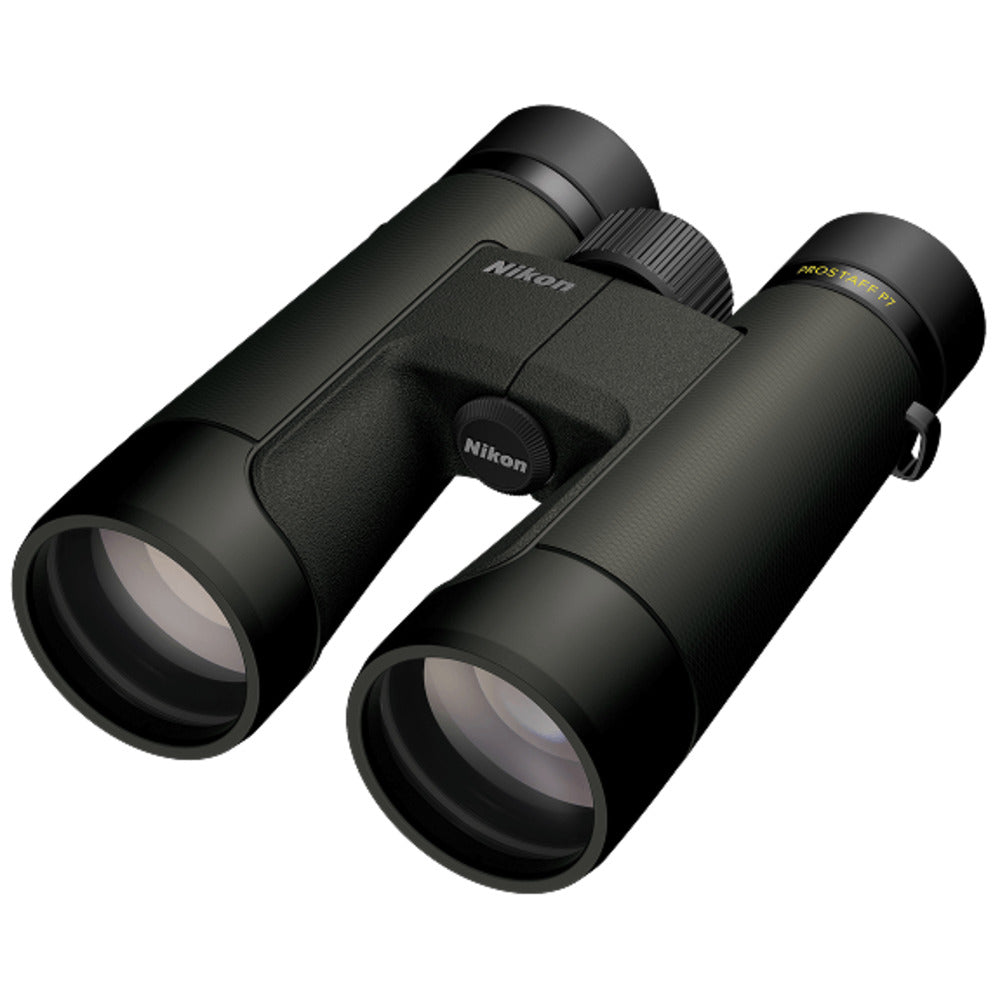

The PROSTAFF P7 is available in both 42mm and 30mm objectives and off ers spectacular high defi nition views thanks to Nikon’s multilayer coatings. The tough rubber exterior provides a non-slip grip for protection from an occasional drop or bump and the body is both waterproof and fogproof. All PROSTAFF P7 models now feature an oil and water repellent coating on both the eyepiece and objective surfaces while a locking diopter prevents inadvertent adjustments
Features
- Fully multicoated lenses and prisms
- Long Eye Relief
- Turn-and-slide rubber eyecups
- Phase-Correction-Coated roof prisms for high resolution
- DIelectric high-refl ective multilayer prism coatings ensure superior light transmittance and more natural colors
- Lead and arsenic free glass
- Rubber armored exterior for shock resistance and a fi rm non-slip grip
- Waterproof (up to 1m/3.3ft for 10 minutes) and nitrogen-purged for fog-free performance
- Lightweight body uses fi berglass-reinforced polycarbonate resin
- Locking diopter control maintains your personal setting
- Oil and water repellent coating - applied to both eyepiece and objective lens surfaces
- Wide apparent fi eld of view 62.6° for 8x30, 62.9° for 10x42
Specs
Focusing System | Central Focus |
Magnification | 8x |
Objective Diameter | (30mm) |
Angular Field of View (Real) | 8.7° |
Angular Field of View (Apparent) | 62.6° |
FOV at 1000 yds | 456 ft. |
Close Focus Distance | 8.2 ft. |
Exit Pupil | (3.8mm) |
Relative Brightness | 14.4 |
Eye Relief | (15.4mm) |
Size (Length x Width) | 4.9 x 0.125 m x 5.1 in.0.13 |
Weight | 17.1 oz. (17.1 g) |
Phase Coating | Yes |
Dielectric Coating | Yes |
Waterproof / Fogproof | Yes |
Prism | Roof |
Locking Diopter | Yes |
Oil & Water Repellent Coating | Yes |
Specs Highlights:
Magnification
8x
Exit Pupil
(3.8mm)
Eye Relief
(15.4mm)
Weight
17.1 oz. (17.1 g)
Focusing System | Central Focus |
Magnification | 8x |
Objective Diameter | (30mm) |
Angular Field of View (Real) | 8.7° |
Angular Field of View (Apparent) | 62.6° |
FOV at 1000 yds | 456 ft. |
Close Focus Distance | 8.2 ft. |
Exit Pupil | (3.8mm) |
Relative Brightness | 14.4 |
Eye Relief | (15.4mm) |
Size (Length x Width) | 4.9 x 0.125 m x 5.1 in.0.13 |
Weight | 17.1 oz. (17.1 g) |
Phase Coating | Yes |
Dielectric Coating | Yes |
Waterproof / Fogproof | Yes |
Prism | Roof |
Locking Diopter | Yes |
Oil & Water Repellent Coating | Yes |
