Description

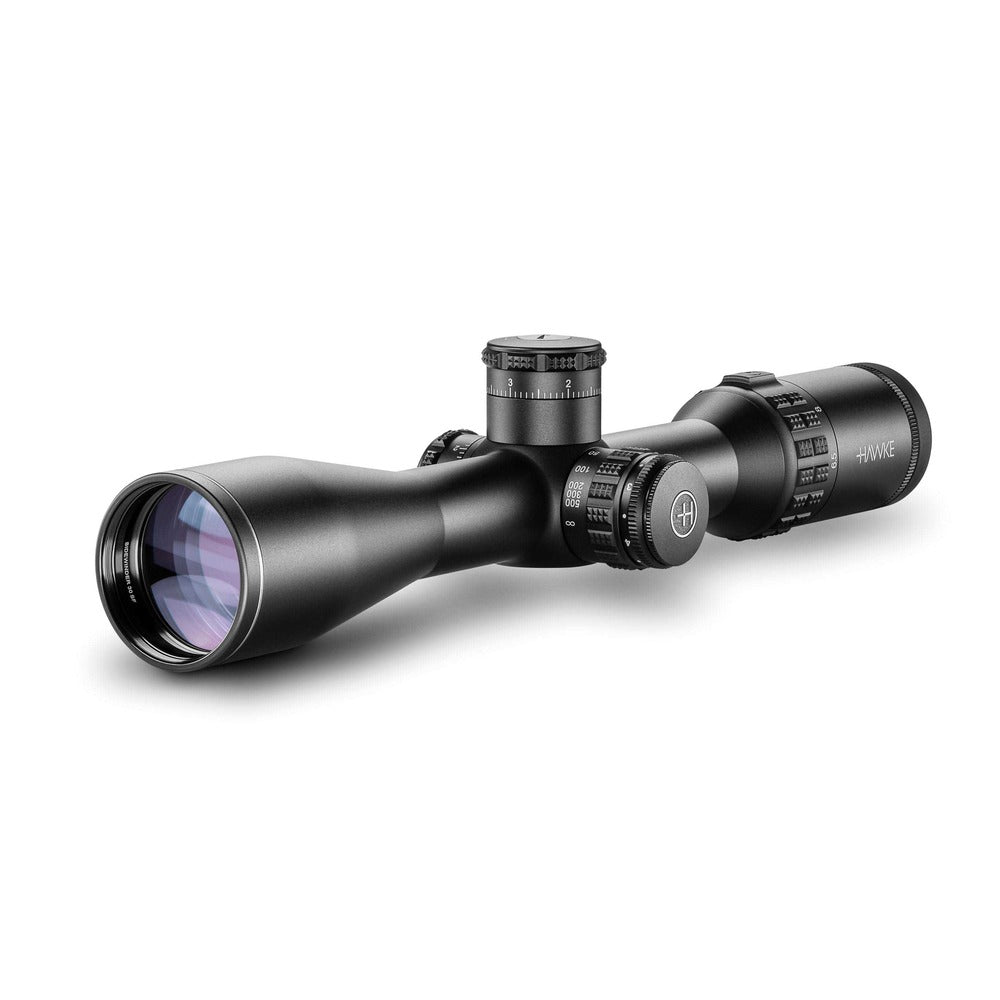

Sidewinder is the must-have high performance multi-discipline scope. Parallax-free shooting from 9 metres to infinity assisted by an index matched rangefinding side wheel (removable).
All models feature Hawke’s H5 optics which boasts a stunning 24° ultra-wide field of view with generous 100mm eye relief. Precision locking turrets with 1⁄10 MRAD clicks, now feature a witness window giving you an instant visual guide to your turret’s position.
Accurate mil spacing on 10x magnification. With half mil spaced markings out beyond 5 mil in all directions, the 10x Half Mil is a versatile reticle that provides aim points no matter how extreme the conditions.
A series of crosses etched on the lower section of the reticle make for extra windage aimpoints and act to give an easy quick-glance method of counting which mil spacing you're aiming with. Outer posts are segmented into half mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.
Features
- Resettable locking turrets with witness window
- 30mm Mono-tube chassis
- Side Focus
- Illumination
- Side wheel - index-matched (removable)
- Ultra-wide Angle 24° FOV
- High volume eyebox
- 100mm eye relief
- Multi-LED high intensity reticle
- High grade, low dispersion Crown glass
- 18 layer Fully Multi-Coated lenses
- Zoom magnification throw lever (removable)
- Fast focus eyebell with lock ring
Specs
| Scope Tube | 30mm |
| Magnification | 4.5 - 14x |
| Objective Lens | 44mm |
| Reticle | 10x Half Mil |
| Illumination | 6 Levels (Red) |
| Illumination Control | Stepped Rheostat with Off Positions In-between |
| Parallax | Side Focus |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated - 18 Layers |
| Optical System | System H5 |
| Field of View | 28.2 - 9ft @100yds, 9.4 - 3m @100m |
| Field of View (°) | 5.4 - 1.7 |
| Eye Relief | 4in, 102mm |
| PX/Focus (Error free from) | 10yds - ∞, 9m - ∞ |
| Click Value | 1⁄ 10MRAD |
| Exit Pupil | 0.39 - 0.12″, 9.8 - 3.1mm |
| Turret Type (Elevation) | Witness Window, Exposed, Locking, Resettable |
| Elevation Turret Clicks (max) | 28 MRAD |
| Turret Type (Windage) | Witness Window, Exposed, Locking, Resettable |
| Windage Turret Clicks (max) | 28 MRAD |
| Ocular Type | Locking Fast Focus |
| Power Selector | Knurled Posi-Grip with Removable Zoom Lever |
| Length | 13.3in, 339mm |
| Weight | 24oz, 680g |
