Specs Highlights:
RETICLE
Quadplex
WEIGHT
18.1
MAGNIFICATION
3-9X
FOCAL PLANE | Second |

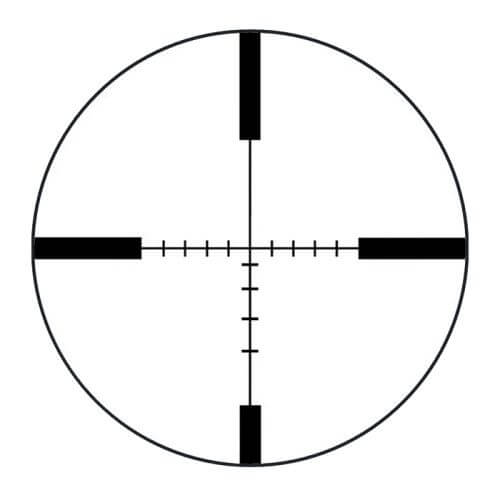

RETICLE | Quadplex |
ADJUSTMENT INCREMENTS | 0.25 MOA |
WEIGHT | 18.1 |
MAINTUBE DIAMETER | 1 inch |
TRAVEL PER ROTATION | 12 MOA |
PARALLAX SETTING | 100 Yards |
FIELD OF VIEW LOW (FT @ 100 YARDS) | 35 |
FIELD OF VIEW HIGH (FT @ 100 YARDS) | 11.9 |
EYE RELIEF LOW (IN) | 3.6 |
EYE RELIEF HIGH (IN) | 3.6 |
EXIT PUPIL LOW (MM) | 16.6 |
EXIT PUPIL HIGH (MM) | 5.6 |
DIOPTER ADJUSTMENT RANGE | +/- 2 |
WATERPROOFING | IPX 7 |
OCULAR OUTER DIAMETER (IN) | 1.72 |
OBJECTIVE OUTER DIAMETER | 2.31 |
ILLUMINATION SETTINGS | NO |
TOTAL ELEVATION TRAVEL | 80 MOA |
TOTAL WINDAGE TRAVEL | 80 MOA |
BATTERY | N/A |
OBJECTIVE LENS DIAMETER | 50 mm |
COLOR | Black |
MAGNIFICATION | 3-9X |
ILLUMINATION | No |
