Specifications
| Objective Lens Diameter | 28 mm |
| Eye Relief | 18 mm |
| Field of View | 332 feet/1000 yards |
| ProductHeight | 4.6 inches |
| Exit Pupil | 3.5 mm |
| Angular Field of View | 6.2 degrees |
| Magnification | 8x |
| Interpupillary Distance | 55-72 mm |
| ProductWidth | 4.5 inches |
| ProductWeight | 14 oz |
| Close Focus | 6 feet |

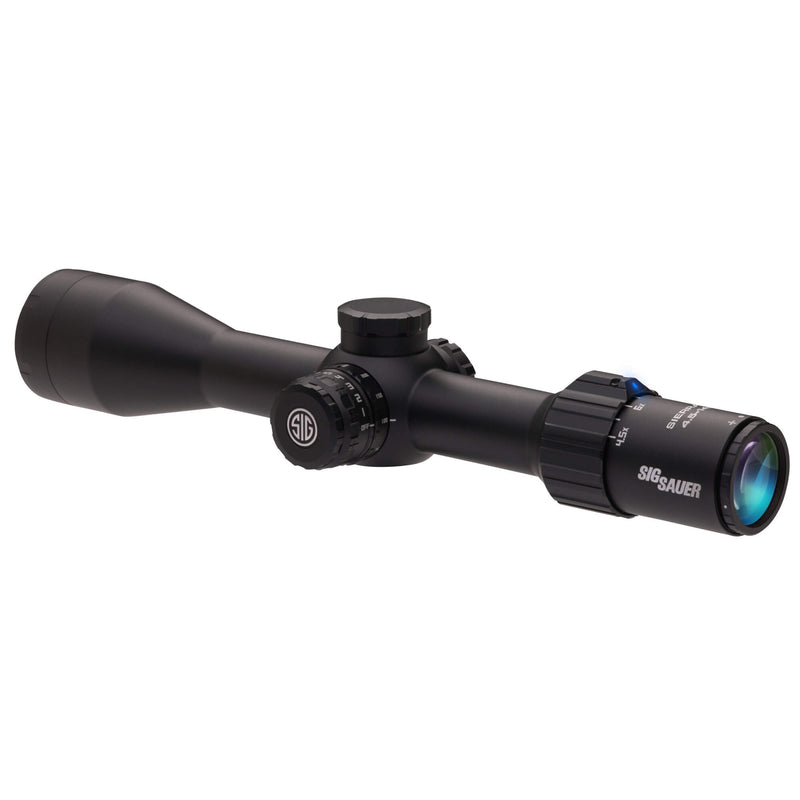

Specs Highlights:
Magnification
4.5-14x
Weight
23.2
Reticle
BDX-R1 Digital
| SKU | SGSOSBDX34111 |
| Magnification | 4.5-14x |
| Objective Lens Diameter | 44 mm |
| Weight | 23.2 |
| Illumination Settings | 10 Daylight |
| Maintube Diameter | 30mm |
| Total Elevation Travel | 55 MOA |
| Total Windage Travel | 55 MOA |
| Travel Per Rotation | 20 MOA |
| Parallax Setting | 100 Yards |
| Eye Relief Low (IN) | 4.21 |
| Eye Relief High (IN) | 3.35 |
| Field of View Low (FT @ 100 Yards) | 19.9 |
| Field of View High (FT @ 100 Yards) | 6.7 |
| Diopter Adjustment Range | +/- 2 |
| Internal Gas Purge | Nitrogen |
| Objective Outer Diameter | 2.07 |
| Ocular Outer Diameter (in) | 1.61 |
| Color | Black |
| Mount Included | No |
| Battery | (2) CR2032 |
| Focal Plane | Second |
| Reticle | BDX-R1 Digital |
| Illumination | Yes |
