Sightmark Core TX 1-4x24AR-223 BDC Riflescope

Product #: SM13082AR.223
UPC #: 812495021824
MPN #: SM13082AR.223
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Roll over image to zoom in Click on image to zoom
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Sightmark Core TX 1-4x24AR-223 BDC Riflescope-Optics Force
Price:
$199.97

Earn [points_amount] when you buy this item.

Specs Highlights:
Reticle, Type
AR-223
Reticle
Etched glass
Magnification
1-4x
Eye Relief
4-3.47/101.6-94
Weight, oz
16.2

Specifically calibrated for the .223, the Sightmark Core TX 1-4x24 AR-223 Riflescope sets the standard when taking close-medium range shots. Perfect for tactical operations, competition, target shooting or hunting, the Core TX 1-4x24 Riflescope features exposed, lockable turrets helping prevent loss of zero. Variable 1-4x magnification and a fine-etched bullet-drop-compensating (BDC) reticle, including adjustable red and green illumination, makes target acquisition faster and easier, even in low-light conditions. The Core TX 1-4x24 even includes a throw lever for lightning fast, on-the-fly magnification adjustments. Hard-anodized, matte black, 6061-T6 aircraft-grade aluminum construction and advanced, fully multi-coated glass provides the same uncompromising quality and image performance demanding shooters have come to expect from Sightmark. Ready to handle your extreme environments, the Sightmark Core TX 1-4x24 AR-223 Riflescope is nitrogen-filled, waterproof, fogproof, dustproof and shockproof.

Included in Package

  • Flip up lens covers
  • Throw lever attachment
  • 30mm scope rings
  • CR2032 battery

Battery Used

  • Type: CR2032

Features

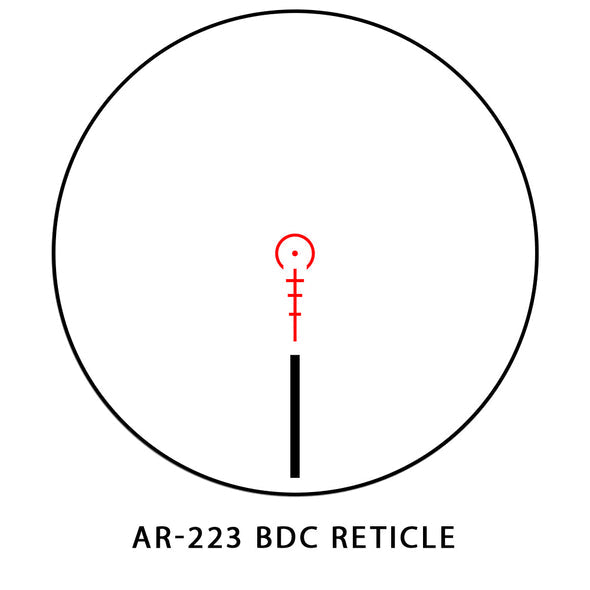

  • BDC reticle calibrated for .223 55 grain
  • Exposed, pop-up locking turrets
  • Second focal plane reticle
  • Red/Green illuminated reticle
  • Single-piece, 30mm tube
  • Aircraft grade aluminum
  • Hard anodized finish
  • Shockproof, fogproof, waterproof
  • Fully multi-coated optics
Reticle, Type AR-223
Maximum Recoil .416 Rem
Battery Type CR2032
Battery Voltage, V 3V
Battery life, hours 100-70
Sunshade No
Nitrogen Filled Yes
Shockproof Yes
Fog Proof Yes
Focal Plane 2nd
IP Standard IP 67 -waterproof and dustproof
Body Material Aluminum
Lens Coating Fully multi-coated
Operating Temp,?F/?C 0 to 120 / -17 to 49
Length (in/mm) 9.64/245
Width (in/mm) 2.6/66
Height (in/mm) 2/50
Windage & Elevation, Lock Yes
Elevation Range of Adjustment 120
Windage Range of Adjustment 120
Reticle Etched glass
Reticle, Color Red/Green
Illuminated (yes/no) Yes
Reticle Brightness Setting 0-5
Finish/Color Matte black
Magnification 1-4x
Diameter, Objective Lens 24mm
Diameter, Eyepiece 1.65/42
Diameter, Exit Pupil 11-6
Eye Relief 4-3.47/101.6-94
Field of view, m@100m 32.04-8.03
Field of view, ft@100yd 96.1-24.1
Diopter Adjustment +2/-2
Diameter, Tube 30/1.18
Parallax Setting 100
MOA Adjustment 1/2MOA
Weight, oz 16.2
