Description

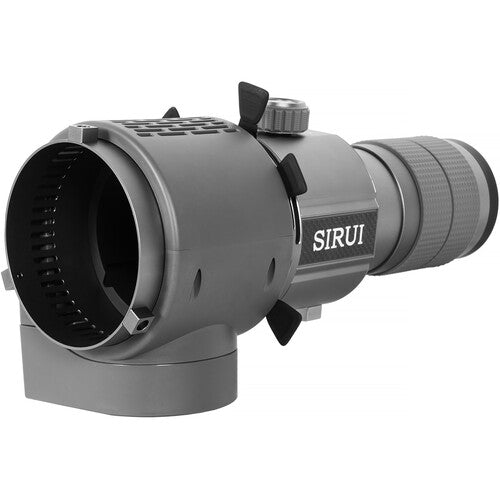

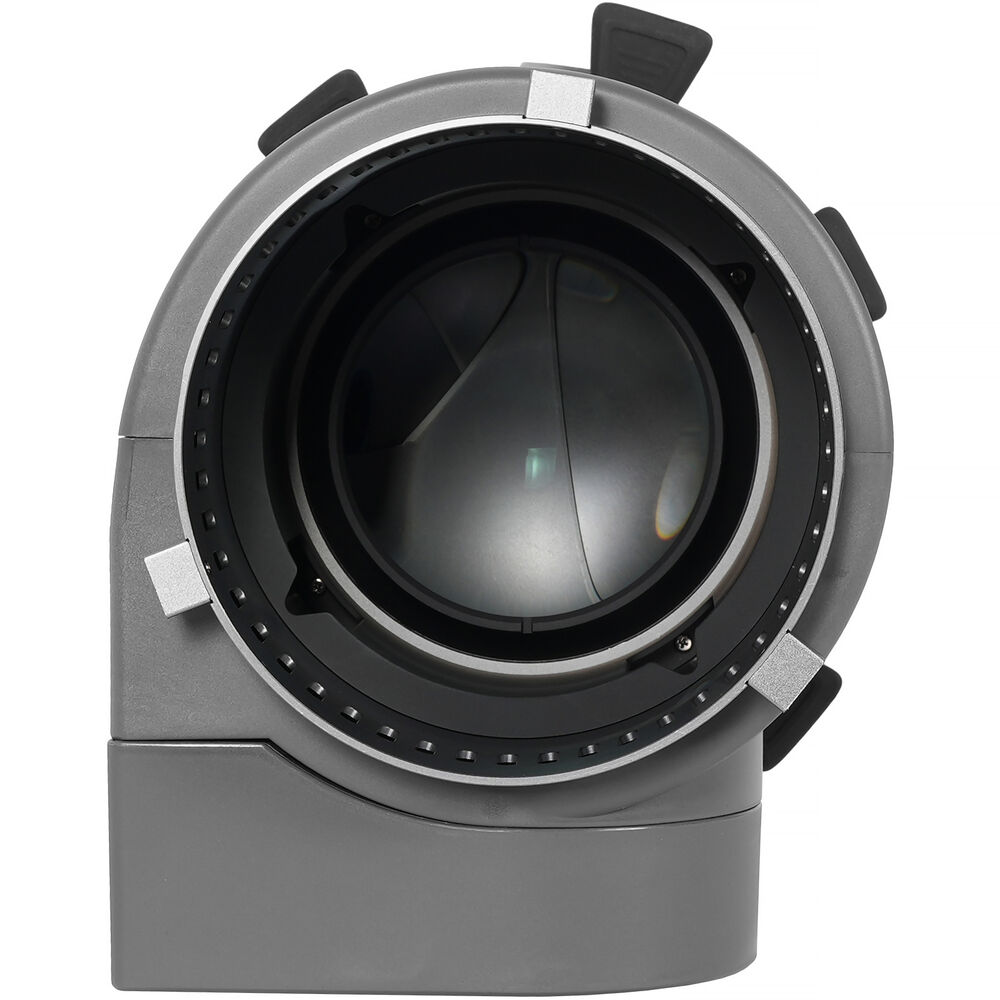

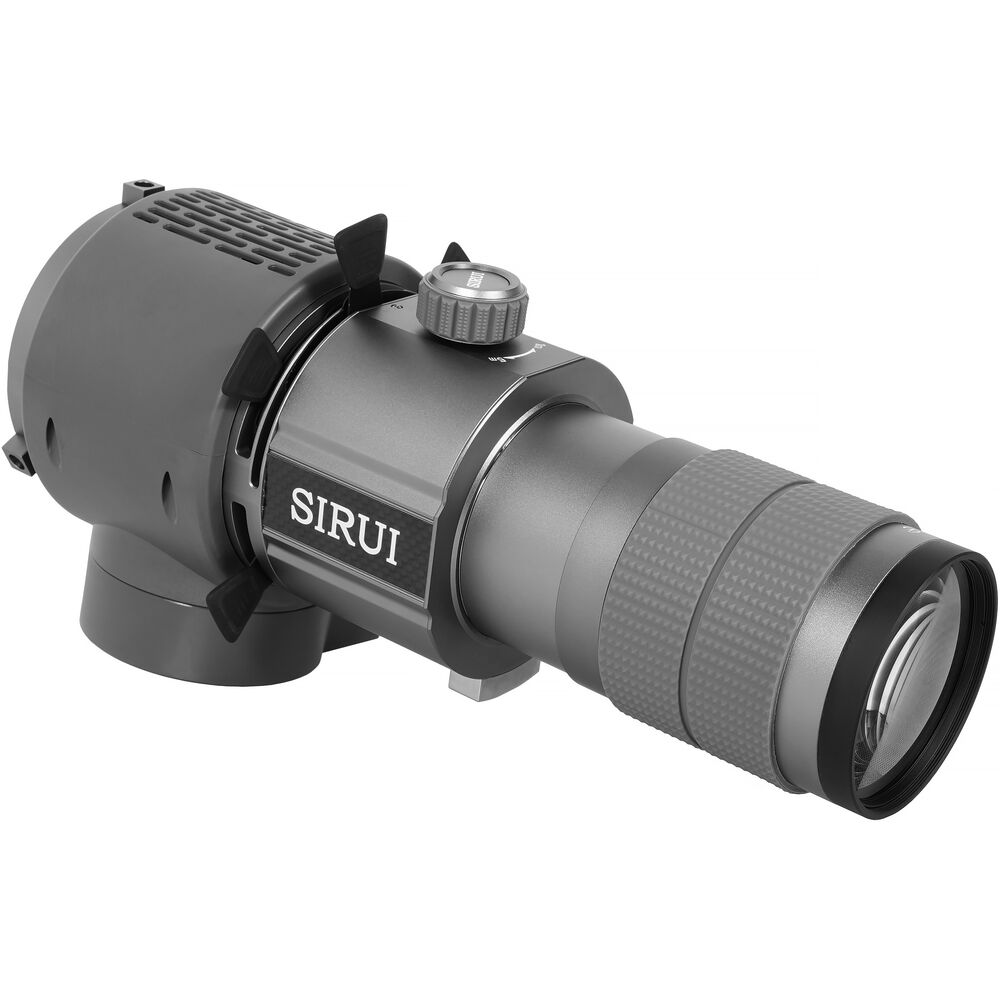

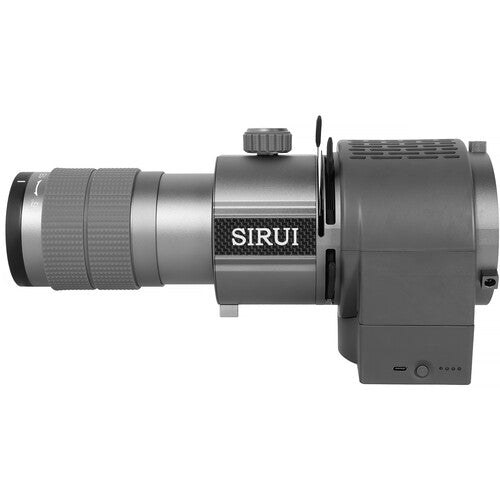

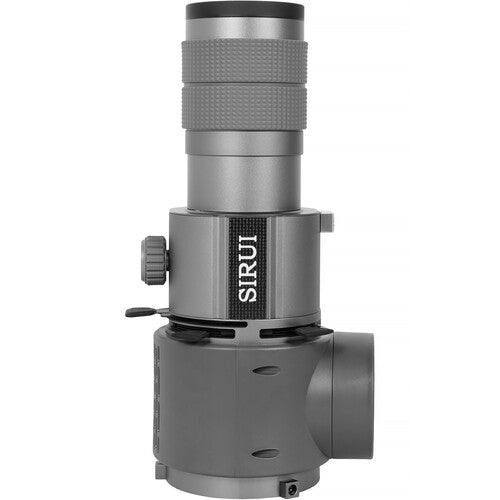

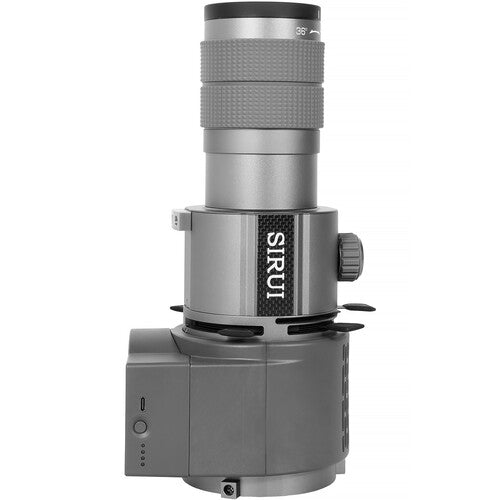

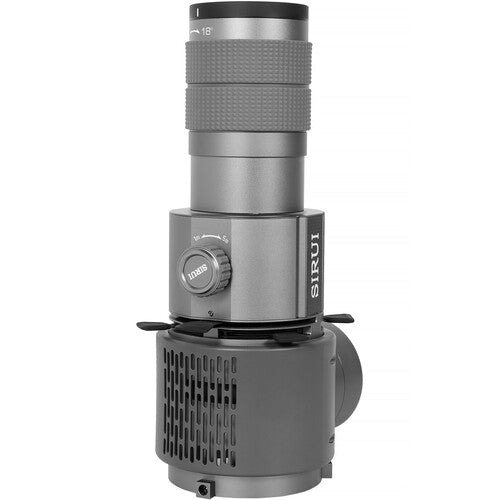

The SIRUI P1836A 18°–36° Stepless Zoom Projector Lens is a precision lighting accessory designed to give photographers and filmmakers creative control over beam angle, focus, and light shaping—all in one compact, Bowens-mount-compatible unit.
This projector lens attaches to COB lights (recommended for use with lights under 200W) and allows you to adjust the beam angle from 18° to 36° without swapping lenses. With a simple twist of the zoom ring, you can fine-tune the light’s spread and focus, making it ideal for spotlighting, shaping shadows, and projecting patterns using included GOBOs and shutter blades.
Features
- Stepless Zoom Range: Smoothly adjust beam angle from 18° to 36° with one hand.
- Built-In Shutters: Four blades let you cut and shape the light precisely.
- GOBO Compatibility: Includes 15 GOBO patterns and a holder for creative projection effects.
- Color Filters: Red, yellow, and blue filters included for stylized lighting.

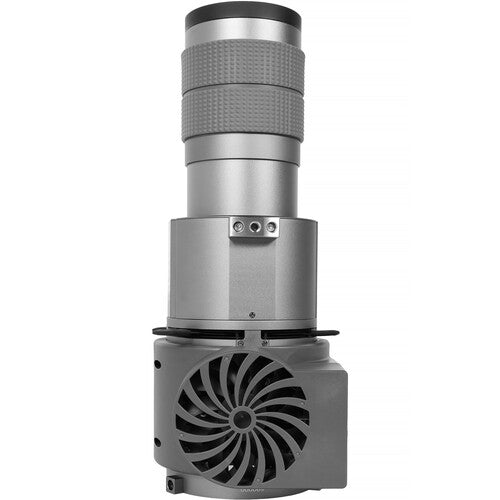

- Fan Cooling System: Magnetic, battery-powered fan helps dissipate heat during extended use.

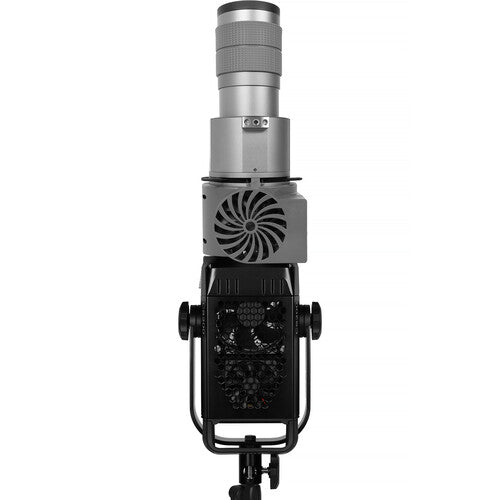

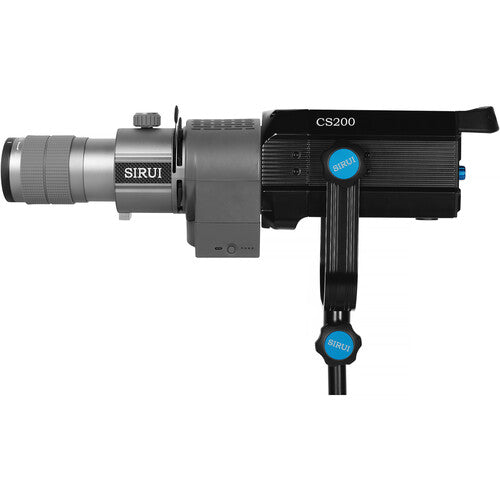

- Bowens Mount: Compatible with SIRUI Blaze and CS Series monolights and other Bowens-mount COB lights.
- Compact & Durable: Aluminum alloy body with heat-resistant design; weighs just 1.7 kg (3.8 lbs).
Specs
| Name | 18°-36° Projector Lens |
| Brightness Improvement | 18°:2.69x / 36°:1.14x |
| Lens Aperture | Ø68mm |
| Field of View | 18°~36° |
| Relative Illumination @0.9 Field | 18 °: ≥90% / 36 °: ≥50% |
| CCT Accuracy | >95% |
| Maximum Focusing Distance | >5m |
| Minimum Focusing Distance | <1m |
| Filter | 72mm |
| Mount Type | Bowens Mount |
| Weight | 1706g/3.8lb |
| Dimensions | 305mm*157mm*118mm 12.0in*6.1in*4in |
| Materials | Metal + Plastic |
| Surface Temperature | ≤60° (With SIRUI 200W Light) |
| Storage Temperature | -20~60℃ |
| Working Temperature | -10~40℃ |
