Specs Highlights:
Magnification
1-4 x

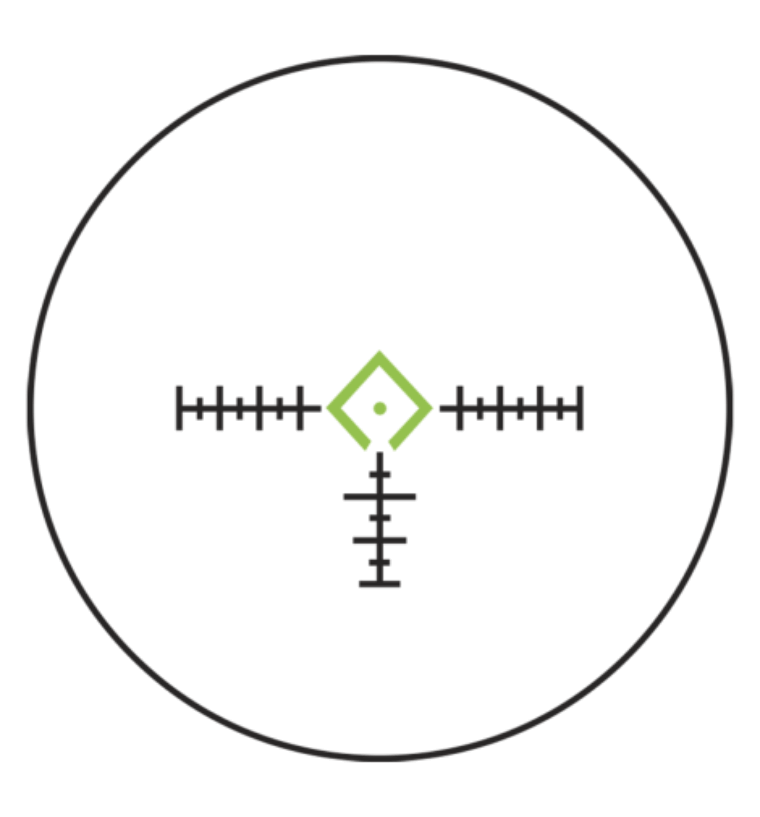

Reticle
P3TR
Objective Lens
24 mm
Tube Diameter
30 mm
Eye Relief
3.5 to 4.0 in
Exit Pupil
12.0 - 6.0 mm
Length
10.3 in
Weight
17.3 oz
Magnification | 1-4 x |
Reticle | P3TR |
Objective Lens | 24 mm |
Focal Plane | Second Focal Plane (SFP) |
Tube Diameter | 30 mm |
Field of View at 100 meters | 110-27.5 ft at 100 yds |
Eye Relief | 3.5 to 4.0 in |
Exit Pupil | 12.0 - 6.0 mm |
Length | 10.3 in |
Weight | 17.3 oz |
Diopter Adjustment Range | +2 to -3 |
Illumination Control | Rotary Dial |

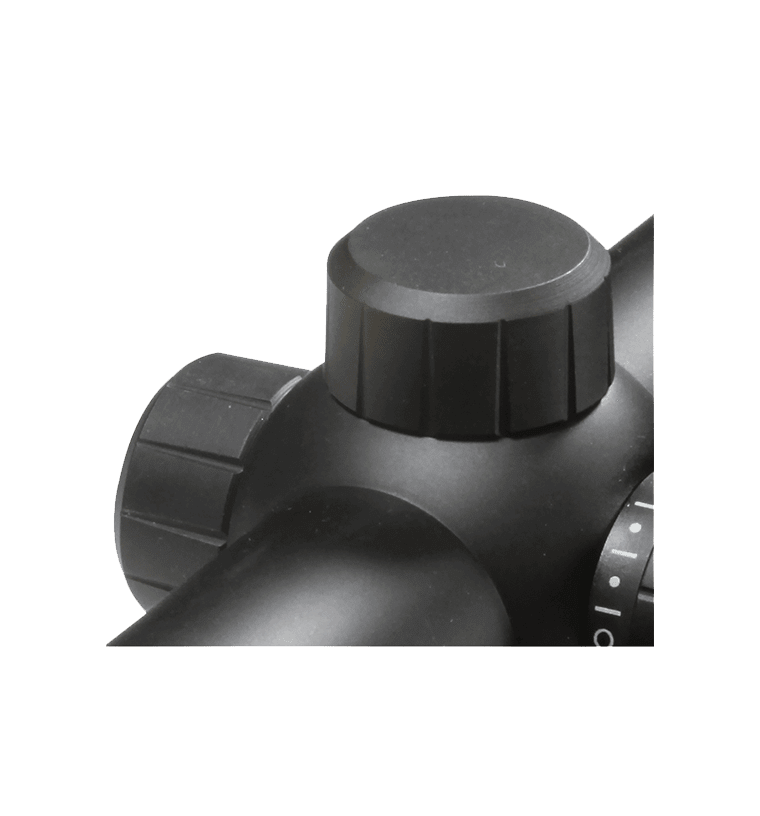

Wind/Elevation Click Value | 0.5 MOA |
Elevation Range at 100 m | 100 MOA |
Wind Range at 100 m. | 100 MOA |
Parallax/Focus | Fixed |
Parallax/Focus Range | 100 yds |
Nitrogen Filled | Yes |
Operating Temperature Range | -13 to +145 Fahrenheit |
Lens Cap | No |
Waterproof/Fogproof | Submersible to 33 ft |
Battery | CR2032 |
Warranty | Heritage Warranty |
