Description

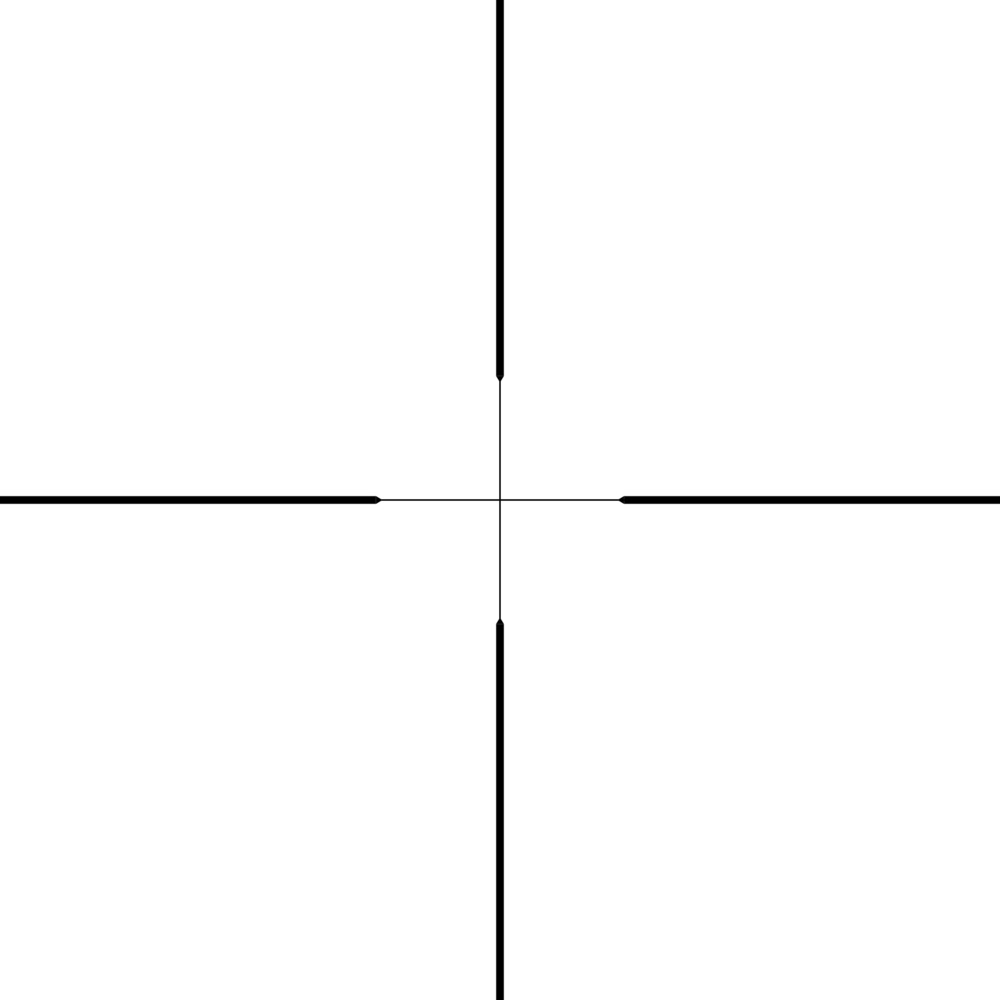

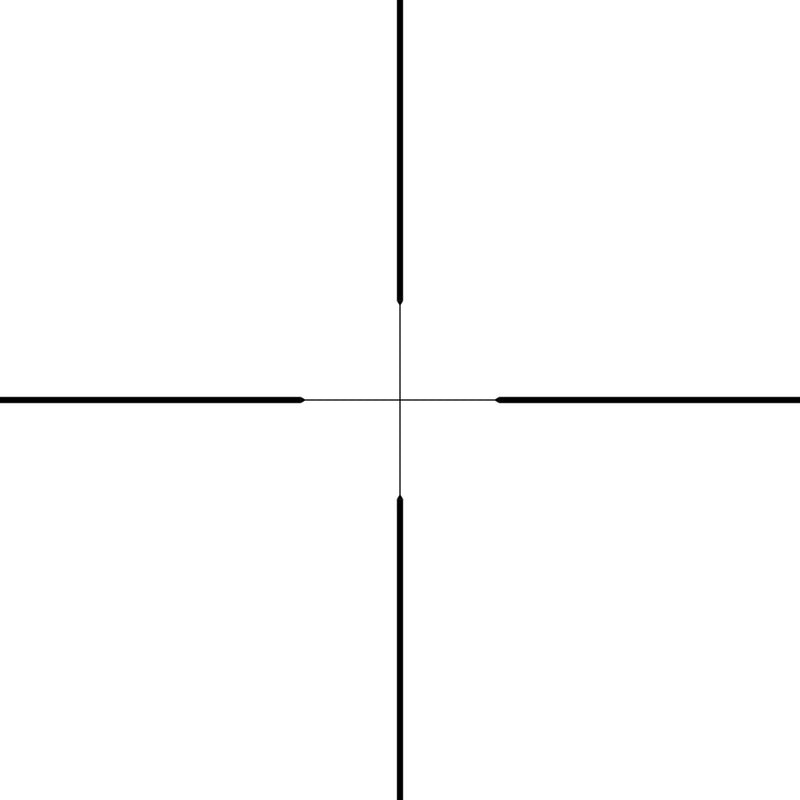

A variant on the classic L4 reticle, the 30/30 Duplex offers 30″ spacing from post to post at 100yds, when on 4x magnification.
Features
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specs
Specs Highlights:































































































































                                  Magnification


                                  4 - 12x


                                  Objective Lens


                                  50mm


                                  Reticle


                                  30/30 Duplex


                                  Parallax


                                  Fixed


                                  Focal Plane


                                  SFP (Second Focal Plane)


                                  Field of View


                                  26.2 - 8.7ft @100yds


                                  Field of View (°)


                                  5 - 1.7


                                  Eye Relief


                                  3.5in


                                  Exit Pupil


                                  0.49 - 0.17″

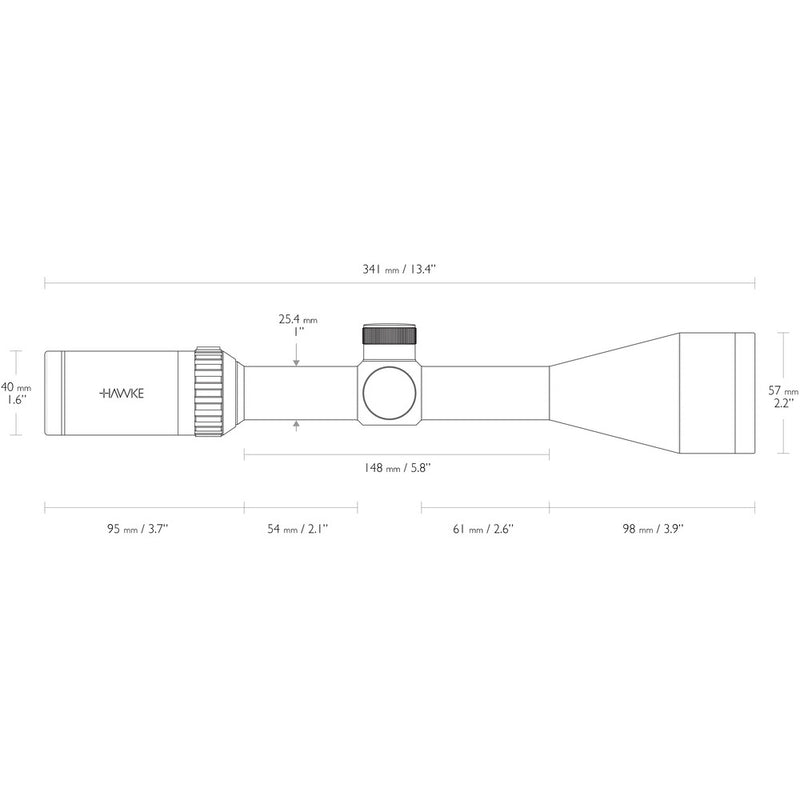

                                  Length


                                  13.4in


                                  Weight


                                  16.8oz

                        | Scope Tube | 1 Inch |
| Magnification | 4 - 12x |
| Objective Lens | 50mm |
| Reticle | 30/30 Duplex |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated - 11 Layers |
| Optical System | System H2 |
| Field of View | 26.2 - 8.7ft @100yds |
| Field of View (°) | 5 - 1.7 |
| Eye Relief | 3.5in |
| PX/Focus | 100yds |
| Click Value | 1⁄ 4MOA |
| Exit Pupil | 0.49 - 0.17″ |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Elevation Turret Clicks (max) | 80 MOA |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |
| Windage Turret Clicks (max) | 80 MOA |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Length | 13.4in |
| Weight | 16.8oz |
