Description

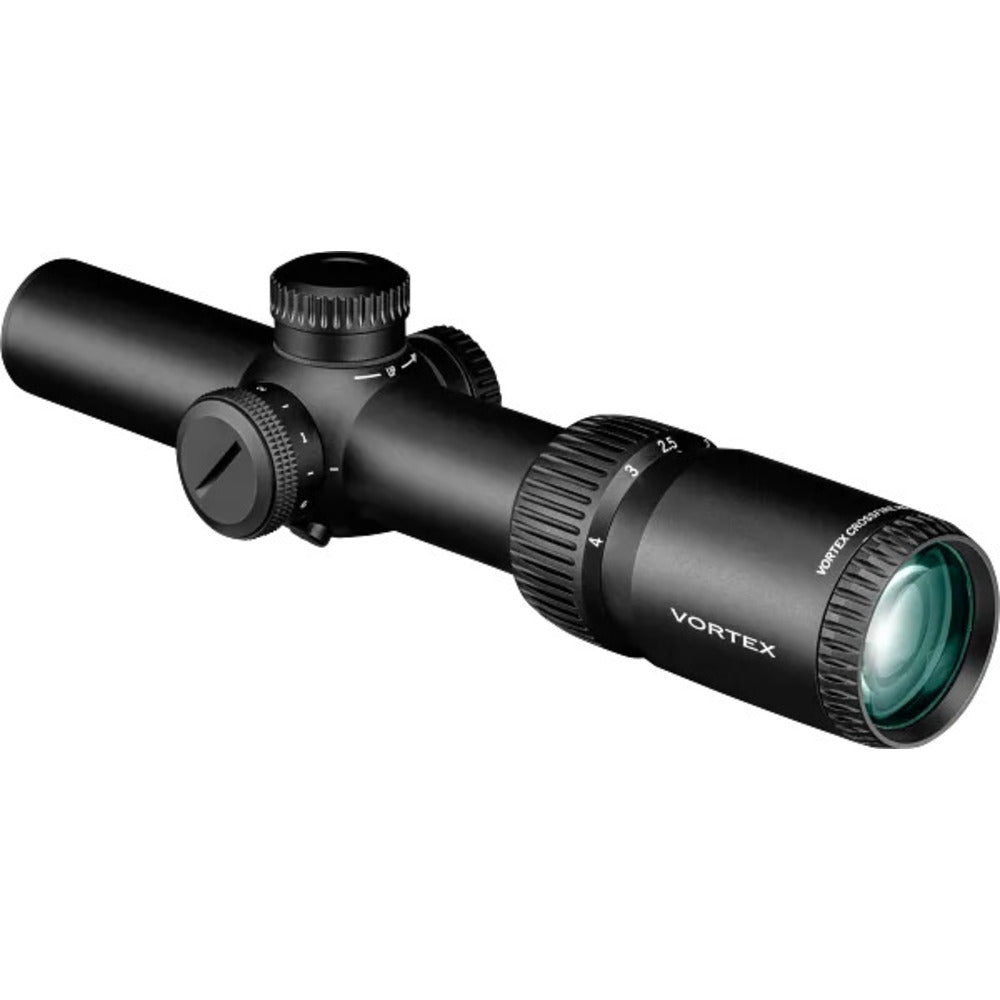

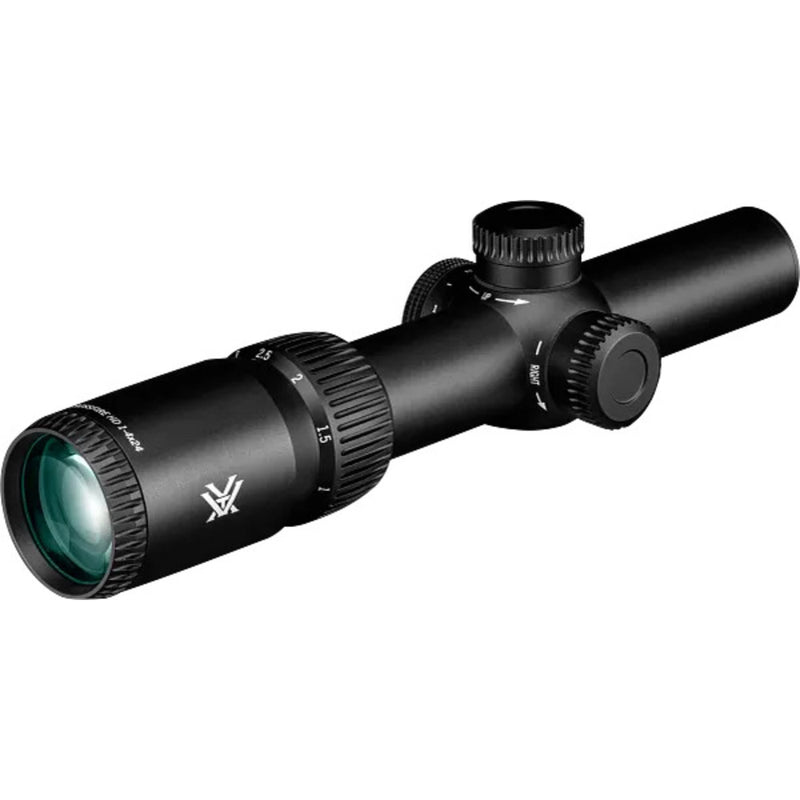

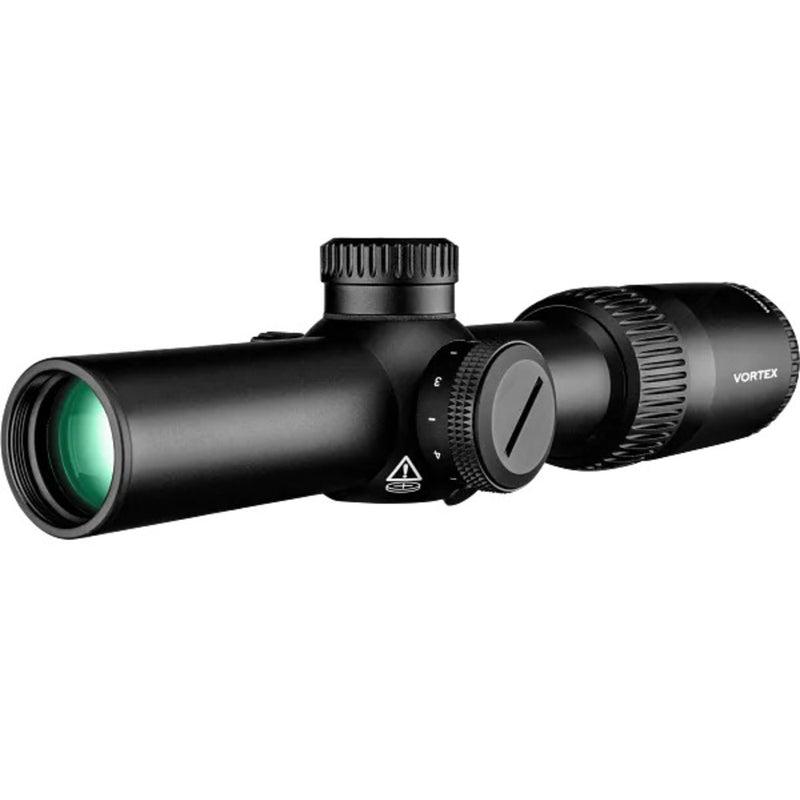

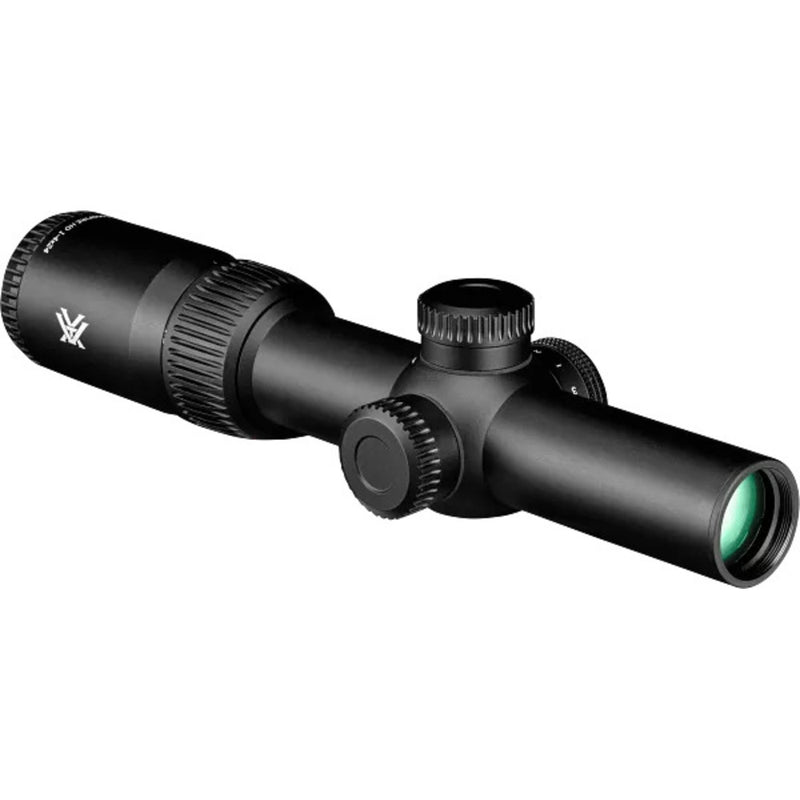

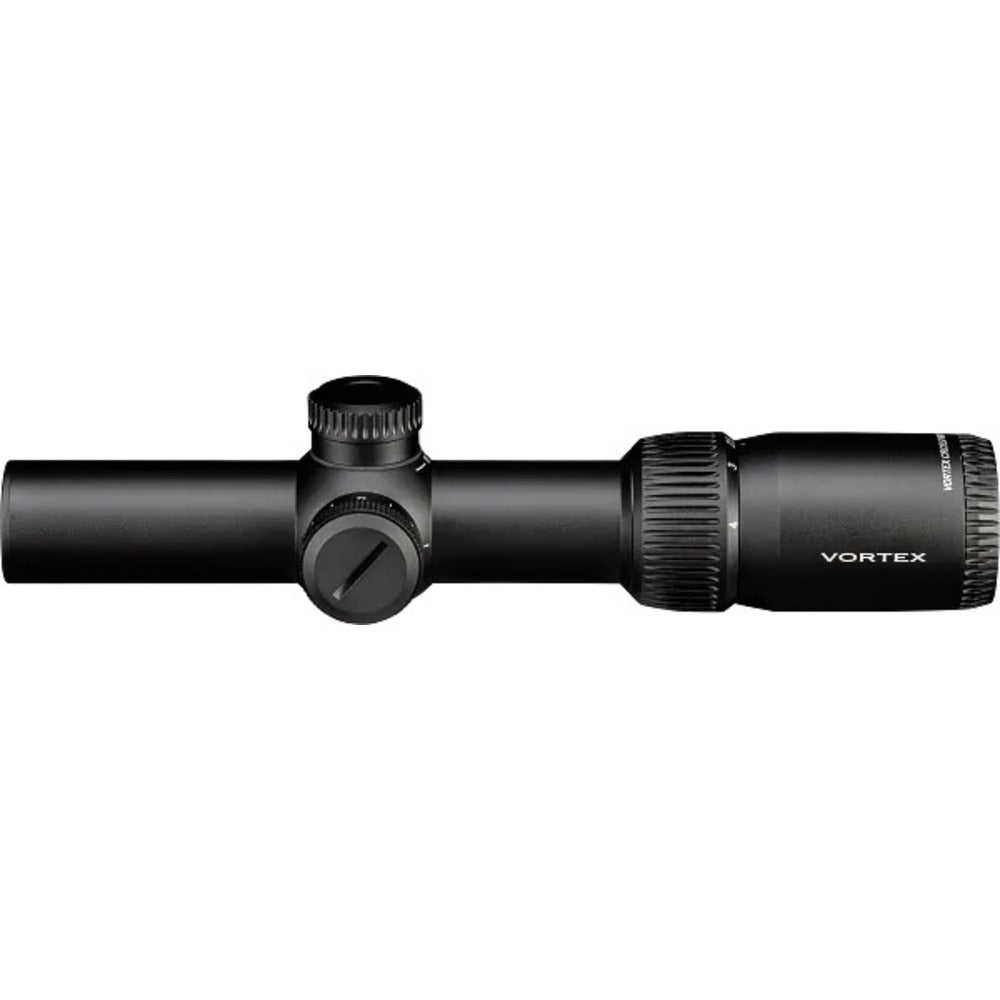

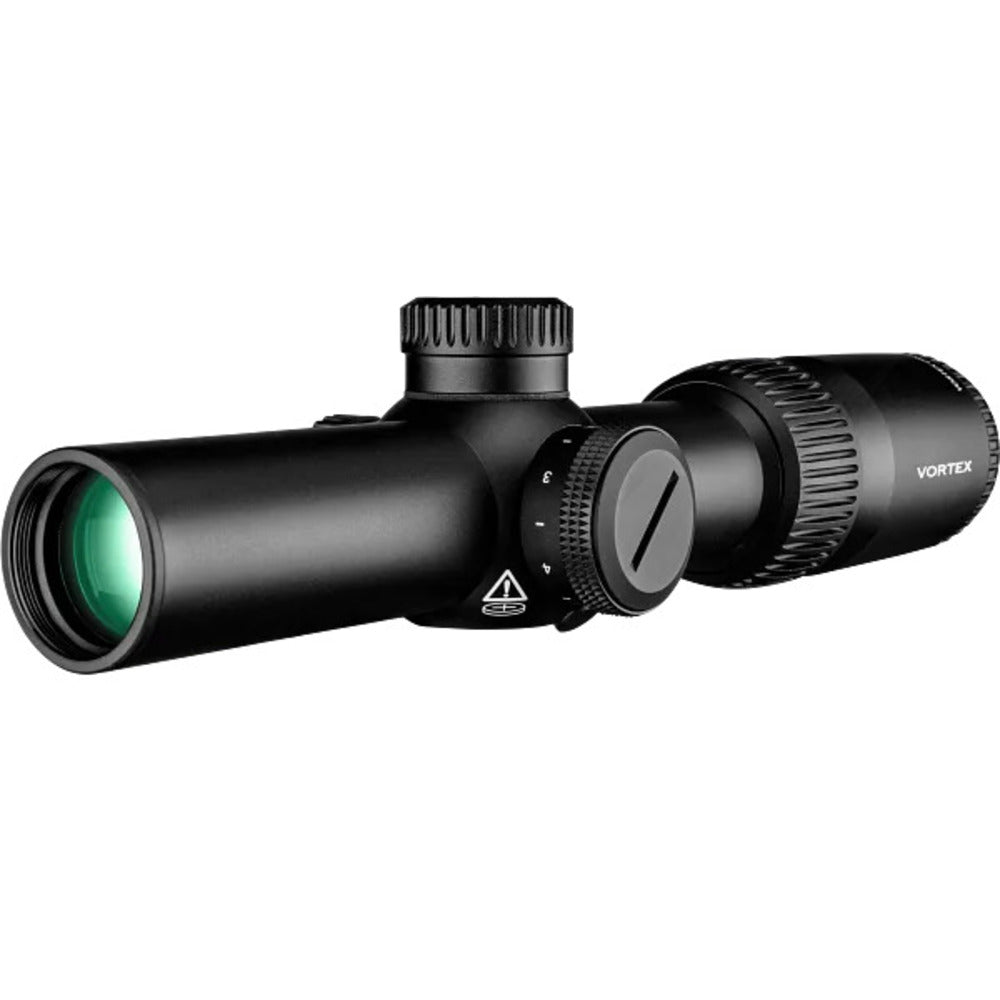

The Vortex Optics Crossfire HD 1-4x24 CFR-1401i Scope is a variable zoom scope for rifles. It has a 30mm tube and is compatible with 30mm rings or mounts. The HD optical system is designed with select glass to provide clear images, reduce color distortion, allow excellent light transmission, and visual edge-to-edge sharpness.
Designed as a close-range hunting scope, the 1X magnification provides quick acquisition of short-range targets while the large 24mm objective diameter gives a large field of view even in low-light conditions – 26.7 feet at 4X zoom at 100 yards. The lenses are multi-coated to increase light transmission for better clarity in low-light conditions.

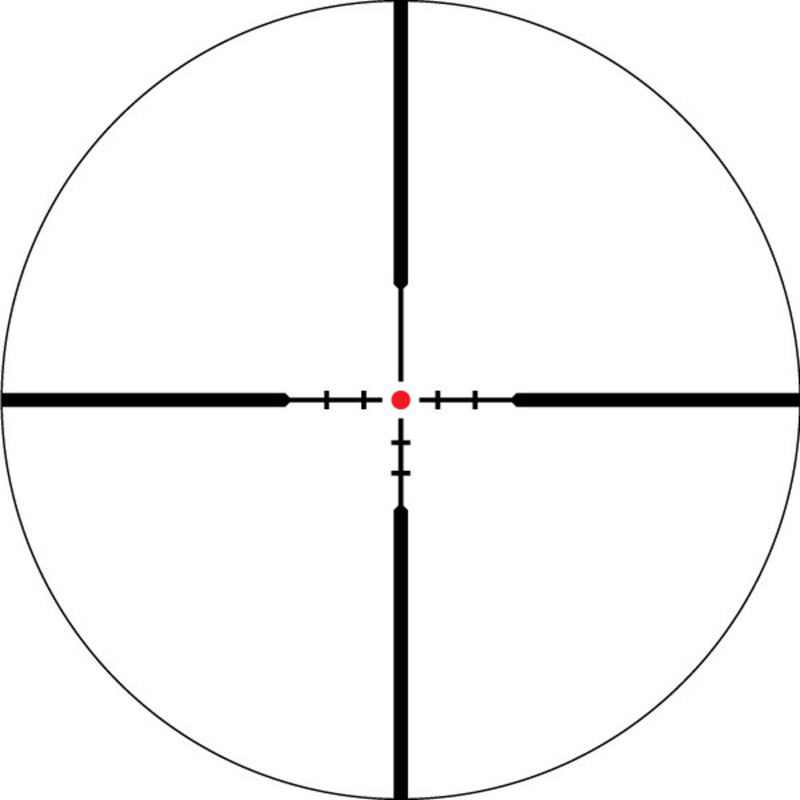

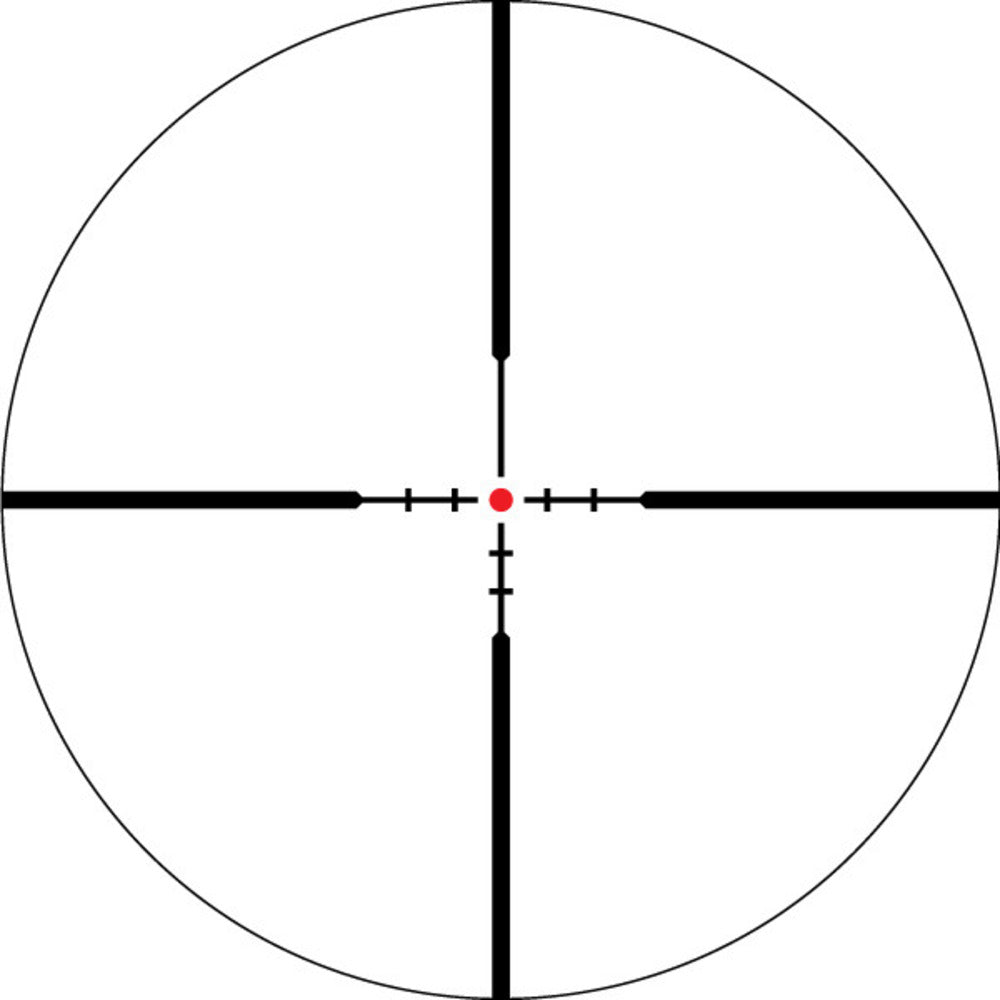

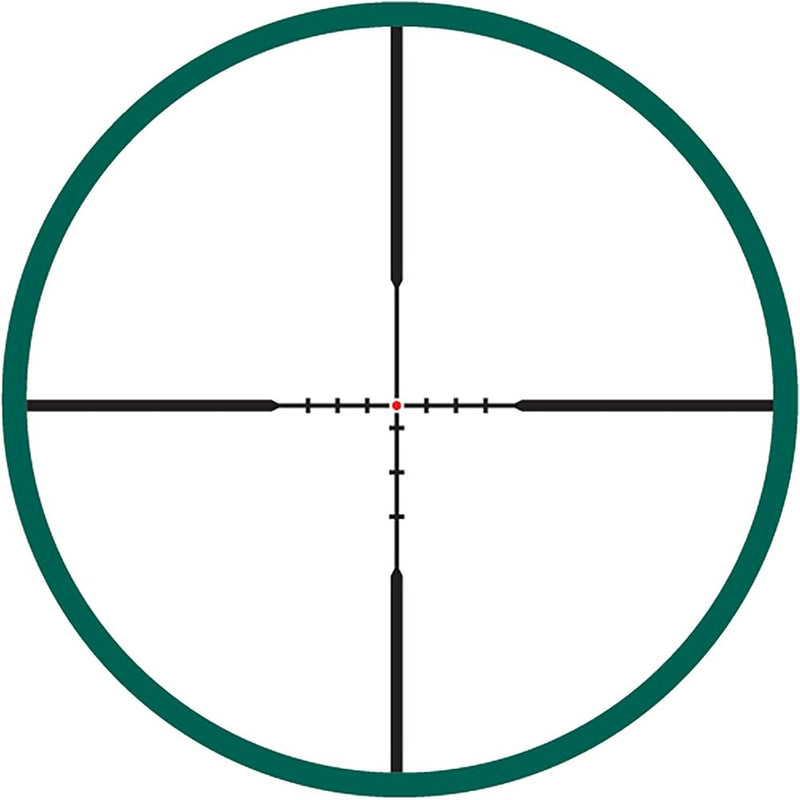

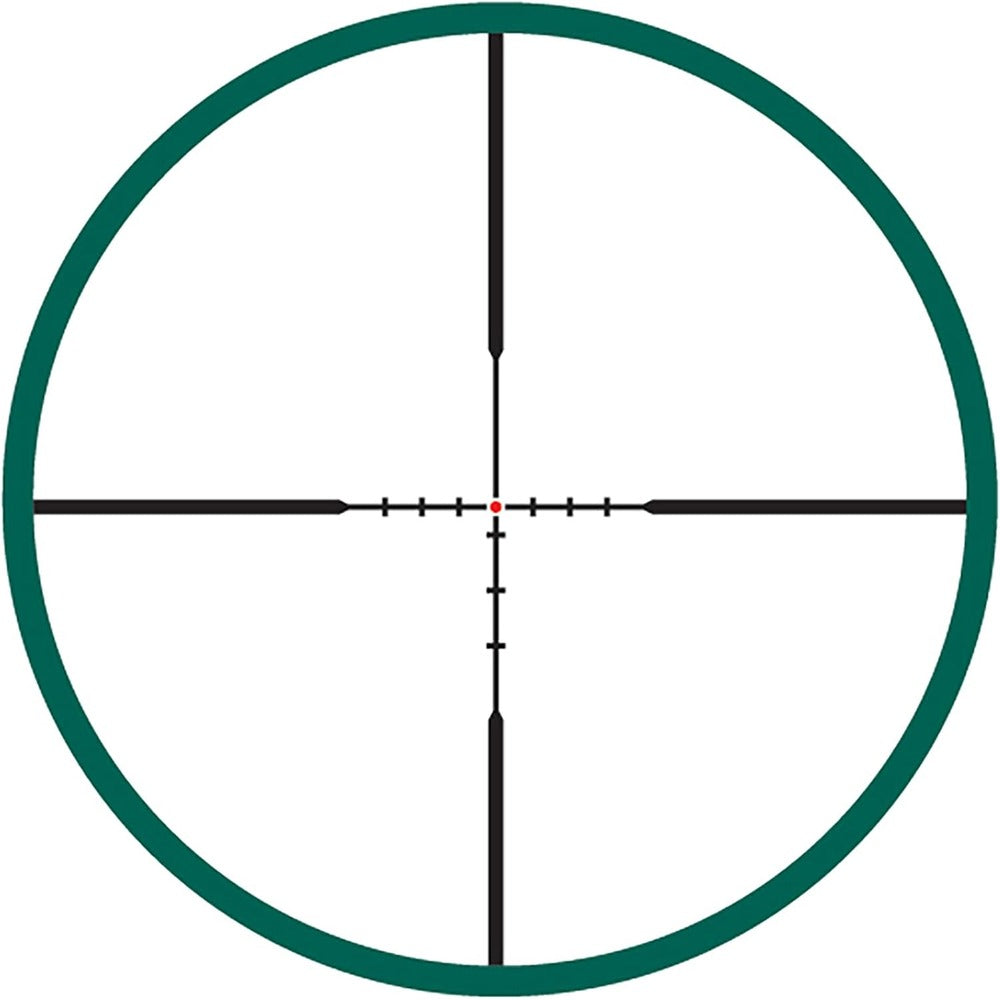

The Illuminated Dead-Hold 2A BDC MOA Reticle is an MOA reticle that includes BDC (Bullet Drop Compensation) hash marks that make it easy to estimate holdovers at varying distances. The illuminated center dot provides fast, precise aiming in low light. The dot can be turned on and off as needed and has 6 brightness levels.
This is a Second Focal Plane (SFP) scope, meaning that the reticle stays the same size as the shooter changes the magnification of the scope. The reticle is calibrated at the highest magnification setting. The aircraft grade aluminum body is anodized with a low-glare matte black coating. The body of the scope is waterproof, shockproof, and the coated lenses are fog proof.

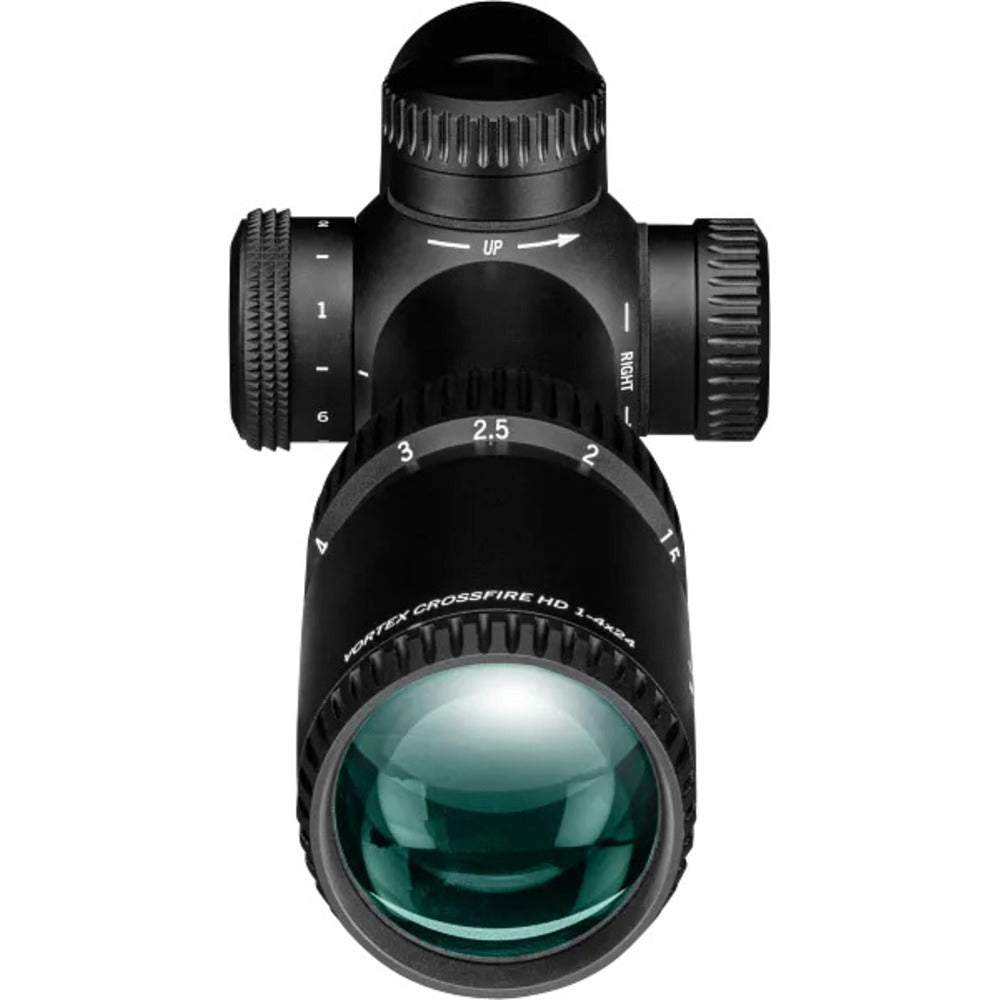

The adjustment turrets have tactile clicks that provide the shooter with clear feedback. They provide 30 MOA of adjustment per revolution and ½ MOA of adjustment per click. The elevation and windage adjustments both have 130 MOA of range.
After zeroing, the adjustment turrets can be reindexed to the “0” mark. This makes it easy to return the scope to the original zero after adjusting for conditions and range.

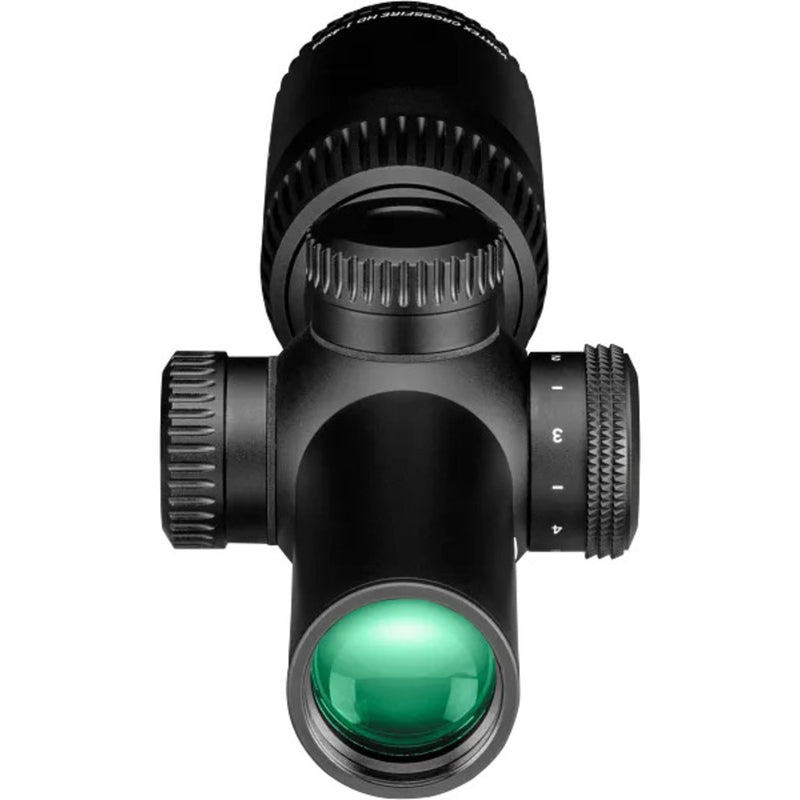

The Fast-Focus eyepiece includes an ocular focus adjustment, allowing the shooter to adjust the clarity of the reticle to match their eyesight. The eyepiece also includes a magnification ring for magnification adjustments
Features
- MAGNIFICATION: 1X – 4X
- OBJECTIVE DIAMETER: 24
- FOCAL PLANE: Second Focal Plane (SFP)
- RETICLE: Illuminated Dead-Hold 2A BDC MOA
- ILLUMINATION: Yes
- ILLUMINATION SETTINGS: 6 Daylight
- BATTERY TYPE: CR2032
- EYE RELIEF: 3.8"
- LINEAR FIELD OF VIEW @ 100 YDS: 109.5’ – 26.7’
- TURRET STYLE: Capped
- TUBE SIZE: 30mm
- ADJUSTMENT GRADUATION: 1/2 MOA
- TRAVEL PER ROTATION: 30 MOA
- TOTAL ELEVATION ADJUSTMENT: 130 MOA
- TOTAL WINDAGE ADJUSTMENT: 130 MOA
- PARALLAX SETTING: 100 yds.
- LENGTH: 9.5”
- WEIGHT: 15.3 oz

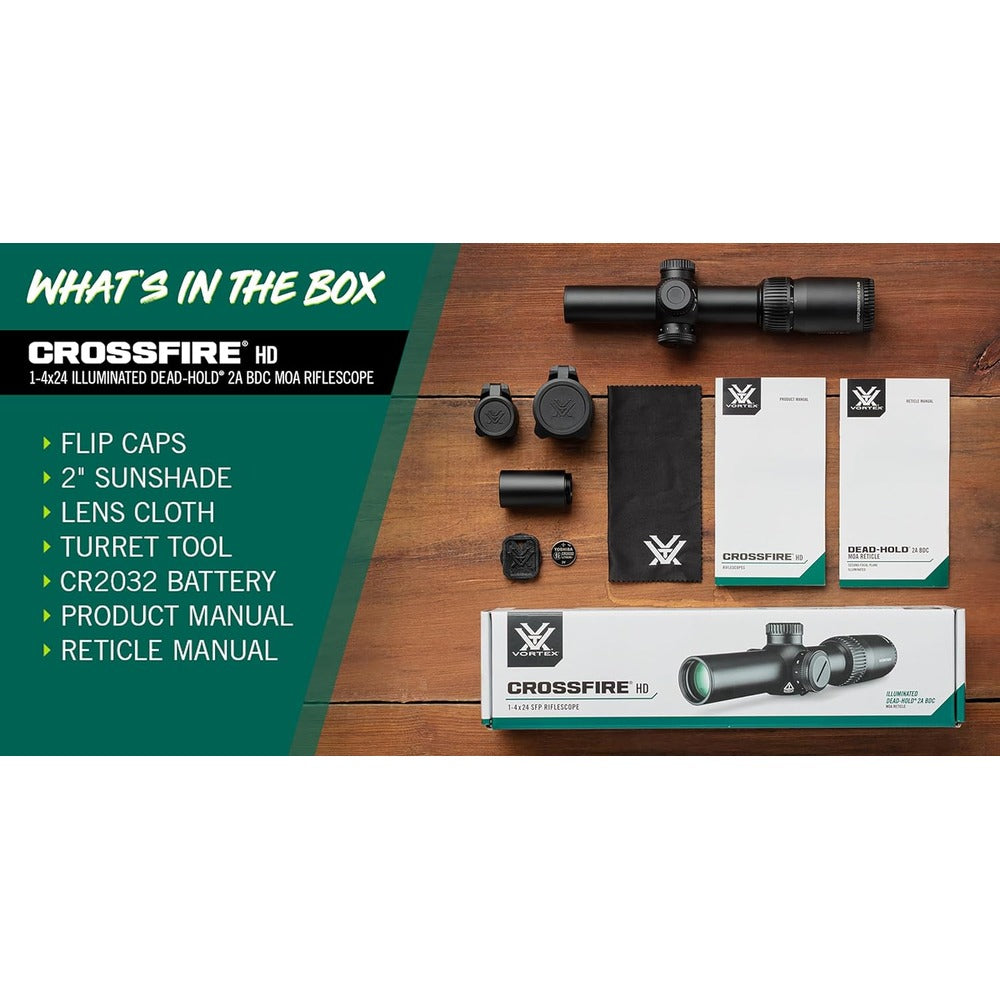

In The Box
- Vortex Optics Crossfire HD 1-4x24 CFR-1401i Scope
- Sunshade
- Lens Cloth
- Turret Tool
- Flip Caps
- CR2032 Battery
Specs
| Magnification Range | 1-4x |
| Objective Lens Diameter | 24mm |
| Focal Plane | SFP |
| Reticle | Illuminated Dead-Hold® 2A BDC |
| Illumination | YES |
| Battery Type | CR2032 |
| Eye Relief | 3.8" |
| Linear Field of View (@100 YDS) | 109.5’ - 26.7’ |
| Turret Style | Capped |
| Tube Size | 30mm |
| Adjustment Graduation | 1/2 MOA |
| Travel Per Rotation | 30 MOA |
| Max Elevation Adjustment | 130 MOA |
| Max Windage Adjustment | 130 MOA |
| Parallax Setting | 100 yds. |
| Length | 9.5” |
| Weight | 15.3 oz |
| Optical System | HD Optical System |
| Lens Coatings | Fully Multi-Coated Lenses |
| Waterproof | YES |
| Fogproof | YES |
| Shockproof | YES |
| Material | Aircraft Grade Aluminum |
| Item Box Dimensions (l x w x h) | 14.37" x 3.5" x 3.75" |
| Item Weight (lb/oz) | 1.78 lb / 28.48 oz |
