Description

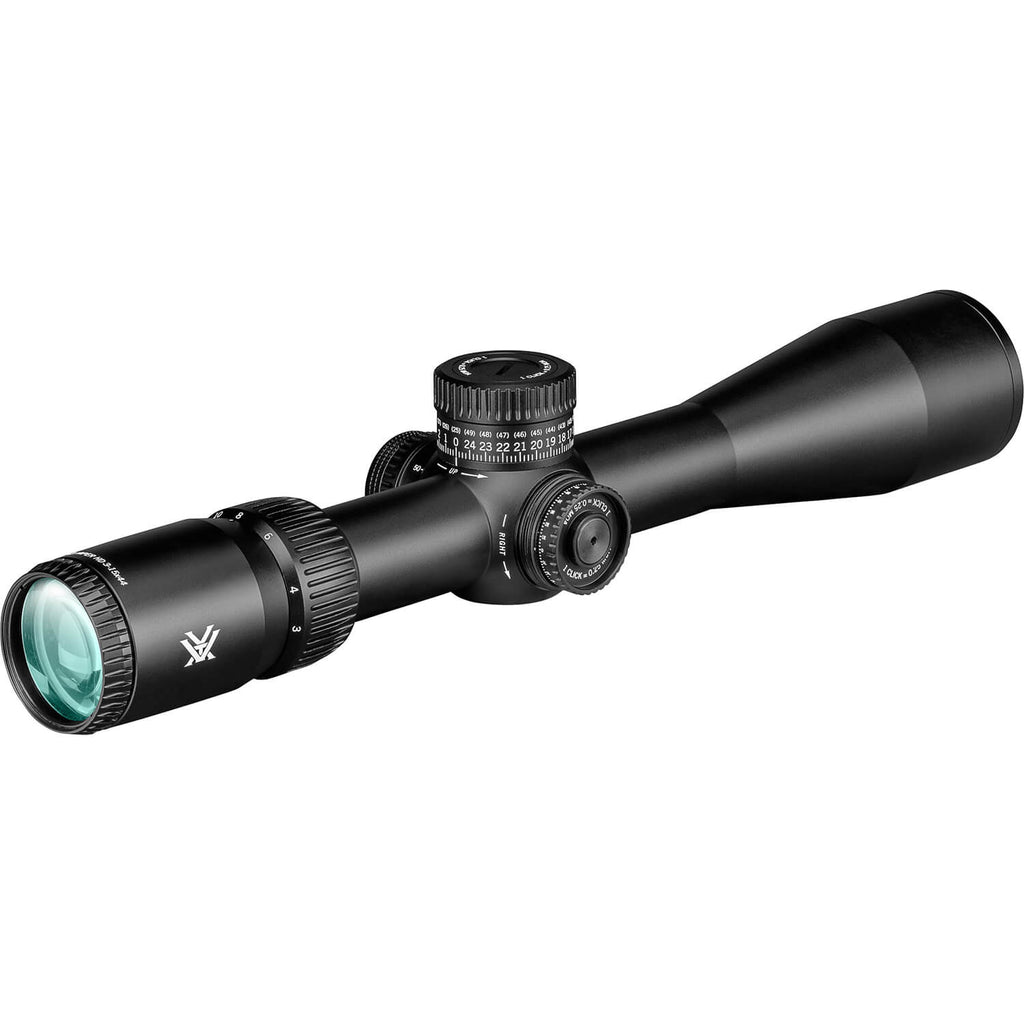

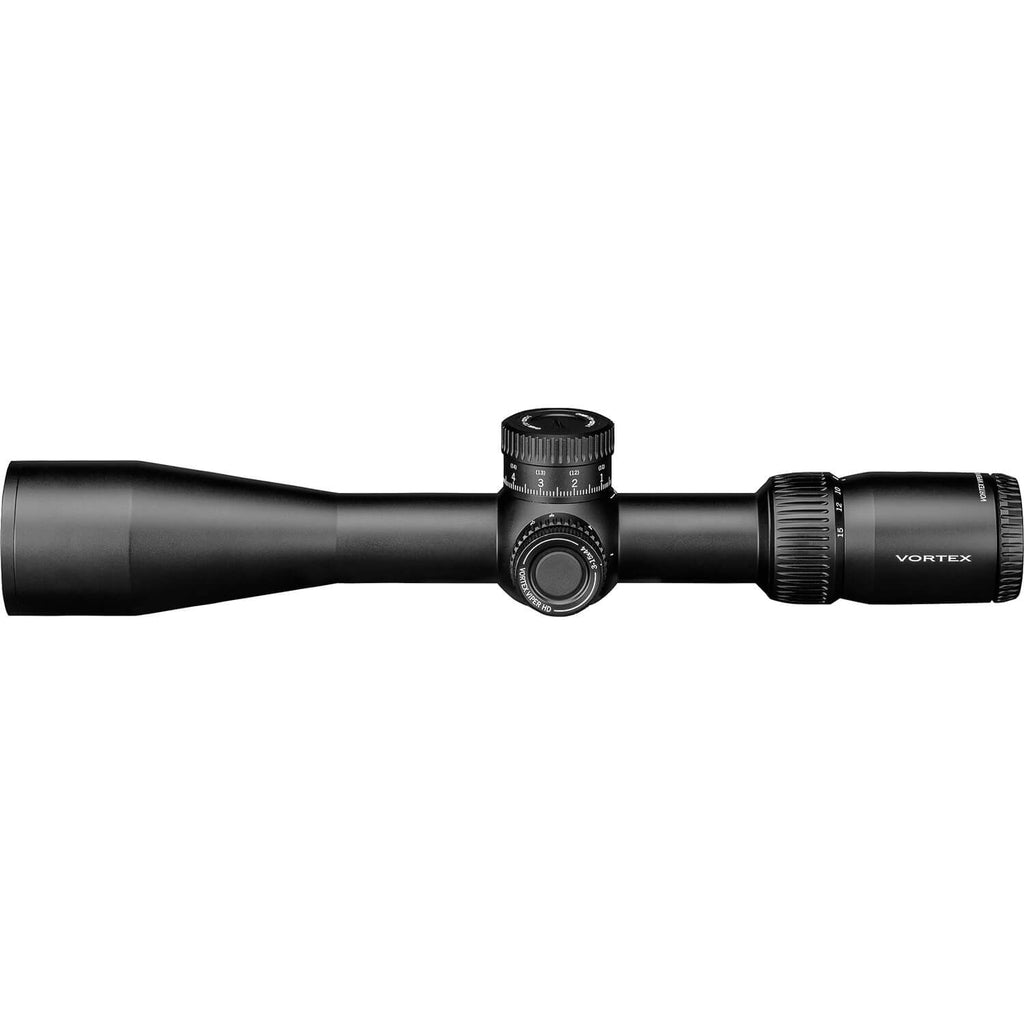

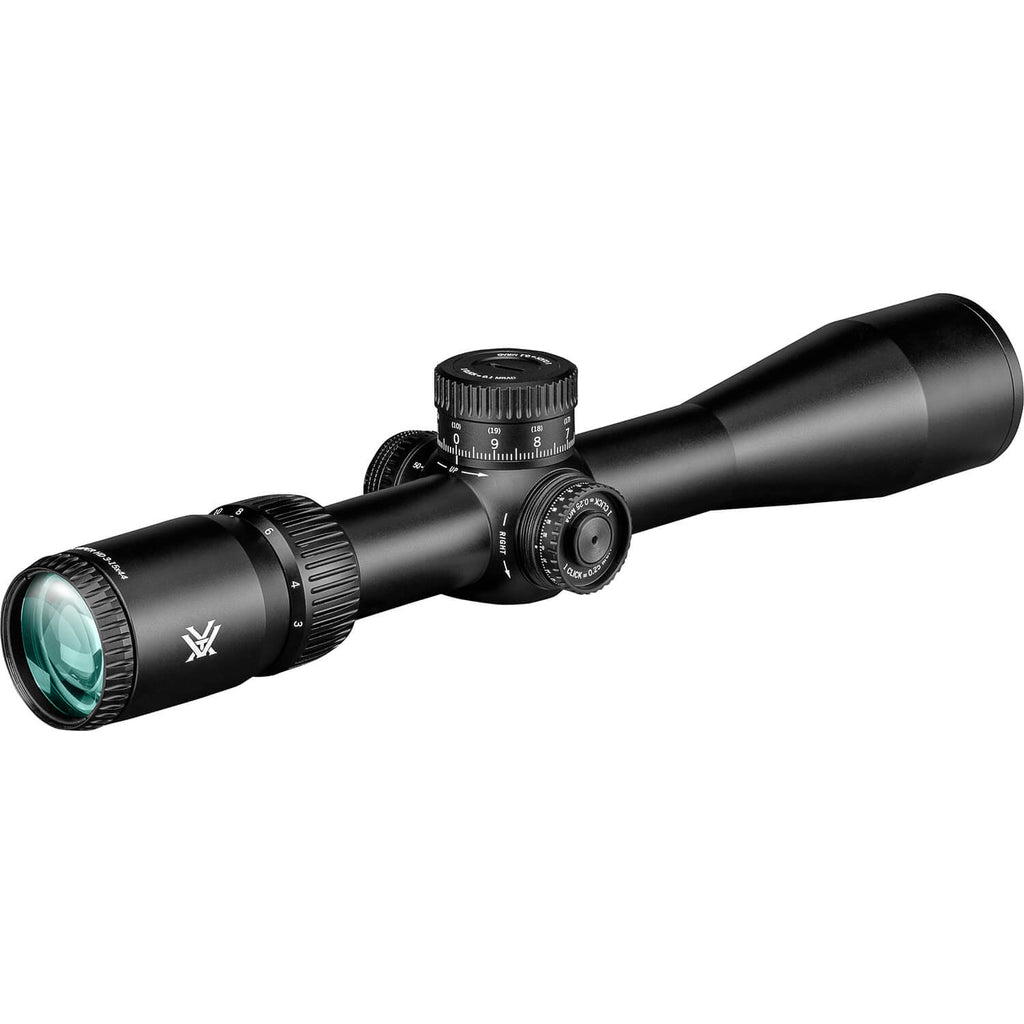

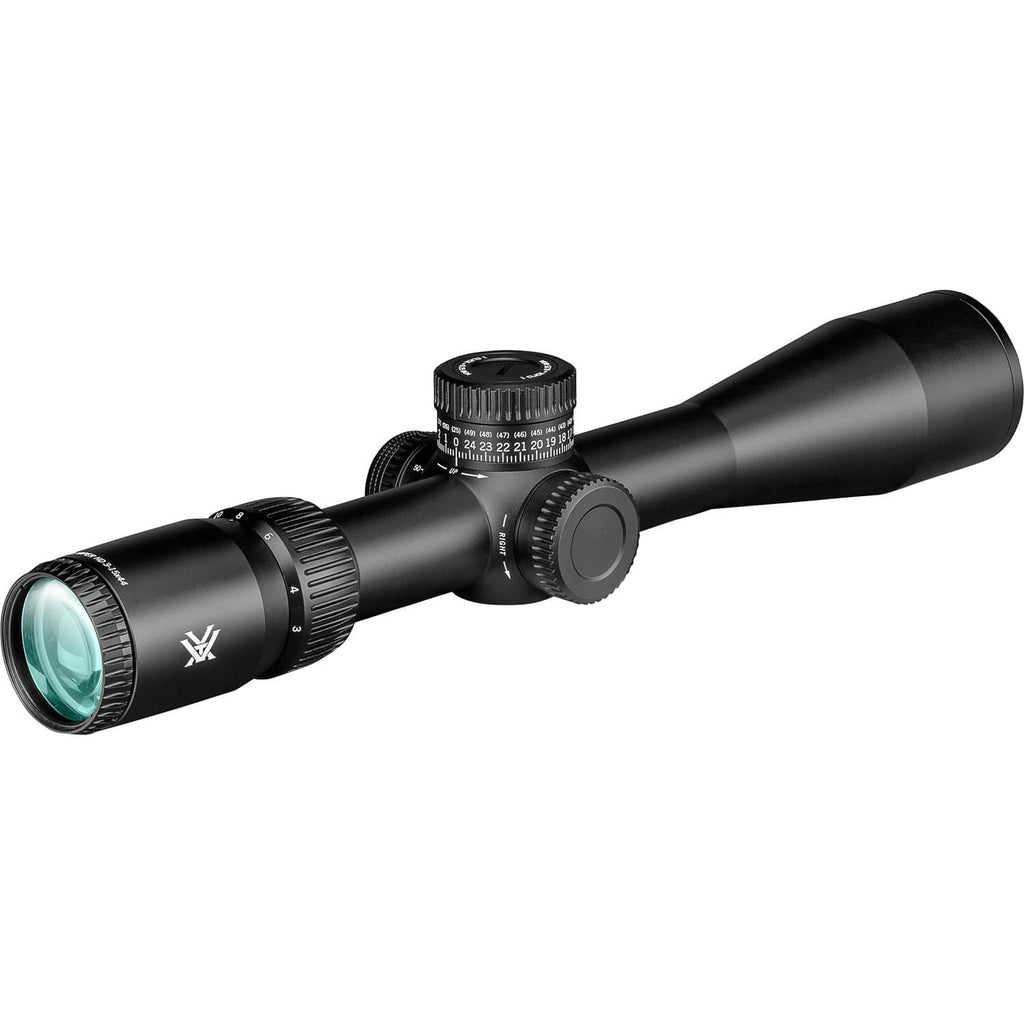

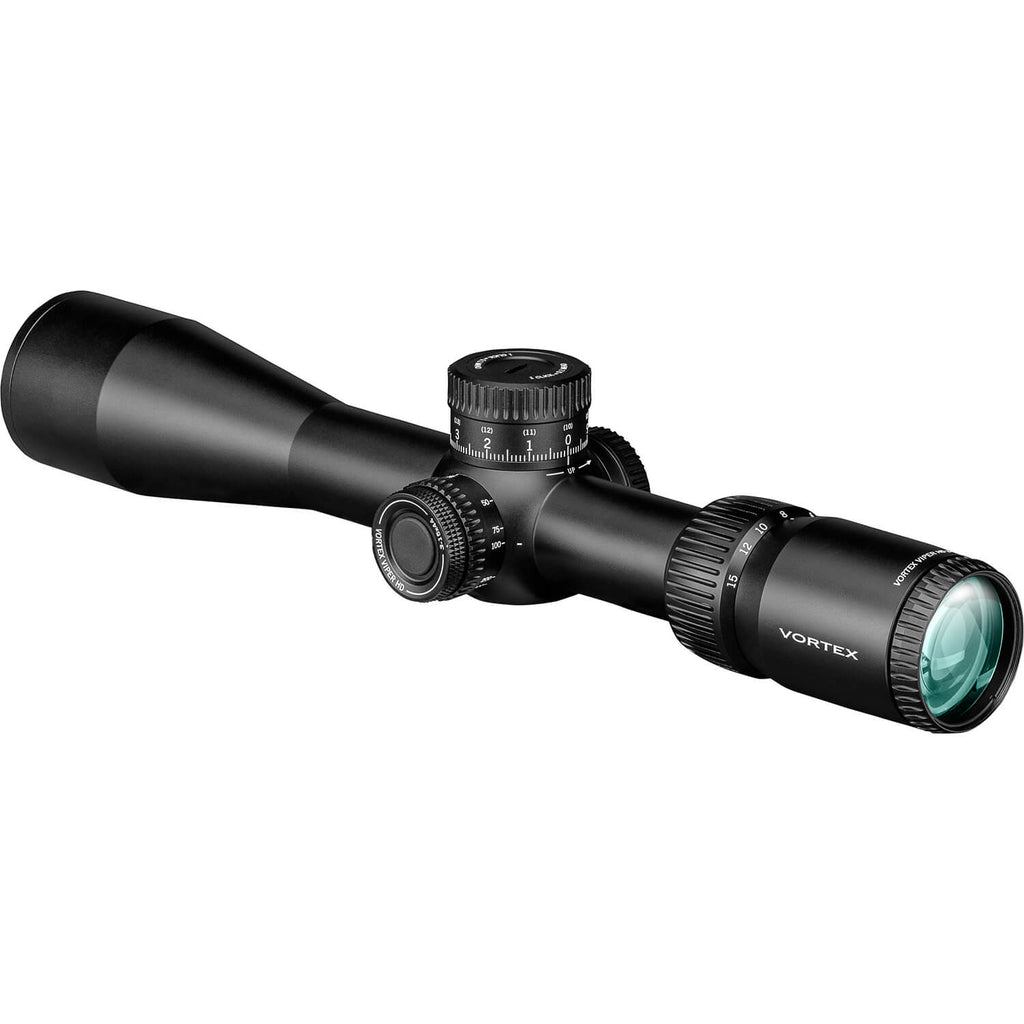

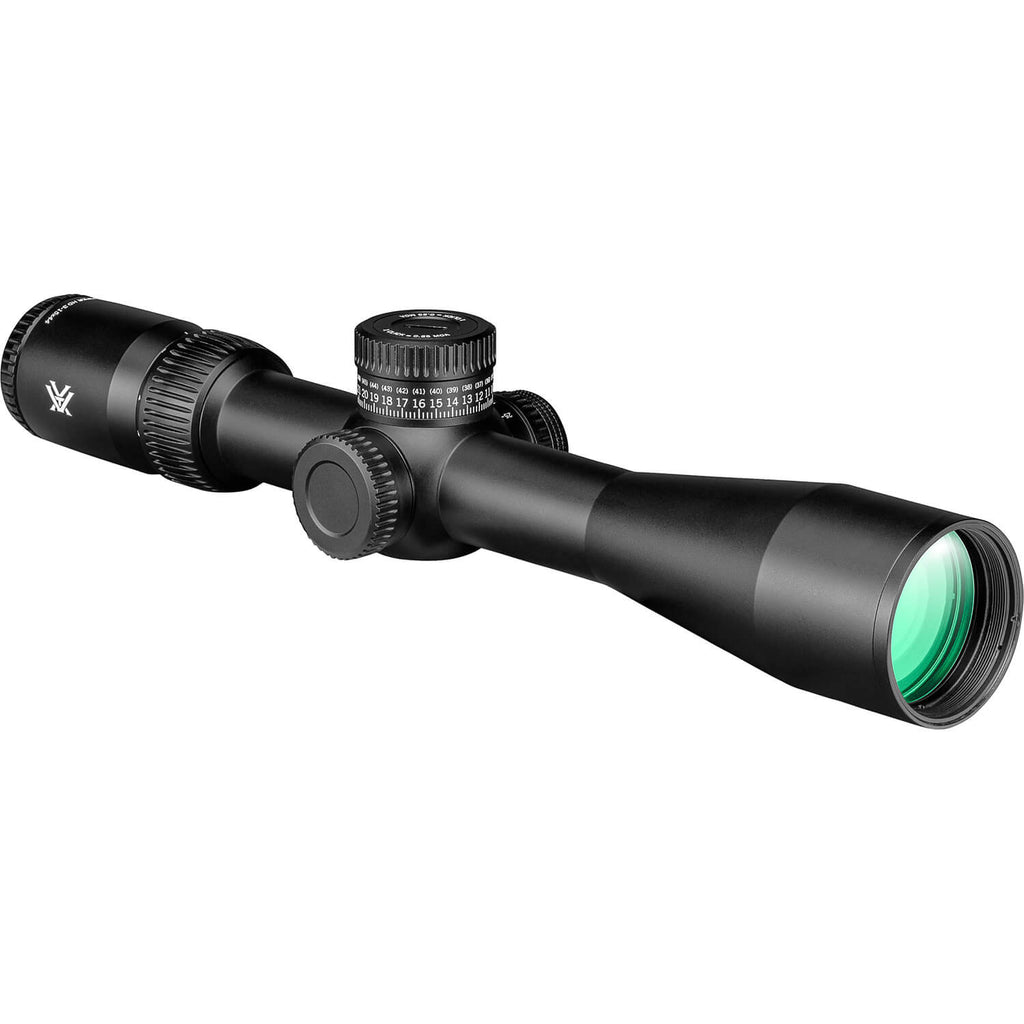

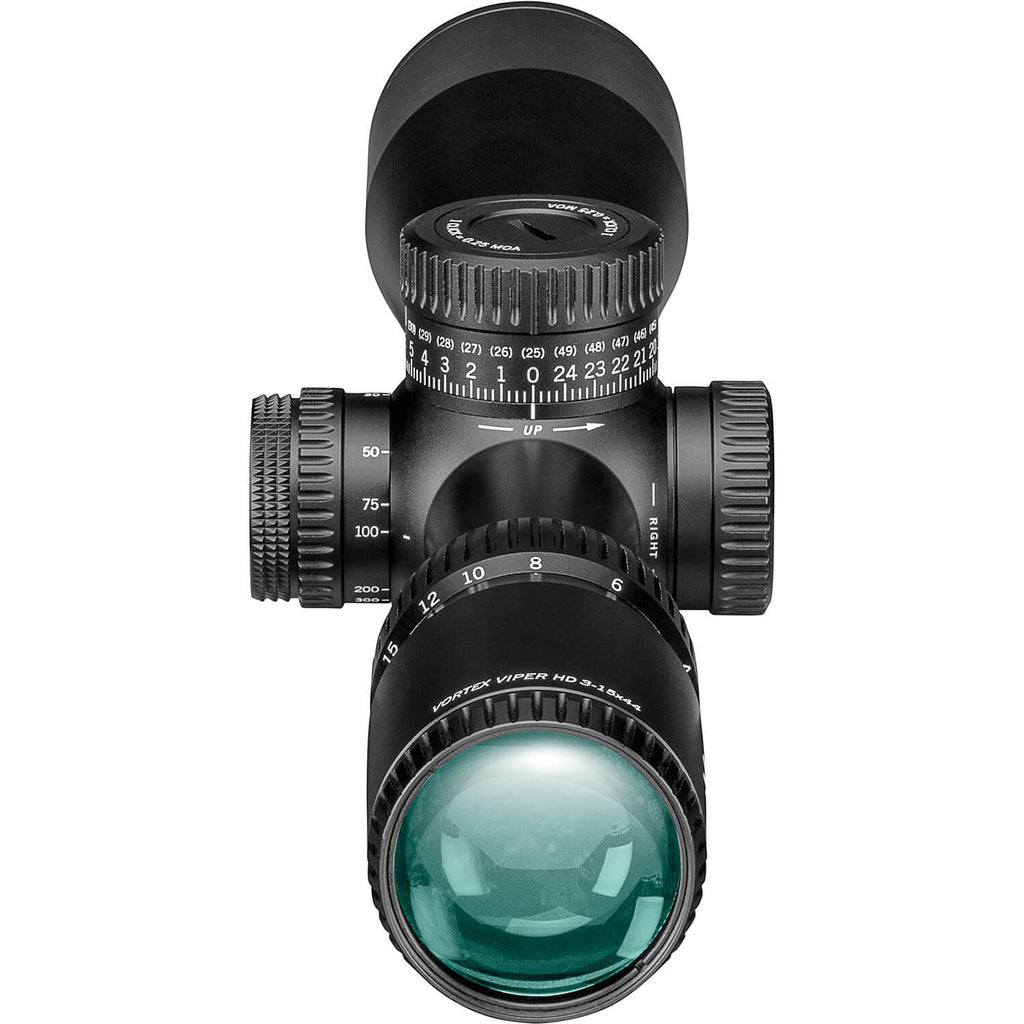

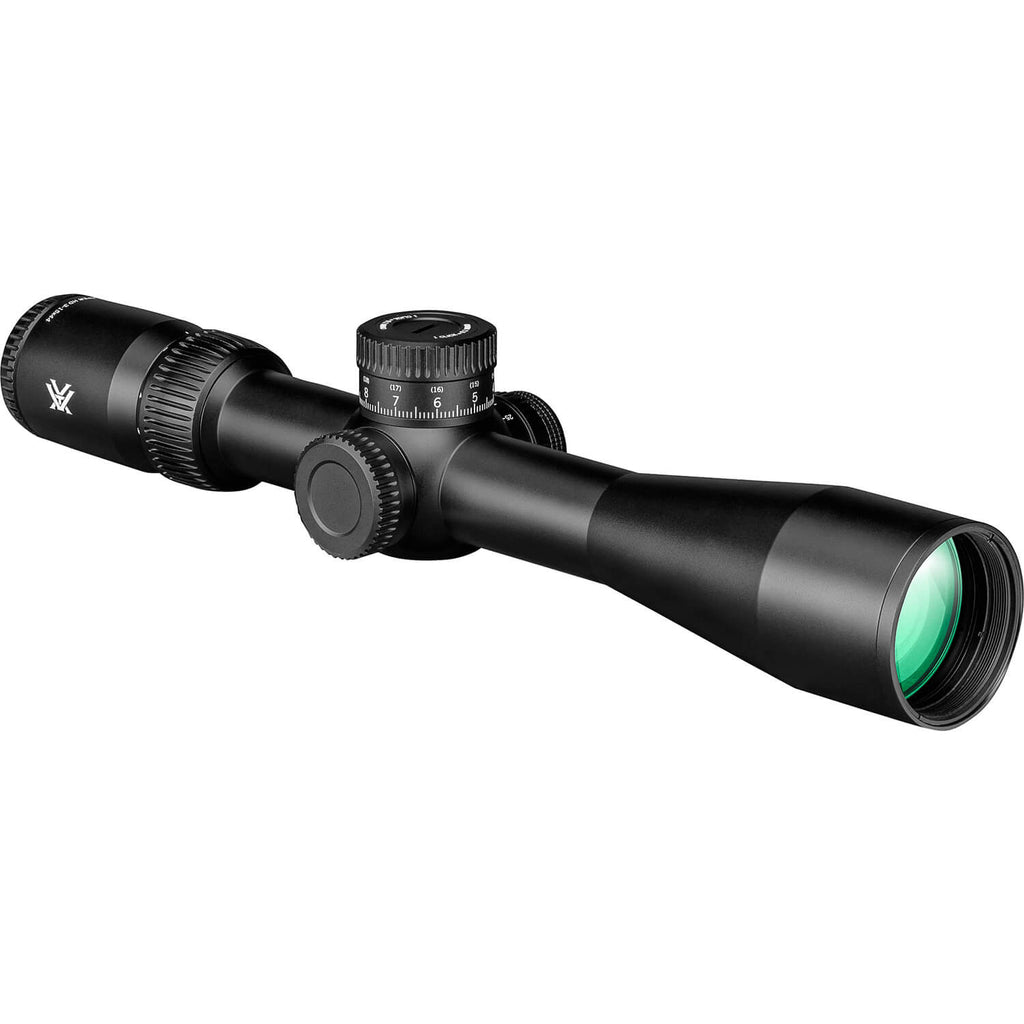

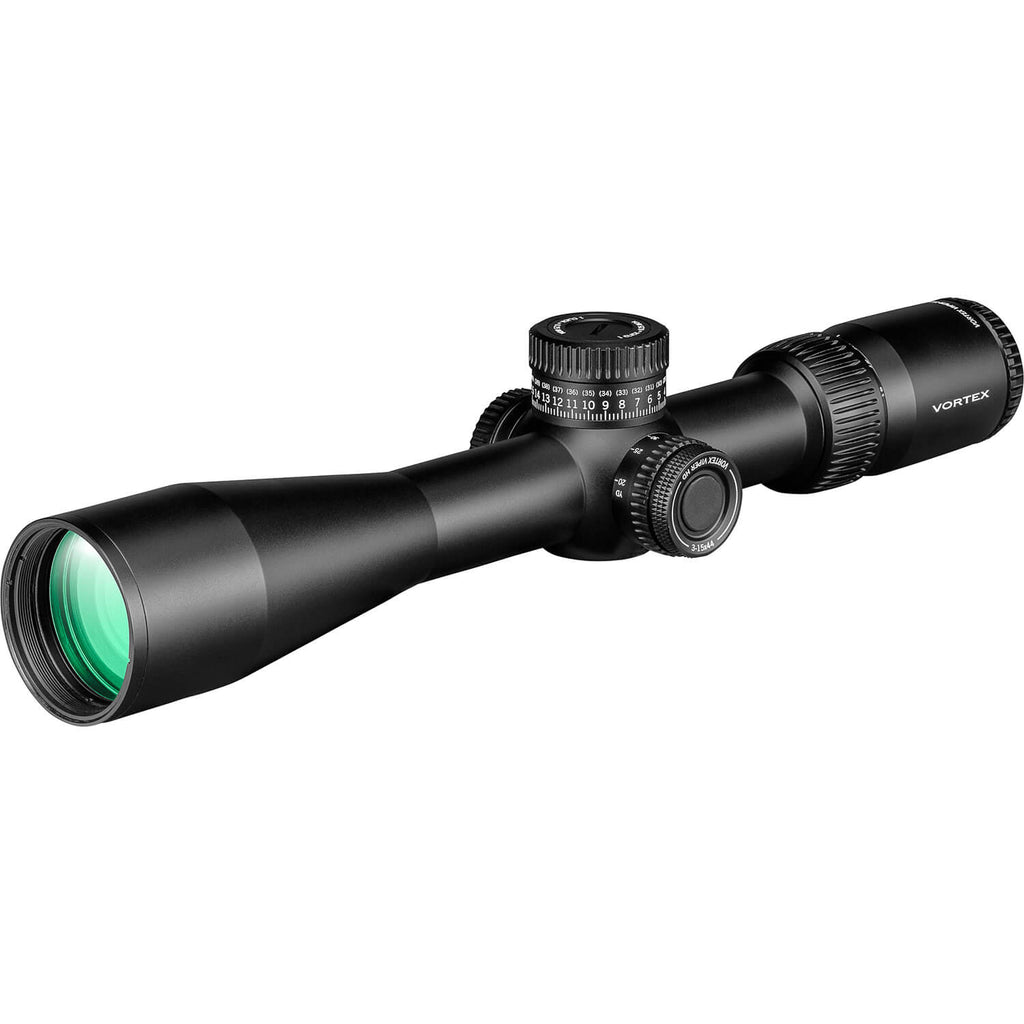

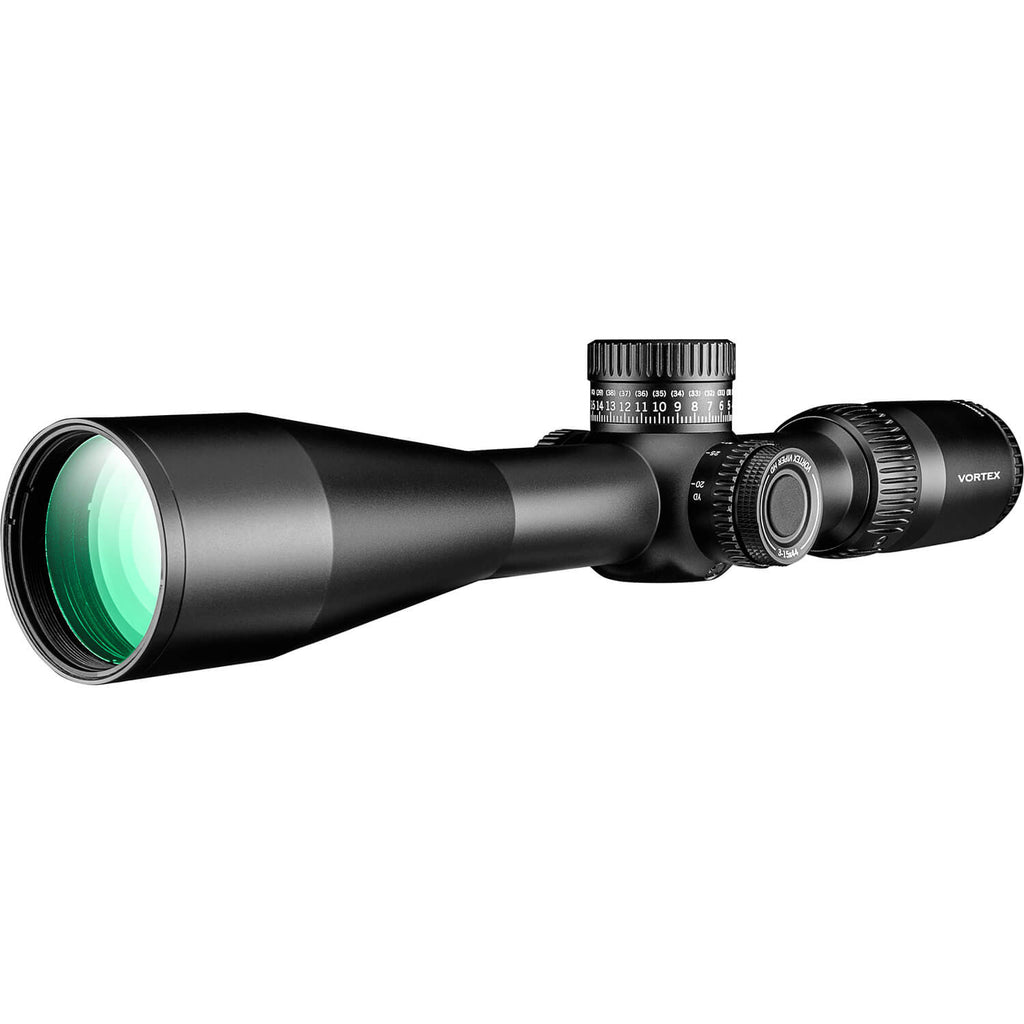

When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD riflescopes. From predators to big game, river bottoms to the Rockies, there’s a field-proven configuration for every hunting application. Ultra-rugged. Remarkably adaptable. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while excelling in the low light of dawn and dusk when game is most active
Features
- HD OPTICAL SYSTEM
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide
outstanding color fidelity, edge-to-edge sharpness and light transmission. - ILLUMINATED RETICLE
Provides precise aiming under low-light conditions. - 30mm MAIN TUBE
For increased travel. - REVSTOP® ZERO SYSTEM
(ON SELECT MODELS) For a rock-solid return to zero after turret adjustments. - EXPOSED LOCKING ELEVATION TURRET
(ON SELECT MODELS) Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments
WHAT’S IN THE BOX
- Neoprene Cover
- Sunshade
- Lens Cloth
- CR2032 Battery
Specs
| RETICLE | VMR-3 MOA |
| FOCAL PLANE | SFP |
| ILLUMINATION SETTINGS | 10 Daylight |
| LINEAR FIELD OF VIEW (@100 YDS.) | 39.9' - 8.0' |
| ZERO STOP SYSTEM | RevStop® |
| TURRET STYLE | Elevation - Exposed Windage - Capped |
| TUBE SIZE | 30mm |
| ADJUSTMENT GRADUATION | 1/4 MOA |
| TRAVEL PER ROTATION | 25 MOA |
| MAX ELEVATION ADJUSTMENT | 102 MOA |
| MAX ELEVATION ADJUSTMENT W/ REVSTOP® INSTALLED | 47 MOA |
| MAX WINDAGE ADJUSTMENT | 92 MOA |
| PARALLAX SETTING | 20 yds. - ∞ |
| LENGTH | 13.2" |
| WEIGHT | 22.3 oz |
| Magnification Range | 3-15x |
| Objective Lens Diameter | 44mm |
Specs Highlights:
RETICLE
VMR-3 MRAD
FOCAL PLANE
SFP
EYE RELIEF
3.4"
TUBE SIZE
30mm
LENGTH
13.2"
WEIGHT
22.3 oz
| RETICLE | VMR-3 MRAD |
| FOCAL PLANE | SFP |
| ILLUMINATION SETTINGS | 10 Daylight |
| EYE RELIEF | 3.4" |
| LINEAR FIELD OF VIEW (@100 YDS.) | 39.9' - 8.0' |
| ZERO STOP SYSTEM | RevStop® |
| TURRET STYLE | Elevation - Exposed Windage - Capped |
| TUBE SIZE | 30mm |
| ADJUSTMENT GRADUATION | 0.1 MRAD |
| TRAVEL PER ROTATION | 10 MRAD |
| MAX ELEVATION ADJUSTMENT | 30.5 MRAD |
| MAX ELEVATION ADJUSTMENT W/ REVSTOP® INSTALLED | 18.9 MRAD |
| MAX WINDAGE ADJUSTMENT | 27 MRAD |
| PARALLAX SETTING | 20 yds. - ∞ |
| LENGTH | 13.2" |
| WEIGHT | 22.3 oz |
| Magnification Range | 3-15x |
| Objective Lens Diameter | 44mm |
