Description

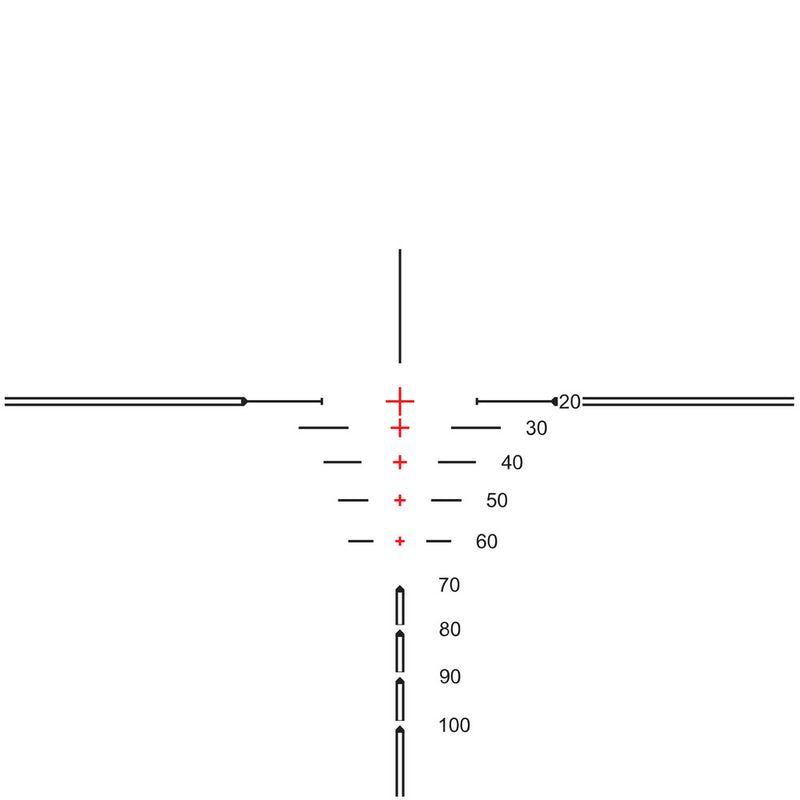

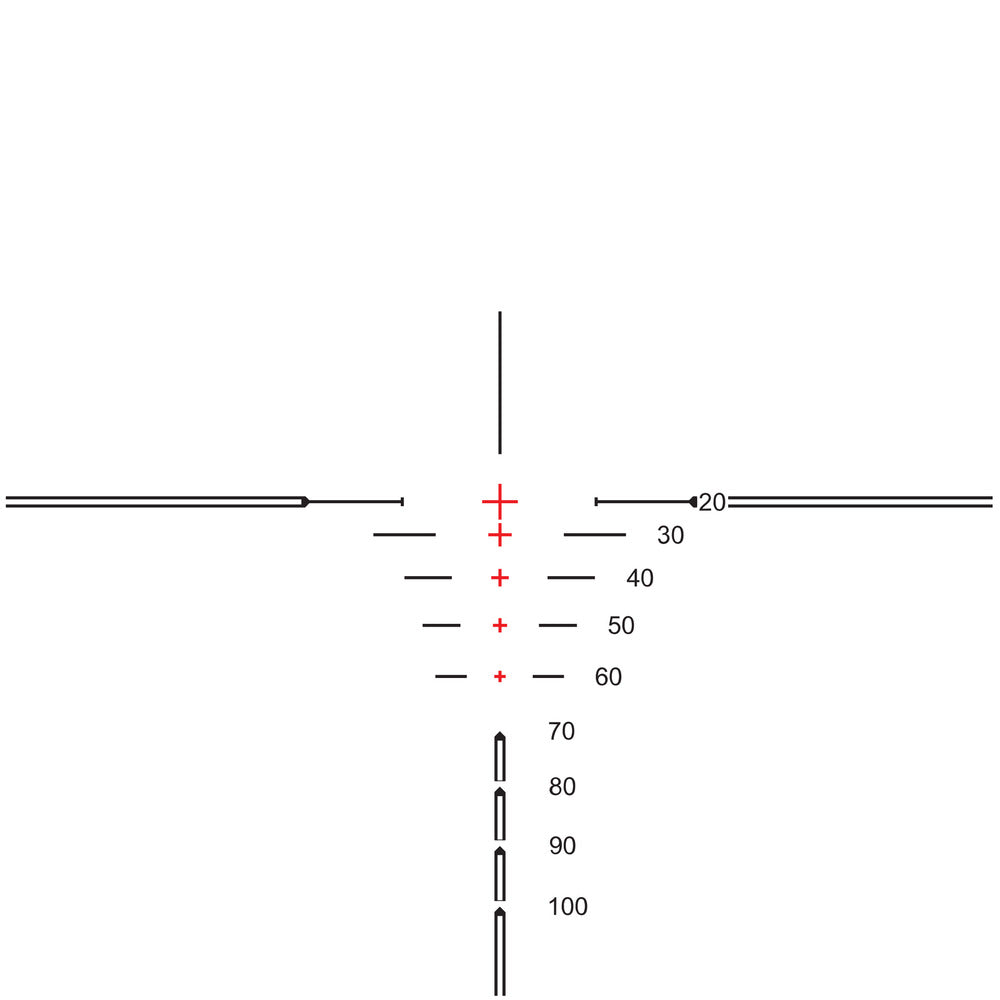

10yd aim points from a 20yd zero out to 100yds. Bracketing of 4 or 8 inches and aim marks measuring 1.5 inches across at the corresponding distances. Speeds from 250 to 425 fps.
Features
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- Illumination
- 1⁄2 MOA low-profile fingertip turrets
- Fixed parallax at 45 metres
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- Suitable speeds 250fps - 425fps
Specs
Specs Highlights:
Magnification
1.5 - 5x
Objective Lens
32mm
Reticle
XB1 SR
Parallax
Fixed
Focal Plane
SFP (Second Focal Plane)
Field of View
75 - 22.5ft @100yds
Field of View (°)
14.3 - 4.3
Eye Relief
3in
Exit Pupil
0.84 - 0.25″

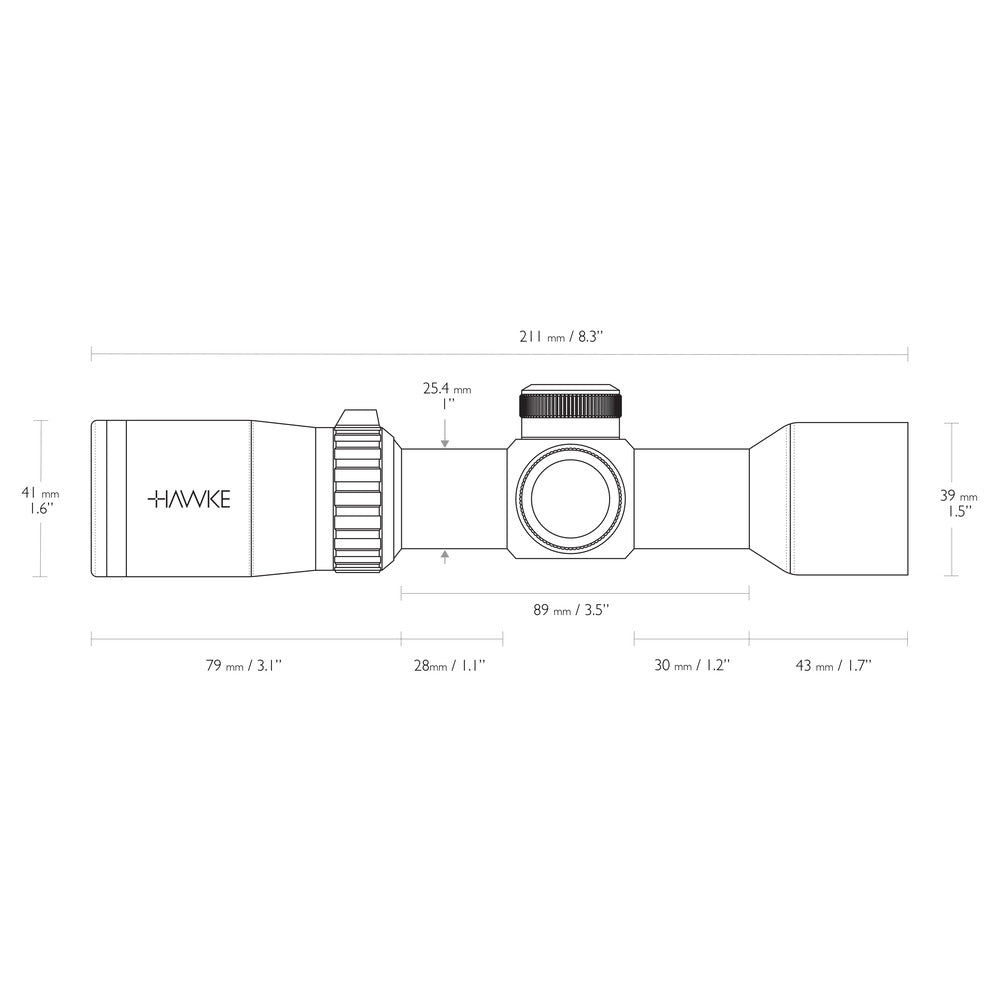

Length
8.3in
Weight
13oz
| Scope Tube | 1 Inch |
| Magnification | 1.5 - 5x |
| Objective Lens | 32mm |
| Reticle | XB1 SR |
| Illumination | 5 Levels (Red & Green) |
| Illumination Control | Stepped Rheostat |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Fully Multi-Coated | Fully Multi-Coated |
| Optical System | System H2 |
| Field of View | 75 - 22.5ft @100yds |
| Field of View (°) | 14.3 - 4.3 |
| Eye Relief | 3in |
| PX/Focus | 50yds |
| Click Value | 1⁄ 2MOA |
| Exit Pupil | 0.84 - 0.25″ |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Elevation Turret Clicks (max) | 120 MOA |
| Length | 8.3in |
| Weight | 13oz |
