Specs Highlights:
Magnification
2 – 12 ×
Effective lens diameter
19.4 – 50 mm
Eye relief
90 mm (3.54 ")
Length
335 mm (13.2 ")
Magnification | 2 – 12 × |
Effective lens diameter | 19.4 – 50 mm |
Light transmission | 92% |
Exit pupil diameter | 9.7 – 4.2 mm |
Twilight factor | 5.7 – 24.5 |
Field of view at 100 m (yds) | 20.5 – 3.4 m (62 – 10 ft) |
Objective viewing angle | 11.7° – 2.0° |
Diopter adjustment range | + 2.0 |
Eye relief | 90 mm (3.54 ") |
Parallax setting | 100 m (109 yds) |
Square adjustment range at 100 m | 250 cm |

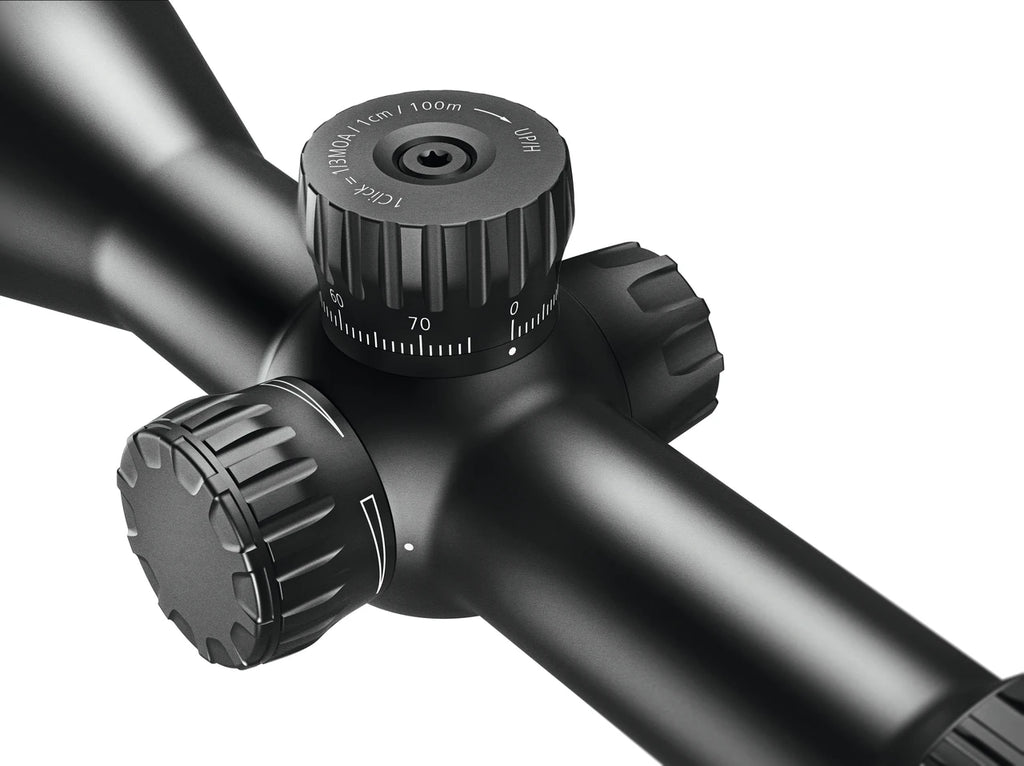

Adjustment per click at 100 m | 1 cm |
Centre tube diameter | 30 mm |
Eyepiece tube diameter | 45.5 mm |
Objective tube diameter | 56 mm |
LotuTec | + |
Water resistance | 400 mbar |
Operating temperature | − 25°C |
Length | 335 mm (13.2 ") |
Weight (without inner rail) | 620 g (21.9 oz) |
Weight (with inner rail) | 655 g (23.1 oz) |
