Description

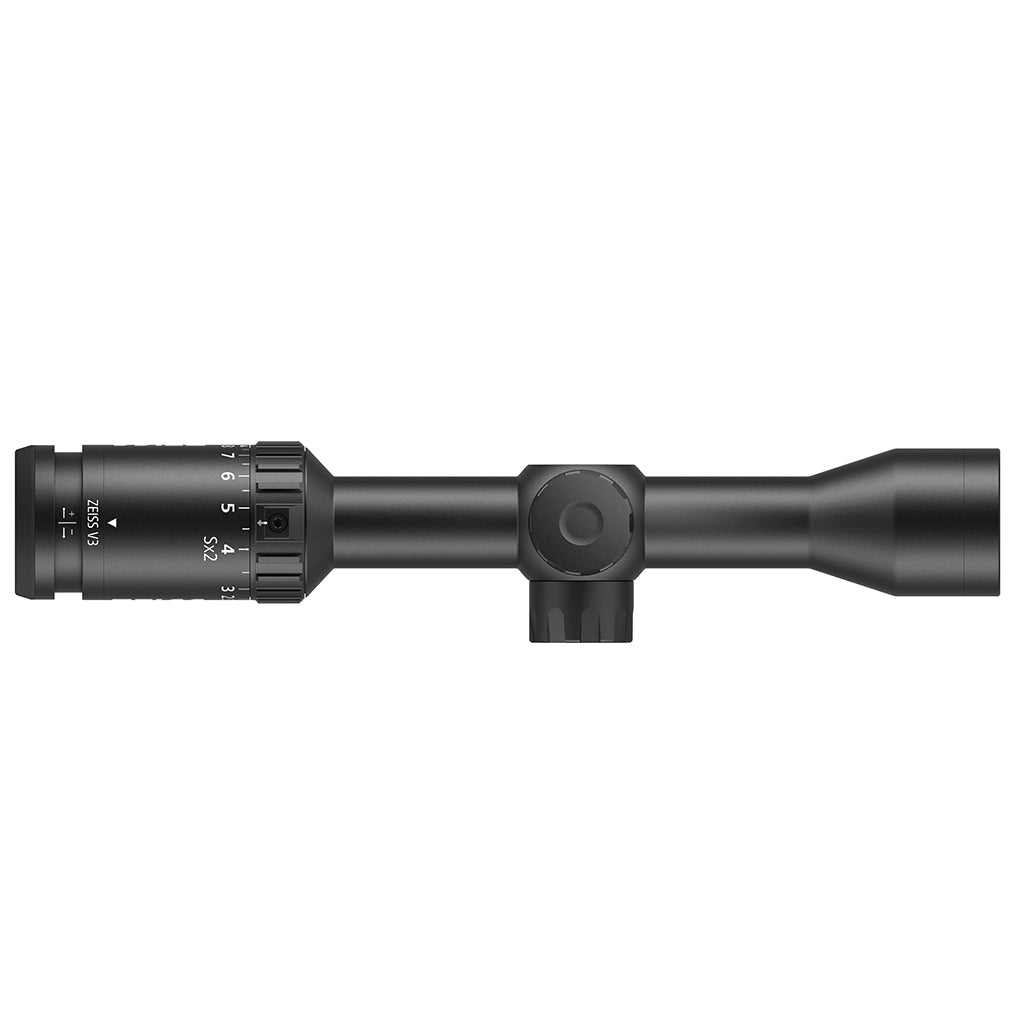

V3 with High-Performance (HP) Optical System
The gateway riflescope to ZEISS quality, with optimized prescription and indexed lenses, a 3x zoom ratio, utilizing fully multi-coated lens coatings, and hydrophobic protective lens coating.
Brighter Viewing Experience
from HP Optics with ZEISS BrightTM Technology
• Delivering at least 90% light transmission to the eye
• High-Performance (HP) optical system
• Fully multi-coated lenses for better light transmission and color fidelity
• Hydrophobic lens coating for repelling water, dust, dirt, and fingerprints
Lightweight & Compact
ideal for most hunting rifles and types of actions
• Lighter designs and shorter footprints
• 3x zoom ratio
• 1-inch* and 30 mm* maintube options
• Weight*: 12.6 – 18.7 ounces (357 – 530 grams)
• Length*: 10.7 – 13.1 inches (274 – 333 mm)
Usability and Versatility
for hunting
• European-style fast-focus adjustable diopter
• Optimized mounting space for ring placement
• Fixed Parallax
@ 50 yards: 2.5-8x35 RF model
@ 150 yards: 2.5-8x35, 3.5-10x42,
and 4.5-14x44* models
• Side Adjustable Parallax: 25 yards – Infinity,
for 4.5-14x44, 4.5-14x50, and 6-18x50 models
Repeatable, Positive, and Tactile
turrets and adjustments

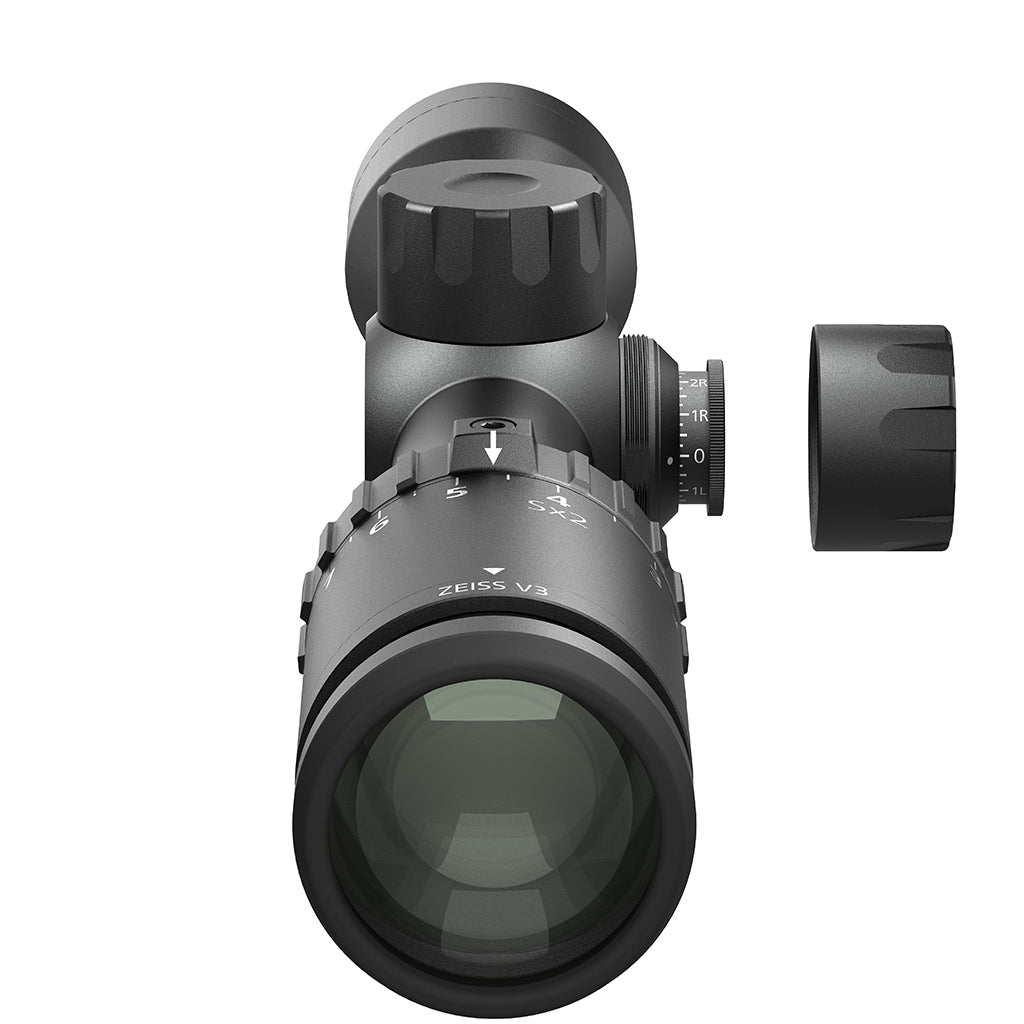

• Capped Elevation and Windage Turrets: Standard
- Waterproof with cap removed

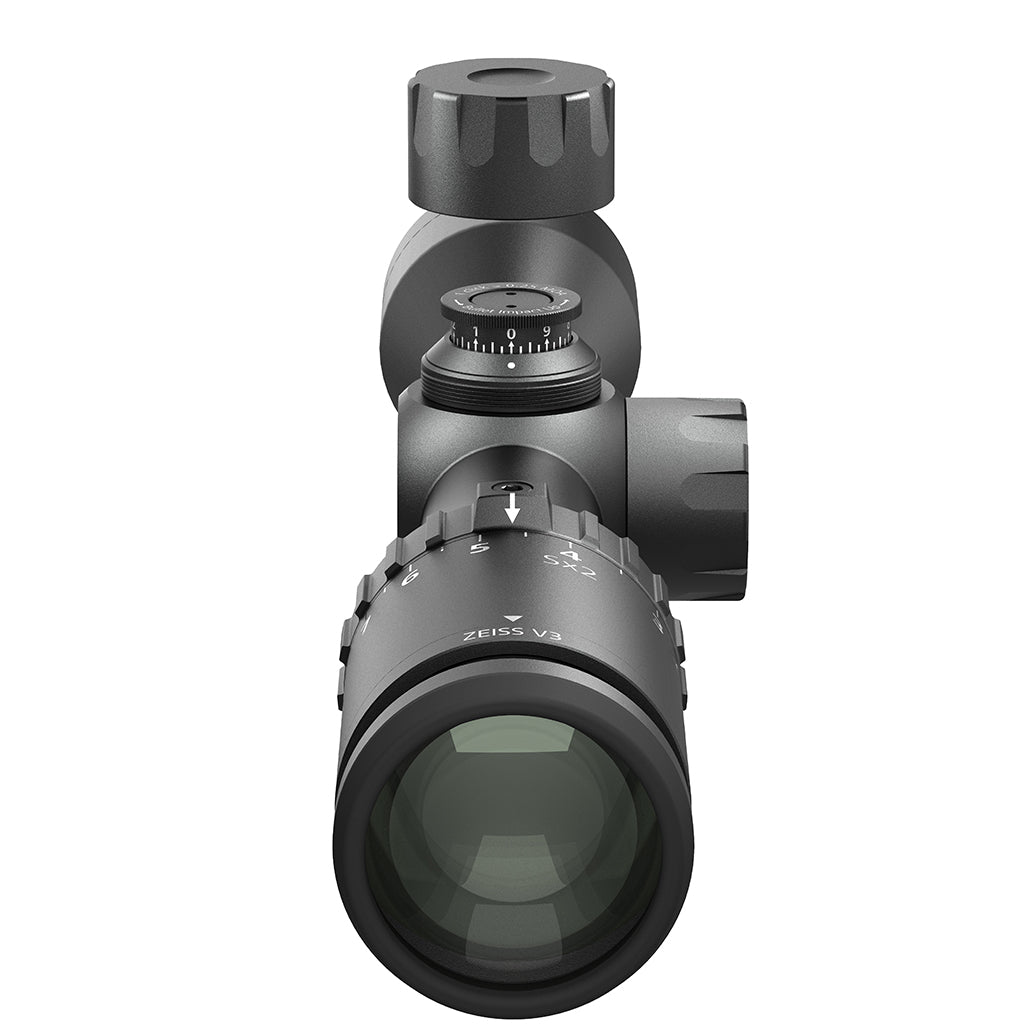

• External Elevation w/ Ballistic Stop: Optional*
• Metal-on-Metal Construction
• 0.25 MOA per-click value – 10 MOA per rotation
• 80-100 MOA total elevation travel*
• Optimized engravings for better readability and
faster adjustments
Reticles Designed for Hunting
Second Focal Plane
• Traditional and modernized reticle options
• MOA designs (XRR, SHR, and SHRi)
• Center-Dot Illumination: As an option
- Rheostat controlled
- Red in color
- 10 intensity levels – off between settings
- Auto-off feature – 3-hour time out
• Battery: Coin-type 2032
Specs
| Model | 2.5 –8×35 |
| Magnification | 2.5 x – 8 x |
| Focal Plane | Second |
| Effective Lens Diameter | 29.1 mm - 35.0 mm |
| Exit Pupil Diameter | 11.6 mm - 4.4 mm |
| Twilight Facto | 8.53 - 16.73 |
| Field of View at 100 yds | 48.17 - 14.78 feet |
| Angular Field of View, Real | 9.08° - 2.82 |
| Diopter Range | 3 / + 2.5 |
| Eye Relief | 3.4 inches |
| Parallax Setting | 150 yds |
| Elevation Adjustment Range | 80 MOA |
| Windage Adjustment Range | 60 MOA |
| Click Value | 0.25 MOA |
| Main Tube Diameter | 1-inch |
| Eyepiece Tube Diameter | 43 mm |
| Objective Tube Diamete | 41 mm |
| Lens Coatings | Fully Multi-Coated |
| Waterproof | 3.3 feet (1 m) for 1-hour |
| Operating Temperature | -4 / +122°F |
| Length @ Neutral Diopter | 10.74 in |
| Weight w/ Capped Turrets (oz) | 12.6 oz |

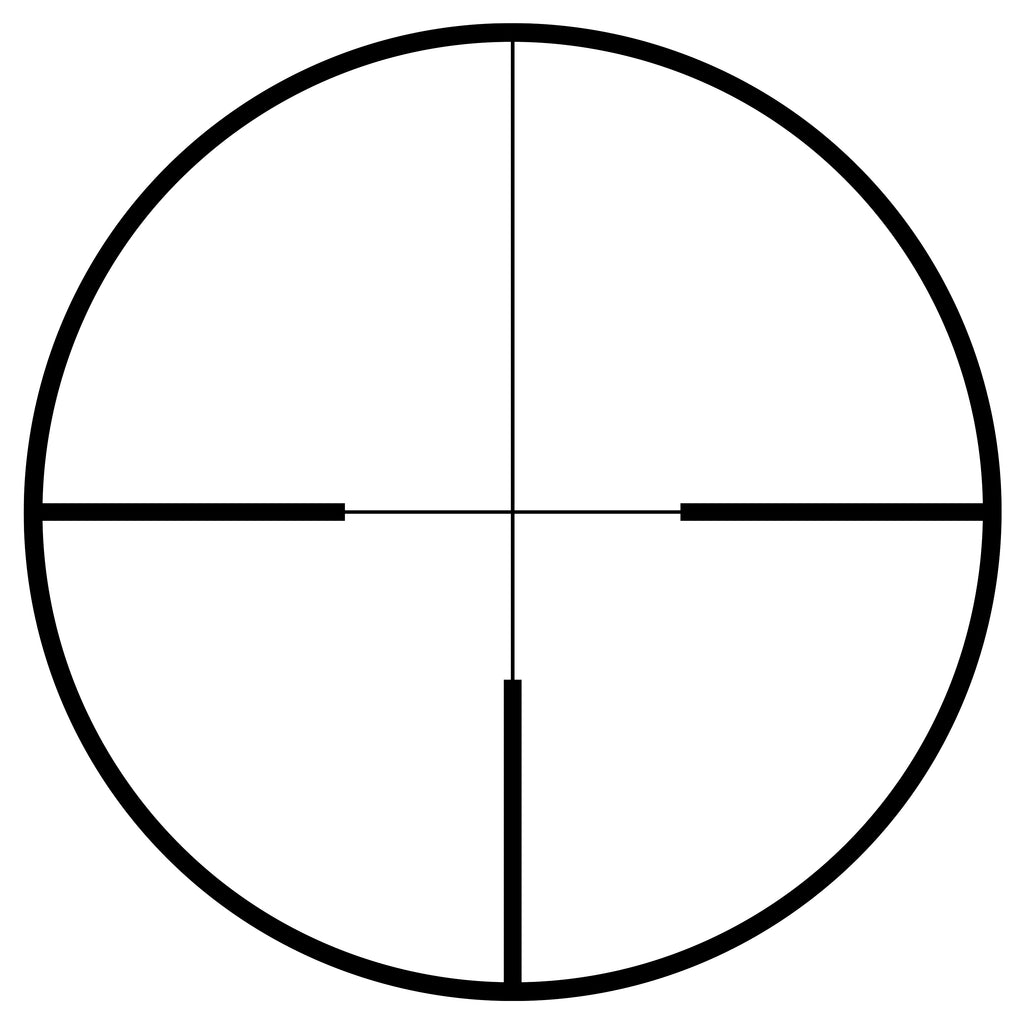

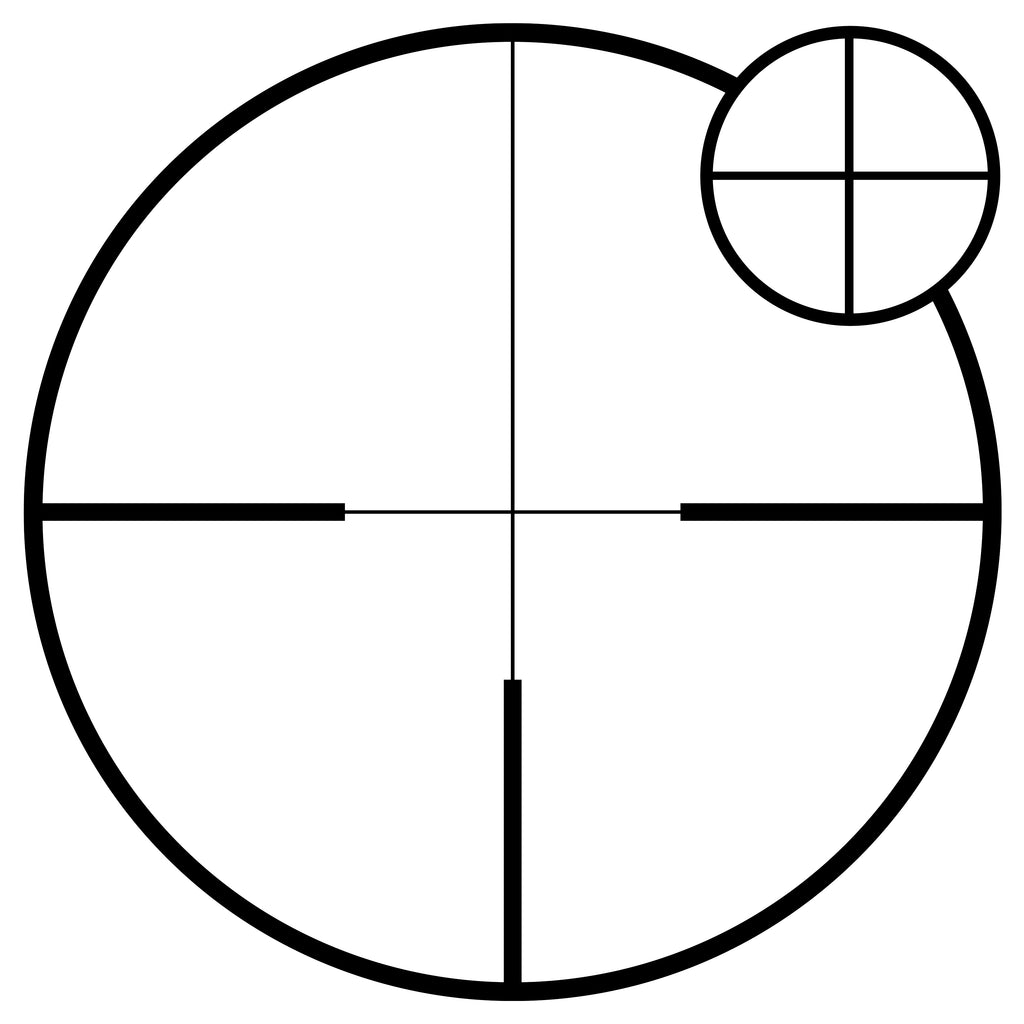

| Reticles | Duplex Reticle (#6) |
